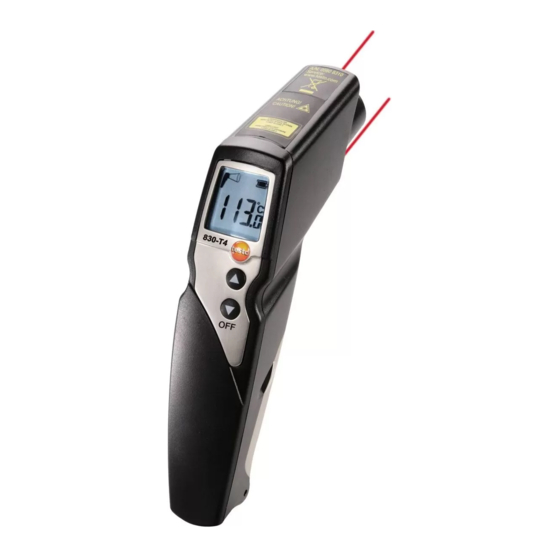

testo 830-T4
Instruction manual
99 Washington Street
Melrose, MA 02176
Phone 781-665-1400
Toll Free 1-800-517-8431
Visit us at www.TestEquipmentDepot.com

Advertisement

Table of Contents
loading

Related Manuals for TESTO 830-T4

Summary of Contents for TESTO 830-T4

  • Page 1 830-T4 Instruction manual 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com...

  • Page 2: General Information

    1. Genaral Information 9 1. General Information Please read this document through carefully and familiarise yourself with the operation of the product before putting it to use. Keep this documentation to hand so that you can refer to it when necessary.

  • Page 3: Intended Use

    We will ensure that it is disposed of in an environmentally friendly manner. 4. Intended Use testo 830 is a compact infrared thermometer for the non-contact measurement of surface temperatures. A contact measurement can additionally be made with a connected probe.

  • Page 4: Operation

    7. Operation 11 7. Operation 7.1 Connecting probe Connect temperature probe to probe socket. Observe +/-! 7.2 Switching on/off Switch on instrument: or measurement button. - All display segments light up briefly. The instrument changes to the infrared mode ( lights up).

  • Page 5: Service And Maintenance

    8. Settings 8. Settings Instrument is switched off If no button is activated in the setting mode for 3 s, the instrument changes to the next mode. 1 Keep pressed. - All display segments light up briefly. The instrument changes to the setting mode.

  • Page 6: Questions And Answers

    11.2 Emissivity Materials have different emissivities, i.e. they emit different levels of electromagnetic radiation. The emissivity of testo 830 is set in the factory to 0.95. This is the ideal value for measuring non- metals (paper, ceramics, plaster, wood, paints and varnishes), plastics and food.
  • Page 7 11.3 Measurement spot, Distance A specific spot is determined depending on the distance from the measuring instrument to the object being measured. Measurement optics (Ratio Distance : Measurement spot) testo 830-T4 Ø 100 mm Ø 68 mm Ø 16 mm Ø...
  • Page 8 12. Information on contact measurement 15 12. Information on contact measurement Observe minimum penetration depth in immersion/penetration probes: 10 x probe diameter Avoid applications in corrosive acids or bases. Do not use spring-loaded surface probes on sharp edges.
  • Page 9 Test Equipment Depot - 800.517.8431 99 Washington Street, Melrose, MA 02176 TestEquipmentDepot.com 0977.8302/03/Sh/wh/12.12.2008...
