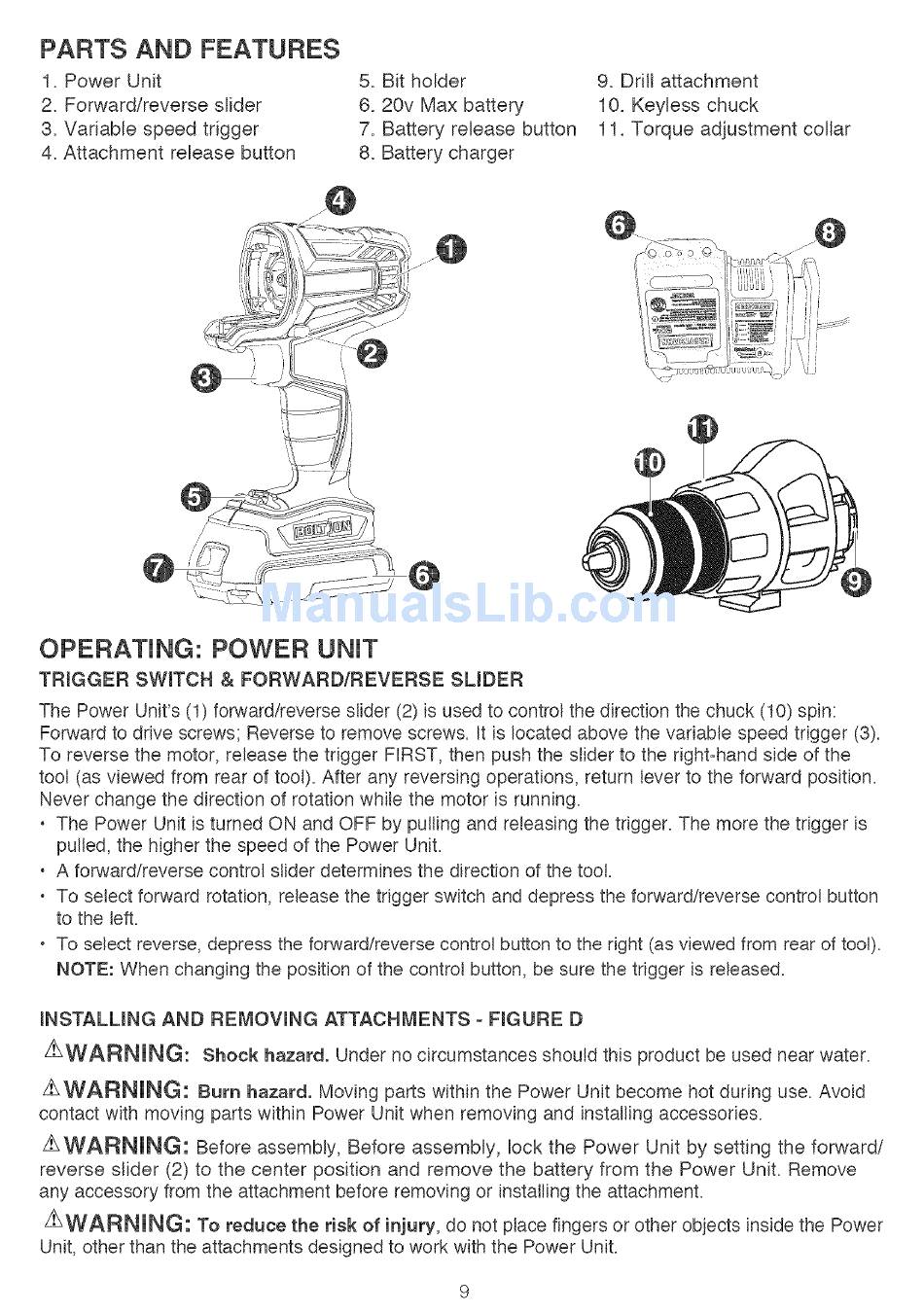

PARTS
AND FEATURES
1. Power Unit
2. Forward/reverse slider
3. Variable speed trigger
4. Attachment release button
5. Bit holder
6_ 20v Max battery
7. Battery release button
8. Battery charger
j J@
9. Drill attachment
10. Keyless chuck
11. Torque adjustment collar
@
OPERATMNG: POWER UNMT
TRmGGER SWITCH & FORWARD/REVERSE SLIDER
The Power Unit's (1) forward/reverse slider (2) is used to control the direction the chuck (10) spin:
Forward to drive screws; Reverse to remove screws. It is located above the variable speed trigger (3).
To reverse the motor, release the trigger FIRST, then push the slider to the right-hand side of the
tool (as viewed from rear of tool). After any reversing operations, return lever to the forward position.
Never change the direction of rotation while the motor is running.
° The Power Unit is turned ON and OFF by pulling and releasing the trigger. The more the trigger is
pulled, the higher the speed of the Power Unit.
° A forward/reverse control slider determines the direction of the too!.
° To select forward rotation, release the trigger switch and depress the forward/reverse control button
to the left.
, To select reverse, depress the forward/reverse contro! button to the right (as viewed from rear of too!).
NOTE: When changing the position of the control button, be sure the trigger is released.
INSTALMNG AND REMOVING ATTACHMENTS - FIGURE D
z_WARNING:
Shock hazard. Under no circumstances should this product be used near water.
ZLWARNING:
Burn hazard. Moving parts within the Power Unit become hot during use. Avoid
contact with moving parts within Power Unit when removing and installing accessories.
z_WARNING:
Before assembly, Before assembly, lock the Power Unit by setting the forward/
reverse slider (2) to the center position and remove the battery from the Power UniL Remove
any accessory from the attachment before removing or installing the attachmenL
zLWARNING:
To reduce the risk of injury, do not place fingers or other objects inside the Power
Unit, other than the attachments designed to work with the Power Unit.
