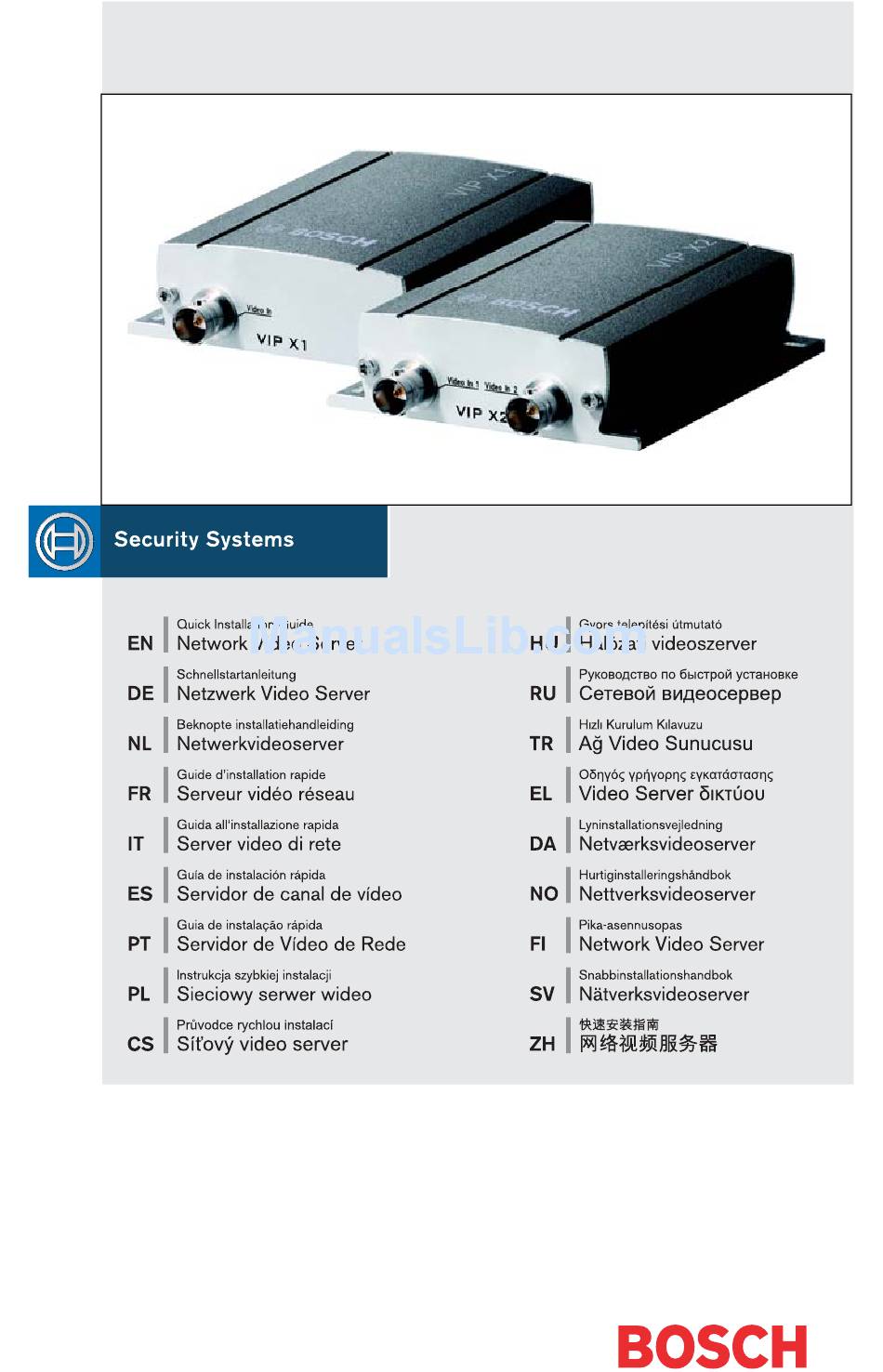

- Page 1 VIP X1/VIP X2 – Network video server...
- Page 2 These instructions "Quick Installation Guide" refer to the units VIP X1 and VIP X2, both in basic and in audio version. The title shows the basic versions of VIP X1 and VIP X2. In the drawings the VIP X1 in audio version is displayed standing for all versions.
-
Page 3: Contents Of Delivery
EN | 3 VIP X1/VIP X2 | Quick Installation Guide Lieferumfang Contents of delivery • VIP X1 (oder VIP X2) Netzwerk Video Server, • VIP X1 (or VIP X2) Network Video Server, Basisversion oder Audioversion basic version or audio version •... - Page 4 EN | 4 VIP X1/VIP X2 | Quick Installation Guide • Please check the delivery for completeness and integrity. • Have your unit checked by Bosch Security Systems if you detect any damages! Bosch Security Systems | 2005-10 | V1.5...
- Page 5 EN | 5 VIP X1/VIP X2 | Quick Installation Guide • Connect the free leads of the configuration cable to the spring clamp connector that is already connected to the power outlet. • Connect the spring clamp connector to the orange socket of the unit.
- Page 6 EN | 6 VIP X1/VIP X2 | Quick Installation Guide • Start the terminal program, enter service as user name. • Enter the command 1 to open the IP menu. • Enter the command 1 followed by the desired IP address (e.g. 192.168.0.30). The new IP address is displayed and is valid after a reboot.
- Page 7 • Remove the leads of the configuration cable from the spring clamp connector. • VIP X1: Connect the camera with the Video In socket. VIP X2: Connect one camera to each, the Video In 1 socket and the Video In 2 socket.
- Page 8 EN | 8 VIP X1/VIP X2 | Quick Installation Guide • Connect the alarm switches and the relay connections to the corresponding terminals. • Connect the unit to the network via th ETH socket. • Plug the power outlet into the mains outlet again.
- Page 9 EN | 9 VIP X1/VIP X2 | Quick Installation Guide Units with audio only: • Use the jack sockets for audio line connections. • Connect the microphone and the speaker connection to the corresponding terminals. Bosch Security Systems | 2005-10 | V1.5...
- Page 10 EN | 10 VIP X1/VIP X2 | Quick Installation Guide • Start your web browser and enter the IP address of the respective unit as URL (e.g. http://192.168.0.30) to check that the unit is properly connected to the network. • Note: The graphic adapter of your computer must be set to 16 bits or 32 bits color depth, other- wise the video pictures cannot be displayed.
- Page 11 EN | 11 VIP X1/VIP X2 | Quick Installation Guide • Click on the link SETTINGS. • Click on the buttons in the Overview or on the navigation links in the left part of the window to configure the various parameters of the unit.
