Page 1: Quick Installation Guide

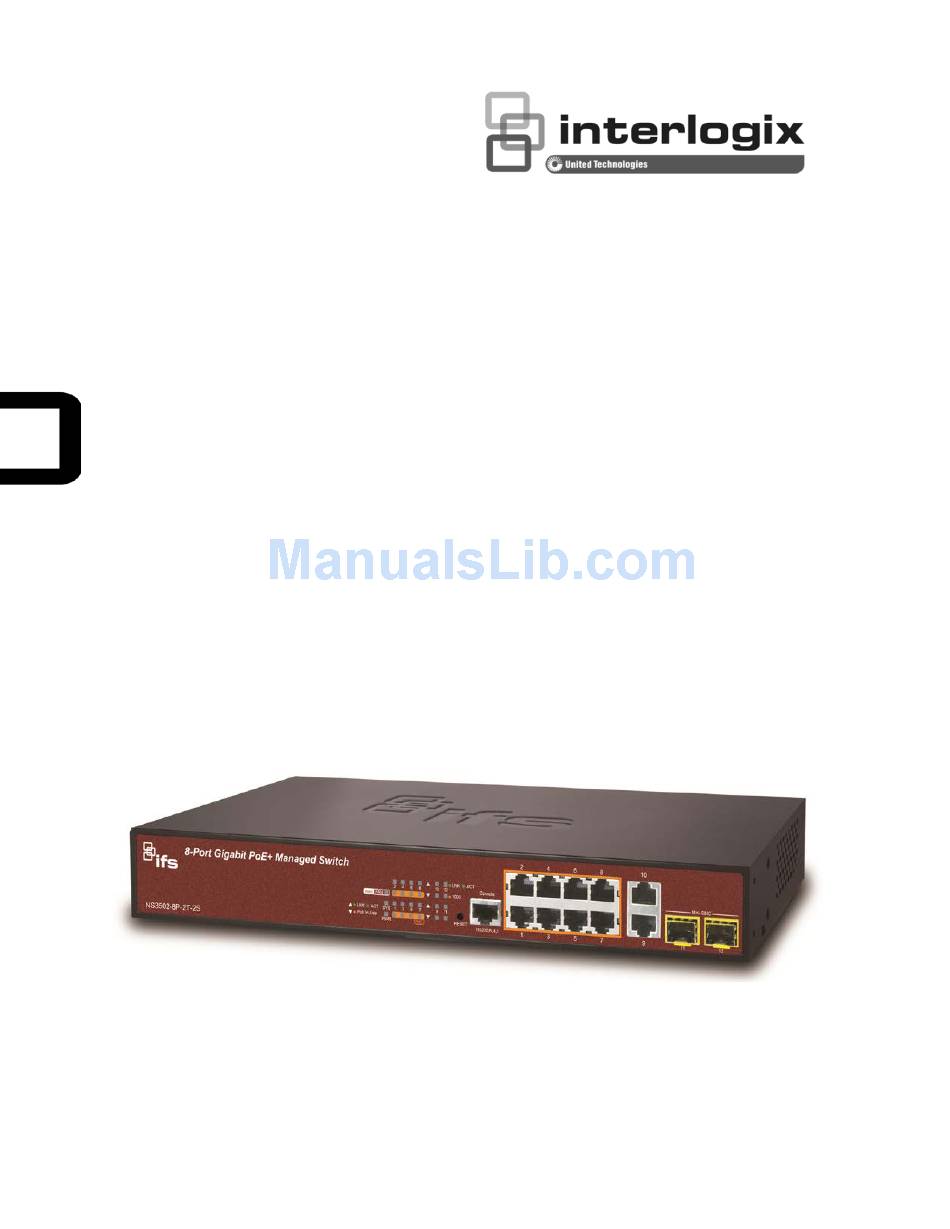

NS3502-8P-2T-2S 8 Port Managed Gigabit POE+ Ethernet Switch With 2 RJ45 and 2 SFP Port Uplinks Quick Installation Guide P/N 1073218A • REV A • ISS 6OCT16... - Page 2 Copyright © 2016 United Technologies Corporation, Interlogix is part of UTC Climate, Controls & Security, a unit of United Technologies Corporation. All rights reserved. Trademarks Trade names used in this document may be trademarks or registered trademarks of the and patents manufacturers or vendors of the respective products.
-
Page 3: Table Of Contents
Table of Contents 1. PACKAGE CONTENTS ......................... 4 2. REQUIREMENTS ........................... 4 3. TERMINAL SETUP..........................5 4. LOGON TO CONSOLE .......................... 6 5. CONFIGURING IP ADDRESS ........................ 6 6. STARTING WEB MANAGEMENT ......................8 7. SAVING CONFIGURATION ......................... 10 8. RECOVERING BACK TO DEFAULT CONFIGURATION ..............11... -
Page 4: Package Contents
Ports Ports Slots Slots NS3502-8P-2T-2S “Managed Switch” is used as an alternative name in this Quick Installation Guide. Open the box of the Managed Switch and carefully unpack it. The box should contain the following items: The Managed Switch ... -
Page 5: Terminal Setup
3. Terminal Setup To configure the system, connect a serial cable to a COM port on a PC or notebook computer and to RJ45 type of serial port of the Managed Switch. Figure 3-1 Managed Switch Console Connectivity A terminal program is required to make the software connection to the Managed Switch. Run terminal program on the OS. -
Page 6: Logon To Console
To check the current IP address or modify a new IP address for the Switch, please use the procedures as follows: Show the current IP Address At the “#” prompt, enter “show ip interface brief”. The screen displays the current IP address as shown in Figure 5-1. NS3502-8P-2T-2S # show ip interface brief Vlan Address Method Status 192.168.0.100... - Page 7 Subnet Mask: 255.255.255.0 NS3502-8P-2T-2S # config terminal NS3502-8P-2T-2S (config) # interface vlan 1 NS3502-8P-2T-2S (config-if-vlan) # ip address 192.168.0.100 255.255.255.0 NS3502-8P-2T-2S (config-if-vlan) # Figure 5-2: Configuring IP Address Screen Repeat step 1 to check if the IP address is changed.
-
Page 8: Starting Web Management
6. Starting Web Management The following shows how to start up the Web Management of the Managed Switch. Note the Managed Switch is configured through an Ethernet connection. Please make sure the manager PC must be set on the same IP subnet address. - Page 9 3. After entering the password, the main screen appears as Figure 6-3 shows. Figure 6-3: Web Main Screen of Managed Switch The Switch Menu on the left of the Web page lets you access all the commands and statistics the Managed Switch provides.
-
Page 10: Saving Configuration
Now, you can use the Web management interface to continue the Switch management or manage the Switch by console interface. Please refer to the user’s manual for more. 7. Saving Configuration In the Managed Switch, the running configuration file stores in the RAM. In the current version, the running configuration sequence of running-config can be saved from the RAM to FLASH by executing save startup config command, so that the running configuration sequence becomes the startup configuration file, which is called configuration save. -
Page 11: Recovering Back To Default Configuration
10 seconds. After the device is rebooted, you can login the management Web interface within the same subnet of 192.168.0.xx. Figure 8-1: NS3502-8P-2T-2S Reset Button 9. Customer Support Thank you for purchasing IFS products. You can browse our online FAQ resource and User’s Manual on IFS Web site first to check if it could solve your issue.
