14

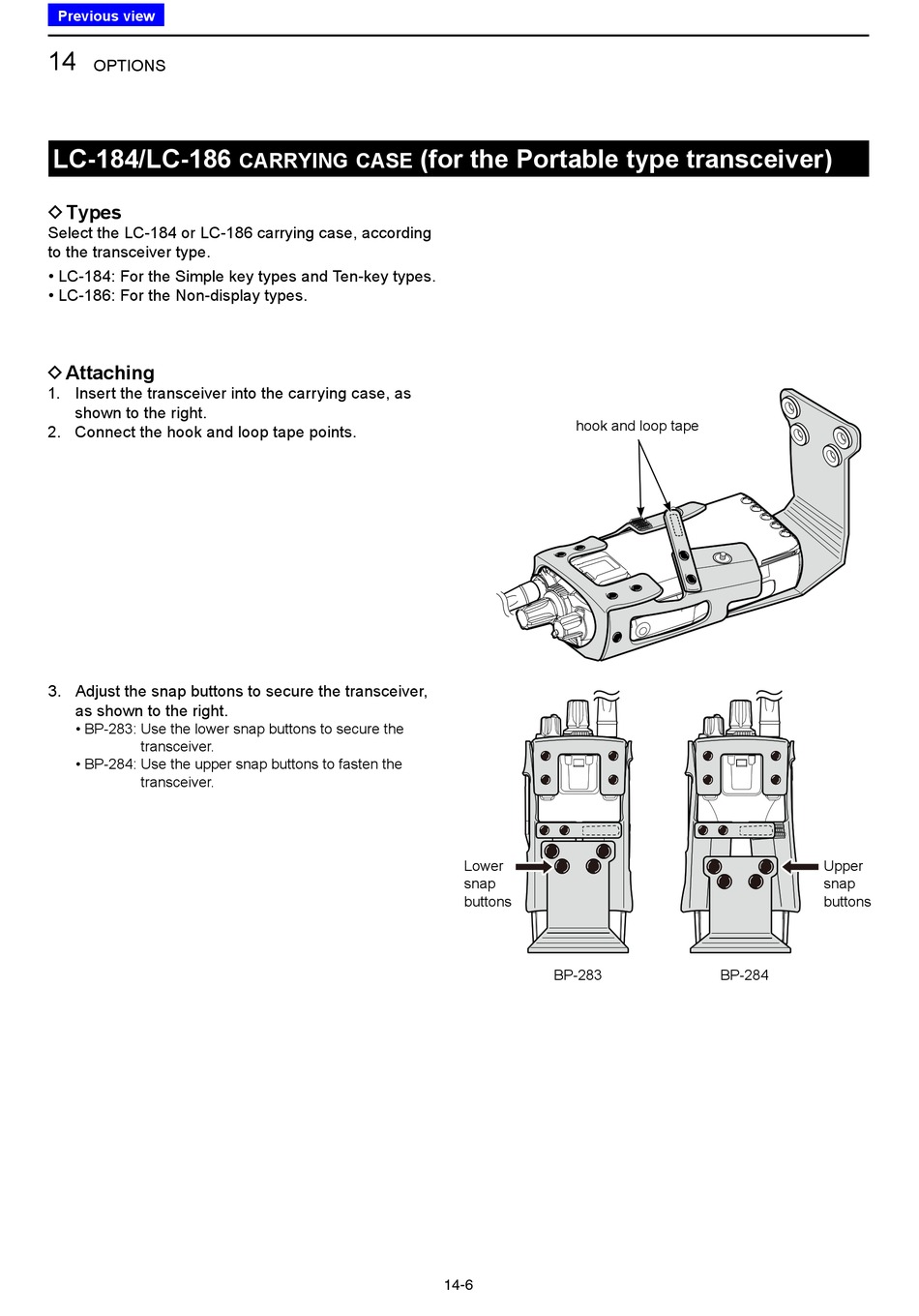

OPTIONS
LC-184/LC-186

D Types

Select the LC-184 or LC-186 carrying case, according
to the transceiver type.
• LC-184: For the Simple key types and Ten-key types.
• LC-186: For the Non-display types.

D Attaching

1. Insert the transceiver into the carrying case, as
shown to the right.
2. Connect the hook and loop tape points.
3. Adjust the snap buttons to secure the transceiver,
as shown to the right.
• BP-283: Use the lower snap buttons to secure the
transceiver.
• BP-284: Use the upper snap buttons to fasten the
transceiver.
carrying case
(for the Portable type transceiver)
hook and loop tape
Lower
snap
buttons
BP-283
14-6
Upper
snap
buttons
BP-284
