IPV5000, IPV5001, IPV6003, IPV6005, and IPV6006

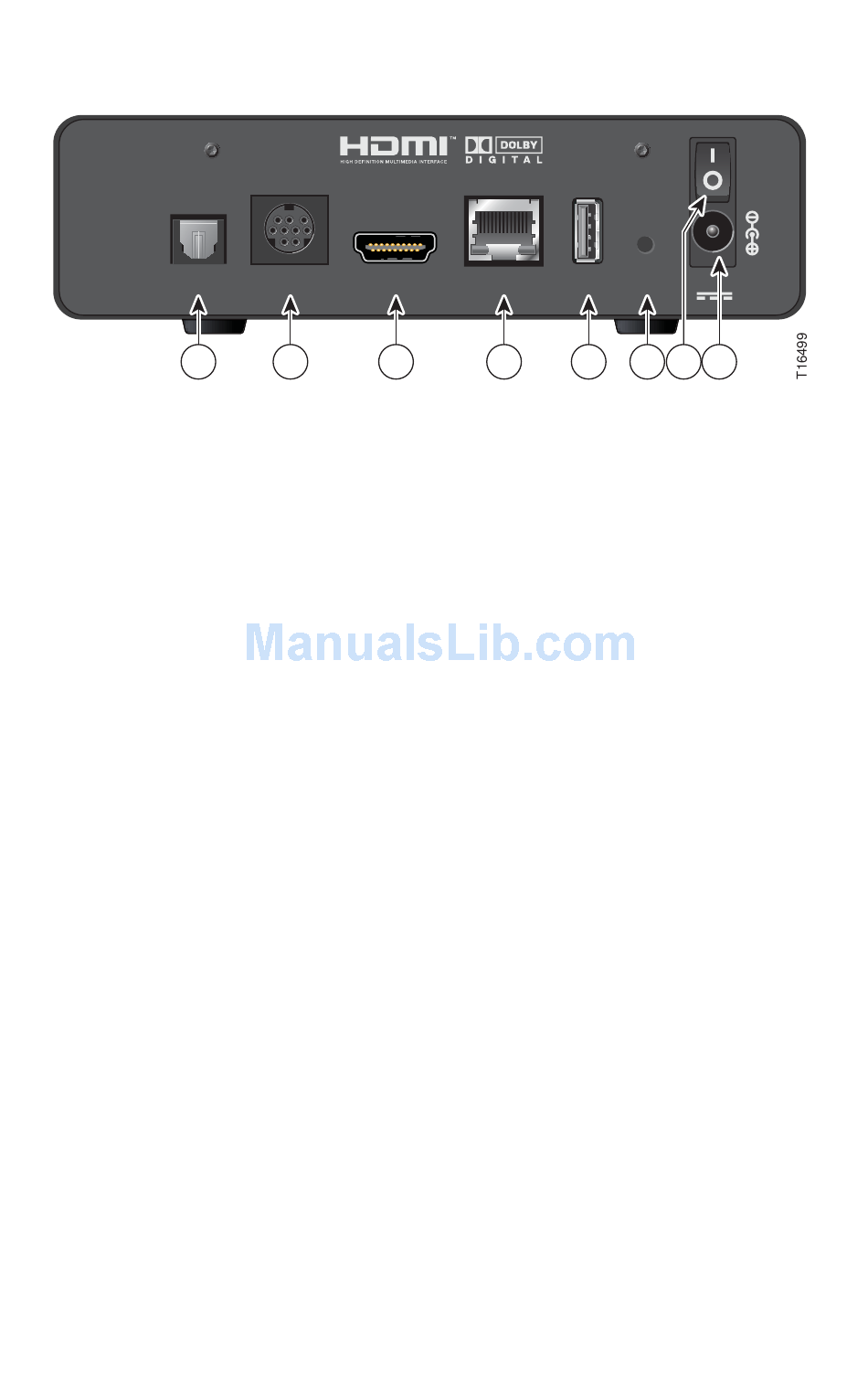

Back Panel
1 S/PDIF
2 SCART
3 HDMI
4 ETHERNET
5 USB Port
6 Reset
7 Power switch
8 Power
Note: This illustration may vary from the actual product.
S/PDIF SCART
1 2
Connect to an optical cable to send a digital audio signal to a surround
sound system or other digital audio device
Connect a MiniDin-to-SCART adapter cable to the SCART connector
on your HDTV or SDTV
Connect an HDTV HDMI (High-Defi nition Multimedia Interface) cable
from the HDTV to the HDMI port. HDMI supports both digital audio and
video. See page 14
Connect to Ethernet (CAT-5) network at your home, if applicable
USB connector
Press for one second to reboot the set-top
Toggle to switch the set-top on or off
Connect the DC output of the AC power adapter (provided) to deliver
power to the set-top. Use only the AC power adapter provided with
the set-top
HDMI ETHERNET
3 4
for more information
12V DC
USB Reset
5 6 7 8
9
