Page 1

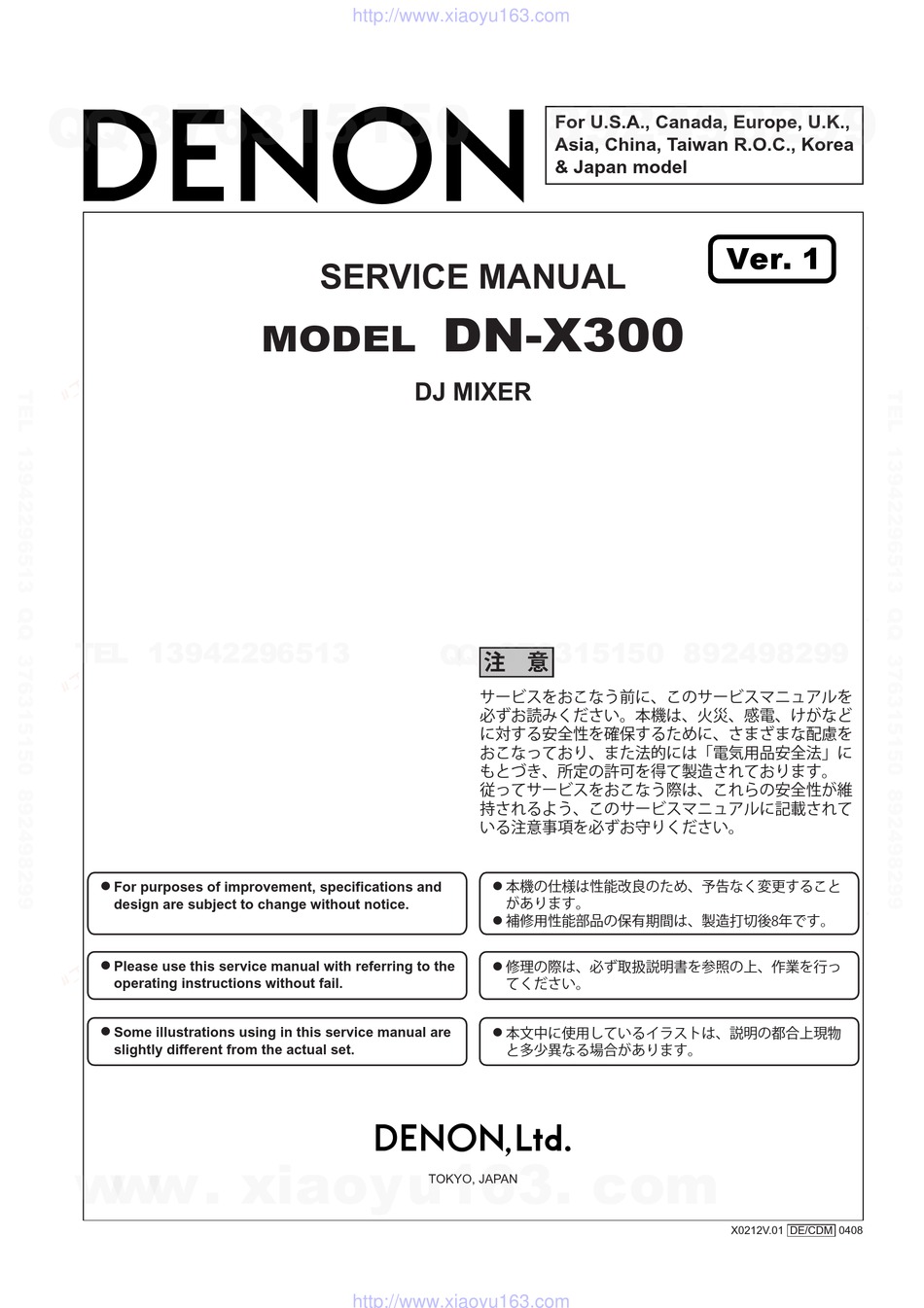

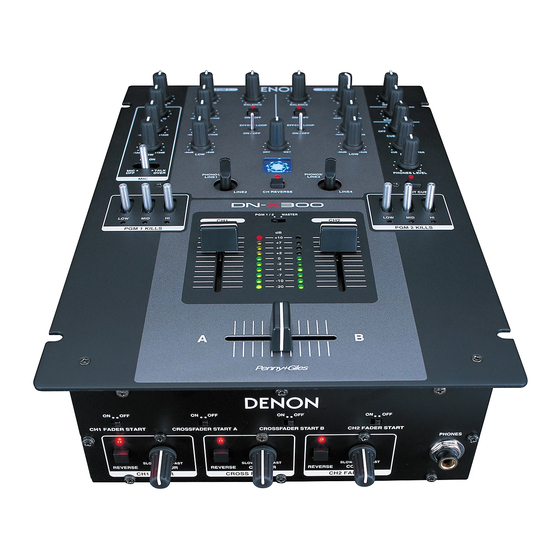

3 7 63 1515 0 For U.S.A., Canada, Europe, U.K., Asia, China, Taiwan R.O.C., Korea & Japan model Ver. 1 SERVICE MANUAL DN-X300 MODEL DJ MIXER L 13942296513 注 意 サービスをおこなう前に、このサービスマニュアルを 必ずお読みください。本機は、火災、感電、けがなど に対する安全性を確保するために、さまざまな配慮を おこなっており、また法的には「電気用品安全法」に もとづき、所定の許可を得て製造されております。 従ってサービスをおこなう際は、これらの安全性が維 持されるよう、このサービスマニュアルに記載されて いる注意事項を必ずお守りください。 For purposes of improvement, specifications and 本機の仕様は性能改良のため、予告なく変更すること...
Page 2
DN-X300 3 7 63 1515 0 SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis resistance check.
Page 3
DN-X300 DISASSEMBLY 3 7 63 1515 0 (Follow the procedure below in reverse order when reassembling.) 1. Top Panel (1) Pull out the Knobs from the Top Panel. (2) Remove the 6 screws attaching the Top Panel. (3) Pull up the Front Panel.
Page 4
DN-X300 2. Crossfader Unit 3 7 63 1515 0 (1) Remove the 2 screws attaching the Crossfader Unit. (2) Pull up the Crossfader Unit and disconnect the connector. L 13942296513 Note: Be careful in the attachment direction. 3. Channel Fader Unit (1) Remove the 3 screws attaching the Channel Fader Unit.
Page 5
DN-X300 4. Input Selector Unit 3 7 63 1515 0 (1) Remove the 2 screws attaching the Input Selector Unit. (2) Pull up the Input Selector Unit and disconnect the connector. Note: L 13942296513 Be careful in the attachment direction.
DN-X300 BLOCK DIAGRAM 3 7 6 3 1 5 1 5 0 1 3 9 4 2 2 9 6 5 1 3 w w w u 1 6 3 http://www.xiaoyu163.com...
Page 7
CH1 FADER START SW 'L' : ON L 13942296513 Not used Not used Not used Not used Not used FX2SW PGM2 EFFECT LOOP ON/OFF SW 'L' : ON (DN-X300 only) CHREV CH REVERSE SW 'L' : ON _RESO _RESO Not used GND(0V) Not used...
Page 8
(DN-X300 only) LEDFX2 PGM2 EFFECT LOOP LED control. (DN-X300 only) FX1SW PGM1 EFFECT LOOP ON/OFF SW 'L' : ON (DN-X300 only) DN-X100/300 program selected Pin 'L' : DN-X300 _STBY _STBY When driven low,this pin forces a transition to hardware standby mode.
Page 9
DN-X300 3 7 63 1515 0 Pin Name Symbol Int Pu Function Not used Not used CH1REV CH1 FADER REVERSE SW 'L' : ON P84,_CS Chip select signal. GND(0V) CFREV CROSSFADER REVERSE SW 'L' : ON CH2REV CH2 FADER REVERSE SW 'L' : ON...
Page 10
DN-X300 3 7 63 1515 0 LB1482M (IC701) 8P/5P AC/DC MUTE CH1 IN A GND LB1482M DC IN CH2 IN Vcc1 Vcc2 AC IN (1) CH1 IN PEAK HOLD CH2 IN AC IN (2) LOGIC L 13942296513 DC IN...
DN-X300 3 7 63 1515 0 NOTE FOR PARTS LIST Part indicated with the mark " " are not always in stock and possibly to take a long period of time for supplying, or in some case supplying of part may be refused.
DN-X300 PARTS LIST OF P.W.B. UNIT 3 7 63 1515 0 *本表に記載されている部品は、補修用部品のため製品に使用している部品とは一部、形状、寸法などが異なる場合があります Note: The symbols in the column "Remarks" indicate the following destinations. E3: U.S.A. & Canada model E2: Europe model EK: U.K. model E2A: Asia model E1C: China model EUT: Taiwan R.O.C.
DN-X300 EXPLODED VIEW 3 7 6 3 1 5 1 5 0 Parts List 1 3 9 4 2 2 9 6 5 1 3 WARNING: Parts marked with this symbol have critical characteristics. Use ONLY replacement parts recommended by the manufacturer.
DN-X300 PARTS LIST OF EXPLODED VIEW 3 7 63 1515 0 *本表に記載されている部品は、補修用部品のため製品に使用している部品とは一部、形状、寸法などが異なる場合があります。 Note: The symbols in the column "Remarks" indicate the following destinations. E3: U.S.A. & Canada model E2: Europe model EK: U.K. model E2A: Asia model E1C: China model EUT: Taiwan R.O.C.
DN-X300 PACKING VIEW 3 7 63 1515 0 L 13942296513 PARTS LIST OF PACKING & ACCESSORIES *本表に記載されている部品は、補修用部品のため製品に使用している部品とは一部、形状、寸法などが異なる場合があります。 Note: The symbols in the column "Remarks" indicate the following destinations. E3: U.S.A. & Canada model E2: Europe model EK: U.K. model...
DN-X300 NOTE FOR SCHEMATIC DIAGRAM 3 7 63 1515 0 配線図について WARNING: ! 印の部品は安全を維持するために重要な部品です。 Parts marked with this symbol ! have critical characteristics. 従って交換時は必ず指定の部品を使用してください。 Use ONLY replacement parts recommended by the manufactur- 注) CAUTION: (1) 指定なき抵抗値は Ω、k は kΩ、M は MΩ を示す。...
