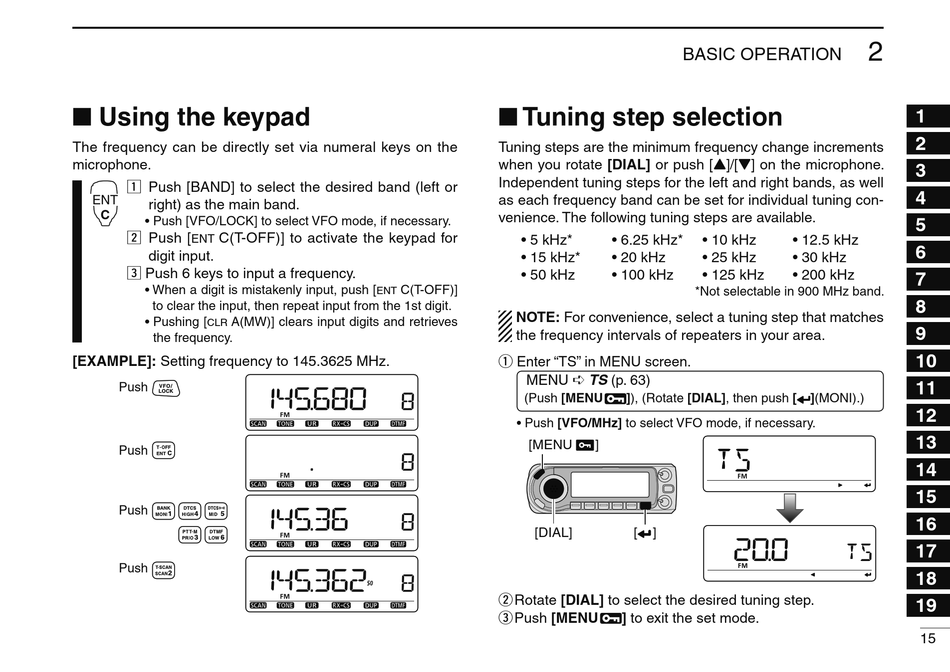

Using the keypad

The frequency can be directly set via numeral keys on the
microphone.
z Push [BAND] to select the desired band (left or
ENT
right) as the main band.
C
• Push [VFO/LOCK] to select VFO mode, if necessary.
x Push [
C(T-OFF)] to activate the keypad for
ENT
digit input.
c Push 6 keys to input a frequency.
• When a digit is mistakenly input, push [
to clear the input, then repeat input from the 1st digit.
• Pushing [ A(MW)] clears input digits and retrieves
CLR
the frequency.
[EXAMPLE]: Setting frequency to 145.3625 MHz.
Push
Push
Push
Push

Tuning step selection

Tuning steps are the minimum frequency change increments
when you rotate [DIAL] or push [Y]/[Z] on the microphone.
Independent tuning steps for the left and right bands, as well
as each frequency band can be set for individual tuning con-
venience. The following tuning steps are available.
• 5 kHz*
• 15 kHz*
• 50 kHz
C(T-OFF)]
ENT
NOTE: For convenience, select a tuning step that matches
the frequency intervals of repeaters in your area.
q Enter "TS" in MENU screen.
MENU
(Push [MENU
• Push [VFO/MHz] to select VFO mode, if necessary.
[MENU
[DIAL]
w Rotate [DIAL] to select the desired tuning step.
e Push [MENU
BASIC OPERATION
• 6.25 kHz* • 10 kHz
• 20 kHz • 25 kHz
• 100 kHz • 125 kHz
*Not selectable in 900 MHz band.
TS (p. 63)
]), (Rotate [DIAL], then push [
]
[ ]
] to exit the set mode.
2
1
2
3
4
5
• 12.5 kHz
6
• 30 kHz
• 200 kHz
7
8
9
10
11
](MONI).)
12
13
14
15
16
17
18
19
15
