F70-series
Quick Start Guide

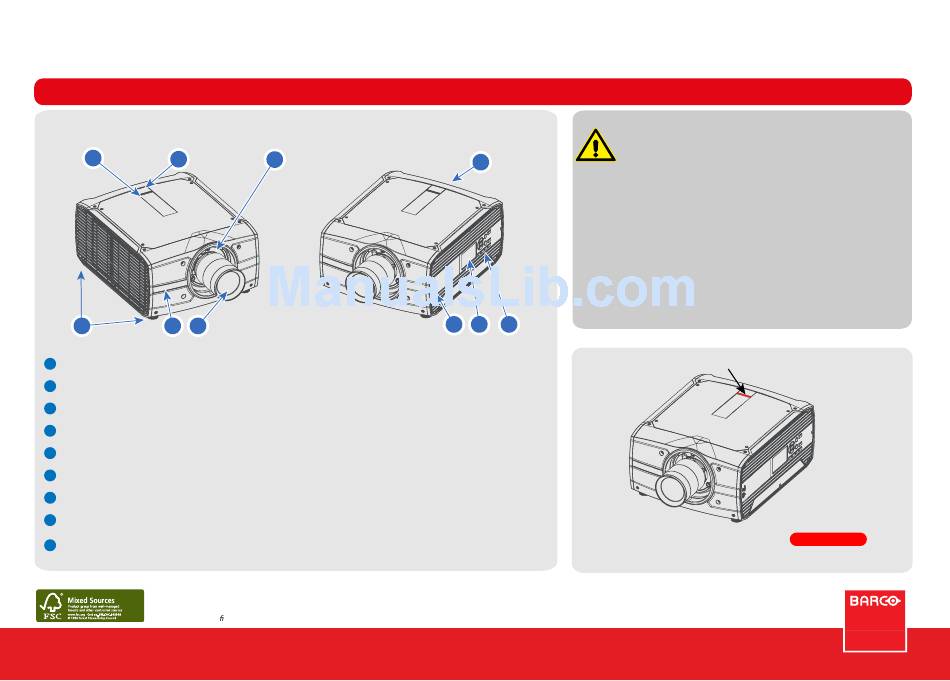

Projector Main Components and interface
Projector Main Components and interface
1
5
2
5
3
LED status light
1
2
Adjustable feet.
3
Projector lens.
4
Lens holder.
5
IR receiver: For receiving remote control signals
6
LCD panel.
7
Keypad: Used for local operations on the projector.
8
Connector panel: Control and communication interfaces for the projector.
Front USB and Triggerboard.
9
Printed on FSC certi ed paper (www.fsc.org)
1
General
4
9
601-0427-00
WARNING!
Class 1 Laser RG2 Product.
8
For North America, Class 3R up to TR 2.5
This Projector may become RG3.
Refer to user manual before operating
Do not stare into beam. This projector
has class 4 laser cluster. Do not attempt
to disassemble or modify this projector.
6
7
LED Status Light
LED Status Light
Red light indicates a failure.
Contact service representative.
Advertisement
Related Manuals for Barco F70-series
Summary of Contents for Barco F70-series
- Page 1 F70-series Quick Start Guide General Projector Main Components and interface Projector Main Components and interface WARNING! Class 1 Laser RG2 Product. For North America, Class 3R up to TR 2.5 This Projector may become RG3. Refer to user manual before operating Do not stare into beam.
- Page 2 F70-series Quick Start Guide General Keypad Keypad LCD Screen. Displays the current projector status and source connections. Navigation Panel. Navigation arrows (up, down, left, right). Confirm selection. Turn On Screen Display (OSD) menu ON / OFF. Power On/Standby Undo action / Back to previous screen Deactivate the OSD.
-
Page 3: Remote Control
F70-series Quick Start Guide General Installation Conditions Installation Conditions Remote Control Power up procedure Connect power Press Power On Button Ambient operating conditions: Altitude 0 - 500 m: 110-240V Temperature: 10 - 45°C Plug in mains power cord. Humidity: 10-80% RH Press the power button. -
Page 4: Lens Removal
Install the lens bayonet into the lens mount, and then move the lever to the right. Check that the lever is firmly at the far right end, and that the to complete. lens is firmly in place before removing your hand from the lens.. Go to www.barco.com and select your product. All available firmware downloads are filed under the Technical Downloads tab. WARNING! Download the firmware.
