- Page 1 V 2.0 Setup Guide Setup Guide Setup Guide Setup Guide Revised: 04-12-00...

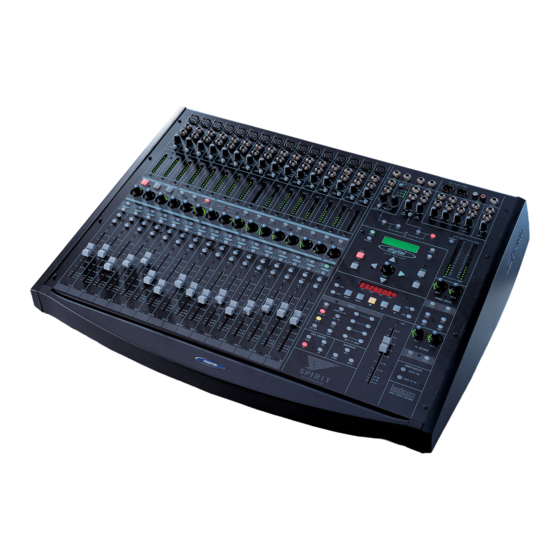

- Page 2 Digital 328 v2 and Lexicon Studio LDI-12T Lexicon Studio LDI-12T Lexicon Studio LDI-12T Lexicon Studio LDI-12T Contents: 1 1 1 1 Connecting the System 2 2 2 2 Digital 328 Setup 3 3 3 3 Lexicon Studio LDI-12T Setup Lexicon Studio Setup Guide...
-
Page 3: Audio Connections
Connect audio connections as shown in the diagram below. Toslink Optical cables must be connected from the ADAT Out port of the Lexicon Studio LDI-12T card to an ADAT In port of the Digital 328 and vice versa. Coaxial digital S/PDIF cables can also be connected from the Lexicon Studio LDI-12T S/PDIF output to the Digital 328 S/PDIF input and vice versa. -
Page 4: Digital 328 Setup
Tape Ports Tape Ports To ensure that the Digital 328 Tape Ports are set to ADAT to work with the Lexicon Studio LDI- 12T, enter the 328 Menu pages by pressing the <MENU> button on the right hand side of the LCD display. - Page 5 2 Track Tape Return, provided that the AES/EBU input has not already been assigned to that input. Commonly the Lexicon Studio LDI-12T S/PDIF output would best be routed to Stereo Input 1 or the 2 Track Tape Return input. Assigning a digital source to an input will override an analogue signal, if NOTE present.
- Page 6 If you do not have a wordclock cable connected, the Lexicon Studio LDI-12T must slave to the clock on one of its ADAT or S/PDIF inputs. Set the Lexicon Studio LDI-12T to use the clock source from the ADATDATA 12T input or the SPDIF 12T Input as required using the method described above.
-
Page 7: Audio Data
Audio Data Audio Data The Lexicon Studio LDI-12T must now be set up to transmit and receive audio data to and from the Digital 328. Open the Lexicon Studio Control Panel, by double clciking the Lexicon Studio icon in the taskbar. and select ‘CtrlI/O’ from the page options. - Page 8 Spirit by Soundcraft Harman International Industries Ltd., Cranborne House, Cranborne Road, Potters Bar, Herts EN6 3JN, England. Tel: +44 (0)1707 665000 Fax: +44 (0)1707 665461 web: http://www.spiritbysoundcraft.com e-mail: spiritsupport@soundcraft.com spiritdig@harman.com (US) Lexicon Studio Setup Guide...
