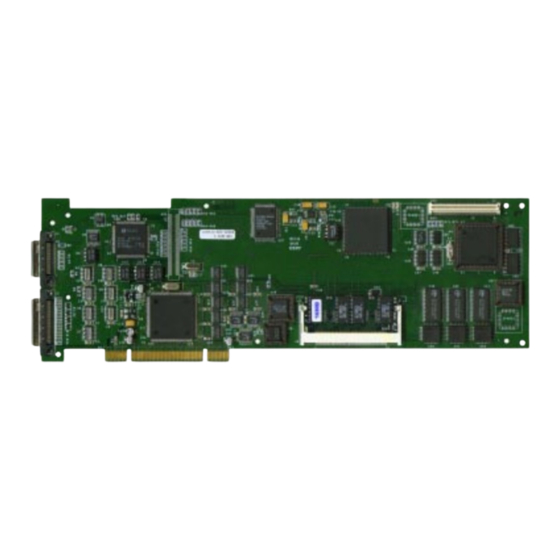

Lexicon LDI 12T - REV 1 Manual

For macintosh aand pc
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1 2 T S y s t e m U s e r G u i d e
for Macintosh and PC

Advertisement

Table of Contents
loading

Related Manuals for Lexicon LDI 12T - REV 1

Summary of Contents for Lexicon LDI 12T - REV 1

  • Page 1 1 2 T S y s t e m U s e r G u i d e for Macintosh and PC...
  • Page 2 DO NOT OPEN companying literature. sufficient to constitute a risk of shock. Lexicon Inc. 3 Oak Park Bedford MA 01730-1441 Telephone 781-280-0300 Copyright 1998, Lexicon Inc. Fax 781-280-0490 All Rights Reserved. www.lexicon.com Printed in the U.S.A. Lexicon Part #070-12131 Rev 1...

  • Page 3: Table Of Contents

    4 MMIO Install Supported Third Party Audio Software ........11 Compatibility ............35 Install the Windows Lexicon Studio Driver ... 11 LexPanel.exe ............. 36 Install PC-90 Software for Windows .... 12 Ctrl I/O ............... 37 Updating Driver and PC-90 Software ....13 Reverb ...............
  • Page 4 Setting up the Audio Application to The Parameters ........... 69 sync to Timecode ........46 Chorus • Crossover • Decay • Decay Lvl Clock Source • Word Clock Sources Definition • Diffusion • Duration • Echo Recording Delays • Echo Feedback • Effects Mix HF Rolloff •...
  • Page 5 Lexicon Inc. 3 Oak Park Bedford MA 01730-1441 Telephone 781-280-0300 Fax 781-280-0490 www.lexicon.com Lexicon Part # 070-12131 Rev 1...

  • Page 6: Getting Started

    Getting Started Introduction Thank you for your purchase of a Lexicon Studio system. Lexicon Studio is a line of professional hardware components designed for your computer that provides uncompromised audio quality and extensive processing capability. This family of products is designed to allow you to tailor your working environment to your needs.

  • Page 7: System Requirements

    Getting Started Lexicon System Requirements The following systems are recommended as the minimum for working with Lexicon Studio: Macintosh • 200MHz PowerPC processor (PowerPC 750 G3 processors are highly recommended) • 64MB of RAM • Audio-capable disk drive • MacOS 7.6.1 or later •...

  • Page 8: Scsi Vs. Ide

    Lexicon Studio 12T System User Guide for Macintosh and PC Getting Started SCSI Vs. IDE Both SCSI and IDE offer distinct advantages and disadvantages: Benefits Liabilities SCSI • Fast bus performance • Use of a PCI card to interface • Removable media to the computer increases bus •...
  • Page 9 Getting Started Lexicon...

  • Page 10: Installation

    (such as Steinberg Cubase VST, Opcode VisionDSP, Emagic Logic Audio) which should be installed prior to installing the hardware and software for Lexicon Studio. Refer to your audio software user manual on how to accomplish this.

  • Page 11: Hardware Installation

    1. Put on the anti-static wrist strap. 2. Place the foam from your Lexicon Studio package on top of a work surface next to your computer. (Any flat piece of static-safe foam with similar dimensions to the Core-32 card can be used.) 3.

  • Page 12: Mount The Pc-90 Card Onto The Core-32 Card

    Installation Mount the PC-90 card onto the Core-32 card The PC-90 module can only be mounted onto a Lexicon Studio Core-32 system card. Attempting to attach your PC-90 to any other type of PCI card may damage your PC-90 module.

  • Page 13: Attach The Pci Extender

    Installation Lexicon Attach the PCI Extender The extender provides support for cards installed horizontally and prevents boards from touching each other (which can damage the cards). To attach the extender: 1. Holding the Core-32 assembly by its edges, align the holes of the board and the extender.

  • Page 14: Install The Core-32/Pc-90 Assemby

    Lexicon Studio 12T System User Guide for Macintosh and PC Installation Install the Core-32/PC-90 assembly The Core-32 System card must be installed in a full-size PCI slot which is a bus master slot to take advantage of its bus master capabilities. Refer to your computer owner’s manual to determine which slots are available as bus masters.

  • Page 15: Connect The Ldi-12T Interface To Audio Sources

    Connect the LDI-12T Interface to Audio Sources Cables/Connections 1. Use only the proprietary Lexicon cable (provided) to connect the Core-32 card to the LDI-12T Interface. 2. With both the computer and the LDI-12T powered down, attach the cable between the lower connector on the back of the Core-32 card and the Computer port on the LDI-12T rear panel.

  • Page 16: Pc Software Installation

    Lexicon Studio (even though it will not be audio- capable until installation of the Lexicon Studio system). If you are installing a later version of Lexicon Studio software over your current Studio software, please skip to the next section entitled Updating Driver and PC-90 Software.

  • Page 17: Install Pc-90 Software For Windows

    C:\Windows\Start Menu\Programs\Startup Install the PC-90 Software for Windows 1. Insert the “Lexicon Studio: Drivers & Documentation” CD-ROM if you haven’t already. 2. Open the contents of the CD-ROM and double-click on Setup.exe to launch the Installer. 3. Read the Directory Path Warning and then click OK.

  • Page 18: Updating Driver And Pc-90 Software

    UnLexiconPC90, and selecting Remove. This control panel is located at Start/Settings/Control Panel/Add/Remove Programs. Updating Driver and PC-90 Software If you are installing a newer version of Lexicon Studio software over your current software, follow the steps outlined below. Deinstall the PC-90 Software for Windows As PC-90 software is registered through the Windows Add/Remove Programs control panel, it must be completely removed to install a newer version.

  • Page 19: Update Studio Driver

    Lexicon Update Studio Driver If you have a CD-ROM or have downloaded Lexicon Studio drivers with a higher revision number than those currently installed in your system, you should choose to update your driver. To do so, follow the directions below.
  • Page 20 Lexicon Studio 12T System User Guide for Macintosh and PC Installation 6. Select the ‘Driver’ tab within the Properties page. 7. Click the Update Driver... button. 8. Windows will ask you if you wish it to search for the driver. Select ‘Yes (Recommended)’.

  • Page 21: Reinstall Pc-90 Software

    Lexicon Reinstall PC-90 Software 1. Insert the “Lexicon Studio: Drivers & Documentation” CD-ROM if you haven’t already. 2. Open the contents of the CD-ROM and double-click on Setup.exe to launch the Installer. 3. Read the Directory Path Warning and then click OK.
  • Page 22 2. Insert the “ Lexicon Studio: Drivers & Documentation ” CD-ROM, and double-click on the Studio Installer icon. 3. Click Continue at the splash screen. You will be given an opportunity to read the Lexicon software license agreement. Click OK again.

  • Page 23: System Connections

    Installation Lexicon System Connections Front Panel Connections POWER S/PDIF ANALOG OUT ANALOG IN PUSH PUSH PUSH PUSH PUSH PUSH TIME CODE LDI-12T INPUT • Two (2) analog +4dBu balanced XLR inputs (The stereo input is switchable between the +4dBu output and the –10dBV input pair.) •...

  • Page 24: Typical Configurations

    Once your system is physically configured, signal routing is controlled by the Lexicon Studio Driver and the routing provided by your host application program (Cubase VST, for example). Use of the Lexicon Studio Driver and examples of typical host application routing is covered in the next section, Signal Routing .
  • Page 25 Installation Lexicon S/PDIF connections can be made to any digital device such as the send/returns of a digital signal processor. LDI-12T Front POWER S/PDIF ANALOG OUT ANALOG IN PUSH PUSH PUSH PUSH TIME PUSH PUSH CODE LDI-12T INPUT S/PDIF Digital I/O Connection Effects Processor Optical S/PDIF connections are provided as an alternative to the normal 8-channel ADAT format.

  • Page 26: Core-32 Basics

    Lexicon Studio 12T System User Guide for Macintosh and PC Core-32 Basics Core-32 Basics Signal Routing Using Cubase VST as an example of a host application, the following things determine signal routing. 1. LDI-12T connections. 2. Configuration of the Core-32 Control Panel.

  • Page 27: Core-32 Control Panel

    Lexicon Core-32 Control Panel Certain portions of the Lexicon Studio System should be specifically set up for the program you are using. This setup is performed in the Core-32 Control Panel. To access the Control Panel, pull down the Audio menu, select System and click on the ASIO Control Panel button. Our example is from Cubase VST.

  • Page 28: Ctrl I/O

    Lexicon Studio 12T System User Guide for Macintosh and PC Core-32 Basics Ctrl I/O Items on the Ctrl I/O tab control include Input/output converter gain, Digital I/O format, Digital de- emphasis and SCMS (Serial Copy Management System) copy protection code.
  • Page 29 Core-32 Basics Lexicon Input/Output controls allow you to select S/PDIF or ADAT as the digital format for the optical input and output connections, and to select between XLR or RCA connectors for the analog inputs. Conversion between optical and coaxial (RCA) S/PDIF is possible by selecting S/PDIF OPTO and S/PDIF RCA for input or output and vice versa.

  • Page 30: Reverb

    Lexicon Studio 12T System User Guide for Macintosh and PC Core-32 Basics Reverb The reverb page allows you to route the PC-90’s two DSP engines independently through any of the connectors of your audio interface. Each PC-90 engine has two input sources (left and right), and two output destinations (left and right).
  • Page 31 Core-32 Basics Lexicon To assign a destination to any of the output channels in your PC-90: 1. Click the left mouse button on the down-arrow of an output selector. A menu will open, displaying the destinations available to your PC-90.
  • Page 32 Lexicon Studio 12T System User Guide for Macintosh and PC Core-32 Basics The following diagram shows a flow chart of the audio routing from the previously illustrated control panel. Note that the PC-90 receives its input from Cubase VST via the VST_Aux_Send_1L and VST_Aux_Send_1R sources.

  • Page 33: Punch Record

    This page lets you select input Sources for Punch or overdub recording and output monitor Destinations for the sources selected for Punch or overdub recording. The Punch feature lets you perform overdub or punch recording by directly connecting to a Lexicon Studio interface — no external mixer is required.

  • Page 34: Configuring The Punch Feature

    Lexicon Studio 12T System User Guide for Macintosh and PC Core-32 Basics The punch feature mixes the input signals directly with the outputs selected for your monitor system (speakers or headphones) to avoid the inherent processing delay from the card to the computer application and back.

  • Page 35: Timecode And Synchronization

    Core-32 Basics Lexicon Timecode and Synchronization On this tab you can enable Timecode reading, select the Timecode source and display the Timecode type, validity and number. As these controls are independent of the host application, they can help you set up your software for proper frame rate and start time.

  • Page 36: Setting Up Cubase To Sync To Timecode

    Lexicon Studio 12T System User Guide for Macintosh and PC Core-32 Basics Setting Up Cubase to Sync to Timecode The LDI-12T uses a MIDI driver to convert the Longitudinal Timecode (LTC) supplied by the front panel XLR to MIDI Timecode (MTC). Note that, as of this writing, the ASIO Driver specification is being updated to incorporate direct support of timecode.

  • Page 37: Sample Rates

    Sample rates of 44.1 and 48kHz are selected from the Audio I/O pull down menu. Word clock The word clock sources available on your Lexicon Studio interface (Audio Clock Source) are also selected from the Audio I/O menu. Word Clock Sources INTERNAL Selects the word clock generated by Cubase as the system master.

  • Page 38: Recording

    12T as the word clock source. This provides centralized clocking of the connected units. MIDI, Automation, and Audio Editing Functions of Lexicon Studio such as panning and PC-90 parameter values are open to MIDI control and automation. The level of this functionality available depends upon the level of implementation provided by your audio software manufacturer.
  • Page 39 Core-32 Basics Lexicon...

  • Page 40: Mmio

    MMIO (Microsoft Multimedia Input Output) is a standard developed by Microsoft on the PC that virtually every audio software developer has adopted for broad band compatibility between audio software and audio hardware. These make Lexicon Studio compatible with a host of PC audio applications, such as: • Steinberg Cubase VST •...

  • Page 41: Lexpanel.exe

    Access to the Control Panel can be achieved in several ways. 1. A Lexicon Studio launcher icon is installed at the bottom left of your Windows taskbar. To launch LexPanel.exe, double-click on this icon. (NOTE: If you ever wish to remove this icon from your taskbar, simply remove it from C:\Windows \Start Menu\Programs\Startup).

  • Page 42: Ctrl I/O

    Lexicon Studio 12T System User Guide for Macintosh and PC MMIO Ctrl I/O Items on the Ctrl I/O tab include control input/output converter gain, Digital I/O format, Digital de- emphasis and SCMS (Serial Copy Management System) copy protection code. Gain Levels are controlled by on screen faders with the level displayed numerically at the bottom.
  • Page 43 MMIO Lexicon Input/Output controls allow you to select S/PDIF or ADAT as the digital format for the optical input and output connections, and to select between XLR or RCA connectors for the analog inputs. Conversion between optical and coaxial (RCA) S/PDIF is possible by selecting S/PDIF OPTO and S/PDIF RCA for input or output and vice versa.

  • Page 44: Reverb

    Lexicon Studio 12T System User Guide for Macintosh and PC MMIO Reverb The reverb page allows you to route the PC-90’s two DSP engines independently through any of the connectors of your audio interface.

  • Page 45: Pc-90 Routing

    MMIO Lexicon PC-90 Routing Each PC-90 engine has two input sources (left and right), and two output destinations (left and right). To assign a source to any of the input channels in your PC-90: 1. Click the left mouse button on the down-arrow of an input selector. A menu will open, displaying the sources available to route into your PC-90.
  • Page 46 Lexicon Studio 12T System User Guide for Macintosh and PC MMIO Destination Description <Clear All> Clears all destination assignments MMIO_Analog_In L & R Sends the PC-90 out to the MMIO analog in MMIO_SPDIF_In L & R Sends the PC-90 out to the MMIO S/PDIF...

  • Page 47: Pc-90 Interface

    The factory presets are fully editable, however if you wish to save your edits, you must copy the preset into a user slot. In future versions of Lexicon Studio MMIO software, you will be able to create and save effects within banks that can be saved and reloaded.

  • Page 48: Punch Record

    This page lets you select input Sources for Punch or overdub recording and output monitor Destinations for the sources selected for Punch or overdub recording. The Punch feature lets you perform overdub or punch recording by directly connecting to a Lexicon Studio interface — No external mixer is required.

  • Page 49: Configuring The Punch Feature

    MMIO Lexicon The punch feature mixes the input signals directly with the outputs selected for your monitor system (speakers or headphones) to avoid the inherent processing delay from the card to the computer application and back. Unlike monitoring through a tape deck the input signal is monitored all the time . (With tape, the input is typically monitored when the transport is in Stop or Record and muted during Play.)

  • Page 50: Timecode And Synchronization

    Lexicon Studio 12T System User Guide for Macintosh and PC MMIO Timecode and Synchronization On this tab you can enable Timecode reading, select the Timecode source and display the Timecode type, validity and number. As these controls are independent of the host application, they can help...

  • Page 51: Setting Up The Audio Application To Sync To Timecode

    Each audio application deals with setup for Timecode differently. Please refer to your software applications user manual for instruction on how to configure your software to work with Timecode. Clock Source This control panel enables the configuration of where Lexicon Studio accepts its clock source from.

  • Page 52: Recording

    Word Clock Sources There are five different clock sources that Studio can lock to. Remember that Lexicon Studio can only lock to one digital source at a time, so if you plan to send in streams of different types of digital audio, make sure they are all utilizing the same clock (such as word clock).
  • Page 53 MMIO Lexicon...

  • Page 54: Using The

    Using the PC-90 Basic Operation The PC-90 combines the quality and power of Lexicon reverb on dedicated hardware with the ease and elegance of a software plug-in interface. Unlike software-based plug-ins, the PC-90 provides outstanding sonic quality with no burden on your computer processor’s performance.

  • Page 55: Inserting Pc-90 Within A Vst Application

    Using the PC-90 Lexicon Inserting PC-90 within a VST Application The interface for the PC-90 is available as a plug-in. Plug-ins are accessed differently in different software applications. The following procedure details the steps to open a PC-90 plug-in in a VST- capable program such as Cubase VST or Opcode Vision DSP.
  • Page 56 Lexicon Studio 12T System User Guide for Macintosh and PC Using the PC-90 7. If you want the signal to be sent to the effects before the faders, click on the Pre button for the send. 8. With Pre-fader effect sends, the amount of effect for the channel is not affected by the volume fader.
  • Page 57 Using the PC-90 Lexicon Pull down the pop-up menu in the processor’s upper right corner and select PC-90 Machine 1 or PC- 90 Machine 2. Selecting a PC-90 machine in this pulldown will activate a PC-90 Rack Xpander within VST.
  • Page 58 PC-90, – most notably, the Input Level and Bus Select Buttons. PC-90 Input Level is controlled by the Aux Send knob in the channels monitor section. PC- 90 bus selection is performed on the Reverb page of the Lexicon Studio Control Panel. Naming Effects 1.

  • Page 59: Editing Effects

    Using the PC-90 Lexicon Loading Effects Load effects from disk into the PC-90 as follows: 1. Pull down the File menu. 2. To load a single Program, select Load Effect. 3. To load a complete Program Bank, select Load Bank.

  • Page 60: Application

    50%, to have a mixture of direct and reverberated signal. Routing MMIO audio to and from the PC-90 is done in the Reverb tab of LexPanel.exe. To route audio: 1. Boot LexPanel.exe by double-clicking on the Lexicon Studio icon at the bottom right corner of your task bar.

  • Page 61: Making Settings For The Pc-90 • Loading

    Using the PC-90 Lexicon 3. Using the To and From pulldown menus for each PC-90 machine, route your audio according to which MMIO channels and interface outputs you would like to use. The picture below shows a typical setup for Machine 1, mixing the reverb and MMIO dry audio all through the analog outputs.
  • Page 62 Lexicon Studio 12T System User Guide for Macintosh and PC Using the PC-90 A preset is loaded from the PC-90 interface by highlighting the preset name area, and using the rotary knob to scroll through the 100 factory and 100 user slost available. A preset is automatically loaded once the rotary knob is used to move to the new preset.

  • Page 63: Saving Effects

    Using the PC-90 Lexicon Naming Effects To name a preset, simply double-click on the area where preset names are displayed. An editable text field will appear that allows you to select any preset name you desire. Note that the editor will allow you to change the names of any factory preset, however you must save that edited preset into a user slot if you wish to permanently change the name of the preset.

  • Page 64: Beyond The Basics

    Routing a Plug-In A Default routing is set in your Lexicon Studio system, to allow you to use your PC-90 as an auxiliary effect, monitoring the audio through the analog outputs on your audio interface as soon as it is Installed.
  • Page 65 Using the PC-90 Lexicon For each PC-90 engine, there are two input sources (left and right), and two output destinations (left and right). To assign a source to any of the input channels in your PC-90: 1. Click the left mouse button on the down-arrow of an input selector to open a menu displaying all Sources available for routing to the PC-90.
  • Page 66 Lexicon Studio 12T System User Guide for Macintosh and PC Using the PC-90 The diagram below is a flow chart of the audio routing from the previous picture of the control panel. Notice that PC-90 receives its input from Cubase VST via the VST_Aux_Send_1L and VST_Aux_Send_1R sources.
  • Page 67 Using the PC-90 Lexicon The reverb routing matrix is flexible, and can provide a wide array of configurations. The previous configuration would not be ideal if, for example, you were mixing audio simultaneously from a digital tape deck and your computer to a digital mixer, and wanted to send your reverb into your digital mixer on independent channels.

  • Page 68: Automating The Pc-90

    Lexicon Studio 12T System User Guide for Macintosh and PC Using the PC-90 Automating the PC-90 The PC-90 Digital Reverberator can be completely automated within any control software that supports automation. Refer to the user guide for your particular software package for support offered for this functionality.
  • Page 69 Using the PC-90 Lexicon Please note that there is only one Audiomix Part/Track, created the first time you use the Write function in your Arrangement. The next time you use the Write function, information is added to the existing Part.

  • Page 70: Reference

    Lexicon Studio 12T System User Guide for Macintosh and PC Reference Reference PC-90 Algorithms Ambience InLvl ReverbLvl Size Link DTime Diffusion Pre Delay DLevel Rt HC Unlike traditional reverb, Ambience is intended to become a part of the direct sound – to give it both better blend and a definite position in space.

  • Page 71: Chamber

    Reference Lexicon This allows a soloist to be increased in level without changing the apparent distance. Ambience can be used in a recording situation any time a close-miked sound is undesirable. When using Ambience in a mix, it is best to use a stereo send to the PC-90, carefully matching the panning of the various close-miked sources to their positions in the mix.

  • Page 72: Concert Hall

    Lexicon Studio 12T System User Guide for Macintosh and PC Reference Concert Hall BassMult Crossover Rt Hc Mid Rt InLvl ReverbLvl Size Shape Spread Pre Delay Chorus Depth Spin Link Diffusion This algorithm emulates a real concert hall. The reverberation is very clean, and designed to remain behind the direct sound –...

  • Page 73: Room

    Reference Lexicon Room EchoFbkL EchoDlyL BassMult Mid Rt Crossover ReverbLvl InputLvl TrebleDcy Size Shape Pre Delay Diffusion HFRolloff Spin Spread Link Infinite Range Rate EchoDlyR EchoFbkR Room produces an excellent simulation of a very small room which is useful for dialog and voice-over applications, but which may be too colored for some sustained musical tones.

  • Page 74: The Parameters

    Lexicon Studio 12T System User Guide for Macintosh and PC Reference The Parameters The PC-90 has a wide range of parameters to control the sound of your algorithms. Not all parameters are found in all algorithms. Chorus In the Concert Hall algorithm, Chorus randomizes delay times and introduces modulation to make reverberation sound less metallic.
  • Page 75 Reference Lexicon Depth In the Concert Hall algorithm, Depth sets the output amplitude envelope, changing the listener’s perspective from the front to the rear of the hall. Diffusion A Diffusion control is provided in all algorithms. It controls the degree to which initial echo density increases over time.
  • Page 76 Lexicon Studio 12T System User Guide for Macintosh and PC Reference Infinite In the Room algorithm, this control is provided to turn the Infinite effect On or Off. Input Lvl InLvl controls the level of the unprocessed (dry) signal into the effect.
  • Page 77 Reference Lexicon Reverb Level Reverb Level sets the amount of reverberation in the processed signal. It is normally FULL, but may be reduced for effects where the pre-echoes should dominate. Reflect Delays In the Chamber and Inverse algorithms, L Refl and R Refl provide pre-echoes to the left and right channels.
  • Page 78 Lexicon Studio 12T System User Guide for Macintosh and PC Reference Slope In the Inverse algorithm, Slope determines the shape of the reverb envelope. When set to 0, the level of reverb remains unchanged over its duration, then cuts off abruptly (depending upon the amount of Diffusion in use).
  • Page 79 Reference Lexicon Notes on Preset Design PC-90 incorporates the results of a great deal of research into acoustics and reverberation. Reverberation, or reflected sound energy, gives recorded music a sense of being performed in a real acoustic location. Using the Size and Spread Parameters In the PC-90, the Size and Spread controls allow adjustment of the buildup and decay of the initial part of the reverberation envelope.
  • Page 80 Lexicon Studio 12T System User Guide for Macintosh and PC Reference As Shape is raised further, the buildup and sustain remain similar, but now a secondary sustain appears in the envelope, at a lower level than the first. This secondary plateau simulates a very diffused reflection off the back wall of a hall, and is effective in creating a sense of size and space.
  • Page 81 Reference Lexicon Next use Mid Rt to fine-tune the amount of time the reverberation takes to die away at the end of musical phrases. Actual halls vary a great deal in their Mid Rt values. The setting of Bass Mult is also critical in matching the sound of an existing hall.
  • Page 82 Lexicon Studio 12T System User Guide for Macintosh and PC Appendix A Appendix A PC-90 Application Notes Routing PC-90 Reverb via the Aux sends in VST 1. From the ASIO control panel select the Reverb page. 2. In the “From” section for the left input to Machine 1 assign VST_AuxSend 1L 3.
  • Page 83 Appendix A Lexicon PC-90 Cascade Routing PC-90 routing allows you to daisy-chain the PC-90 reverb engines to make a dual-engine reverb. This is useful for creating your own “super-reverbs”, for example, using Machine 1 for early reflections and Machine 2 for the main reverb. In the early days of digital reverberation, creating your own reverbs was essential to get great-sounding reverb.
  • Page 84 Lexicon Studio 12T System User Guide for Macintosh and PC Appendix A You now have created a cascade reverb within PC-90. This will give you immense flexibility when creating your own “super-reverbs”. Monitoring the PC90 with No Latency while Recording The following example shows how to add reverb to your monitor mix without adding the reverb to the input signal.
  • Page 85 Appendix A Lexicon Set up the Reverb (for either Machine): • Dry level can be adjusted by the Mix Level parameter in the ASIO Control panel Punch Tab. • Reverb level is controlled by the ReverbLvl parameter in the PC90 interface.
  • Page 86 Lexicon Studio 12T System User Guide for Macintosh and PC Appendix A Using the PC-90 as Outboard Gear on the PC Using MMIO, you can configure your PC-90 to be used as a stand alone reverb box.. The source (send from your console) is routed directly to the inputs of the PC90 engines and the outputs can be routed (analog or digitally) to the returns of the mixer.
  • Page 87 Appendix A Lexicon...
  • Page 88 If there was an audio card from another manufacturer installed in your system previous to this installation but Lexicon Studio will now replace it, you should run Uninstall to remove all components and reset your system. Make sure that all other devices are installed and working properly. An existing conflict or device that is in a problem state (!) can cause problems when installing additional cards.
  • Page 89 Appendix B Lexicon Resolving Hardware Conflicts Windows 95 may not be able to configure the Core-32 without creating conflicts with another device. This can happen as more devices are installed and system resources are depleted. Related error messages that may appear will instruct you to: •...
  • Page 90 Lexicon Studio 12T System User Guide for Macintosh and PC Appendix B PC Troubleshooting Power Up Problems If the computer will not power up after initially installing a Core-32, the Core-32 or another expansion card may be partially dislodged from the expansion slot on the motherboard. Symptoms may include keyboard lights on, power indicator lit, or the hard drive spinning.
  • Page 91 Appendix B Lexicon AGP (Accelerated Graphics Port) Some PC motherboards can use an AGP graphics adapter. This standard was designed to move the graphics operations off of the PCI bus onto a dedicated bus — the AGP port which is physically and logically separate from the PCI bus.
  • Page 92 Lexicon Studio 12T System User Guide for Macintosh and PC Appendix B Disable Write-Behind Disk Caching Sets the number of kilobytes that Win95 reads ahead. (Reading ahead makes the audio drive work harder than necessary.) Graphics Hardware Acceleration In non-AGP computer systems (computers using VGA cards), graphics acceleration settings can force your video card to hog the PCI bus.
  • Page 93 Appendix B Lexicon Read-Ahead Optimization If you find that you are getting noise when adding more tracks of hard disk audio, try this to optimize your system and increase the number of tracks within your system. This control panel can be found by opening Start/Settings/ Control Panel/System, then selecting the Performance tab and clicking the File System button.
  • Page 94 Lexicon Studio 12T System User Guide for Macintosh and PC Appendix B Set Virtual Memory To A Fixed Amount If you have sufficient memory it is possible to completely turn off Virtual Memory. If not, set this to 50- 100MB.
  • Page 95 Appendix B Lexicon Edit System Files Editing of Windows and DOS system files should be attempted by experienced personnel only. Autoexec.bat & Config.sys - Settings for network drivers, CD-ROMS, video cards and the mouse may need to remain in these files but all other entries should be remarked out by placing REM in front of the line.
  • Page 96 Common Problems and Solutions Installation & Hardware Recognition The Lexicon Studio Sound System is not recognized by Windows 95 when first installed. Make sure you have a Plug and Play ready BIOS that complies with V2.1 of the PCI specification.
  • Page 97 Lexicon Studio card and drivers: ‘Could not create native audio engine’, ‘Could not load ASIO Lexicon Studio’. The Event Gina card uses the same VENDOR ID number as Lexicon Studio. This VEN ID number is entered in the Windows Registry when Gina is installed and remains in the Windows registry after the Gina card is removed.
  • Page 98 IRQ. Various problems if you have incorrectly updated your Lexicon Studio software The following problems may appear if you incorrectly update Lexicon Studio’s drivers and PC-90 plug- ins from V3.02 to a later version: 1. Clicking on the Launch Lexpanel icon in the System Tray causes the following message “Could not bring up Control panel”...
  • Page 99 Cubase VST may be looking for the AWE64 as a default card (if you’ve preinstalled one). If it can not be configured correctly, VST will not boot and you will not be able to select ASIO Lexicon Studio as the ASIO device. Set the ASIO Multimedia Setup to Advanced options.
  • Page 100 If your audio application boots and seems to function properly, check the following: 1. From the Lexicon Studio Control Panel, disable Timecode reader if you aren’t sending timecode. If you are sending SMPTE into the timecode input connector, set time code source to LDI 12T LTC.
  • Page 101 Studio Sound System indicates your driver has been improperly installed. 2. Is an IRQ assigned? Is memory I/O assigned? Highlight the Lexicon IDS Sound System and click on the Properties button. This brings up the Lexicon IDS Sound System Properties page. Click on the Resources tab.
  • Page 102 3. Is the audio quality bad when monitoring through the VST mixer with punch disabled and Record or Tape Type monitoring enabled? Solution: If you have answered ‘yes’ to the questions above, obtain new drivers for Lexicon Studio. Newer versions of the Coredsp.pci contained in version 3.10 have been optimized for slower and non- Intel based PCI chip sets.
  • Page 103 Use a fast IDE drive for your audio. Getting audio off the PCI bus creates more bandwidth for the Lexicon Studio System. You might also try a fast SCSI drive with a PCI SCSI controller, which will yield performance almost as high as the IDE due to the faster speed of SCSI.
  • Page 104 Lexicon Studio 12T System User Guide for Macintosh and PC Appendix B Pops and clicks • If you have a PCI-based VGA board , screen redraws may create pops, clicks or crashes. Turn VGA acceleration off. The Graphics accelerator slider is accessed by pressing the Graphics button in the Performance page of the System properties box.
  • Page 105 Appendix B Lexicon B-18...
  • Page 106 The Lexicon Studio Installer will install all necessary components into their default locations. If you want to install Lexicon Studio on a different hard drive, or to a particular location of your hard drive, you must browse to this in the installer.
  • Page 107 Appendix C Lexicon Disk with Question Mark during Boot Cycle This is a Macintosh error that is telling you that the Macintosh cannot find the boot drive. Power the machine down and make sure that you have not loosened any cables to the hard drives.
  • Page 108 Lexicon Studio 12T System User Guide for Macintosh and PC Appendix C Verify the Performance of your Disk Drive Make sure that your disk drive is fast enough to handle audio (a seek time of 10ms or less is good performance).
  • Page 109 PCI slot. Also, check your Lexicon Studio cabling. ASIO Device could not be created error Make sure your Lexicon Studio software is installed properly. The Core-32 extension must be present in the Extensions folder. The ASIO Core-32 driver must be present in the ASIO Drivers folder.
  • Page 110 Lexicon Studio 12T System User Guide for Macintosh and PC Appendix C PC90 does not record during the Create File process in Cubase VST Unlike software-based plug-ins, the PC90 is hardware-based and does not get recorded during VST’s Create File process. Much like effects from any outboard gear, you must record the effects as digital audio tracks within the Song.
  • Page 111 Appendix C Lexicon...
  • Page 112 Lexicon Studio 12T System User Guide for Macintosh and PC Appendix C Appendix D Specifications LDI-12T Interface Audio Inputs (2) Connectors: Balanced: female XLR-3 type Unbalanced: RCA type (software selectable) Impedance: 100k , balanced; 50k , unbalanced Levels: -14 to +18dBu full-scale, balanced...
  • Page 113 Appendix C Lexicon Digital Audio Interface Input Connectors: Coaxial RCA type (1) Optical TOSLINK (1), assignable as S/PDIF or TOSLINK Output Connectors: Coaxial RCA type (1) Optical TOSLINK (1), assignable as S/PDIF or TOSLINK Format: S/PDIF (IEC-958, CP-340) consumer audio interface System Sample Rates 44.1kHz, 48kHz...
  • Page 114 Lexicon Studio 12T System User Guide for Macintosh and PC Appendix C Core-32 External Interfaces: LDI-12T proprietary multi-pin connector LDI-16S proprietary multi-pin connector Internal Interfaces: PCI Interface PC-90 daughterboard interface TBUS daughterboard interface Data Resolution: 24-bit architecture Power Requirements: +5v 5% Clock Range: 44.1 kHz -5% to 48 kHz +5%...
  • Page 115 Appendix C Lexicon...
