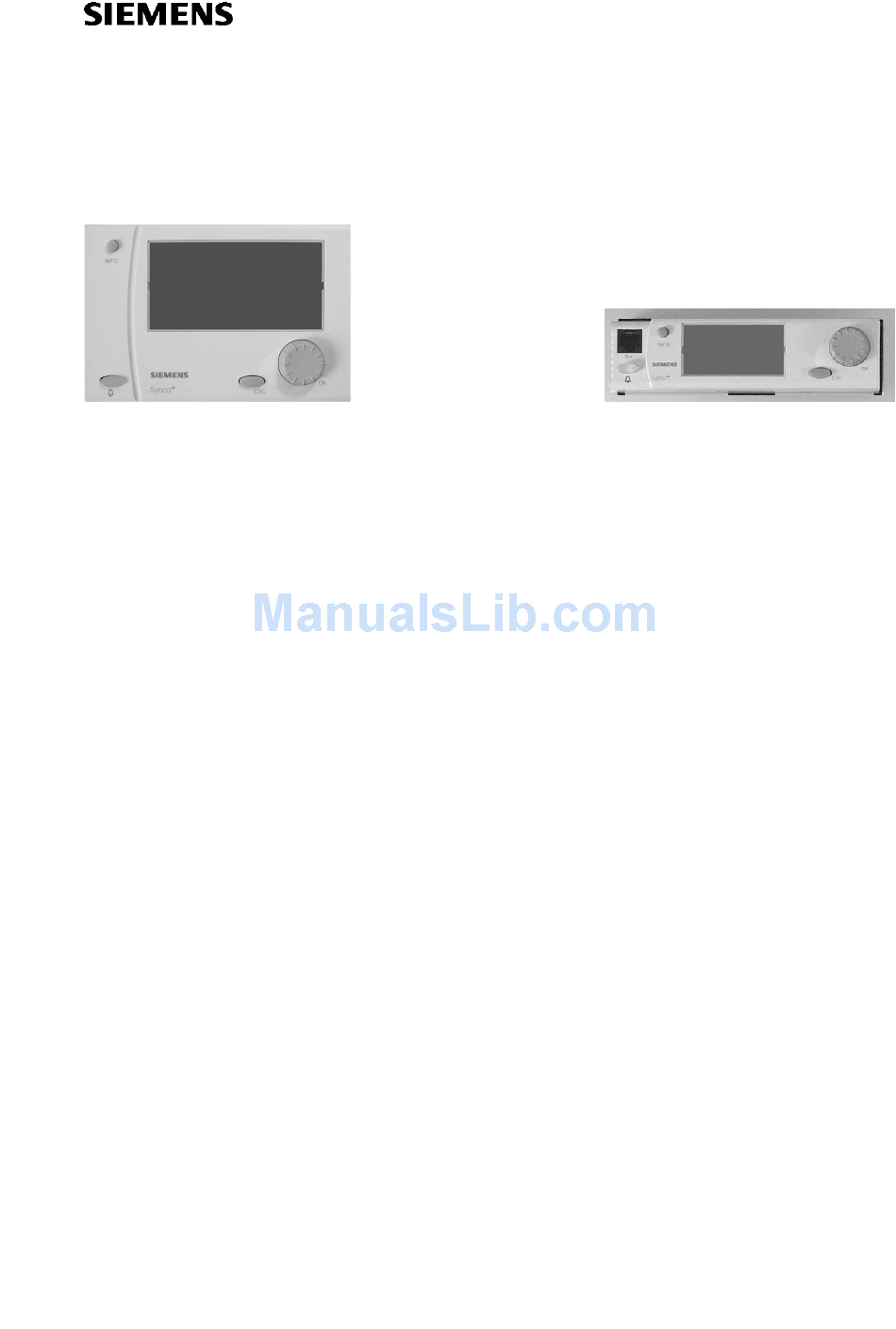

- Page 1 B3144 Synco™ 700 Universal Controllers RMU7..B Operating Instructions CE1B3144_en Building Technologies 2015-03-31...
- Page 2 Siemens Switzerland Ltd Building Technologies Division International Headquarters Gubelstrasse 22 6301 Zug Switzerland Tel. +41 41-724 24 24 © Siemens Switzerland Ltd, 2003 www.siemens.com/buildingtechnologies Subject to change 2 / 10 Siemens Operating Instructions RMU7..B CE1B3144_en Building Technologies 2015-03-31...
-
Page 3: Table Of Contents
Please note that these Operating Instructions describe all controller settings and displays that can be accessed by the user. However, depending on the type of plant, not all functions are necessarily active. In case of doubt, please contact your heating engineer. 3 / 10 Siemens Operating Instructions RMU7..B CE1B3144_en Building Technologies... -
Page 4: Operating Elements
Meter 1 query data point". Pump 1 Please wait – the controller is working Controller 1 Value set Holidays Page numbers – current / total Special day Fault 4 / 10 Siemens Operating Instructions RMU7..B CE1B3144_en Building Technologies Operating elements 2015-03-31... -
Page 5: Navigate Menu
Welcome > Main menu > Time of day/date... > ... Path: The change from wintertime to summertime, and vice versa, takes place automatically! 5 / 10 Siemens Operating Instructions RMU7..B CE1B3144_en Building Technologies Navigate menu... -
Page 6: Heat Or Cool Per Time Switch Program
Path: Welcome > Main menu > [Time switch 2] op selector > Preselection: If you want to set the plant to On or Off for a limited period only, do not forget to return to auto in due time! 6 / 10 Siemens Operating Instructions RMU7..B CE1B3144_en... -
Page 7: Room Temperature
This is the energy saving setpoint for the space to ensure that 80 % 20 % comfortable conditions will be reached quickly when changing to comfort mode Path: Welcome > Main menu > Controller 2... > ... 7 / 10 Siemens Operating Instructions RMU7..B CE1B3144_en Building Technologies Room temperature 2015-03-31... -
Page 8: Change Daily Heating / Cooling Periods
Path: Welcome > Main menu > Holidays/special days > Entry 1 > ... Path: Welcome > Main menu > Room operating mode > Room operating mode holidays > ... Before making entries, prepare a yearly time schedule for all holiday periods! 8 / 10 Siemens Operating Instructions RMU7..B CE1B3144_en Building Technologies... -
Page 9: Display Plant Operating State
3. Press the ESC button to go back to the previous menu. appears. The measured value trend is presented as follows: Path: Welcome > Main menu > Data acquisition… > Trend channel 1…2. 9 / 10 Siemens Operating Instructions RMU7..B CE1B3144_en Building Technologies Display plant operating state... -
Page 10: Fault
They have an impact on air circulation and can cause drafts Energy savings conserve our natural resources, thus contributing actively to environmental protection! 10 / 10 ã Siemens Switzerland Ltd., 2003 Subject to change Siemens Operating Instructions RMU7..B...
