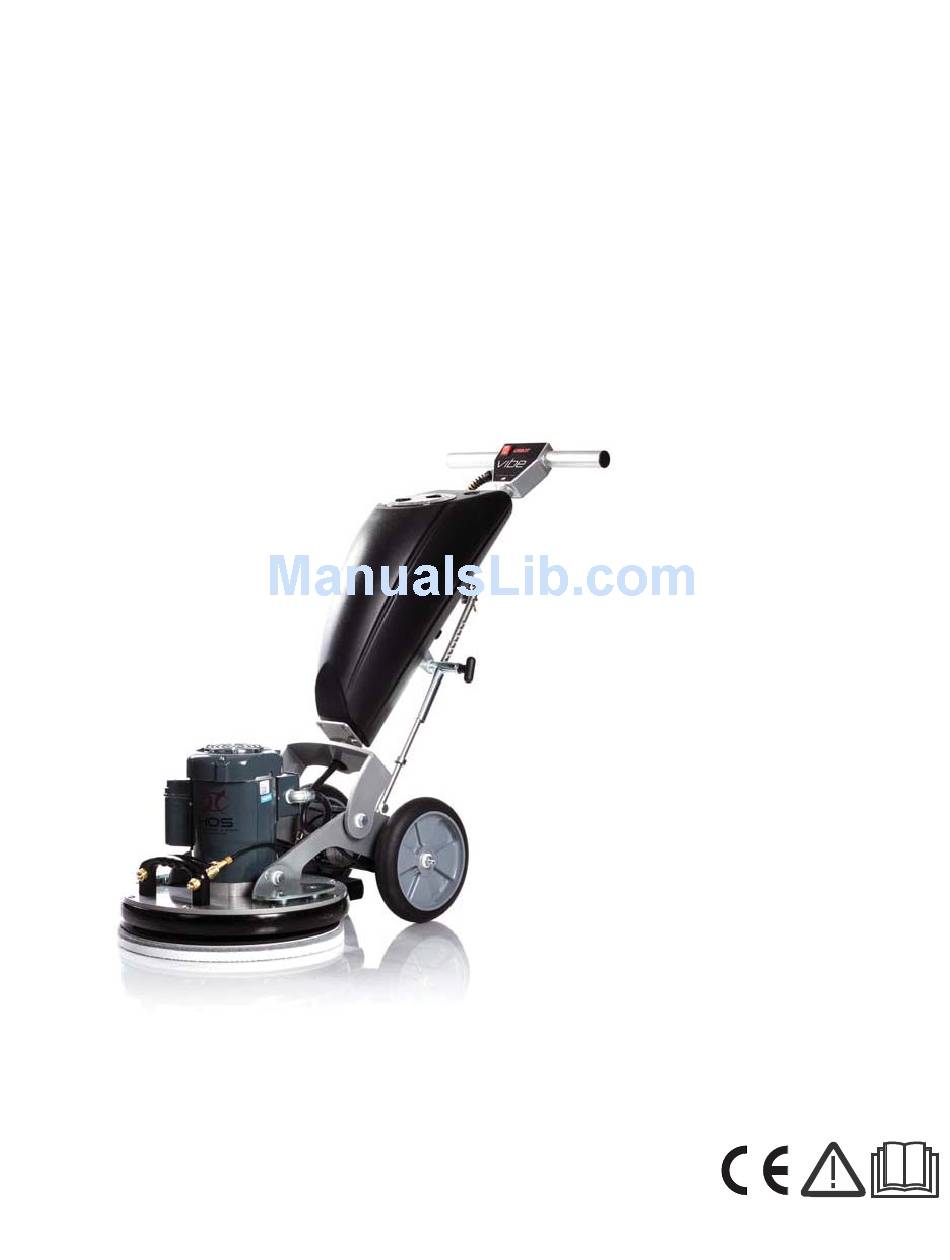

- Page 1 RADIANT ORBITAL SCRUBBER Floor Machine Operator’s Manual MODELS: 1.005-297.0 8.638-856.0-B 06/13/17...
-
Page 2: Machine Data Label
Machine Data Label All Radiant equipment has been carefully tested and inspected at our USA factory. Radiant machines are guaranteed for one year from the date of original purchase against defects or workmanship made during manufacture. Within the guarantee period we undertake at our discretion, to repair or replace any part found to be defective, free of charge to the purchaser with subject to the following conditions: Claims made under the terms of the guarantee must be supported by the original invoice issued at the time of sale along with the machine serial number. -
Page 3: Table Of Contents
Table of Contents Machine Data Label ......1 Table of Contents ......2 How To Use This Manual . -
Page 4: How To Use This Manual
How To Use This Manual This manual contains the following sections: The SAFETY section contains important information regarding hazardous or unsafe practices of the • How to Use This Manual machine. Levels of hazards are identified that could • Safety result in product damage, personal injury, or severe •... -
Page 5: Safety
Safety IMPORTANT SAFETY INSTRUCTIONS When using this machine, basic precaution must always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE. WARNING To reduce the risk of fire, electric shock, or injury: • Use only indoors. Do not use outdoors or expose to rain. •... -
Page 6: Hazard Intensity Level
Safety The following symbols are used throughout this guide as indicated in their descriptions: Hazard Intensity Level There are three levels of hazard intensity identified by signal words -WARNING, CAUTION, and FOR SAFETY. The level of hazard intensity is determined by the following definitions: WARNING WARNING - Hazards or unsafe practices CAN result in severe personal injury or death. -
Page 7: Grounding Instructions
Safety Grounding Instructions Grounding Pin THIS PRODUCT IS FOR COMMERCIAL GROUNDING CONNECTION USING AN ADAPTOR USE ONLY Grounded Grounded Outlet Box Outlet Adaptor ELECTRICAL: US/(EU) FIGURE A This machine operates on a 14/(7) amp nominal 120/ (230)V, 60/(50) hz, A.C. power circuit. The amp, hertz, Metal Screw and voltage are listed on the data label found on each FIGURE B... -
Page 8: Operations
Operations Technical Specifications ITEM MEASURE Motor 1HP, 100-240V/50-60Hz,6 amps (50Hz)/ 11amp (60Hz) 1725 (60Hz)/1400 (50Hz) Base Diameter 17.38“/ 43 cm Orbital Diameter 3/8” (9.5mm) Machine Weight 95 Lbs./ 43 kg Height 48.8” (123.9 cm) Length 28.19” (71.6cm) Wheels 10”/25 cm Diameter, Resistant To Chemicals 17.0 48.8 13.76... -
Page 9: Unpacking And Initial Operations
Operations Unpacking and Initial Operations Open the shipping box on both sides, remove the packaging material and roll the machine out of the box. Fill the tank with water. You can add a cleaning solution of your choice in a prescribed mixing ratio. Pre-Run Inspection Before each use, inspect the accessory such as the pad driver for cracks, tears, or excess wear. -
Page 10: Process Of Cleaning
Operations Process of Cleaning For effective floor cleaning, move the machine forward and backwards. It is recommended to spray the floor as you move the machine forward, releasing the spray button when you move the machine backwards. To increase the pressure and cleaning effect on certain floor types like tile and grout, you can lift the machine frame up, raising the wheels off the ground. -
Page 11: Lifting And Carrying
Operations Always store with the base in the upright position. Lifting and Carrying If you do not have a ramp, we recommend two people to life machine in and out of a vehicle. Put the handle into a firmly locked lower position. Make sure that the machine base rests on a pad, so that the grip surface of the driver plate does not get damaged or hooked onto a carpeted surface. -
Page 12: Brush Installation
Operations Brush Installation Put the machine base in an upright position, sitting on the foot of the bumper. Remove the driver plate by removing the four counter- sink screws in the center of the plate using an electric screwdriver. It is important to only use a Number 3 Phillips head screwdriver bit. -
Page 13: Accessories And Applications
Operations Attach a driver plate to the machine base by lining up the holes of the driver plate with the appropriate threads of the bearing retainer ring. It is recommended to align the threads of the bearing horizontally to the ground. -
Page 14: Carpet Pads
Operations Carpet Pads The beige AgiClean pads are made of a special blend of fibers and latex that allows the gentle cleaning of heavily soiled short-pile carpets as well as the scrubbing of hard floors. Attach the AgiClean pads by centering them onto the driver plate. -
Page 15: Superzorb Pad
Operations Superzorb Pad Our exclusive, highly absorbent cotton-polyester blend pads are specifically designed for the Radiant. Thoroughly remove moisture, soil, and lift carpet pile allowing faster dry times. A SuperZorb Pad, used on both sides, cleans an approximate area of 3000 sq. ft (280m²), depending on floor type and level of soil. -
Page 16: Cleaning Hard Floors
Operations Cleaning Hard Floors Remove dust and coarse dirt from the surface before cleaning. Choose a suitable pad according to the application. Place the pad in the center of the driver. Gently lower the head on to the floor. Surface can be cleaned by moving forward and backwards two to and adding water. -
Page 17: Maintenance
Maintenance Cleaning the Machine Clean the machine with a soft cloth and a neutral pH cleaner. With scrub head resting in the vertical position, rinse bearing while rotating the pad driver or brush. Before emptying the solution tank, adjust the handle to the middle position so that the water drains behind the machine. Changing The Driver Grip Face Remove the ten outer screws that fasten the grip face disc on the driver plate. - Page 18 Notes 8.638-856.0 Manual Operators - Radiant Orbital Scrubber...
-
Page 19: Parts
Parts Parts RADIANT ORBITAL SCRUBBER 1.005-297.0 8.638-856.0 Manual Operators - Radiant Orbital Scrubber... -
Page 20: Handle
Handle 14, 14a 8.638-856.0 Manual Operators - Radiant Orbital Scrubber... - Page 21 Handle PART NO. DESCRIPTION NOTES 86388570 WELD ASSY, HANDLE 86388580 FORK 86388590 COVER, ELECTRICAL BOX 86388600 ROD, HANDLE ADJUST 86388610 WELD ASSY, PULL LATCH 86388620 PULL LATCH 86388630 COVER, TUBE HANDLE, 1.5 DIA 86388640 SWITCH, DP POS, ROCKER 86388650 SWITCH, DP, 2POS, ROCKER SPR 86388660 BREAKER, 20A 125/250VAC 32VDC 86388670...
-
Page 22: Tank
Tank 8.638-856.0 Manual Operators - Radiant Orbital Scrubber... - Page 23 Tank PART NO. DESCRIPTION NOTES 86388850 TANK, VIBE 86388860 BRACE, TANK 86388870 CAP, DRAIN, 2" 86388880 CAP, DECK PLATE, 6" 86388890 FAUCET FILL 86388900 TUBING, .375 OD X .25 ID, BLACK 86388910 TUBING, FAUCET FILL, 26 INCH 86388920 VALVE, DUCKBILL FITTING, ELBOW, SWIVEL, .25 NPT X .38 OD, 86388930 NICKEL PLATE...
-
Page 24: Motor
Motor 23, 24 8.638-856.0 Manual Operators - Radiant Orbital Scrubber... - Page 25 Motor PART NO. DESCRIPTION NOTES 86388680 LOCK NUT, E PANEL, .5-14 NPSM, ZNPLT 86388810 WASHER, FLAT .38 X .06T X 1.0 OD, STL, ZNPLT 86388960 WASHER, FLAT, .25 ID X .625 OD X .06 THK 86388990 WELD BASE ASSY 86389000 BUMPER, 17 INCH 86389010 MOTOR, 1HP...
-
Page 26: Frame, Wheels, & Pump
Frame, Wheels, & Pump 13, 13a 8.638-856.0 Manual Operators - Radiant Orbital Scrubber... - Page 27 Frame, Wheels, & Pump PART NO. DESCRIPTION NOTES 86388720 HEX NUT, LOCK, .5-13 X .75W X .312H 86388730 WASHER, NYLON, .50 ID X .75 OD X .06 T 86388750 WASHER, PLASTIC, .500 X .125 X 1.125OD 86388760 ZINC PLATED, 1/2"-13. 1-3/4" LONG 86388830 ARMS PLASTIC BUSHING 1.00 LENGHT NYLON PLASTIC WASHER 0.812"...
-
Page 28: Spray Handle
Spray Handle 8.638-856.0 Manual Operators - Radiant Orbital Scrubber... - Page 29 Spray Handle PART NO. DESCRIPTION NOTES FITTING, TEE, SPRAY NOZZLES 86389310 FITTING, 90 , SPRAY NOZZLES 86389320 HOSE, SPRAY NOZZLES 86389330 HOSE, SPRAY NOZZLES, PUMP 86389340 COUPLER, FILTER 86389350 STRAINER, CHECK VALVE 86389360 NOZZLE, SPRAYER 86389370 NOZZLE RETAINER 86389380 COUPLER, NOZZLE BASE PLATE 86389390 SLEEVE, COMPRESSION, CON 86389400...
-
Page 30: Wiring Diagram
Wiring Diagram ON/OFF SWITCH SPRAY SWITCH 1 (BLK) 2 (WHT) 1 (BLK) 2 (WHT) Power Cord from Wall Ci r cuit Breaker Ground Terminal Strip inside ha ndle wiring box 4 (RED) 1 (BLK) Ground 3 (BLU) 2 (WHT) Ground 5(YLW) No Connection (Insulated) 6 (BRN) No Connection (Insulated) Ground... -
Page 31: Suggested Spare Parts
Suggested Spare Parts PART NO. DESCRIPTION NOTES SWITCH, DP POS, ROCKER 86388640 SWITCH, DP, 2POS, ROCKER SPR 86388650 BREAKER, 20A 125/250VAC 32VDC 86388660 STRAINER, FILTER 86388940 ASSY, BEARING, 17 DISK 86375110 STRAINER, CHECK VALVE 86389360 NOZZLE, SPRAYER 86389370 NOZZLE, RETAINER 86389380 8.638-856.0 Manual Operators - Radiant Orbital Scrubber... - Page 32 8.638-856.0 • Printed in U.S.A.
