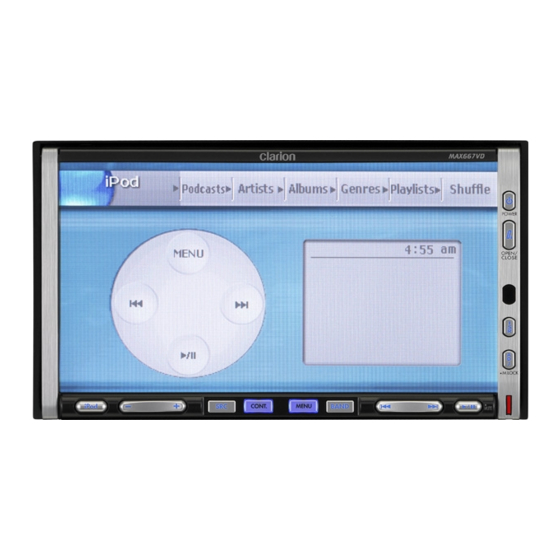

Dvd multimedia station with touch panel control
Hide thumbs Also See for MAX667VD:

Advertisement

NOTE
*
As for this model, the tuner of the DSP type is used.
When you exchange it due to the tuner pack(BL101:880-
2091D) trouble, it is necessary to adjust for S-meter
e t c . S p e c i a l J I G i s n e c e s s a r y f o r a n a c c u r a t e
adjustment.The procedure document for the exclusive
use jig is appended to it.
*
This DVD video player can play the following discs.
DVD video discs
Video CDs
Audio CDs
MP3 ID3 TAG
*
Precautions when creating an MP3 disc
When writing an MP3/WMA file on a disc, please select
"ISO9660 level 1 or level 2(without including expansion
format)" as the writing software format. Normal playback
may not be possible if the disc is recorded on another
format.
In case of a track recorded at VBR (variable bit rate), the
display for the play time of the track may be slightly dif-
ferent from the actual play time. Also, the recommended
value of VBR ranges from 64 kbps to 320kbps.
Depending on the damage conditions of file, it may oc-
cur that the file is not played and the next file is played
instead. Also, the damage is in a severe condition, play
stops showing the "ERROR 3" display.
*
A CD Extra disc is a disc in which a total of two sessions
have been recorded. The first session is Audio session
and the second session is Data session. A personally-
created CDs with more than second data sessions re-
corded cannot be played on this DVD video player.
*
This player cannot play DVD-R/RW and DVD+R/RW
discs previously recorded in video CD format. However,
MP3/WMA files recorded on DVD-R/RW and DVD+R/
Clarion Co., Ltd.
50 Kamitoda, Toda-shi, Saitama 335-8511 Japan
Service Dept.: 5-66 Azuma , Kitamoto-shi, Saitama 364-0007 Japan
Tel: +81-48-541-2335 / 2432 FAX: +81-48-541-2703
Service Manual
CD TEXT
WMA
- 1 -
DVD Multimedia Station With
Touch Panel Control
Model
(QZ-6070K-A : Region code 3 / PAL)
(QZ-6070K-B : Region code 3 / NTSC)
(QZ-6070K-C : Region code 4 / PAL)
RW discs can be played.
*
This DVD video player cannot play back DVD Audio,
DVD-RAM, Photo CDs, etc.
*
It may also not be possible to play back CDs recorded
on a CD-R unit and CD-RW unit. (Cause:disc character-
istics, cracks, dust/dirt, dust/dirt on player' s lens, etc.)
*
If a CD-R or CD-RW disc that has not been finalized is
played, it will take a long time to start playing. Also, it
may not be possible to play depending on its recording
conditions.
*
You cannot play Super Audio CDs. Playback of the CD
player is not supported even if it is a hybrid disc.
*
Manufactured under license from Dolby Laboratories.
"Dolby" and the double-D symbol are trademarks of Dolby
Laboratories.
*
"DTS" and "DTS Digital Out" are registered trademarks
of Digital Theater Systems, Inc.
*
This product includes technology owned by Microsoft
Corporation and cannot be used or distributed without a
license from MSLGP.
*
and
or registered trademarks of Microsoft Corporation in the
United States and/or other countries.
*
is for legal or rightholder-authorized copying only.
Don't steal music.
iPod is a trademark of Apple Computer, Inc., registered
in the U.S. and other countries.
*
We cannot supply PWB with component parts in
principle. When a circuit on PWB has failure, please
repair it by component parts base.
Parts which are not mentioned in service manual are
not supplied.
*
Specifications and design are subject to change without
notice for further improvement.
Published by Service Dept.
298-6358-00 APR.2006
Printed in Japan
logo are trademarks
MAX667VD
