Emerson Rosemount 2230 Reference Manual

Graphical field display
Hide thumbs Also See for Rosemount 2230:
Table of Contents

Advertisement

Quick Links

Download this manual
Reference Manual
00809-0100-2230, Rev CA
July 2017
™
Rosemount
2230 Graphical Field Display

Advertisement

Table of Contents
loading

Related Manuals for Emerson Rosemount 2230

Summary of Contents for Emerson Rosemount 2230

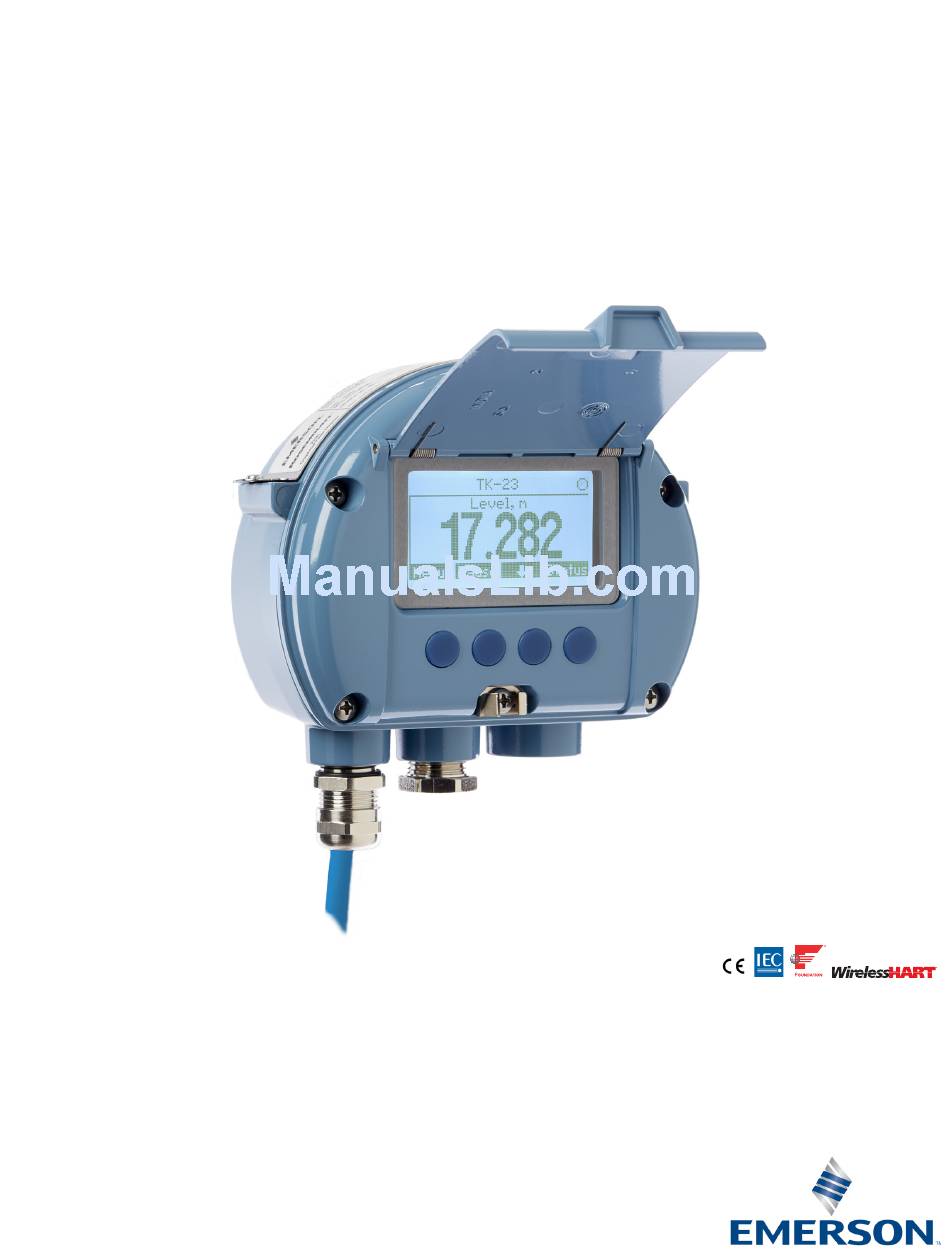

  • Page 1 Reference Manual 00809-0100-2230, Rev CA July 2017 ™ Rosemount 2230 Graphical Field Display...

  • Page 3: Spare Parts

    Read this manual before working with the product. For personal and system safety, and for optimum product performance, make sure you thoroughly understand the contents before installing, using, or maintaining this product. For equipment service or support needs, contact your local Emerson Automation Solutions/Rosemount Tank Gauging representative. Spare Parts Any substitution of non-recognized spare parts may jeopardize safety.
  • Page 4 Title Page Reference Manual 00809-0100-2230, Rev CA July 2017 Title Page...

  • Page 5: Table Of Contents

    2.2 Rosemount 2230 components ........
  • Page 6 4.2.1 The Rosemount 2230 Graphical Field Display........
  • Page 7 5.2.3 Restarting the Rosemount 2230 display ........
  • Page 8 Contents Reference Manual 00809-0100-2230, Rev CA July 2017 5.7 Service tools in AMS Device Manager ..........100 5.7.1 Service Tools window .
  • Page 9 Reference Manual Contents 00809-0100-2230, Rev CA July 2017 A.3 Foundation fieldbus characteristics ..........112 A.3.1 Polarity sensitive.
  • Page 10 Contents Reference Manual 00809-0100-2230, Rev CA July 2017 BAppendix B: Product Certifications B.1 European Directive Information ........... 117 B.2 Ordinary Location Certification .

  • Page 11: Safety Messages

    Reference Manual Introduction 00809-0100-2230, Rev CA July 2017 Section 1 Introduction Safety messages ..............page 1 Symbols .

  • Page 12: Symbols

    Reference Manual Introduction 00809-0100-2230, Rev CA July 2017 Symbols The CE marking symbolizes the conformity of the product with the applicable European Community Directives. The EU-Type Examination Certificate is a statement of a Notified Certification Body declaring that this product meets the Essential Health and Safety Requirements of the ATEX directive.

  • Page 13: Manual Overview

    Section 4: Configuration and Operation describes how to configure the Rosemount 2230 by using the soft-key functions or other tools such as a Rosemount 475 Field Communicator or the AMS Device Manager software.

  • Page 14: Technical Documentation

    Rosemount 2230 Product Data Sheet (00813-0100-2230)  Rosemount 5300 Product Data Sheet (00813-0100-4530)  Rosemount 5400 Product Data Sheet (00813-0100-4026)  Drawings Table 1-1. Installation drawings for the Rosemount 2230 Graphical Field Display Drawing Issue Title D7000003-838 Mechanical Installation Drawing 2230 D9240041-953...

  • Page 15: Product Recycling/Disposal

    Reference Manual Introduction 00809-0100-2230, Rev CA July 2017 Product recycling/disposal Recycling of equipment and packaging should be taken into consideration and disposed of in accordance with local and national legislation/regulations. Recycling or disposal should be done following instructions for correct separation of materials when breaking up the units.
  • Page 16 Reference Manual Introduction 00809-0100-2230, Rev CA July 2017 Introduction...

  • Page 17: Introduction

    Rosemount 2230 components ........

  • Page 18: Rosemount 2230 Components

    Overview Reference Manual 00809-0100-2230, Rev CA July 2017 Rosemount 2230 components Figure 2-2. Rosemount 2230 components A. Weather protection lid B. Display C. Menu D. Soft keys E. Activity indicator F. Cover screw (x6) G. Cable entries: two ½ - 14 NPT (optional: adapters for two M20 x 1.5) H.

  • Page 19: System Overview

    Reference Manual Overview 00809-0100-2230, Rev CA July 2017 System overview The Rosemount Tank Gauging system is a state-of-the art inventory and custody transfer radar tank level gauging system. It is developed for a wide range of applications at refineries, tank farms and fuel depots, and fulfills the highest requirements on performance and safety.
  • Page 20 Figure 2-3. Rosemount Tank Gauging system architecture Rosemount 2240S Rosemount 5900S Temperature Transmitter NON-HAZARDOUS AREA HAZARDOUS AREA Radar Level Gauge Rosemount TankMaster PC Rosemount 2230 Graphical Field Display Rosemount 2410 Tank Hub Rosemount 3051S Pressure Transmitter Tankbus Rosemount 2460 System Hub Rosemount 5900S Radar Level Gauge...
  • Page 21 HAZARDOUS AREA Rosemount 5900S Rosemount 2240S Radar Level Gauge Temperature Transmitter Emerson Wireless 775 THUM Adapter Rosemount TankMaster PC Rosemount 2230 Graphical Field Display Rosemount 2410 Tank Hub Rosemount 3051S Pressure Transmitter Emerson Wireless 1420 Gateway Tankbus Rosemount 5900S Emerson Wireless...
  • Page 22 Figure 2-5. Rosemount Tank Gauging system architecture in a F fieldbus network OUNDATION Rosemount 5900S Rosemount 2240S NON-HAZARDOUS AREA HAZARDOUS AREA Radar Level Gauge Temperature Transmitter Rosemount 2230 Graphical Field Display Rosemount 3051S Pressure Transmitter FOUNDATION Fieldbus Rosemount 5900S Power Supply Radar Level Gauge Rosemount 644...
  • Page 23 Reference Manual Overview 00809-0100-2230, Rev CA July 2017 TankMaster HMI Software Rosemount TankMaster is a powerful Windows-based Human Machine Interface (HMI) for complete tank inventory management. It provides configuration, service, set-up, inventory, and custody transfer functions for Rosemount Tank Gauging systems and other supported instruments. ®...
  • Page 24 The Rosemount 2410 supports Intrinsically Safe (IS) and Non-Intrinsically Safe (Non-IS) analog 4-20 mA ™ inputs/outputs. By connecting an Emerson Wireless 775 THUM Adapter to the IS HART 4-20 mA ™ output, the tank hub is capable of wireless communication with an Emerson Wireless Gateway in a ® WirelessHART network.
  • Page 25 The four softkeys allow you to navigate through the different menus to provide all tank data, directly in the field. The Rosemount 2230 supports up to 10 tanks. Up to three Rosemount 2230 displays can be used on a single tank.

  • Page 26: System Start-Up

    3. Verify that the total current consumption of devices connected to the Tankbus does not exceed 250 mA . In an Emerson Wireless system the maximum current is 200 mA. 4. Wire the devices. Connect field devices to the Tankbus.

  • Page 27: Installation Procedure

    Overview 00809-0100-2230, Rev CA July 2017 Installation procedure Follow these steps for proper installation of the Rosemount 2230 Graphical Field Display: 1. Review installation considerations (“Installation considerations” on page 2. Mount the Rosemount 2230 in a suitable location (“Mechanical installation” on page 3.
  • Page 28 Reference Manual Overview 00809-0100-2230, Rev CA July 2017 Overview...

  • Page 29: Safety Messages

    Reference Manual Installation 00809-0100-2230, Rev CA July 2017 Section 3 Installation Safety messages ..............page 19 Installation considerations .

  • Page 30: Installation Considerations

    The Rosemount 2230 is designed for mounting on a wall or a pipe. It is important to provide space for opening the weather protection lid which prevents degradation of the LCD display due to sunlight exposure.

  • Page 31: Mechanical Installation

    The Rosemount 2230 Graphical Field Display is designed for mounting on a wall or a pipe. Wall mounting with bracket The Rosemount 2230 Graphical Field Display can be mounted on a wall by using the mounting kit supplied by Emerson Automation Solutions/Rosemount Tank Gauging.
  • Page 32 00809-0100-2230, Rev CA July 2017 Pipe mounting The Rosemount 2230 Graphical Field Display can be mounted on pipes ranging from a diameter of 33 mm to 60 mm by using an optional mounting kit supplied by Emerson Automation Solutions/Rose- mount Tank Gauging.

  • Page 33: Electrical Installation

    Reference Manual Installation 00809-0100-2230, Rev CA July 2017 Electrical installation 3.4.1 Cable/conduit entries The electronics housing has two ½ - 14 NPT entries (optional: adapters for two M20×1.5). Minifast and Eurofast adapters are also available. The connections are made in accordance with local or plant electrical codes.

  • Page 34: Cable Selection

    Tankbus cables. 3.4.3 Cable selection Use shielded twisted pair wiring for the Rosemount 2230 in order to comply with FISCO requirements and EMC regulations. The cables must be approved for use in hazardous areas, where applicable. In the U.S. explosion-proof conduits may be used in the vicinity of the vessel.

  • Page 35: Power Requirements

    3.4.5 Power requirements The Rosemount 2230 is powered over the intrinsically safe Tankbus by the Rosemount 2410 Tank Hub. The 2410 feeds the intrinsically safe fieldbus segment by acting as a FISCO power supply on the Tankbus (9 - 17.5 Vdc, polarity insensitive). The Rosemount 2230 has a current consumption of 30 mA.

  • Page 36: Typical Installations

    Figure 3-3. Example of Tankbus connection for a single tank Tankbus length up to 1000 meter depending on number of devices and cable quality Built-in terminator Rosemount 2230 Rosemount 2410 Tank Hub Graphical Field Display with intrinsically safe power Rosemount 2240S...

  • Page 37: Rosemount 2230 In F

    OUNDATION The Rosemount 2230 Graphical Field Display supports the F fieldbus (FF) technology and lets OUNDATION you integrate a Rosemount 2230 into an existing FF network. As long as the power supply meets certain requirements (see Figure 3-4 Figure 3-5) the display will be able to operate as any other FF device.

  • Page 38: Wiring

    FB-. 5. Connect the cable shield to the “Shield Loop Through” (X1) terminal. 6. If the Rosemount 2230 display is the last device on the Tankbus, connect a jumper for the built-in termination. See “The Tankbus” on page 25 for more information on termination.
  • Page 39 Reference Manual Installation 00809-0100-2230, Rev CA July 2017 Figure 3-6. Rosemount 2230 cable connections X2: Tankbus (+) output Daisy-chain connection to other field devices (see page X3: Tankbus (-) output X2: Tankbus FB+ input X3: Tankbus FB- input A. Front cover B.
  • Page 40 July 2017 Daisy-chain connection You may use the daisy-chain option in order to connect the Rosemount 2230 to other field devices on the Tankbus: 1. Unscrew and remove all six screws on the front of the Rosemount 2230. Remove the cover carefully.

  • Page 41: Status Led

    LED:s. Reset button You may use the Reset button to force a restart of the Rosemount 2230 display. Restarting the Rosemount 2230 has the same effect as switching off and on the power supply.

  • Page 42: Switches

    The Simulate switch is used for simulation of Field Diagnostics conditions. It may be useful when testing the alarm setup. Write protect switch The Write Protect switch can be used to protect the Rosemount 2230 from unintentional changes of the current configuration. See also “Write protection” on page 107.

  • Page 43: Ambient Temperature

    July 2017 Ambient temperature The Rosemount 2230 is equipped with a temperature sensor for measuring ambient temperature. The temperature can be displayed on the field display and in the TankMaster software. Ambient temperature affects the readability and response time of the LCD. This is particularly notable in extremely cold weather.
  • Page 44 Reference Manual Installation 00809-0100-2230, Rev CA July 2017 Installation...

  • Page 45: Safety Messages

    Reference Manual Configuration and Operation 00809-0100-2230, Rev CA July 2017 Section 4 Configuration and Operation Safety messages ..............page 35 Introduction .

  • Page 46: Introduction

    Status: lets you view the current status of the presented measurement variable. See also “Status information” on page A symbol in the upper right-hand corner of the display indicates that the Rosemount 2230 is operating and communicates on the Tankbus. The Rosemount 2230 is powered by the Tankbus (see “Power requirements”...

  • Page 47: Configuration Tools

    July 2017 Adjusting the display contrast The Rosemount 2230 automatically adjusts display contrast to optimize for changes of ambient temperature. The contrast can be manually adjusted when further fine-tuning is desired. To increase the display contrast, press the two buttons on the right-hand side simultaneously. To decrease the contrast, press the two buttons on the left-hand side.

  • Page 48: Activity And Alarm Indication

    Reference Manual 00809-0100-2230, Rev CA July 2017 4.2.3 Activity and alarm indication The Rosemount 2230 display shows an alarm warning symbol for simulated or manual measurement values as illustrated in Figure 4-2 Figure 4-3. Figure 4-2. Simulated or manual value...
  • Page 49 Configuration and Operation 00809-0100-2230, Rev CA July 2017 The activity indicator spins continuously to indicate that the Rosemount 2230 is operating normally. In case of a communication problem an alarm symbol is displayed instead. Figure 4-4. Activity indicator Normal operation...

  • Page 50: Start-Up Procedure

    After the LCD test is done the start-up screen will appear. Figure 4-6. Start-up screen Once the start-up procedure is finished, the Rosemount 2230 will return to the view that was used last time the display was powered on. Figure 4-7. View Mode...

  • Page 51: Menu Tree

    Reference Manual Configuration and Operation 00809-0100-2230, Rev CA July 2017 Menu tree The Rosemount 2230 lets you navigate in a menu structure as illustrated in Figure 4-8: Figure 4-8. Rosemount 2230 Menu Tree Configuration and Operation...

  • Page 52: Main Menu

    July 2017 Main menu In normal operation the Rosemount 2230 display is in View Mode and shows the current measurement values for the selected tanks. In case of an alarm, a graphical symbol appears on the screen. Figure 4-9. Rosemount 2230 Graphical Field Display in View Mode...

  • Page 53: Select View Menu

    4. In the Select View Menu, use the up and down arrow softkeys to navigate to the desired option. 5. Press the OK softkey to select the desired option. Then the Rosemount 2230 returns to View Mode. For example, using the Two Values option will present a view like this:...

  • Page 54: The Options Menu

    Reference Manual Configuration and Operation 00809-0100-2230, Rev CA July 2017 The Options menu In the Options menu, the following items are available for a Rosemount 2230 connected to a Rosemount 2410 Tank Hub: Variables  Tanks  Units for Display ...

  • Page 55: Variables

    Reference Manual Configuration and Operation 00809-0100-2230, Rev CA July 2017 4.6.1 Variables In the Select Variables menu , you can choose which variables to present in View Mode. The following options are available: Tank Pos 1-10 lets you configure a common set of variables to be presented for all tanks ...
  • Page 56 Reference Manual Configuration and Operation 00809-0100-2230, Rev CA July 2017 Table 4-1. Selectable variables Variable Description Level Product level in the displayed tank Ullage Ullage is the distance from the Tank Reference Point to the product surface Level Rate How the product in the tank moves when emptying or filling the tank Signal Strength The signal strength of the radar level gauge.

  • Page 57: Select Tanks

    Reference Manual Configuration and Operation 00809-0100-2230, Rev CA July 2017 4.6.2 Select tanks In the Select Tanks menu , you can specify which tanks to show in View Mode. The following items are available: Default which lets you view all tanks that are configured in the Tank Database of the 2410 Tank Hub ...

  • Page 58: Units For Display

    Reference Manual Configuration and Operation 00809-0100-2230, Rev CA July 2017 4.6.3 Units for display In the Units for Display menu, you can see which measurement units that are used for the displayed variables. The available measurement units are listed in Table 4-2 on page To change measurement unit: 1.
  • Page 59 Reference Manual Configuration and Operation 00809-0100-2230, Rev CA July 2017 Table 4-2. Available measurement units for the Rosemount 2230 Variable Available Measurement Units The display is controlled by the Multiple Analog Auto Output Block configuration. See “Configuration using AMS Device Manager” on page The following units are available for Level and Ullage: •...

  • Page 60: Toggle Time

    Reference Manual Configuration and Operation 00809-0100-2230, Rev CA July 2017 4.6.4 Toggle time The Toggle Time parameter specifies the time period that each value, or set of values, is presented on the display. To set the Toggle Time: 1. From View Mode, press <Menu> <Options> <Toggle Time>: 2.

  • Page 61: The Service Menu

    Reference Manual Configuration and Operation 00809-0100-2230, Rev CA July 2017 The Service menu In the Service Menu, the following items are available: Status  Custody Transfer View  LCD Test  LCD Contrast  Restart  Factory Settings  About ...

  • Page 62: Status

    00809-0100-2230, Rev CA July 2017 4.7.1 Status The Status screen shows the current status of the Rosemount 2230. Various error messages and warnings can be displayed in case of software or hardware malfunctions. See “Troubleshooting” on page 88 for more information.

  • Page 63: Lcd Test

    Reference Manual Configuration and Operation 00809-0100-2230, Rev CA July 2017 4.7.3 LCD test In the LCD test two checkered patterns will be displayed testing the whole display area. To open the LCD Test view: 1. In View Mode, press Menu>Service>LCD Test: 2.

  • Page 64: Restart

    2. Choose the Factory Settings option and press the softkey. 3. Press the OK softkey to restore the Rosemount 2230 to factory settings, or press the Esc softkey to cancel. 4. All user configuration will be lost when the Rosemount 2230 is restored to factory settings.

  • Page 65: About

    1. In View Mode, press Menu>Service. 2. Choose the About option and press the softkey. 3. The About option will present the current software version and the Rosemount 2230 serial number. 4. Press the <Esc> softkey to return to the Service menu. Configuration and Operation...

  • Page 66: Foundation

    Resource Block. Main Transducer Block (TB1100) The Main Transducer Block contains parameters for configuration of the Rosemount 2230 Graphical Field Display. It contains device information including diagnostics and the ability to configure, set to factory defaults and restart the Rosemount 2230 display.

  • Page 67: Device Capabilities

    4.9.1 Link Active Scheduler The Rosemount 2230 can be designated to act as the backup Link Active Scheduler (LAS) in the event that the LAS is disconnected from the segment. As the backup LAS, the Rosemount 2230 will take over the management of communications until the host is restored.

  • Page 68: General Block Information

    Configuration and Operation Reference Manual 00809-0100-2230, Rev CA July 2017 4.10 General block information 4.10.1 Modes Changing Modes To change the operating mode, set the MODE_BLK.TARGET to the desired mode. After a short delay, the parameter MODE_BLOCK.ACTUAL should reflect the mode change if the block is operating properly. Permitted Modes It is possible to prevent unauthorized changes to the operating mode of a block.

  • Page 69: 2Factory Configuration

    MAO_1700 Permanent 4.11 Multiple Analog Output blocks To show input data from MAO blocks on the display, the Rosemount 2230 needs to be configured by using F fieldbus parameters which are available in the Display Transducer Block (see “Display OUNDATION transducer block”...

  • Page 70: 2Application Example

    Product Level is output from the Rosemount 5900S via an Analog Input block to the Multiple Analog Output Block 1 (FFMAO1) in the Rosemount 2230 display, as well as to the Analog Output Block (FFAO_RMT7) in the Rosemount 2240S Temperature Transmitter, for Average Product Temperature calculations.
  • Page 71 In AMS Device Manager the Guided Setup provides easy access for configuration of function blocks that are available for the Rosemount 2230. The Control Studio diagram in Figure 4-11 shows which tank variables that are connected to the Multiple Analog Output blocks in this example.

  • Page 72: Resource Block

    Below is a list of the FEATURES the Rosemount 2230 supports. FEATURES_SEL is used to turn on any of the supported features that are found in the FEATURES parameter. The default setting of the Rosemount 2230 is HARD W LOCK. Choose one or more of the supported features if any.

  • Page 73: 2Max_Notify

    Reference Manual Configuration and Operation 00809-0100-2230, Rev CA July 2017 Table 4-6. Possible configuration of the WRITE_LOCK parameter. FEATURE_SEL FEATURE_SEL SECURITY WRITE_LOCK Write access to WRITE_LOCK HARDW_LOCK bit SOFTW_LOCK bit SWITCH Read/Write blocks 0 (off) 0 (off) 1 (unlocked) Read only 0 (off) 1 (on) 1 (unlocked)

  • Page 74: 3Field Diagnostic Alerts

    Reference Manual Configuration and Operation 00809-0100-2230, Rev CA July 2017 4.12.3 Field diagnostic alerts The Resource Block acts as a coordinator for Field Diagnostic alerts. There are four alarm parameters (FD_FAIL_ALM, FD_OFFSPEC_ALM, FD_MAINT_ALM, and FD_CHECK_ALM) which contain information regarding some of the device errors which are detected by the transmitter software. There is a FD_RECOMMEN_ACT parameter which is used to display the recommended action text for the highest priority alarm.
  • Page 75 Reference Manual Configuration and Operation 00809-0100-2230, Rev CA July 2017 Out of specification alerts An Out of Specification alert indicates that the device operates out of the specified measurement range. If the condition is ignored, the device will eventually fail. There are five parameters associated with FD_OFFSPEC_ALM, they are described below.
  • Page 76 The priority is not the same as the MAINT_PRI parameter described below. It is hard coded within the device and is not user configurable. Note that maintenance alarms are not enabled by default for the Rosemount 2230. FD_MAINT_MASK The FD_MAINT_MASK parameter will mask any of the failed conditions listed in FD_MAINT_MAP.

  • Page 77: 4Recommended Actions For Alerts

    Reference Manual Configuration and Operation 00809-0100-2230, Rev CA July 2017 Function check alerts A Function Check alert indicates that the device is temporary non-valid due to some activities, for example maintenance, on the device. There are five parameters associated with FD_CHECK_ALM, they are described below. FD_CHECK_MAP The FD_CHECK_MAP parameter contains a list of informative conditions that do not have a direct impact on the primary functions of the device.

  • Page 78: 5Alarm Priority

    Reference Manual Configuration and Operation 00809-0100-2230, Rev CA July 2017 4.12.5 Alarm priority Alarms are grouped into five levels of priority: Table 4-7. Alarm level priority Priority Priority Description Number The priority of an alarm condition changes to 0 after the condition that caused the alarm is corrected.

  • Page 79: Field Communicator Menu Tree

    July 2017 4.13 475 Field Communicator Menu Tree The Rosemount 2230 can be configured by using a 475 Field Communicator. The menu tree below shows the available options for configuration and service. Figure 4-13. Field Communicator Menu Tree 1 Device Status...

  • Page 80: Configuration Using Ams Device Manager

    July 2017 4.14 Configuration using AMS Device Manager The Rosemount 2230 Graphical Field Display supports DD Methods to facilitate device configuration. The following description shows how to use the AMS Device Manager application to configure the Rosemount 2230 in a F fieldbus system.
  • Page 81 Reference Manual Configuration and Operation 00809-0100-2230, Rev CA July 2017 5. The Overview window shows information about the current device status; Good or Bad. It also gives you access to more device information by pressing the Device Information button (see “Device Information”...
  • Page 82 9. The Multiple Analog Output Block window lets you map tanks and tank parameters from the Multiple Analog Output (MAO) block inputs 1 - 8 to the tanks and tank parameters in the Rosemount 2230 transducer block. This configuration is required in order to make the field device parameters available on the display output.
  • Page 83 The Long Custom Parameter Name is used for the Single Value view and the Two Values View on the  Rosemount 2230 display. It may be up to 20 characters long. The Short Custom Parameter Name is used for the Four Values View on the Rosemount 2230 display. It  may be up to four characters long.
  • Page 84 Reference Manual Configuration and Operation 00809-0100-2230, Rev CA July 2017 9. In the Custom Units window specify units for the various custom parameters. The unit label can be specified anyway you like. It does not need to be a standard unit such as metric or imperial units. 10.Click the Send button to store the current configuration in the device configuration database.

  • Page 85: 2Manual Setup

    Reference Manual Configuration and Operation 00809-0100-2230, Rev CA July 2017 4.14.2 Manual setup In case you wish to configure device options not available in the Guided Setup window, for example specifying tank names, you may use the Manual Setup option. To open Manual Setup: 1.
  • Page 86 7. Select the desired tab (Device, Multiple Analog Output Block Mapping, Tank Name etc.) and configure the device. 8. The Device tab lets you configure display units, display view and language. It also provides the option to write protect the Rosemount 2230 (see “Write protection” on page 107).
  • Page 87 Field Display. It contains device information including diagnostics and the ability to configure, set to factory defaults and restart the Rosemount 2230 display. The Display Transducer Block includes parameters for setup of the Rosemount 2230 for use in a fieldbus system. It handles mapping of the MAO block inputs to the various field device OUNDATION outputs.

  • Page 88: Alert Setup

    Reference Manual Configuration and Operation 00809-0100-2230, Rev CA July 2017 4.15 Alert setup The Alert Setup window allows you to configure and enable/disable alerts. For details on how to view active alerts see “Viewing active alerts in AMS Device Manager” on page To open the Alert Setup window: 1.
  • Page 89 Alert Setup Configure 6. Select the desired tab (FF I/O Board or Rosemount 2230 Graphical Field Display). 7. Configure alerts for the different error types. 8. You may change the configuration for each error type by selecting the appropriate check box to match your requirements.

  • Page 90: 1Alert Default Settings

    Display. You may configure error types in a different way if you like. For example, the Internal Temperature Out of Limits error is configured as a Out of Specification alert for the Rosemount 2230 by default. The Alert Setup window allows you to enable the alert as Failed or Function Check instead.

  • Page 91: Safety Messages

    Reference Manual Service and Troubleshooting 00809-0100-2230, Rev CA July 2017 Section 5 Service and Troubleshooting Safety messages ..............page 81 Service .

  • Page 92: Service

    July 2017 Service 5.2.1 Status information The Status screen lets you view the current status of the Rosemount 2230. To open the status information screen: 1. In the View Mode, press <Menu> <Service> <Status>: 2. Use the softkeys to view the various status messages.

  • Page 93: Viewing Input And Holding Registers

    5.2.2 Viewing input and holding registers Measured data is continuously stored in the Rosemount 2230’s input registers. These registers can be used for verifying that the Rosemount 2230 works properly and for advanced troubleshooting. The Holding Registers store various configuration parameters which are used to control the display presentation.
  • Page 94 Reference Manual Service and Troubleshooting 00809-0100-2230, Rev CA July 2017 4. The Predefined option lists a basic selection of useful registers. 5. Choose the desired Start Register and enter the Number of Registers to read. 6. Click the Read button to update the Value column with the current register values. In F fieldbus systems you may view Holding/Input registers by using AMS Device Manager as OUNDATION...

  • Page 95: Restarting The Rosemount 2230 Display

    Service Tools/Restart option in AMS Device Manager  OUNDATION In Tankbus systems the Restart option will connect the Rosemount 2230 display to the Rosemount 2410 Tank Hub and perform start-up tests of software and hardware. Figure 5-1. Reset button A.

  • Page 96: Device Error Signals

    00809-0100-2230, Rev CA July 2017 5.2.4 Device error signals A Light Emitting Diode (LED) inside the Rosemount 2230 cover is used for presentation of device status using different blinking sequences. Figure 5-2. Error signals A. Status LED. In normal operation the LED flashes once every two seconds. When an error occurs, a sequence of LED flashes presents a code number followed by a five second pause.
  • Page 97 Reference Manual Service and Troubleshooting 00809-0100-2230, Rev CA July 2017 Example Error code 3 is displayed as the following flash sequence: Figure 5-3. Time (seconds) Note Only the first detected error is indicated. Note Ensure that o-rings and seats are in good condition prior to mounting the cover in order to maintain the specified level of ingress protection.

  • Page 98: Troubleshooting

    5.3.1 General This section covers problems which are not related to the type of system in which the Rosemount 2230 operates. Table 5-3. Troubleshooting chart for the Rosemount 2230 display Symptom...
  • Page 99 • “Device errors” on page 93 Configuration can not be Write protection switch is set Check write protection switch on the Rosemount 2230 saved to the ON position Invalid measurement data Check the field devices for possible hardware or Device failure (--.---)

  • Page 100: Tankbus System

    • Check the Modbus communication address specified for the ATD device that represents the Rosemount 2230 display in the 2160 FCU Slave Database. For the single tank version, the ATD address is equal to the Modbus address of the Rosemount 2410 Tank Hub itself.
  • Page 101 Possible cause Action • Check the Rosemount 2410’s tank database; ensure that the Rosemount 2230 device is available and mapped to the right tank • Rosemount 2410 tank database; check that the ATD Modbus address is equal to the 2410 Temp Modbus address...

  • Page 102: Foundation Fieldbus System

    Ensure that there are two terminations on the terminations fieldbus segment. OUNDATION • • Write protection switch is set Check write protection switch on the Rosemount 2230 to the ON position Configuration can not be • Disable software write protect. See “Write protection” on saved •...

  • Page 103: Device Errors

    July 2017 5.3.4 Device errors Table 5-6 shows a list of error messages for the Rosemount 2230. Detailed information about the different error types can be found in Input registers 1100 - 1134 as shown in Table 5-6. Table 5-6. Device Errors...

  • Page 104: Device Warnings

    The register number refers to the internal Input Register of the Rosemount 2230 database. The Input Registers presented in TankMaster WinSetup refer to the internal register area of the Rosemount 2410 Tank Hub. For tank 1 add 16000 to the Rosemount 2230 internal register number as given Table 5-7 in order to find the register presented by WinSetup.

  • Page 105: Status Information

    Reference Manual Service and Troubleshooting 00809-0100-2230, Rev CA July 2017 5.3.6 Status information Status information is available for each measurement variable via the Status button in the View menu. Table 5-8. Status Information Status Description Invalid_TV_Value Invalid source value. The source value (Tank Variable) is invalid due to one of the following reasons: •...

  • Page 106: Resource Block Error Messages

    Reference Manual Service and Troubleshooting 00809-0100-2230, Rev CA July 2017 Resource block error messages Table 5-9. Resource Block BLOCK_ERR messages Condition Name Description Configuration Error is used to indicate that you have Block configuration error selected an item in FEATURES_SEL or CYCLE_SEL that was not set in FEATURES or CYCLE_TYPE, respectively This indicates that the simulation switch is in place.

  • Page 107: Alerts

    Reference Manual Service and Troubleshooting 00809-0100-2230, Rev CA July 2017 Alerts The AMS Device Manager lets you view active alerts. The alarm parameters FD_FAIL_ALM, FD_OFF- SPEC_ALM, FD_MAINT_ALM, and FD_CHECK_ALM contain information regarding some of the device errors. Active error conditions are displayed in the FD_xxx_ACTIVE parameter and can easily be listed by using the Service Tools option in AMS Device Manager.
  • Page 108 8. Click the Device Status button (if available) to view a summary of active device information such as errors and warnings. The Device Status window shows Errors, Warnings, and Status information related to the Rosemount 2230 display. Note that this window does not show active alerts. Service and Troubleshooting...

  • Page 109: Recommended Actions

    Table 5-11 provides recommended actions for Field Diagnostic Alerts as given by the alert default setting for the Rosemount 2230 Display. Table 5-11. Recommended actions for Field Diagnostics Alerts. Alert Type...

  • Page 110: Service Tools In Ams Device Manager

    Service tools in AMS Device Manager 5.7.1 Service Tools window AMS Device Manager supports a number of service functions for the Rosemount 2230 display. To access the service tools: 1. Start AMS Device Manager and open the View > D evice Explorer.

  • Page 111: Variables

    Variables The Service Tools/Variables option lets you view the current values of the Multiple Analog Output Block inputs as well as the Internal Temperature of the Rosemount 2230 display. 1. In AMS Device Manager open Service Tools as shown in “Service Tools window”...

  • Page 112: Device Status

    3. Select the Details tab. 4. Click the Device Status button. In the Device Status tab, the current status of the Rosemount 2230 is grouped in separate categories. In the General pane check boxes indicate the current status of the Rosemount 2230.

  • Page 113: Viewing Input/Holding Registers

    5.7.4 Viewing input/holding registers Measurement data is continuously updated in the Rosemount 2230 Input Registers. They can be used for verifying that the Rosemount 2230 works properly and for advanced troubleshooting. The holding registers store various configuration parameters which are used to control the display presentation.
  • Page 114 Service and Troubleshooting Reference Manual 00809-0100-2230, Rev CA July 2017 5. Select one of the tabs, Holding Registers or Input Registers, depending on what type of register you are interested in. 6. Type a start value in the Start Holding/Input Register field, and click the Send button to view the current register values.

  • Page 115: Reset/Restore

    July 2017 5.7.5 Reset/Restore The Service Tools/Maintenance option lets you restart the Rosemount 2230 Display if needed. You may also reset the display to factory configuration: 1. In AMS Device Manager open Service Tools as shown in “Service Tools window” on page 100.

  • Page 116: Simulation

    Reference Manual Service and Troubleshooting 00809-0100-2230, Rev CA July 2017 5.7.6 Simulation The Service Tools/Maintenance option lets you simulate Field Diagnostics alerts. To start simulation: 1. Ensure that the Simulation switch is set to “ON” (see “Write protection” on page 107).

  • Page 117: Write Protection

    Hardware switch The Write Protect switch enables write protection of configuration data and F fieldbus OUNDATION parameters. The switch is located inside the cover of the Rosemount 2230 display as illustrated in Figure 5-4. Figure 5-4. Write Protect switch Write Protect switch...
  • Page 118 2. Select the Configure>Manual Setup option. 3. Select the Device tab. 4. Enable write protection by clicking the Write Protect Device button. When the Rosemount 2230 is software write protected, the push buttons on the front of the housing can no longer be used to change device configuration.

  • Page 119: Device Information

    Reference Manual Service and Troubleshooting 00809-0100-2230, Rev CA July 2017 Device Information The Overview window shows information about the current device status and gives you access to more detailed information by pressing the Device Information button. 1. From the Start menu; open the AMS Device Manager application. 2.
  • Page 120 Reference Manual Service and Troubleshooting 00809-0100-2230, Rev CA July 2017 Service and Troubleshooting...

  • Page 121: Aappendix A: Specifications And Reference Data

    Reference Manual Specifications and Reference Data July 2017 00809-0100-2230, Rev CA Appendix A Specifications and Reference Data General ..................page 111 Electric .

  • Page 122: Cable Entry (Connection/Glands)

    Specifications and Reference Data Reference Manual July 2017 00809-0100-2230, Rev CA A.2.7 Cable entry (connection/glands) A.3.9 Blocks and Execution time Two ½ - 14 NPT entries for cable glands or conduits. A metal plug 1 Resource block, 3 Transducer blocks (Main, Register, Display) to seal unused port is included in the delivery.

  • Page 123: A.5 Environment

    A.5.4 Ingress protection if required. IP 66 and 67 (Nema 4) The Rosemount 2230 display can be installed on a wall or a A.5.5 Metrology sealing possibility 33.4-60.3 mm (1-2 in.) diameter pipe. It is important to provide space for opening the lid. The protecting lid prevents degradation of the LCD display due to sunlight exposure.

  • Page 124: A.7 Dimensional Drawings

    Specifications and Reference Data Reference Manual July 2017 00809-0100-2230, Rev CA A.7 Dimensional drawings Figure A-5. Dimensional drawings 94 mm (3.7 in.) 153 mm (6.0 in.) Specifications and Reference Data...

  • Page 125: A.8 Ordering Information

    Specifications and Reference Data Reference Manual July 2017 00809-0100-2230, Rev CA A.8 Ordering Information Model Product description 2230 Graphical Field Display Default language English Spanish German French Portuguese Italian Chinese Tankbus: Power and communication Bus powered 2-wire F ™ Fieldbus (IEC 61158) OUNDATATION Firmware Standard...
  • Page 126 Specifications and Reference Data Reference Manual July 2017 00809-0100-2230, Rev CA Housing Standard enclosure (IP 66/67). Polyurethane-covered aluminium. Cable / conduit connections 1/2–14 NPT Female thread, 1 plug included M20 x 1.5 adapters Female thread, 2 adapters, 1 plug included Minimum temperature -20 °C (-4 °F).

  • Page 127: European Directive Information

    B.1 European Directive Information B.3 Installing Equipment in North America The most recent revision of the EU Declaration of Conformity can be found at Emerson.com/Rosemount. ® The US National Electrical Code (NEC ) and the Canadian Electrical Code (CEC) permit the use of Division marked equipment in Zones B.2 Ordinary Location Certification...

  • Page 128: North America

    Care 3. The Rosemount 2230 Graphical Field Display will not pass the must be taken during installation and use to prevent impact 500Vrms dielectric strength test and this must be taken into or friction.

  • Page 129: Europe

    Care must be taken during installation and use to prevent impact 3. The Rosemount 2230 Graphical Field Display will not pass the or friction. 500Vrms dielectric strength test and this must be taken into account during installation.

  • Page 130: Brazil

    Product Certifications Reference Manual July 2017 00809-0100-2230, Rev CA B.7 Brazil B.9 Japan INMETRO Intrinsic Safety Japan Intrinsic Safety Certificate: IEx 11.0076X Certificate: TC20391 Markings: Ex ib IIB T4 (-20°C Ta +60°C) Standards: ABNT NBR IEC 60079-0:2013, ABNT NBR IEC 60079-11:2013 Markings: Ex ia IIC T4 Ga (-50 °C ...

  • Page 131: B.12Conduit Plugs And Adapters

    Reference Manual Product Certifications July 2017 00809-0100-2230, Rev CA B.12 Conduit plugs and adapters B.12.1 Conduit Plug Thread Sizes IECEx Flameproof and Increased Safety Thread Identification Mark Certificate: IECEx FMG 13.0032X Standards: IEC60079-0:2011, M20 x 1.5 IEC60079-1:2007-04, ½ - 14 NPT ½...
  • Page 132 Product Certifications Reference Manual July 2017 00809-0100-2230, Rev CA Product Certifications...

  • Page 133: Cappendix C: Foundation ™ Fieldbus Block Information

    ™ Reference Manual Fieldbus Block Information OUNDATION July 2017 00809-0100-2230, Rev CA ™ Appendix C Fieldbus Block OUNDATION Information Resource block ..............page 123 Register transducer block .
  • Page 134 CYCLE_TYPE Identifies the block execution methods available for this resource. CYCLE_SEL Used to select the block execution method for this resource. The Rosemount 2230 supports the following: Scheduled: Blocks are only executed based on the function block schedule. Block Execution: A block may be executed by linking to another blocks completion.
  • Page 135 ™ Reference Manual Fieldbus Block Information OUNDATION July 2017 00809-0100-2230, Rev CA Index Parameter Description Number CLR_FSTATE Writing a Clear to this parameter will clear the device FAIL_SAFE if the field condition has cleared. MAX_NOTIFY Maximum number of unconfirmed notify messages possible. LIM_NOTIFY Maximum number of unconfirmed alert notify messages allowed.
  • Page 136 Indicates which miscellaneous device licensing options are enabled. OUTPUT_BOARD_SN Output board serial number. For the Rosemount 2230 Display this is the same as Main Label Device ID which can be found on the main label that is attached to the housing.
  • Page 137 ™ Reference Manual Fieldbus Block Information OUNDATION July 2017 00809-0100-2230, Rev CA Index Parameter Description Number FAILED_ALM Alarm indicating a failure within a device which makes the device non-operational. MAINT_ALM Alarm indicating the device needs maintenance soon. If the condition is ignored, the device will eventually fail.

  • Page 138: Register Transducer Block

    Register transducer block The Register Transducer Block (TB 1200) allows access to Database registers and Input registers of the Rosemount 2230 Graphical Field Display. This makes it possible to read a selected set of registers directly by accessing the memory location.
  • Page 139 ™ Reference Manual Fieldbus Block Information OUNDATION July 2017 00809-0100-2230, Rev CA 15-44 INP_REG_n_TYPE Describes characteristics of input register n. Indicates requested value is displayed as a floating point (/ decimal) number. INP_REG_n_FLOAT Input register n value, displayed as floating point number INP_REG_n_INT_DEC Input register n (=1 to 10) value, displayed as decimal number 45-74...

  • Page 140: Main Transducer Block

    00809-0100-2230, Rev CA Main transducer block The Main Transducer (TB1100) block contains parameters for configuration of the Rosemount 2230 Graphical Field Display. It contains device information including diagnostics and the ability to configure, set to factory defaults and restart the 2230 Display.
  • Page 141 ™ Reference Manual Fieldbus Block Information OUNDATION July 2017 00809-0100-2230, Rev CA STATS_FAILURES Internal communication failures STATS_TIMEOUTS Internal communication timeouts FF_WRITE_PROTECT FF write protect status. The device is write protected by a hardware switch. P1451_SLAVE_STATS P1451 Slave Stats P1451_HOST_STATS P1451 Host Stats SB_HEART_BEAT_CNT This number should be incrementing.

  • Page 142: Diagnostic Device Alerts

    ™ Fieldbus Block Information Reference Manual OUNDATION July 2017 00809-0100-2230, Rev CA C.3.1 Diagnostic device alerts Table C-5 lists conditions reported in the DIAGN_DEVICE_ALERT parameter. Table C-5. Diagnostic Device Alerts Value Description No alarm active 0x00100000 Database error 0x00200000 Hardware error 0x00400000 Configuration error 0x00800000...

  • Page 143: Display Transducer Block

    ™ Reference Manual Fieldbus Block Information OUNDATION July 2017 00809-0100-2230, Rev CA Display transducer block The Display Transducer block (TB 1300) includes parameters for setup of the 2230 Graphical Field Display for use in a F Fieldbus system. OUNDATION Table C-6. Display Transducer Block Index Parameter Description...
  • Page 144 ™ Fieldbus Block Information Reference Manual OUNDATION July 2017 00809-0100-2230, Rev CA MAO_1_INPUT_8 MAO_2_INPUT_1 MAO_2_INPUT_2 MAO_2_INPUT_3 MAO_2_INPUT_4 MAO_2_INPUT_5 MAO_2_INPUT_6 MAO_2_INPUT_7 MAO_2_INPUT_8 MAO_3_INPUT_1 MAO_3_INPUT_2 MAO_3_INPUT_3 MAO_3_INPUT_4 MAO_3_INPUT_5 MAO_3_INPUT_6 MAO_3_INPUT_7 MAO_3_INPUT_8 MAO_4_INPUT_1 MAO_4_INPUT_2 MAO_4_INPUT_3 MAO_4_INPUT_4 MAO_4_INPUT_5 MAO_4_INPUT_6 MAO_4_INPUT_7 MAO_4_INPUT_8 CUSTOM_TMV_1 Set the preferred name for the custom tank parameter 1 CUSTOM_TMV_1_SHORT Set the preferred short name for the custom tank parameter 1.
  • Page 145 ™ Reference Manual Fieldbus Block Information OUNDATION July 2017 00809-0100-2230, Rev CA CUSTOM_TMV_6 Set the preferred name for the custom tank parameter 6 CUSTOM_TMV_6_SHORT Set the preferred short name for the custom tank parameter 6. The name can have maximum 4 characters. CUSTOM_TMV_7 Set the preferred name for the custom tank parameter 7.

  • Page 146: C.5 Multiple Analog Output Block

    ™ Fieldbus Block Information Reference Manual OUNDATION July 2017 00809-0100-2230, Rev CA Multiple analog output block The Multiple Analog Output Block (MAO_1400 to MAO_1700) accepts output values from field devices and assigns them to specified I/O channels in order to make them available for the display. Table C-7.

  • Page 147: Multiple Analog Output Block

    ™ Reference Manual Fieldbus Block Information OUNDATION July 2017 00809-0100-2230, Rev CA FSTATE_VAL5 The preset analog value to use when failure occurs in IN_5. Ignored if the “Fault state to value 5” in the MO_OPTS parameter is false. FSTATE_VAL6 The preset analog value to use when failure occurs in IN_6. Ignored if the “Fault state to value 6”...

  • Page 148: Supported Units

    ™ Fieldbus Block Information Reference Manual OUNDATION July 2017 00809-0100-2230, Rev CA Supported units The Rosemount 2230 Graphical Field Display supports the following measurement units: Table C-8. Temperature DD Value Display Description 1000 Kelvin 1001 deg C Degree Celsius 1002...
  • Page 149 ™ Reference Manual Fieldbus Block Information OUNDATION July 2017 00809-0100-2230, Rev CA Table C-12. Flow Rate Display Description 1349 Cubic meter / hour 1352 L/min Liter / minute 1364 gal/h US gallon / hour 1369 ImpGal/h Imperial gallon / hour (UK gallon / hour) 1373 Bbl/h...
  • Page 150 ™ Fieldbus Block Information Reference Manual OUNDATION July 2017 00809-0100-2230, Rev CA ™ Fieldbus Block Information OUNDATION...
  • Page 151 Index Reference Manual July 2017 00809-0100-2230, Rev CA Index ....... . 114 Numerics Dimensional Drawing .
  • Page 152 Index Reference Manual July 2017 00809-0100-2230, Rev CA ....... . 56 Main Transducer Block .
  • Page 153 ........56 Transducer block ....15 Rosemount 2230 Graphical Field Display ..14 Rosemount 2240S Multi-Input Temperature Transmitter .
  • Page 154 Index Reference Manual July 2017 00809-0100-2230, Rev CA Index...
  • Page 156 Sale page. Middle East and Africa Regional Office The Emerson logo is a trademark and service mark of Emerson Electric Co. Emerson Automation Solutions Rosemount and Rosemount logotype are trademarks of Emerson. All other marks are the property of their respective owners.

Table of Contents
