Summary of Contents for Philips HSB4352
- Page 1 Register your product and get support at www.philips.com/welcome EN User manual DA Brugervejledning DE Benutzerhandbuch ES Manual del usuario FR Mode d’emploi Manuale utente NL Gebruiksaanwijzing SV Användarhandbok HSB4352/12...
-
Page 2: Table Of Contents
Find the correct viewing channel Select the correct TV system Select menu display language Turn on Progressive Scan Turn off progressive scan manually Use Philips EasyLink 5 Play Play discs Use the disc menu Select an audio language Select a subtitle language... - Page 3 8 Adjust volume level and sound effect Adjust volume level Select a sound effect Select a preset sound effect Select surround sound effect Mute sound 9 Other features Set the sleep timer Connect other devices Listen to an audio player 10 Product information Specifi...
-
Page 4: Important
1 Important Know these safety symbols This ‘bolt of lightning’ indicates uninsulated material within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering. The ‘exclamation point’ calls attention to features for which you should read the enclosed literature closely to prevent operating and maintenance problems. -
Page 5: Safety-Important Notes For Users In The U
• Install all batteries correctly, + and - as marked on the unit. • Do not mix batteries (old and new or carbon and alkaline, etc.). • Remove batteries when the unit is not used for a long time. o Apparatus shall not be exposed to dripping or splashing. -
Page 6: Notice
2004/108/EC + 2006/95/EC Any changes or modifi cations made to this device that are not expressly approved by Philips Consumer Lifestyle may void the user’s authority to operate the equipment. Recycling Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. - Page 7 HDMI, and HDMI logo and High-Defi nition Multimedia Interface are trademarks or registered trademarks of HDMI licensing LLC. DivX, DivX Certifi ed, and associated logos are trademarks of DivX, Inc. and are used under license. Offi cial DivX® Ultra Certifi ed product. Plays all versions of DivX®...
-
Page 8: Your Dvd Home Theater System

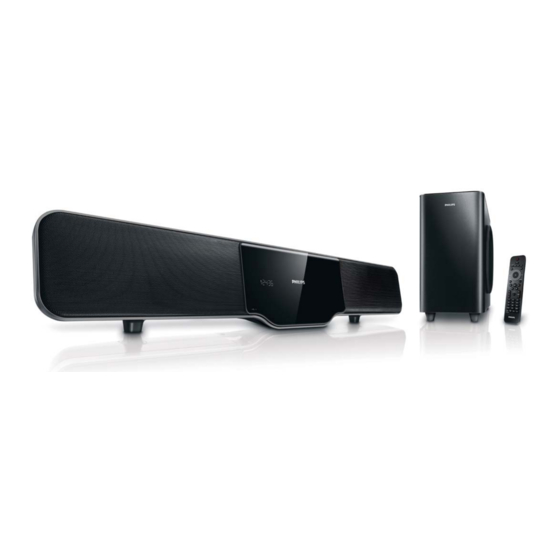

2 Your DVD Home Theater System Congratulations on your purchase, and welcome to Philips! To fully benefi t from the support that Philips offers, register your product at www.Philips.com/welcome. This DVD Home Theater System is designed to complement your home perfectly. Enjoy the DVD Home Theater System with multi-channel surround sound and excellent picture quality. -
Page 9: Overview Of The Main Unit
Erase a preset radio station. e VOL -/+ • Adjust volume. • Skip to the previous/next title/ chapter/track. • Select a preset radio station. HSB4352 • • i Disc compartment j Remote control sensor k Display panel • • Open the disc compartment. -
Page 10: Overview Of The Remote Control
Overview of the remote control • Turn on the unit or switch to standby mode. b Source selection keys • Select a source. c INFO • For video/audio play, display information about the current status or the disc. • For pictures, display a thumbnail view of picture fi... - Page 11 o ZOOM • For pictures or video: zoom in/out. p REPEAT A-B • Repeat a specifi c section within a track/disc. q REPEAT /PROGRAM • Selects or turns off repeat or shuffl e mode. • Program radio stations. r SUBTITLE •...
-
Page 12: Connect
3 Connect Place the unit Place the unit near to the TV. Keep the speakers at the normal listening ear-level and directly parallel to the listening area. Place the subwoofer at the corner of the room or at least one meter away from the Note •... -
Page 13: Option 1: Connect Through Hdmi
• Option 2: Connect through SCART (for a standard TV). • Option 3: connect through component video (for a standard TV or Progressive Scan TV). • Option 4: connect through composite video (CVBS) (for a standard TV). Option 1: Connect through HDMI Connect HDMI (High Defi... -
Page 14: Option 4: Connect Through Composite Video
Pr/Cr Pb/Cb COMPONENT VIDEO IN PUT Connect component video cables (red/ blue/green - not supplied) to: • COMPONENT VIDEO OUT (Pr/ Cr Pb/Cb Y) sockets on this unit. • the component input sockets on the Option 4: Connect through composite video Connect the yellow plugs of the supplied AV cable to: •... -
Page 15: Connect Power
Connect power Caution • Risk of product damage! Ensure that the power supply voltage corresponds to the voltage printed on the back or the underside of the product. • Risk of electric shock! When you unplug the AC power, always pull the plug from the socket. Never pull the cord. -
Page 16: Get Started
Always follow the instructions in this chapter in sequence. If you contact Philips, you will be asked for the model and serial number of this apparatus. The model number and serial number are on the back of the apparatus. -
Page 17: Select Menu Display Language
HDMI connectors can be controlled by a single remote control. Note • Philips does not guarantee 100% interoperability with all HDMI CEC devices. Turn on the HDMI CEC operations on the TV or other connected devices. See TVs/... - Page 18 You can now enjoy the following Philips EasyLink controls. One touch play[Auto Wakeup TV] When you press , this unit will wake up from standby mode and start disc play (if a video disc is found in the disc compartment).
-
Page 19: Play
5 Play Note • With some disc/fi le types, play may differ. Play discs Caution • Never look at the laser beam inside the unit. • Risk of product damage! Never play discs with accessories such as disc stabilizer rings or disc treatment sheets. -
Page 20: Play From Usb
Within fi ve seconds, press VOL +/- to set the delay time for audio output. Play from USB Note • Ensure that the USB device contains playable music, pictures or video. Connect the supplied USB extension cable • the USB device •... -
Page 21: Play Control
Play control Select repeat/shuffl e play options During play, press REPEAT/PROGRAM repeatedly to select a repeat option or the shuffl e play mode. • To resume normal play, press REPEAT/PROGRAM repeatedly until [Repeat Off] is displayed. Repeat A-B (DVD/VCD/CD/MP3/ WMA) During music or video play, press REPEAT A-B at the start point. -
Page 22: Rotate Picture
• To select a picture, press the cursor buttons. • To display the selected photo only, press OK. Rotate picture During play, press / to rotate the picture anti-clockwise/clockwise. Start musical slideshow You can play MP3/WMA music fi les and JPEG photo fi... -
Page 23: Adjust Settings
• You must turn on the HDMI CEC operations on the TV/devices before you can enjoy the EasyLink controls. See the TV/devices manual for details. Philips does not guarantee 100% interoperability with all HDMI CEC compliant devices. [Display Dim] Change the brightness level of the display panel on this unit. -
Page 24: Audio Setup
[Screen Saver] The screen saver protects the TV screen damage due to prolonged exposure to a static image. • [On] – Enable the screen saver. • [Off] – Disable the screen saver. [Sleep Timer] Switches to standby automatically after the preset time. -
Page 25: Preference Setup
[Progressive] Turn on or off progressive scan mode. [Picture Settings] Select a predefi ned set of picture color settings or customize your personal setting. • [Standard] – original color setting. • [Bright] – vibrant color setting. • [Soft] – warm color setting. •... - Page 26 Display the software version of this apparatus. • This information is required when you want to fi nd out if a newest software version is available at the Philips website that you may download and install on this apparatus. [Default]...
-
Page 27: Tune To Fm Radio Stations
7 Tune to FM radio stations Ensure that you have connected and fully extended the supplied FM antenna. Press RADIO. Press and hold / ( When the frequency indication starts to change, release the button. » The FM tuner tunes to a station with strong reception automatically. -
Page 28: Adjust Volume Level And Sound Effect
8 Adjust volume level and sound effect Adjust volume level During play, press VOL +/- to increase/ decrease the volume level. Select a sound effect Note • You cannot use different sound effects at the same time. Select a preset sound effect During play, press SOUND MODES +/- repeatedly to select: •... -
Page 29: Other Features
9 Other features Set the sleep timer When the unit is turned on, press SLEEP repeatedly to select a set period of time (in minutes). » The unit turns off automatically after the set period of time. • You can also set the sleep timer in the system setup menu . -
Page 30: Product Information
10 Product information Note • Product information is subject to change without prior notice. Specifi cations Amplifi er Rated Output Power 2X50+120WRMS Frequency Response 20 Hz -20 KHz, ±3dB Signal to Noise Ratio >67dB Aux Input 500mV RMS 20kohm Disc Laser Type Semiconductor Disc Diameter... -
Page 31: General Information
General information AC power Operation Power Consumption Normal Standby Power Consumption Low Standby Power Consumption Composite Video Output 1.0Vp-p, 75ohm Coaxial Input HDMI (CEC) Output USB Direct Dimensions - Main Unit (W x H x D) - Speakers - Subwoofer (W x H x D) Weight - With Packing - Main Unit... -
Page 32: 11 Troubleshooting
If the problem remains unsolved, go to the Philips web site (www.Philips.com/support). When you contact Philips, ensure that your unit is nearby and the model number and serial number are available . No power •... - Page 33 • Check the disc type, color system and regional code. Check for any scratches or smudges on the disc. • Press OPTIONS to exit the system setup menu. • Disable the password for parental control or change the rating level. •...
-
Page 34: 12 Appendix
12 Appendix Mount to a wall Caution • Risk of product damage! Always consult professional personnel to safely mount the product to a wall. • Risk of injury! Ensure that no supply ducts such as gas, water or electricity are harmed when you drill the holes. - Page 35 Secure the wall mount bracket onto the wall with 4 supplied screws. Hook the main unit and speakers in place.
- Page 36 © 2009 Koninklijke Philips Electronics N.V. All rights reserved.
