HIGH POWER DETACHABLE FACE

ELECTRONICALLY-TUNED AM/FM/MPX RADIO

WITH AUTO-REVERSE CASSETTE PLAYER,

CD CHANGER CONTROLS AND QUARTZ CLOCK

P-87S

O O O O O WNER'S

MA NUAL

WNER'S

NUAL

Table of Contents

Summary of Contents for Audiovox Prestige P-87S

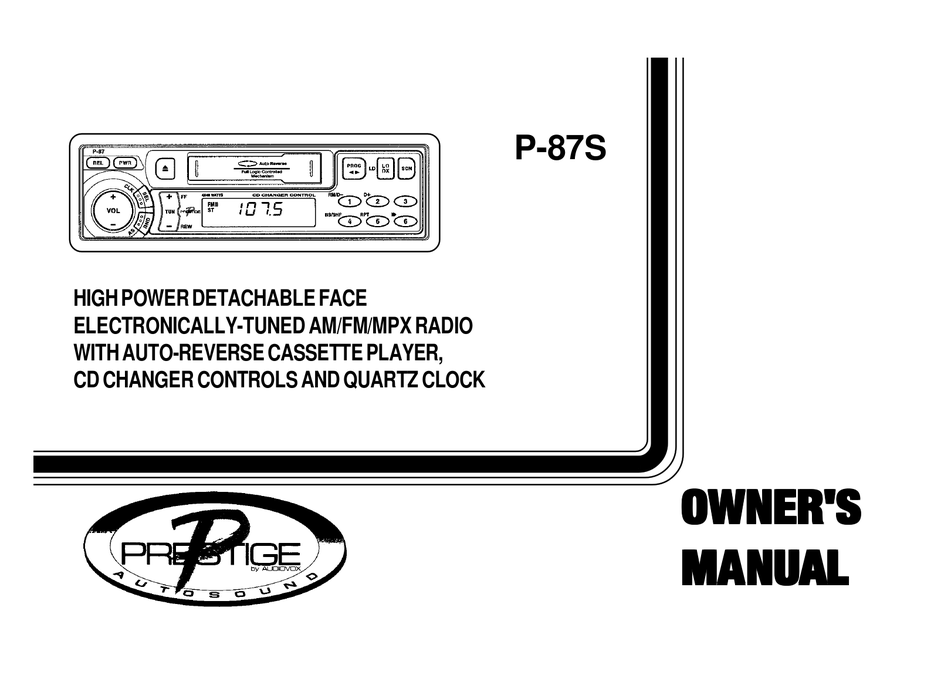

Page 1 HIGH POWER DETACHABLE FACE ELECTRONICALLY-TUNED AM/FM/MPX RADIO WITH AUTO-REVERSE CASSETTE PLAYER, CD CHANGER CONTROLS AND QUARTZ CLOCK P-87S O O O O O WNER'S WNER'S WNER'S WNER'S WNER'S NUAL NUAL MA NUAL NUAL NUAL...
Page 2: Table Of Contents
INDEX Operating Instructions... Setting the Clock ... Frequency Step Switch ... CD Changer Controls ... CD Changer Error Codes ... Specifications ... Care and Maintenance ... Warranty ... Page 1 - 7 9 - 10...
Page 3: Operating Instructions
OPERATING INSTRUCTIONS ON-OFF POWER BUTTON (PWR) VOLUME LEVEL MEMORY Press this button momentarily to turn the unit on or off. The unit will also turn on automatically when a cassette is inserted if the ignition switch is “on”. This button is also used to set the memory for the volume level which will be recalled when the unit is turned on.
Page 4 pressed to decrease the volume quickly. The display will automatically return to the priority indication 5 seconds after the last volume adjustment or when another function is activated. This button is also used in conjunction with the Select button to adjust the bass, treble, balance, and fader levels as described SELECT BUTTON (SEL) DISPLAY CALL DISPLAY PRIORITY SELECTOR...
Page 5 indication is flashing. Within 5 seconds of choosing the Bass mode, press the + or – side of the button of the Level control adjust the bass response as desired. The bass level will be shown on the display panel from a minimum of –7 to a maximum of 7 (0 is flat response).
Page 6 NOTE: Momentary presses of the button will change the radio sensitivity in Seek and Scan Tuning modes from Local to Distant and back again as described in section AM/FM BAND SELECTOR (BND) AUTO-STORE TUNING (AS) MODE SELECTOR During radio operation, each momentary press of this button will change the radio band.
Page 7 display panel) and the radio will stop at a wider range of signals, including weaker (more distant) stations. NOTE: Pressing this button for longer than 2 seconds will activate or deactivate the Loudness Contour feature as described in section STATION PRE-SET MEMORIES To set any of the 6 pre-set memories in each band, use the following procedure: 1.
Page 8 To stop Fast-Forward movement, press the Program Selector button and normal play will resume. REWIND BUTTON (REW) REWIND MUSIC SEARCH SYSTEM A momentary press of this button will activate the Rewind Music Search System function (“MSS”, moving bars and flashing “1” will appear on the display panel).
Page 9 TAPE SCAN When the Scan button is pressed during tape play, the “SCAN” indication will appear on the display panel and the first 10 seconds of each selection on the tape will be played in order (“CASS” will flash on the display panel as the selections are played). When a desired selection is reached, press the Scan button again and play of that selection will continue (“SCAN”...
Page 10: Setting The Clock
SETTING THE CLOCK 1. Turn the radio on so that the radio frequency or clock time is shown on the display panel. 2. Press and hold the Select button begins flashing. 3. While the time display is still flashing, press the Manual Down Tuning button (–) to adjust the minutes and the Manual Up Tuning button (+) to adjust the hours to the correct time.
Page 11: Cd Changer Controls
CD CHANGER CONTROLS Built into this unit are controls to operate an optional CD changer. Please check with your Prestige car stereo specialist for recommendations of the models that will work with this unit. Adjustment of the audio functions (volume, tone, balance, and fader) for the CD changer operate in the same manner as they do for radio and cassette play.
Page 12: Cd Changer Error Codes
TRACK/DISC SHUFFLE (SHF) When the Shuffle button is pressed, the tracks on the disc will be played in a random, shuffled order (“SHF” will appear on the display panel and “TRK” will flash). The Track Select button select tracks in the shuffled order instead of the normal progression. When all tracks on the disc have been played in shuffled order, the next disc will be selected in normal order and its tracks played in shuffled order.
Page 13: Specifications
SPECIFICATIONS Size: Operating Voltage: Output Power: Output Wiring: Output Impedance: Low-Level Output: Tuning Range: Sensitivity: FM Stereo Separation: Tape Frequency Response: Tape S/N Ratio: Wow & Flutter: 7" W x 2" H x 178mm x 50mm x 155mm 12 volts DC, negative ground 160 watts maximum (40 watts x 4 channels) Floating-ground type designed for 4 speaker use.
Page 14: Care And Maintenance
CARE AND MAINTENANCE The radio portion of your new sound system does not require any maintenance. We recommend you keep this manual for future reference of the many features found in this unit. As with any cassette player, the cassette section of this sound system does require a minimum of maintenance to keep it in good working condition.
Page 15: Warranty
CD changers, power amplifiers, equalizers and accessories. AUDIOVOX CORPORATION (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product (at the Company's option) without charge for parts and repair labor.
