Summary of Contents for Fortinet FortiGate 70D

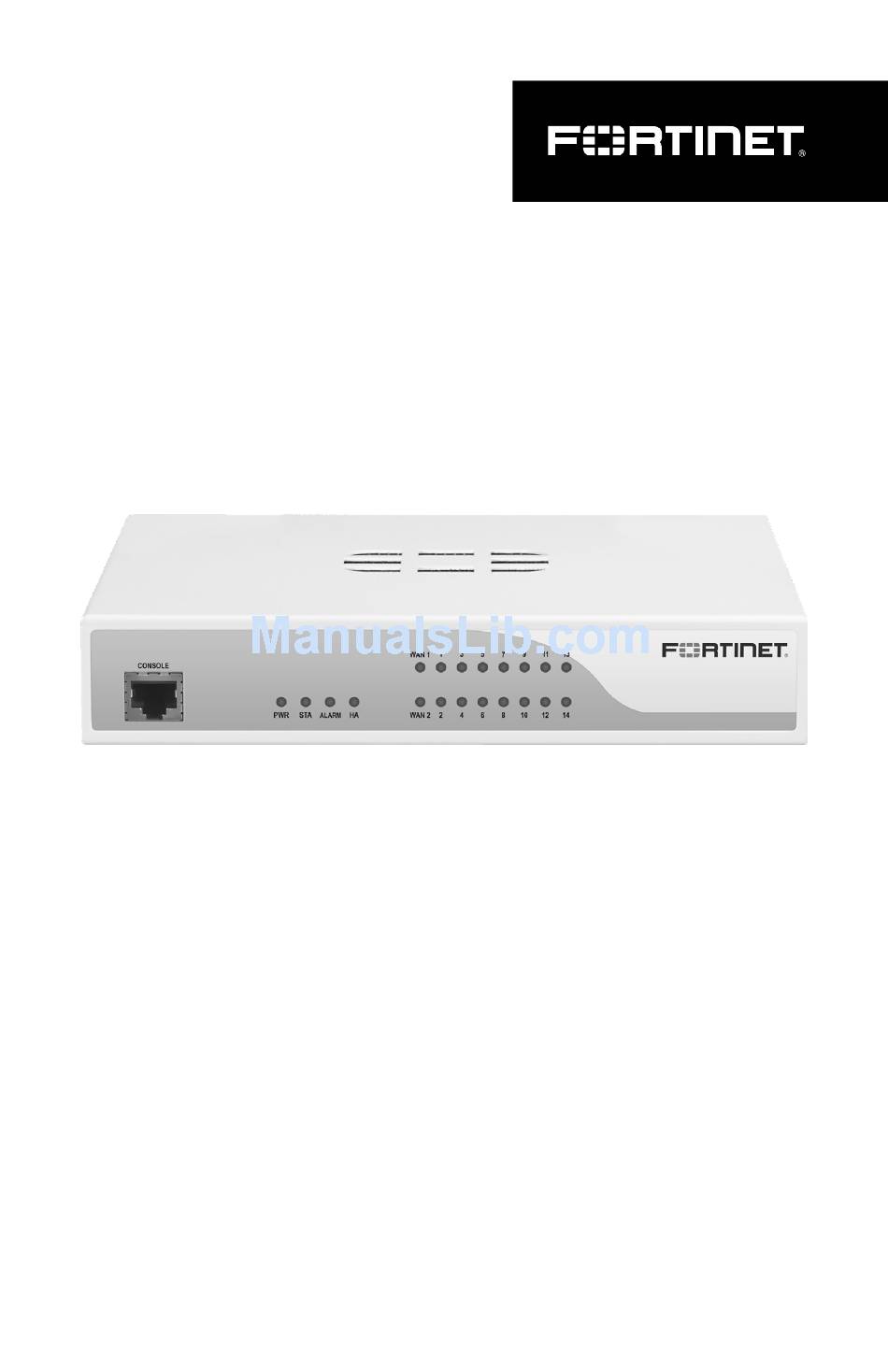

- Page 1 FortiGate/FortiWiFi 70D/90D-POE Information...
-
Page 3: Box Includes
Box Includes FortiGate/FortiWiFi 70D/90D/POE Information FortiGate/FortiWiFi 70D/90D-POE Information Supplement QuickStart Guide FortiGate/FortiWiFi Power Cable The FortiGate QuickStart Guide Power Adapter (Ground lug on PoE models only) 2 Wireless Antennae (Wireless models only) Ethernet Cable Wall Mount Hardware USB Cable... - Page 4 FortiGate 70D/90D Console (RJ-45) Optional connection to the management computer Provides access to the CLI Ethernet Ports Green: Connected at 1Gbps Flashing Green: Transmitting & receiving data at 1Gbps Amber: Connected at 10/100Mbps Flashing Amber: Transmitting & receiving data at 10/100Mbps...
- Page 5 WAN Ports 1 - 2 (RJ-45) USB (USB A) Gigabit Ethernet ports for Internet USB server ports connection to the Internet WAN 1 DC+12V WAN 2 MGMT Ethernet Ports 1 - 14 (RJ-45) Gigabit Ethernet 14-port switch for connection to your network USB MGMT (USB mini-B) USB client port Power...
- Page 6 FortiGate 70D/90D-PoE Ethernet Ports Green: Connected at 1Gbps Flashing Green: Transmitting & receiving data at 1Gbps Amber: Connected at 10/100Mbps Flashing Amber: Transmitting & receiving data at 10/100Mbps Off: No link established Console (RJ-45) Green: Power delivered Optional connection to the management computer...
- Page 7 PoE Ports A - D (RJ-45) Gigabit Ethernet ports with Power over Ethernet (PoE) support, up to 15.4W per port WAN Ports 1 - 2 (RJ-45) USB (USB A) Gigabit Ethernet ports for Internet USB server ports connection to the Internet WAN 1 DC+48V WAN 2...
- Page 8 FortiWiFi 90D Console (RJ-45) Optional connection to the management computer Provides access to the CLI Ethernet Ports Green: Connected at 1Gbps Flashing Green: Transmitting & receiving data at 1Gbps Amber: Connected at 10/100Mbps Flashing Amber: Transmitting & receiving data at 10/100Mbps Off: No link established WAN 1 CONSOLE...
- Page 9 WAN Ports 1 - 2 (RJ-45) USB (USB A) Gigabit Ethernet ports for Internet USB server ports connection to the Internet WAN 1 DC+12V WAN 2 MGMT Ethernet Ports 1 - 14 (RJ-45) Gigabit Ethernet 14-port switch for connection to your network USB MGMT (USB mini-B) USB client port Power...
- Page 10 FortiWiFi 90D-PoE Ethernet Ports Green: Connected at 1Gbps Flashing Green: Transmitting & receiving data at 1Gbps Amber: Connected at 10/100Mbps Flashing Amber: Transmitting & receiving data at 10/100Mbps Off: No link established Console (RJ-45) Green: Power delivered Optional connection to the management computer Flashing Green: Error Provides access to the CLI Off: No power delivered...
- Page 11 PoE Ports A - D (RJ-45) Gigabit Ethernet ports with Power over Ethernet (PoE) support, up to 15.4W per port WAN Ports 1 - 2 (RJ-45) USB (USB A) Gigabit Ethernet ports for Internet USB server ports connection to the Internet WAN 1 DC+48V WAN 2...
-
Page 12: Cautions And Warnings
Cautions and Warnings Industry Canada Equipment Standard for Digital Equipment (ICES) – Canada Environmental specifications CAN ICES-3 (B) / NMB-3 (B) Ambient operating temperature: 0C to 40C Innovation, Science and Economic Development (ISED) – Refer to specific Product Model Data Sheet for Environmental Specifi- Canada cations (Operating Temperature, Storage Temperature, Humidity, and Altitude). - Page 13 Product Safety Electrical Appliance & Material (PSE) – Japan This radio transmitter (7280B-0120201) has been approved by ISED to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type 日本では電気用品安全法(PSE)の規定により、 同梱している電源コードは本 indicated.
- Page 14 Products, you may transfer (not rent or lease unless specifically agreed to Americas, Fortinet Singapore Private Limited (each referred to herein as in writing by Fortinet) the Software to one end user on a permanent basis, “Fortinet”) .CAREFULLY READ THE FOLLOWING LEGAL AGREEMENT provided that: (i) you ensure that your customer and the end user receives (THE OR THIS “AGREEMENT”...
- Page 15 Fortinet may, in its discretion, replace shall be governed by the laws of the state of California, without regard the defective Hardware (or any part thereof) with any reconditioned to the conflict of laws principles. In the event of any disputes arising out Product that Fortinet reasonably determines is substantially equivalent (or of this Agreement or Fortinet’s limited warranty, the parties submit to the...
- Page 16 CD or download package. If any Open Source Software distribution medium does not bring the other work under the scope of licenses require that Fortinet provide rights to use, copy or modify a Open this License. Source Software program that are broader than the rights granted in 3.
- Page 17 It is not the purpose of this section to induce you to infringe any patents is covered only if its contents constitute a work based on the Library or other property right claims or to contest validity of any such claims; this (independent of the use of the Library in a tool for writing it).
- Page 18 object code for the work under the terms of Section 6. Any executables obligations, then as a consequence you may not distribute the Library at containing that work also fall under Section 6, whether or not they are all. For example, if a patent license would not permit royalty-free redistri- linked directly with the Library itself.
- Page 20 Fortinet.com...
