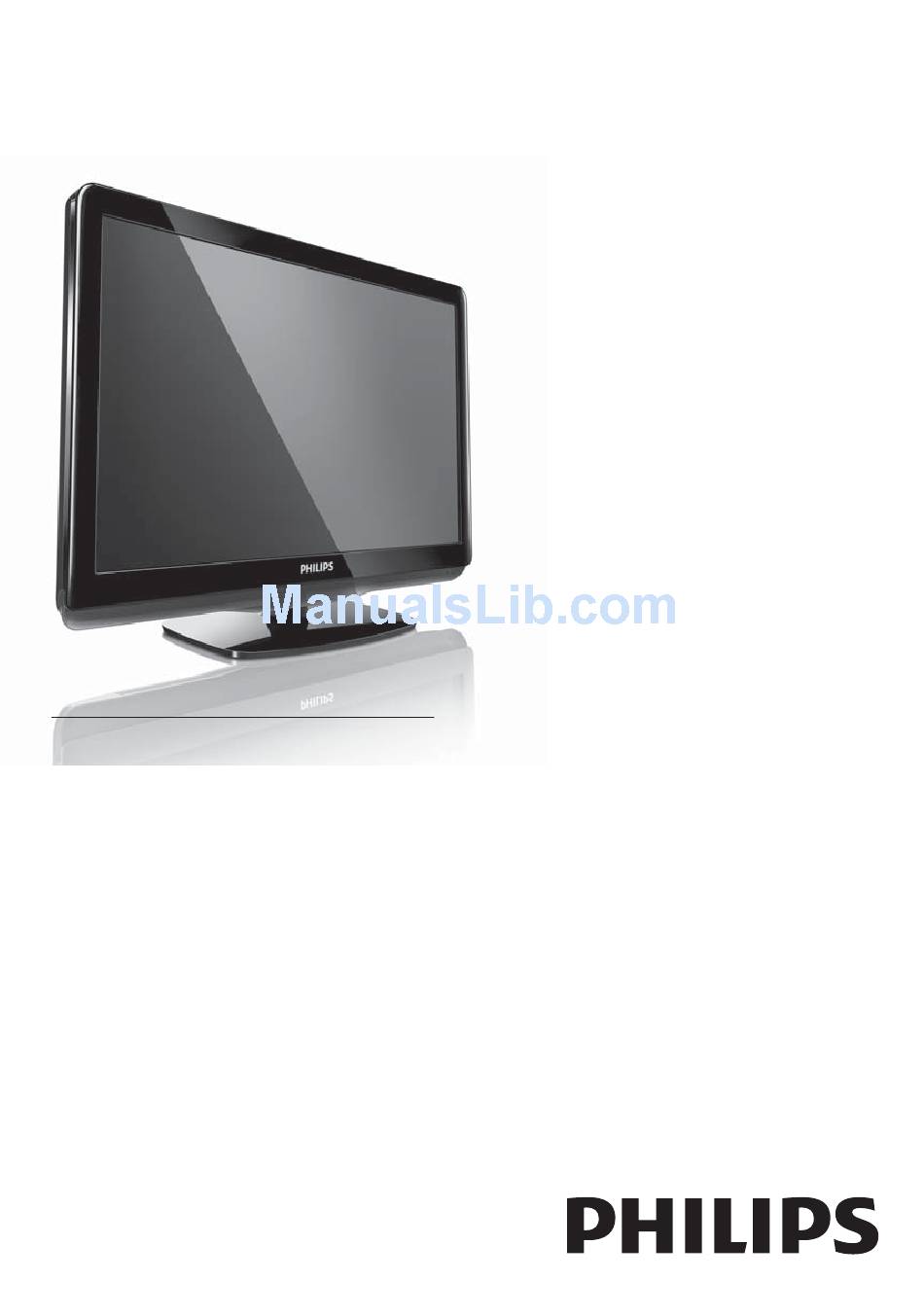

  • Page 1 Register your product and get support at www.philips.com/welcome 22PFL3805H User manual...
  • Page 2 Model Serial www.philips.com/support...

  • Page 3: Table Of Contents

    Rearrange channels Test digital reception 8 Connect devices Back connector Side connector Connect a computer Use a Conditional Access Module Use Philips EasyLink Use a Kensington lock 9 Product information Disc player Remote control Power Supported TV mounts Product specification...

  • Page 4: Notice

    One of Philips’ leading Business Principles is to take all necessary health and safety measures for our products, to comply with all applicable legal requirements and to stay well within the EMF standards applicable at the time of producing the products.

  • Page 5: Copyright

    Copyright This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorised by Rovi Corporation, and is intended for home and other limited viewing uses only unless otherwise authorised by Rovi Corporation.

  • Page 6: Important

    TV. If liquids are spilt on or into the TV, disconnect the TV from the power outlet immediately. Contact Philips Consumer Care to have the TV checked before use. • Never place the TV, remote control or batteries near naked flames or other heat...

  • Page 7: Product Care

    Risk of injury, fire or power cord damage! • Never place the TV or any objects on the power cord. • To disconnect the TV power cord easily from the power outlet, ensure that you have full access to the power cord at all times.

  • Page 8: Environmental Efforts

    flower– www.ecolabel.eu You can find detailed information on standby energy consumption, warranty policy, spare parts and recycling of this TV on the Philips website for your country at www.philips.com. This TV has features that contribute to energy-efficient use. This TV was awarded the European Ecolabel for its environmental qualities.

  • Page 9: Your Tv

    3 Your TV Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your TV at www.philips.com/welcome. This section gives you an overview of commonly used TV controls and functions. Side controls and indicators (Eject): Ejects the disc from the disc compartment.

  • Page 10: Remote Control

    Remote control (Standby-On) • Switches the TV to standby if it is on. • Switches on the TV if it is in standby. b GOTO / TELETEXT Disc mode: Accesses or changes the disc status. TV mode: Toggles teletext on or off. SOURCE Selects connected devices.
  • Page 11 PICTURE Launches the picture menu. SOUND Launches the sound menu. +/- (Volume +/-) Increases or decreases volume. s TITLE MENU / BACK Disc mode: Accesses the title menu of a DVD disc. TV mode: Returns to previous screen or channel. t DISC MENU / BROWSE Disc mode: Accesses or exits the disc menu.

  • Page 12: Use Your Tv

    4 Use your TV This section helps you perform basic TV operations (see ‘Use more of your TV’ on page 17). Switch your TV on / off or to standby To switch on • If the standby indicator is off, press (Power) at the side of the TV.

  • Page 13: Watch Connected Devices

    Watch connected devices Note • Switch on the device before selecting it as a source on the TV. Use the source button Press SOURCE. » The source list appears. Press to select a device. Press OK to confirm your choice. »...

  • Page 14: Play Disc

    5 Play disc This section describes the basic operations of the disc player in the TV. Note • You can only insert a disc into the disc compartment when the TV is in disc mode. Play a disc The TV can play a wide variety of discs, including video, audio and mixed media (for example, a CD-R that contains JPEG pictures and MP3 music).

  • Page 15: More Play Features For Disc

    Use picture options Access several useful features while viewing pictures. Button Action Flips the photo vertically or horizontally. Rotates the picture anti-clockwise or clockwise. In file browser view, go to the previous or next page. REPEAT [Single]: Displays a picture once. [Repeat one]: Displays a picture repeatedly.

  • Page 16: Change Settings

    Switch camera angles This feature is only available for DVDs recorded with multiple camera angles. This allows you to view the picture from different angles. During video play, press GOTO. Select [Angle], then press OK. Press the Numeric buttons to select the available camera angles.
  • Page 17 Change audio settings Press DVD SETUP. Select [Audio setup], then press OK Select [SPDIF setup], then press OK • [SPDIF output]: Digital audio output to disc player and other digital audio system. • [BITSTREAM]: Select this to output original digital audio. •...

  • Page 18: Update The Disc Player Software

    OK. » The software version is displayed. Update software from a CD-R Insert a blank CD-R into the PC, rename the CD-R as ‘PHILIPS’. Check for the latest software version on www.philips.com/support. • Search for your model and click on ‘software&drivers’.

  • Page 19: Use More Of Your Tv

    6 Use more of your TV Access TV menus Menus help you to install channels, change picture and sound settings and access other features. Press . » The menu screen appears. Watch TV Play disc Play disc Setup Press to select and navigate through one of the following menus.

  • Page 20: Remove Devices From The Home Menu

    Remove devices from the home menu If a device is no longer connected to the TV, remove it from the home menu. Press . Press to select a device to remove. Press OPTIONS. Press to select [Remove device], then press OK. Select [Remove], then press OK.
  • Page 21 Manually adjust picture settings Press . Press to select [Setup] > [Picture]. Press to select the following settings. • [Smart picture]: Accesses pre-defined smart picture settings. • [Video contrast]: Adjusts the intensity of video contents, keeping backlight unchanged. • [Contrast]: Adjusts the intensity of backlight areas, keeping video contents unchanged.
  • Page 22 Summary of picture formats The following picture settings can be configured. Note • Depending on the format of the picture source, some picture settings are not available. [Auto format]: (Not for PC mode.) Automatically displays the suitable picture format. If not, widescreen is applied.

  • Page 23: Use The Universal Access Menu

    Manually adjust sound settings Press . Press to select [Setup] > [Sound]. » [Sound] menu appears. Press to select the following settings. • [Smart sound]: Accesses pre-defined smart sound settings. • [Bass]: Adjusts the bass level. • [Treble]: Adjusts the treble level. •...

  • Page 24: Use Advanced Teletext Features

    Use advanced teletext features Access the teletext options menu Access the teletext features through the teletext options menu. Press TELETEXT. » The teletext screen appears. Press OPTIONS. » The teletext options menu appears. Press to select one of the following options.

  • Page 25: Use The Electronic Programme Guide

    View all channels You can exit a favourite list, and view all installed channels. When watching TV, press OK. » The channel grid appears. Press OPTIONS. » The channel options menu appears. Press to select [Select list], then press OK or to enter.

  • Page 26: Use The Tv Clock

    Use EPG When watching TV, press BROWSE. » The EPG planner screen appears. Press . » The program guide menu appears. Press to select an option, and then press OK to confirm. Press to exit the EPG menu. Note • Only the channels in the [Preferred EPG channels] list appear in the EPG menu.

  • Page 27: Use Timers

    Change the time zone Press . Press to select [Setup] > [Installation] > [Clock] > [Time zone]. Press to select your time zone. Press OK to confirm. Note • This option is only available if you select clock mode] > [Manual] (in countries with clock transmission data).

  • Page 28: Use Tv Locks

    Automatically switch the TV on (on timer) You can switch the TV to a specified channel at a specified time, from standby or power-on mode. Press . Press to select [Setup] > [Features] > [On timer]. Press to enter the [On timer] menu. •...

  • Page 29: Use Subtitles

    Note • You have to enter your code every time you turn on your TV. • Switch the TV off and on again for the change to take effect. Lock or unlock one or more channels When watching TV, press OK to display the channel grid.

  • Page 30: View Photos And Play Music From A Usb Storage Device

    USB storage device Caution • Philips is not responsible if the USB storage device is not supported, nor is it responsible for damage or loss of data from the device. Use the USB connector to view photos or listen to music stored on a USB storage device.

  • Page 31: Music Settings

    View a slide show of your photos When a full screen image of a photo is displayed, press OK. » A slide show begins from the selected photo. Press the following buttons to control the slide show: • OK or to pause the slide show.

  • Page 32: Listen To Digital Radio Channels

    [Select list] > [All] to exit radio channels and view all channels. Update the TV software Philips continuously tries to improve its products and we recommend that you update the TV software when updates are available. Check www.philips.com/support for availability.

  • Page 33: Change Tv Preferences

    Note • The TV restarts after the software update is complete. Update using OAD If using (DVB-T) digital broadcast, your TV automatically receives software updates. If you receive a message on your screen asking you to update your software: • Select [Update now] to update the software immediately.

  • Page 34: Access Decoder Channel

    Access decoder channel You can map channels provided through a decoder or descrambler to your TV channel selection. In this way, you can select these channels by using the RC of your TV. The decoder or a descrambler must be connected to EXT1 (SCART).

  • Page 35: Install Channels

    7 Install channels The first time you set up your TV, you are prompted to select a menu language and to install TV and digital radio channels (if available). This chapter provides instructions on how to re-install and fine tune channels. Automatically install channels This section describes how to search and store channels automatically.

  • Page 36: Manually Install Channels

    Manually install channels This section describes how to search and store analogue TV channels manually. Step 1 Select your system Note • Skip this step if your system settings are correct. Press . Press to select [Setup] > [Installation] > [Channel installation] > [Analogue: manual install].

  • Page 37: Rename Channels

    Rename channels You can rename channels. The name appears when you select the channel. When watching TV, press OK to display the channel grid. Select the channel to rename. Press OPTIONS. » The channel options menu appears. Press to select [Rename channel], then press OK.

  • Page 38: Connect Devices

    8 Connect devices This section describes how to connect devices with different connectors. Examples are provided in the Quick Start. Note • You can use different types of connectors to connect a device to your TV. Back connector a HDMI 1 Digital audio and video input from high- definition digital devices such as Blu-ray players.

  • Page 39: Side Connector

    e PC IN (VGA and AUDIO) Audio and video input from a computer. PC AUDIO IN/ PC IN(AUDIO) f SERV. U For software update. Side connector a COMMON INTERFACE Slot for a Conditional Access Module (CAM). b AUDIO L/R Audio input from analogue devices connected to VIDEO.

  • Page 40: Connect A Computer

    d USB Data input from USB storage devices. (Headphone) Stereo audio output to headphones or earphones. Connect a computer Before you connect a computer to the TV • Set the screen refresh rate on your computer to 60Hz. • Select a supported screen resolution on your computer.

  • Page 41: Use A Conditional Access Module

    Use a Conditional Access Module A Conditional Access Module (CAM) is provided by digital TV service operators to decode digital TV channels. Note • Refer to the documentation from your service operator on how to insert a smart card into the Conditional Access Module.

  • Page 42: Use Philips Easylink

    You can use the remote control from the connected device to adjust the volume. Enable or disable EasyLink Note • Do not enable Philips EasyLink if you do not intend to use it. Press . Press to select [Setup] >...

  • Page 43: Use A Kensington Lock

    Press to select [Setup] > [Sound] > [TV speakers] > [On] to disable system audio control and enable the TV speakers. Note • To mute the TV speakers, select speakers] > [Off]. Use a Kensington lock There is a Kensington security slot at the back of the TV.

  • Page 44: Product Information

    9 Product information Product information is subject to change without notice. For detailed product information, go to www.philips.com/support. Supported display resolutions Computer formats • Resolution - refresh rate: • 640 x 480 - 60Hz • 800 x 600 - 60Hz •...

  • Page 45: Remote Control

    Ambient temperature: 5 to 40 degrees Celsius Supported TV mounts To mount the TV, purchase a Philips TV mount. To prevent damage to cables and connectors, be sure to leave a clearance of at least 2.2 inches or 5.5cm from the back of the TV.

  • Page 46: Troubleshooting

    • Disconnect the power cable from the power outlet. Wait until the TV cools down before reconnecting the power cable. If the blinking reoccurs, contact Philips Consumer Care. You forgot the code to unlock the lock feature. • Enter ‘8888’.

  • Page 47: Sound Issues

    There is poor picture quality from connected devices: • Check that the devices are connected properly. • Check that the picture settings are correctly set. The TV did not save your picture settings: • Check that the TV location is set to the home setting.

  • Page 48: Computer Connection Issues

    If you cannot resolve your problem, refer to the FAQs for this product at www.philips.com/support. If the problem remains unresolved, contact Philips Consumer Care in your country as listed in the Addendum. Warning • Do not attempt to repair the product yourself.

  • Page 49: Index

    11 Index analogue fine-tune antenna batteries bracket for wall mount care channel decoder channel grid channels favourites list fine-tune grid install automatic manual list lock rename reorder / rearrange switch test reception (digital channels) troubleshooting tune update child lock lock channels lock connected devices PIN code ratings lock...
  • Page 50 EasyLink disable enable one-touch play one-touch standby system audio control end of life environmental care e-sticker factory settings favourites list add to list create list view list fine-tune channels HDMI hearing impaired home mode install channels automatic manual Kensington lock language subtitle list...
  • Page 51 radio rearrange channels reception recycle register product remote control batteries technical specifications rename channels reorder channels resolution restore default screen care settings picture sound settings assistant shop mode slideshow view with music smart card smart picture smart settings smart sound software over the air download update...
  • Page 55 © 2010 Koninklijke Philips Electronics N.V. All rights reserved.
