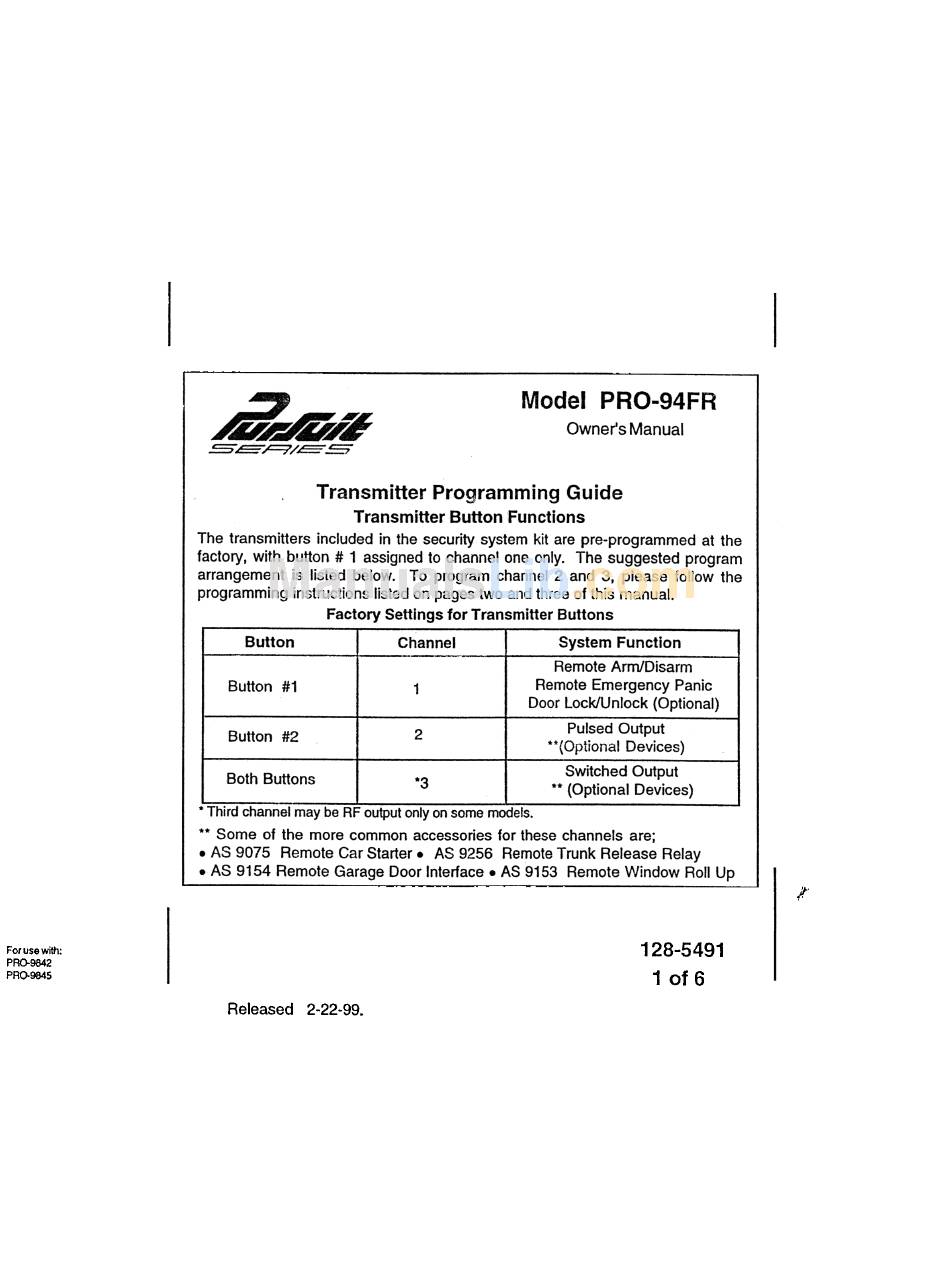

Audiovox PRO-94FR Programming Manual

Pursuit series
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
Model
PRO-94FR
Owner's Manual
~
.-=0- ~
/ .-=0- .:?"
Transmitter
Programming
Guide
Transmitter
Button Functions
The transmitters included in the security system kit are pre-programmed at the
factory, with button # 1 assigned to channel one only. The suggested program
arrangement is listed below. To program channel 2 and 3, please follow the
programming instructions listed on pages two and three of this manual.
Factory Settings for Transmitter Buttons
.Third channel may be RF outpulonly on some models.
** Some of the more common accessories for these channels are;
.AS
9075
Remote Car Starter.
AS 9256 Remote Trunk Release Relay
.AS
9154 Remote Garage Door Interface.
AS 9153 Remote Window Roll Up
~--
~~~
I'
128-5491
1 of 6
For use with:
PRO-9842
PRQ.9845
Released
2-22-99.

Advertisement

loading

Related Manuals for Audiovox PRO-94FR

Summary of Contents for Audiovox PRO-94FR

  • Page 1 PRQ.9845 Released Model / .-=0- .:?" Transmitter Programming Transmitter Button Functions Factory Settings for Transmitter Buttons Remote Car Starter. AS 9256 Remote Trunk Release Relay AS 9153 Remote Window Roll Up 2-22-99. PRO-94FR Owner's Manual Guide 128-5491 1 of 6...
  • Page 2 These factory programmed settings can be prioritized based on an individual's frequency of use. (i.e. pressing both buttons simultaneously arm/disarm etc.) by following the normal programming instructions Please note when changing the button sequences of the factory settings, it is necessary to perform steps 5.

  • Page 3: Valet Switch

    Move the valet/bypass switch on, then off again. The dash mounted L. E. D. will flash 2 times, and the siren will "chirp" one time, indicating that the system is ready to accept programming for channel 2, or the pulsed ground output for remote trunk release, remote car starter, etc. You can assign anyone of the two remaining button functions listed in 4a, 4b, or 4c above to operate channel 2.
  • Page 4 BATTERY The transmitter incorporates a small red L.E.D. built into the case. This L.E.D. can be used to indicate battery condition. You will notice a decrease in transmitter range as the battery conditfon deteriorates. 1. Remove the transmitter cover by removing the small screw from the back of the transmitter case.
  • Page 5 $65.00 Enter total amount enclosed here (N. Y. State residents only: Include appropriate state sales tax) Enclose check or money order (do not send cash) payable to: Audiovox Corp Mail this form and your payment to: or REPLACEMENT TRANSMITTERS:...
  • Page 6 128-5491 6 of...
