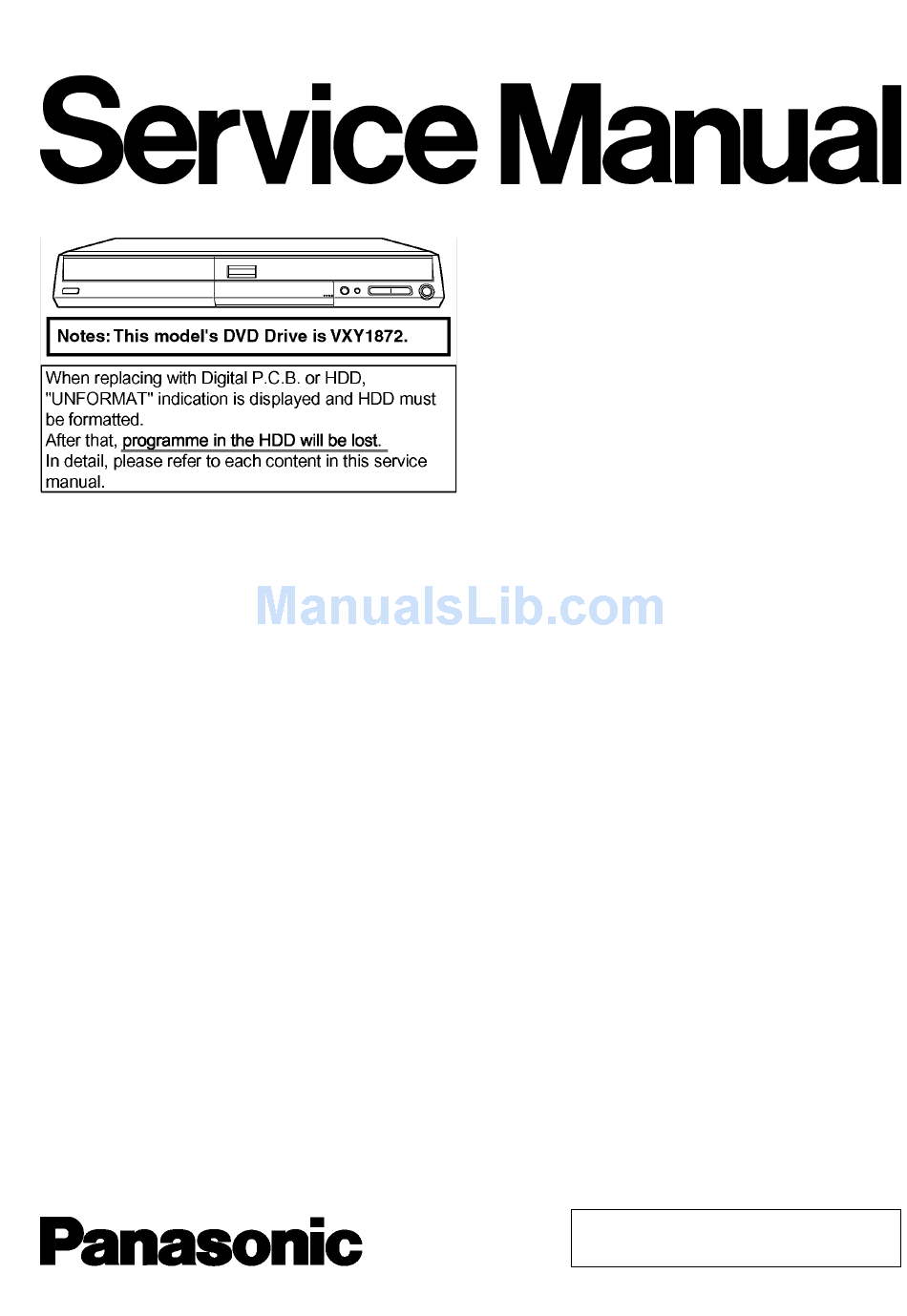

DVD Video Recorder
DMR-EH60PC
DMR-EH60PL
DMR-EH60GT
Vol. 1
Colour
(S).......................Silver Type
© 2005 Matsushita Electric Industrial CO., Ltd. All
rights
reserved.
distribution is a violation of law.
ORDER NO.DSD0508065CE
B24
Unauthorized
copying
and

Advertisement

Table of Contents
loading

Related Manuals for Panasonic DMR-EH60PC

Summary of Contents for Panasonic DMR-EH60PC

  • Page 1 ORDER NO.DSD0508065CE DVD Video Recorder DMR-EH60PC DMR-EH60PL DMR-EH60GT Vol. 1 Colour (S).......Silver Type © 2005 Matsushita Electric Industrial CO., Ltd. All rights reserved. Unauthorized copying distribution is a violation of law.
  • Page 2 DMR-EH60PC / DMR-EH60PL / DMR-EH60GT...

  • Page 3: Table Of Contents

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT CONTENTS Page Page 1 Specifications 15.2. When the unit does not operate normally after replacing 2 Safety precautions the Timer Microprocessor or Main P.C.B. 2.1. General guidelines 16 Standard Inspection Specifications after Making Repairs 2.2. Caution for fuse replacement...

  • Page 4: Specifications

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 1 Specifications...

  • Page 5: Safety Precautions

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 2 Safety precautions 2.1. General guidelines 1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit. 2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed.

  • Page 6: Prevention Of Electrostatic Discharge (Esd) To Electrostatic Sensitive (Es) Devices

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 3 Prevention of Electrostatic Discharge (ESD) to Electrostatic Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatic Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistor-sand semiconductor "chip"...

  • Page 7: Precaution Of Laser Diode

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 4 Precaution of Laser Diode...

  • Page 8: How To Replace The Lithium Battery

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 5 How to replace the Lithium Battery REPLACEMENT PROCEDURE 1. Remove the Top case and DVD-RAM drive unit with Main P.C.B. by referring the Disassembling Procedure. 2. Unsolder the Lithium Batteries: B7501 and then replace it into new one.

  • Page 9: Each Button

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 7 Each Button...
  • Page 10 DMR-EH60PC / DMR-EH60PL / DMR-EH60GT...

  • Page 11: New Feature

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 8 New Feature 8.1. Quick start function(REC) 1. General A few seconds after tuning on the unit,you can start recording to DVD-RAM,HDD. You can switch the operation of this function (ON/OFF) on the menu screen. .

  • Page 12: Taking Out The Disc From Ram-Drive Unit When The Disc Cannot Be Ejected By Open/Close Button

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 9 Taking out the Disc from RAM-Drive Unit when the Disc cannot be ejected by OPEN/CLOSE button 9.1. Forcible Disc Eject 9.1.1. When the power can be turned off. 1. Turn off the power and press [STOP] [CH UP] keys on the front panel simultaneously for 5 seconds.

  • Page 13: Service Explorer

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 10 Service Explorer Confirm “RAM-Drive Last Error” in Service Mode Execute Service Mode 1. Press [REC], [CH UP] and [OPEN/CLOSE] simultaneously for 5 seconds when P-off. FL Display: *After finishing display “(7). Factor of Drive Error occurring”, press [0] [2] ~[1] [9] keys of the Remote Controller so that 19 memories can be displayed as maximum.
  • Page 14 DMR-EH60PC / DMR-EH60PL / DMR-EH60GT (5) Error occurring Disc type is displayed for 5 seconds. (6) Disc Maker´s ID is displayed for 5 seconds. Example of Disc Maker´s ID: DVD-R Disc FL Display (Disc Maker´s ID) Disc Maker Country Panasonic...
  • Page 15 DMR-EH60PC / DMR-EH60PL / DMR-EH60GT Error Occurring Disc State...

  • Page 16: Self-Diagnosis And Special Mode Setting

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 11 Self-Diagnosis and Special Mode Setting 11.1. Self-Diagnosis Functions Self-Diagnosis Function provides information for errors to service personnel by “Self-Diagnosis Display” when any error has occurred. U**, H** and F** are stored in memory and held.

  • Page 17: Special Modes Setting

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT Error Code Diagnosis contents Description Monitor Display Automatic FL display UNFORM Unformatted disc error You have inserted an unformatted DVD-RAM or DVD-RW that is unformatted or recorded on other equipment. PLEASE Unit is in termination process Unit is in termination process now.
  • Page 18 DMR-EH60PC / DMR-EH60PL / DMR-EH60GT Item FL display Key operation Mode name Description Front Key Aging Contents (Example): CAUTION: Condition of the following sequence execution. *At start, DVD should be selected. Demonstration Ejection of the disc is prohibited. *When lock the tray.

  • Page 19: Service Modes

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 11.3. Service Modes Service mode setting: While the power is off, press REC, CH UP and OPEN / CLOSE simultaneously for five seconds. Item FL display Key operation Mode name Description (Remote controller key) Release Items Item of Service Mode executing is cancelled.
  • Page 20 DMR-EH60PC / DMR-EH60PL / DMR-EH60GT Item FL display Key operation Mode name Description (Remote controller key) Audio Mute (XTMUTE) Check whether mute is applied normally by Press [2] [1] in service mode. the timer microprocessor. Audio Mute (XDMUTE) Check whether mute is applied normally by Press [2] [2] in service mode.
  • Page 21 DMR-EH60PC / DMR-EH60PL / DMR-EH60GT Item FL display Key operation Mode name Description (Remote controller key) RAM Drive Last Error RAM Drive error code display. 1. Error Number is displayed for 5 Press [4] [2] in service mode. *For details about the drive error code, refer seconds.
  • Page 22 DMR-EH60PC / DMR-EH60PL / DMR-EH60GT Item FL display Key operation Mode name Description (Remote controller key) Display the Error History Display the Error History stored on the unit. Display reason of error for 5 Press [6] [5] in service mode.

  • Page 23: Assembling And Disassembling

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 12 Assembling and Disassembling 12.1. Disassembly Flow Chart The following chart is the procedure for disassembling the casing and inside parts for internal inspection when carrying out the servicing. To assemble the unit, reverse the steps shown in the chart below.

  • Page 24: Top Cover

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 12.3. Top Cover 12.5. SD Card P.C.B. 1. Remove the 2 screws (A) and 3 screws (B). 1. Remove 2 Screws (A) to remove SD Card P.C.B. 2. Slide Top Cover rearward and open the both ends at rear side of the Top Cover a little and lift the Top Cover in the direction of the arrows.

  • Page 25: Hdd

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT CAUTION: 1. Remove ATAPI Connector and HDD Power Connector. When replacing Digital P.C.B., pay attention as below. 2. Remove 4 Screws (A) to remove HDD Angle with HDD 12.7. HDD 3. Put HDD with HDD Angle up and down inversely so as not to give a shock to HDD.

  • Page 26: Led P.c.b. And Dv Jack

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 12.9. DVD-RAM Drive 1. Remove 3 Screws (A) to remove DVD-RAM Drive. 2. Lift up DVD-RAM Drive slightly and remove FFC and remove Cable between DVD-RAM Drive and Main P.C.B. 12.8. LED P.C.B. and DV Jack P.C.B.

  • Page 27: Power P.c.b

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 12.10. Power P.C.B. 12.11. Rear Panel 1. Remove Screw (A). 1. Disconnect Fan Connector. 2. Remove 3 Screws (B) and disconnect Connector (A) and HDD Power Connector to remove Power P.C.B. 3. Unlock Power P.C.B. from a flange to remove Power 2.

  • Page 28: Front (L) P.c.b

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 12.11.1. Fan Motor 12.13. Main P.C.B. 1. Disconnect Fan Connector and remove 2 Screws (A). 1. Disconnect Connector (A) for Front (L) P.C.B. 2. Push and unlock 2 locking Tabs (A) to remove Fan Motor.

  • Page 29: Service Fixture And Tools

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 13 Service Fixture and Tools Part Number Description Compatibility RFKZ0125 Extension FFC (Digital P.C.B. - DVD-RAM Drive / 40 Pin) Same as E50 / E55 series RFKZ0126 Extension Cable (MainP.C.B. - DVD-RAM Drive/ 4 Pin)

  • Page 30: Checking And Repairing Of Digital P.c.b

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 14.2. Checking and Repairing of Digital P.C.B.

  • Page 31: Checking And Repairing Of Main P.c.b

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 14.3. Checking and Repairing of Main P.C.B.
  • Page 32 DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 14.3.1. Checking IR Circuit (EH60PC Only) NOTE1: Even if Main P.C.B. is not removed, IR Circuit can be checked. NOTE2: Prepare the Oscilloscope 1. Remove Top Case. 2. Turn on the power. Then if "Welcome ..." was displayed on the TV monitor, press [ENTER] to advance next stage.

  • Page 33: Checking And Repairing Of Dvd-Ram Drive

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 14.4. Checking and Repairing of DVD-RAM Drive...

  • Page 34: Checking And Repairing Of Hdd

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 14.5. Checking and Repairing of HDD...

  • Page 35: Caution After Replacing Parts

    Perform auto recording and playback for one minute using the RAM No abnormality should be seen in the picture, sound or operation. disc. *Panasonic DVD-RAM disc should be used when recording and playback. Model with the HDD: Perform auto recording and playback for one No abnormality should be seen in the picture, sound or operation.

  • Page 36: Voltage And Waveform Chart

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 17 Voltage and Waveform Chart Note) Circuit voltage and waveform described herein shall be regarded as reference information when probing defect point, because it may differ from an actual measuring value due to difference of Measuring instrument and its measuring condition and product itself.
  • Page 37 DMR-EH60PC / DMR-EH60PL / DMR-EH60GT IC3001 Ref No. MODE PLAY STOP IC4001 Ref No. MODE PLAY STOP Ref No. IC4001 MODE PLAY STOP IC4004 IC4005 IC7404 Ref No. MODE 12.9 PLAY 12.9 STOP 12.9 IC7501 Ref No. MODE -27.8 -27.8 -27.8...

  • Page 38: Tuner P.c.b

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT IC8002 Ref No. MODE PLAY STOP Q4001 Q4002 Q4003 Q4004 Q4005 Ref No. MODE -0.2 -0.2 -0.2 -0.4 -0.3 PLAY -0.2 -0.2 -0.2 -0.4 -0.3 STOP -0.2 -0.3 -0.3 -0.3 -0.2 Q7503 Q7504 Q7506 Q7507 Q7508 Ref No.

  • Page 39: P9001 Connector

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 17.5. P9001 Connector Ref No. P9001 MODE PLAY STOP Ref No. P9001 MODE PLAY STOP Ref No. P9001 MODE PLAY STOP P9001 Ref No. MODE PLAY STOP P9001 Ref No. MODE PLAY STOP...

  • Page 40: Waveform Chart

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 17.6. Waveform Chart T1150-2 STOP T1150-10,11 STOP T1150-4 STOP T1150-6 STOP 30Vp-p (5 sec.div) 30Vp-p (5 sec.div) 300Vp-p (5 sec.div) 20Vp-p (5m sec.div) IC1150-1 STOP IC1150-2 STOP P7401-83 REC/PLAY P7401-51 REC/PLAY 8.0Vp-p (5 sec.div) 0.5Vp-p (5 sec.div) 1.0Vp-p (20 sec.div)

  • Page 41: Abbreviations

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 18 Abbreviations INITIAL/LOGO ABBREVIATIONS INITIAL/LOGO ABBREVIATIONS A0~UP ADDRESS ERROR TORQUE CONTROL ACLK AUDIO CLOCK ERROR TORQUE CONTROL AD0~UP ADDRESS BUS REFERENCE ADATA AUDIO PES PACKET DATA ENCSEL ENCODER SELECT ADDRESS LATCH ENABLE ETMCLK EXTERNAL M CLOCK (81MHz/40.5MHz)
  • Page 42 DMR-EH60PC / DMR-EH60PL / DMR-EH60GT INITIAL/LOGO ABBREVIATIONS INITIAL/LOGO ABBREVIATIONS READ ENABLE VBLANK V BLANKING RFENV RF ENVELOPE COLLECTOR POWER SUPPLY RF PHASE DIFFERENCE OUTPUT VOLTAGE (CD-ROM) REGISTER SELECT VCDCONT VIDEO CD CONTROL (TRACKING RSEL RF POLARITY SELECT BALANCE) RESET DRAIN POWER SUPPLY VOLTAGE...

  • Page 43: Block Diagram

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 19 Block Diagram 19.1. Power Supply Block Diagram POWER P.C.B. MAIN P.C.B. D1140 IC1701 Q1700 VA1110,L1120,L1121 C1143 (DC-DC CONVERTER) (REG.XSW+3.8V) AC SOCKET F1101 P1101 X SW+3.8V P1102 P1501 250V2A SURGE RECTIFIER T1150 SUPPRESSOR POWER TRANSFORMER...
  • Page 44 DMR-EH60PC / DMR-EH60PL / DMR-EH60GT MAIN P.C.B. DIGITAL P.C.B. IC1504 (REG.D+3.3V) IC3201/IC3206/IC3207/IC3208/ X SW+3.8V D+3.3V P7401 P9001 IC4007/IC4008/IC6001/IC6003/ VOUT IC6010/IC6011/IC6701/IC37001/ 68,70,72,74 IC37002/IC37005(+3.3V) (Timer Section) IC6008 (REG.D+2.5V) IC7503 IC7505- (SYS PFAIL CTL.) VOUT IC3201/IC6006/IC6007(+2.5V) QR7503 (SYS PFAIL OUT) IC1502 (REG.ANA+3.3V) ANA+3.3V...

  • Page 45: Analog Video Block Diagram

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 19.2. Analog Video Block Diagram IC3001 :REC SIGNAL :PB SIGNAL (VIDEO PROCESSOR) DVD C IN P9001 P7401 COUT DM BIAS 6M LPF JK3902 A/V OUT C75 OUT JACK CPN C OUT DVD Y IN P9001...

  • Page 46: Analog Audio Block Diagram

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 19.3. Analog Audio Block Diagram IC4001 (AUDIO PROCESSOR) :REC SIGNAL :PB SIGNAL TUNER PACK P.C.B. IC7801 (AUDIO MULTIPLEX DECODER) TU7801 U/V TUNER FL7801 EXT12 PS7801 PP7404 TUNER R ROUT SIF OUT INPUT LOUT EXT11 PS7801 PP7404...

  • Page 47: Analog Timer Block Diagram

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 19.4. Analog Timer Block Diagram IC7505 IC8001 (TIMER) (G-LINK CONTROL) IC8002 (RESET) IR BUSY BUSY XRESET JC REG+5V FRONT(L)P.C.B. Q8003 IR CS BUFFER XIRCS S7001 P7001 P7505 FL RXD Q8002 (PC) POWER BUFFER FL TXD...
  • Page 48 DMR-EH60PC / DMR-EH60PL / DMR-EH60GT...

  • Page 49: Schematic Diagram

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 20 Schematic Diagram 20.1. Interconnection Schematic Diagram PS7801 PP7404 P1502 P3202 FP101 P102 DR12V RESET- /HRST TUNER 5V TUNER 5V DR12V DRGND M GND IIC CLK IIC CLK DR5V IIC DATA IIC DATA DD10 DD10...

  • Page 50: Main Power Schematic Diagram

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 20.2. Main Power Schematic Diagram ZA1103 ZA1104 EYF52BCY EYF52BCY P1101 K2AB2H000004:PC/PL F1101 L1120 L1121 D1140 K2AA2H000007:GT K5D202BK0005 G0B100E00002 G0B100E00002 B0EDKT000009 C1125 250V 2A LB1122 1000P VA1110 C1121 C1143 ERZV10D471C2 0.068 250V150 D1270 B0JBSG000010 T1150 G4D2A0000217...
  • Page 51 DMR-EH60PC / DMR-EH60PL / DMR-EH60GT L1402 15u R1409 R1411 R1407 4700 2700 LB1400 J0JHC0000048 C1412 C1421 C1413 0.01 10V470 Q1400 IC1401 R1406 B1DHDD000022 C0DBAKG00005 D1401 (REG.DR+5V) (DC-DC CONVERTER) B0JCPD000021 C1411 180P IP1401 K5H3022A0013 R1405 L1400 10u ZA1105 C1409 K9ZZ00001279 C1407...

  • Page 52: Sub Power Section (Main P.c.b. (1/6)) Schematic Diagram (P)

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 20.3. Sub Power Section (Main P.C.B. (1/6)) Schematic Diagram (P) TO P1102 TO P1102 POWER P.C.B. POWER P.C.B. P1501 P1501 LB1504 J0JKB0000003 X SW 5.8V X SW 5.8V X SW 5.8V X SW 5.8V X SW 5.8V...

  • Page 53: Main Net Section (Main P.c.b. (2/6)) Schematic Diagram (M)

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 20.4. Main Net Section (Main P.C.B. (2/6)) Schematic Diagram (M) LB7411 0 LB7412 0 D7401 R7402 4700 B0JACE000001 C7406 C7407 X SW 5.2V TO P9001 R7403 4700 DIGITAL P.C.B. (AUDIO NET SECTION) P7401 LB7410 J0JHC0000032...

  • Page 54: Video I/O Section (Main P.c.b. (3/6)) Schematic Diagram (V)

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 20.5. Video I/O Section (Main P.C.B. (3/6)) Schematic Diagram (V) AUDIO VIDEO AUDIO VIDEO LINE LINE LINE LINE LINE LINE LINE LINE IN(R) IN(R) IN(L) IN(L) L3 IN L1 IN CPN L3 IN CPN L1 IN...
  • Page 55 DMR-EH60PC / DMR-EH60PL / DMR-EH60GT JK3903 K1U407B00004 PR/CR PB/CB DIGITAL (RED) (BLUE) (GREEN) AUDIO OUT COMPONENT VIDEO OUT (480P/480I) R4901 0 R4903 0 IECOUT C4906 C4904 C4903 6V47 R3923 R3924 R3925 L4901 ANA5V C4902 C4901 6V47 AUGND L2 IN L...

  • Page 56: Audio Main Section (Main P.c.b. (4/6)) Schematic Diagram (A)

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 20.6. Audio Main Section (Main P.C.B. (4/6)) Schematic Diagram (A) C4028 R4043 63V15 3.9K AADC R MIXROUT DM AADC L MIXLOUT DM C4029 R4044 63V15 R4045 R4046 3.9K 6.2K 6.2K C4025 C4024 25V47 25V47 L2 IN R...

  • Page 57: 20.7. Timer Section (Main P.c.b. (5/6)) Schematic Diagram (T

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 20.7. Timer Section (Main P.C.B. (5/6)) Schematic Diagram (T) D7509 B0JDCE000002 X SW 5.2V L7505 C7568 C7510 C7540 C7529 6V470 TW7501 TO P7101 D7508 R7519 R7520 R7521 LED P.C.B. RESET B0JACE000001 8200 8200 8200 P7506 R7607 4.7K...

  • Page 58: Timer Section (Main P.c.b. (5/6)) Schematic Diagram (T)

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT DP7501 A2BD00000099 TIMER DISPLAY P:Sub Power Section(Page: M:Main Net Section(Page: V:Video I/O Section(Page: TL7501 A:Audio Main Section(Page: T:Timer Section(Page: TL7512 U:UART/IR Section(Page: TL7509 L123 SWIDE CH DOWN CH UP K7513 S7507 S7506 EVQPC105K EVQPC105K R7600 2700...

  • Page 59: Uart/Ir Section (Main P.c.b. (6/6)) Schematic Diagram (U)

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 20.8. UART/IR Section (Main P.C.B. (6/6)) Schematic Diagram (U) P:Sub Power Section(Page: M:Main Net Section(Page: V:Video I/O Section(Page: A:Audio Main Section(Page: (PC) T:Timer Section(Page: JK8001 U:UART/IR Section(Page: K2HC104B0013 (G-LINK) R8030 220 ITM2A ITA2M R8031 220...

  • Page 60: Tuner Pack Schematic Diagram

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 20.9. Tuner Pack Schematic Diagram TU7801 ENGF6503GRF (U/V TUNER) FL7801 EFCT4R5MS5W R7810 C7824 C7823 R7811 0.01 6V47 C7826 C7825 D7801 0.01 50V1 MAZ73000BC TO PP7404 LB7801 MAIN P.C.B. J0JHC0000032 R7813 (MAIN NET SECTION) PS7801 TUNER 5V...

  • Page 61: Sd Card Schematic Diagram

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 20.10. SD Card Schematic Diagram TO SD CARD TO P6004 TL6802 P6803 DIGITAL P.C.B. DAT3 (AVENC/RTSC/AVDEC/MAIN CPU-2 SECTION) P6802 LB6801 FL6801 J0JHC0000032 F1H0J1050025 3.3V 3.3V MSOTX DAT2 R6804 R6805 R6807 DAT0 DAT0 XDIAG DAT1 LB6802...

  • Page 62: Led/Dv Jack Schematic Diagram

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 20.11. LED/DV Jack Schematic Diagram TO PS37001 DIGITAL P.C.B. (DV1394/GLUE SECTION) P37002 P37001 (DV INPUT JACK) TPA+ TPA+ TPA- TPA- TPB+ TPB- TPAB+ TPAB- DV JACK P.C.B. TO P7506 MAIN P.C.B. (TIMER SECTION) P7101 N SW 5V...

  • Page 63: Print Circuit Board

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 21 Print Circuit Board 21.1. Power P.C.B. Power P.C.B. Integrated Circuit Diode L1601 C1270 C1604 R1207 R1704 IC1150 D1140 L1701 C1271 C1605 R1208 R1705 IC1200 D1151 LB1122 C1272 C1606 R1209 R1800 IC1400 D1152 LB1123 C1273...

  • Page 64: Main P.c.b

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 21.2. Main P.C.B. 21.2.1. Main P.C.B. (1/4 Section) (FRONT) (REAR) Location Map DMR-EH60PC/PL/GT Main P.C.B. (VEP79111F: EH60PC VEP79111G: EH60PL/GT) (1/4 Section)
  • Page 65 DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 21.2.2. Main P.C.B. (2/4 Section) (FRONT) (REAR) Location Map DMR-EH60PC/PL/GT Main P.C.B. (VEP79111F: EH60PC VEP79111G: EH60PL/GT) (2/4 Section)
  • Page 66 DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 21.2.3. Main P.C.B. (3/4 Section) (FRONT) (REAR) Location Map DMR-EH60PC/PL/GT Main P.C.B. (VEP79111F: EH60PC VEP79111G: EH60PL/GT) (3/4 Section)
  • Page 67 DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 21.2.4. Main P.C.B. (4/4 Section) (FRONT) (REAR) Location Map DMR-EH60PC/PL/GT Main P.C.B. (VEP79111F: EH60PC VEP79111G: EH60PL/GT) (4/4 Section)
  • Page 68 DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 21.2.5. Main P.C.B. Address Information Main P.C.B. Integrated Circuit TL7505 LB4907 C3042 C7532 R4004 R7538 IC1501 TL7506 LB4908 C3043 C7533 R4010 R7539 IC1502 TL7507 LB4909 C3044 C7534 R4011 R7540 IC1504 TL7508 LB4910 C3046 C7535 R4012...

  • Page 69: Tuner P.c.b

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 21.3. Tuner P.C.B. Tuner P.C.B. DMR-EH60PC/PL/GT Tuner P.C.B. (VEP07A76B)

  • Page 70: Sd Card P.c.b

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 21.4. SD Card P.C.B. SD Card P.C.B. (Foil Side) (Component Side) DMR-EH60PC/PL/GT DMR-EH60PC/PL/GT SD Card P.C.B. (Component Side) SD Card P.C.B. (Foil Side) (VEP73121B) (VEP73121B)

  • Page 71: Led P.c.b. , Front (L), Dv Jack P.c.b

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 21.5. LED P.C.B. , Front (L), DV Jack P.C.B. LED P.C.B. DV Jack P.C.B. Front (L) P.C.B. DMR-EH60PC/PL/GT DMR-EH60PC/PL/GT DV JACK P.C.B. LED P.C.B. (VEP70122) (VEP73132A) Front (L) P.C.B. (VEP70121A)
  • Page 72 DMR-EH60PC / DMR-EH60PL / DMR-EH60GT...

  • Page 73: Exploded Views

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 22 Exploded Views 22.1. Casing Parts & Mechanism Section...

  • Page 74: Packing & Accessories Section

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 22.2. Packing & Accessories Section...

  • Page 75: Replacement Parts List

    DMR-EH60PC / DMR-EH60PL / DMR-EH60GT 23 Replacement Parts List Notes: Ref. Part No. Part Name & Remarks Description *Important safety notice: RMA1910A-1 SD CARD ANGLE Components identified mark have special VEK0H70 RMN0823-2 HDD BRACKET characteristics important for safety. VEK0H71 Furthermore, special parts which have purposes of fire-...
  • Page 76 DMR-EH60PC / DMR-EH60PL / DMR-EH60GT Ref. Part No. Part Name & Remarks Ref. Part No. Part Name & Remarks Description Description K2CB2CB00018 AC CORD (PC)(PL) C3022 F2A1A471A224 10V 470U K2CA2CA00027 AC CORD (GT) C3023 F2A1E4700051 25V 47U K2KA6BA00003 AV CORD...
  • Page 77 DMR-EH60PC / DMR-EH60PL / DMR-EH60GT Ref. Part No. Part Name & Remarks Ref. Part No. Part Name & Remarks Description Description C7437 F2A0J470A012 6.3V 47U D7504 B0AAGM000007 DIODE C7502 F1J0J475A008 6.3V 4.7U D7505 B0AADM000003 DIODE C7503 ECJ1VB1C104K 16V 0.1U D7506...
  • Page 78 DMR-EH60PC / DMR-EH60PL / DMR-EH60GT Ref. Part No. Part Name & Remarks Ref. Part No. Part Name & Remarks Description Description LB3920 J0JCC0000103 COIL R1506 ERJ3RBD103V 1/16W 10K LB3924 J0JCC0000103 COIL R1507 ERJ3RBD152V 1/16W 1.5K LB3925 J0JCC0000103 COIL R1508 ERJ3RBD153V...
  • Page 79 DMR-EH60PC / DMR-EH60PL / DMR-EH60GT Ref. Part No. Part Name & Remarks Ref. Part No. Part Name & Remarks Description Description R4062 ERJ3GEYJ681V 1/10W 680 R7552 ERDS2TJ331T 1/4W 330 R4063 ERJ3GEYJ272V 1/10W 2.7K R7553 ERJ3GEYJ103V 1/10W 10K R4064 ERJ3GEYJ272V 1/10W 2.7K...
  • Page 80 DMR-EH60PC / DMR-EH60PL / DMR-EH60GT Ref. Part No. Part Name & Remarks Ref. Part No. Part Name & Remarks Description Description C1273 EEUFM1C121B 16V 120U W601 ERJ6GEY0R00V 1/8W 0 C1274 ECJ2VB1E104K 25V 0.1U W602 ERJ3GEY0R00V 1/10W 0 C1400 EEUFM1E221B 25V 220U...
  • Page 81 DMR-EH60PC / DMR-EH60PL / DMR-EH60GT Ref. Part No. Part Name & Remarks Ref. Part No. Part Name & Remarks Description Description LB1700 J0JHC0000048 FILTER C7801 F2A1H2R2A234 50V 2.2U C7802 ECJ1VB1C333K 16V 0.033U P1101 K2AA2H000007 AC INLET (GT) C7803 ECJ1VB1C104K 16V 0.1U...
  • Page 82 DMR-EH60PC / DMR-EH60PL / DMR-EH60GT Ref. Part No. Part Name & Remarks Description W512 ERJ3GEY0R00V 1/10W 0 W513 ERJ6GEY0R00V 1/8W 0 W514 ERJ6GEY0R00V 1/8W 0 W515 ERJ6GEY0R00V 1/8W 0 W516 ERJ3GEY0R00V 1/10W 0 W517 ERJ6GEY0R00V 1/8W 0 W518 ERJ6GEY0R00V 1/8W 0...
