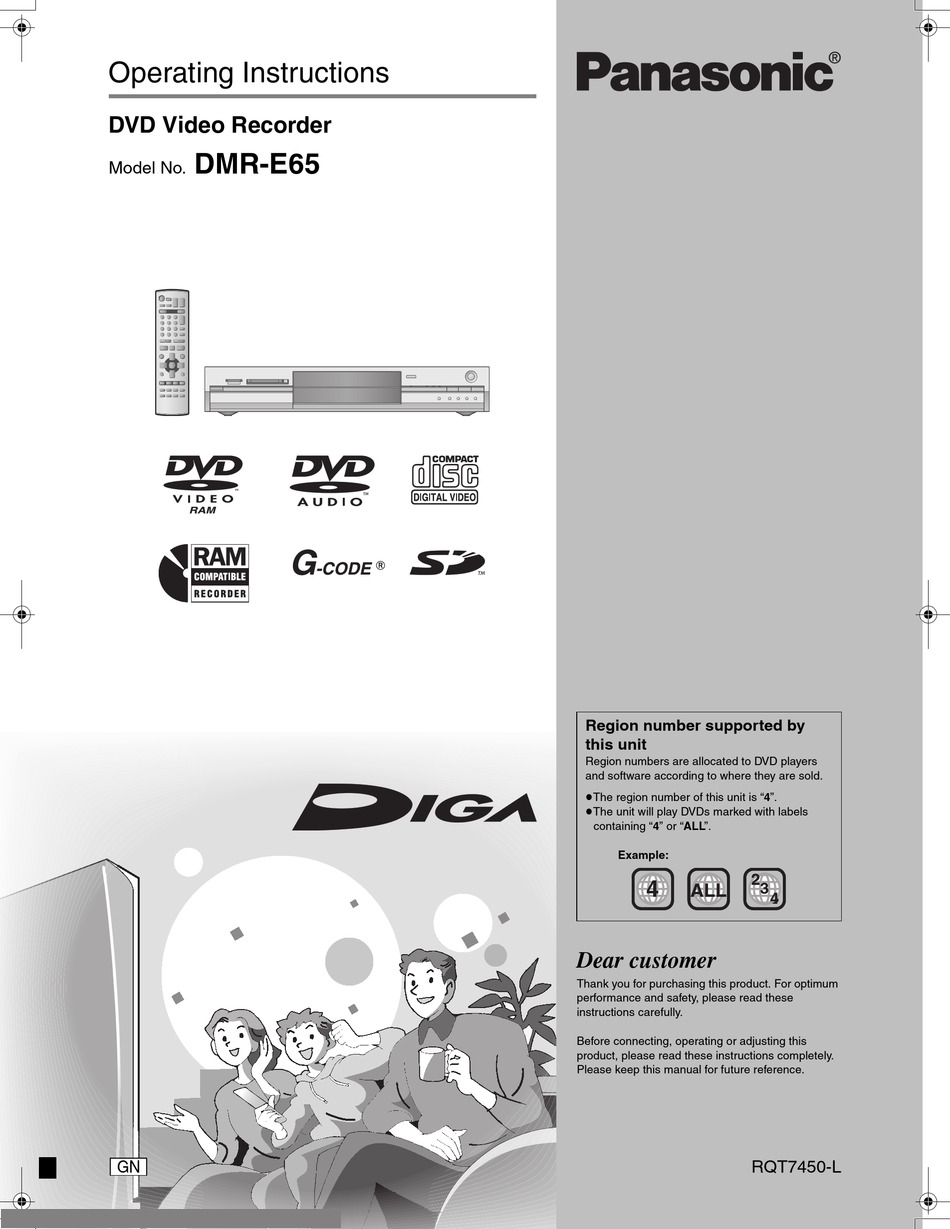

Operating Instructions
DVD Video Recorder
DMR-E65
Model No.
GN
Region number supported by
this unit
Region numbers are allocated to DVD players
and software according to where they are sold.
≥The region number of this unit is "4".
≥The unit will play DVDs marked with labels
containing "4" or "ALL".
Example:
2
4
ALL
ALL
Dear customer
Thank you for purchasing this product. For optimum
performance and safety, please read these
instructions carefully.
Before connecting, operating or adjusting this
product, please read these instructions completely.
Please keep this manual for future reference.
2
2
3
3
4
5
RQT7450-L
