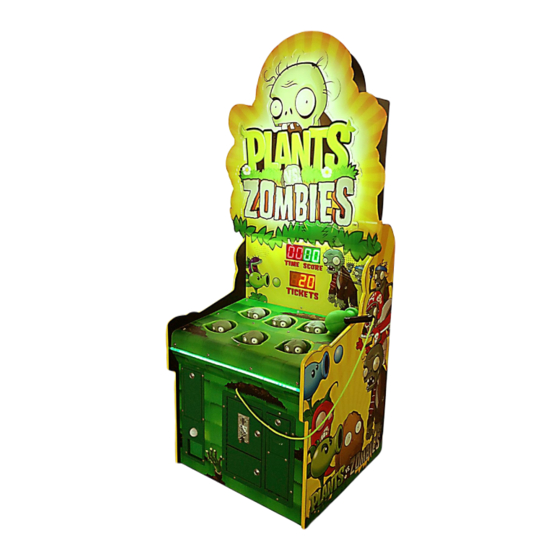

Sega PLANTS VS ZOMBIES Service Manual

You can get this game at www.magic-play.eu

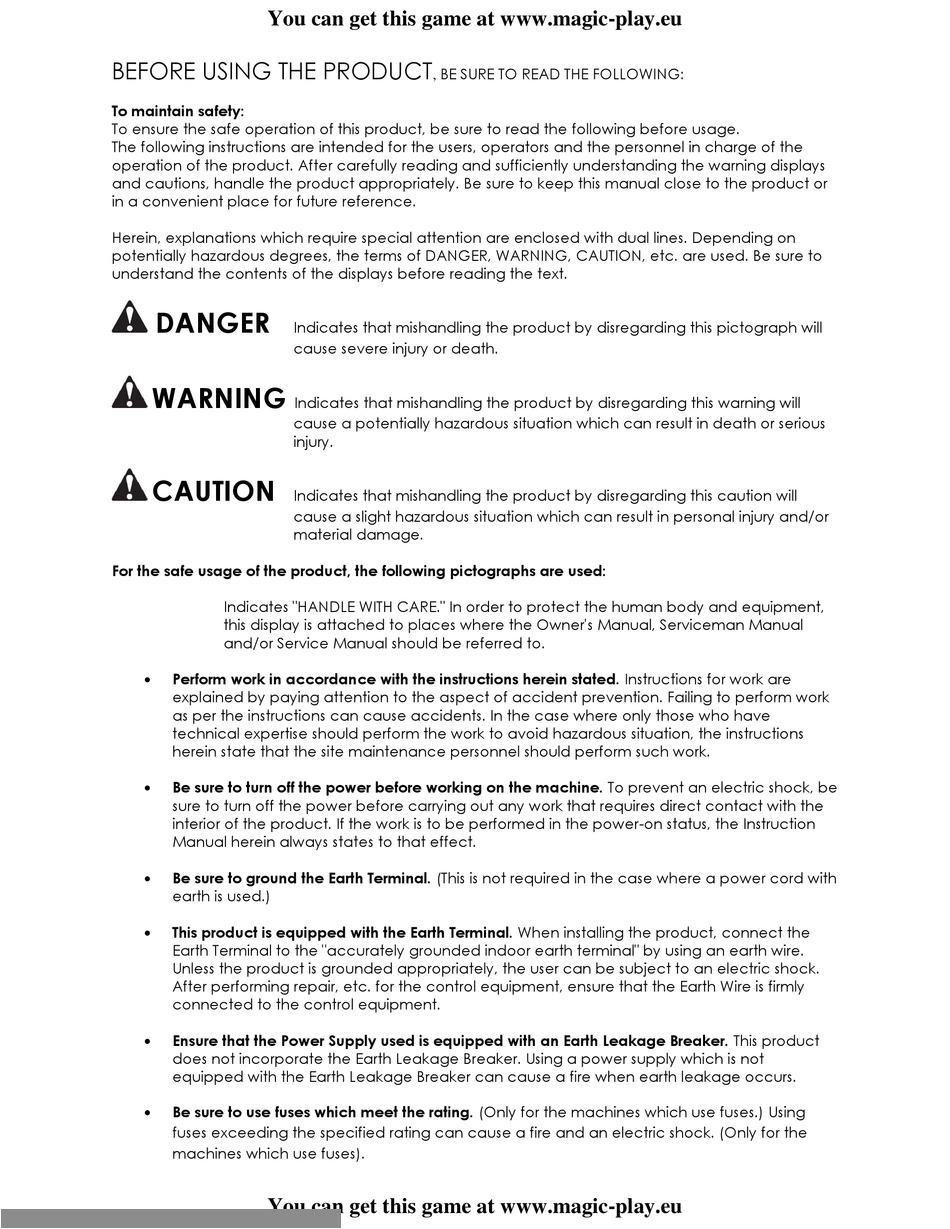

BEFORE USING THE PRODUCT
To maintain safety:
To ensure the safe operation of this product, be sure to read the following before usage.
The following instructions are intended for the users, operators and the personnel in charge of the
operation of the product. After carefully reading and sufficiently understanding the warning displays
and cautions, handle the product appropriately. Be sure to keep this manual close to the product or
in a convenient place for future reference.
Herein, explanations which require special attention are enclosed with dual lines. Depending on
potentially hazardous degrees, the terms of DANGER, WARNING, CAUTION, etc. are used. Be sure to
understand the contents of the displays before reading the text.
DANGER
WARNING
CAUTION
For the safe usage of the product, the following pictographs are used:
Indicates "HANDLE WITH CARE." In order to protect the human body and equipment,
this display is attached to places where the Owner's Manual, Serviceman Manual
and/or Service Manual should be referred to.
 Perform work in accordance with the instructions herein stated. Instructions for work are
explained by paying attention to the aspect of accident prevention. Failing to perform work
as per the instructions can cause accidents. In the case where only those who have
technical expertise should perform the work to avoid hazardous situation, the instructions
herein state that the site maintenance personnel should perform such work.
 Be sure to turn off the power before working on the machine. To prevent an electric shock, be
sure to turn off the power before carrying out any work that requires direct contact with the
interior of the product. If the work is to be performed in the power-on status, the Instruction
Manual herein always states to that effect.
 Be sure to ground the Earth Terminal. (This is not required in the case where a power cord with
earth is used.)
 This product is equipped with the Earth Terminal. When installing the product, connect the
Earth Terminal to the "accurately grounded indoor earth terminal" by using an earth wire.
Unless the product is grounded appropriately, the user can be subject to an electric shock.
After performing repair, etc. for the control equipment, ensure that the Earth Wire is firmly
connected to the control equipment.
 Ensure that the Power Supply used is equipped with an Earth Leakage Breaker. This product
does not incorporate the Earth Leakage Breaker. Using a power supply which is not
equipped with the Earth Leakage Breaker can cause a fire when earth leakage occurs.
 Be sure to use fuses which meet the rating. (Only for the machines which use fuses.) Using
fuses exceeding the specified rating can cause a fire and an electric shock. (Only for the
machines which use fuses).
You can get this game at www.magic-play.eu
, BE SURE TO READ THE FOLLOWING:
Indicates that mishandling the product by disregarding this pictograph will
cause severe injury or death.
Indicates that mishandling the product by disregarding this warning will
cause a potentially hazardous situation which can result in death or serious
injury.
Indicates that mishandling the product by disregarding this caution will
cause a slight hazardous situation which can result in personal injury and/or
material damage.
