Marantz NR1604 Model Information

Marantz NR1604 Model Information

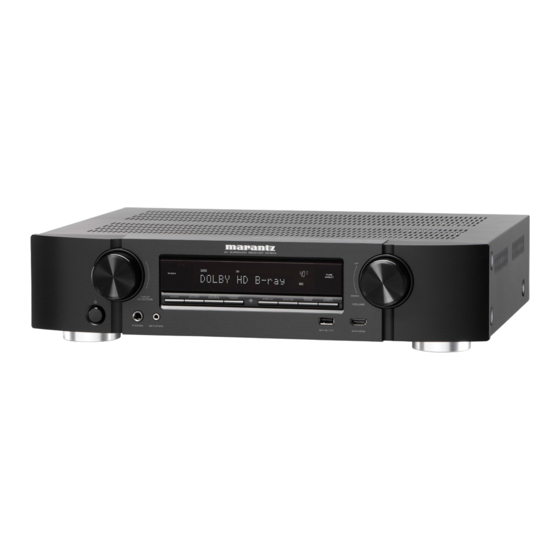

Integrated av receiver
Hide thumbs Also See for NR1604:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
Model Information
Index
Front Panel
Rear Panel
Remote Control
Warranty
Reset Procedure
Accessories
Protection History
Display Mode
Upgrades/Updates
Product Specifications
I/R Codes
NOTE:
This edition is missing the link to the IR codes................................................................................ 12/01/2016
MODEL:
Model Information
INTEGRATED AV RECEIVER
Note: Wi-Fi and Bluetooth functions are not available on this model.
Ethernet cable connection is needed for Network use.
NR1604
MI120116E3-1

Advertisement

Table of Contents
loading

Related Manuals for Marantz NR1604

Summary of Contents for Marantz NR1604

  • Page 1 MODEL: NR1604 Model Information Index Model Information Front Panel INTEGRATED AV RECEIVER Rear Panel Remote Control Warranty Reset Procedure Accessories Protection History Display Mode Upgrades/Updates Product Specifications Note: Wi-Fi and Bluetooth functions are not available on this model. I/R Codes Ethernet cable connection is needed for Network use.

  • Page 2: Front Panel (1 Of 2)

    Front Panel (1 of 2) Power indicator M-DAX button This is lit as follows according to the power status: This enables the M-DAX mode. • Power on : Off ZONE2 ON/OFF button • Normal standby : Red This turns the power of ZONE2 on/off. •...

  • Page 3: Front Panel (2 Of 2)

    Front Panel (2 of 2) USB port Display This displays various pieces of information. Used to connect USB storages (such as USB memory devices) and the USB cable supplied with iPod. Remote control sensor This receives signals from the remote control unit. Q4 AUX-HDMI connector Used to connect devices such as video camcorders and M-DAX indicator...

  • Page 4: Main Display (1 Of 2)

    Main Display (1 of 2) Information display Sleep timer indicator The input source name, sound mode, setting values and other This lights when the sleep mode is selected. information are displayed here. Tuner reception mode indicators These light according to the reception conditions when the Input signal indicators input source is set to “TUNER”.

  • Page 5: Rear Panel

    Rear Panel FM/AM antenna terminals (ANTENNA) Digital audio connectors (DIGITAL AUDIO) Used to connect FM and AM antennas. Used to connect devices equipped with digital audio connectors. Analog audio connectors (AUDIO) Network connector (NETWORK) Used to connect devices equipped with analog audio Used to connect this unit to the network.

  • Page 6: Remote Control (1 Of 2)

    Remote Control (1 of 2) ZONE SELECT buttons (MAIN, ZONE2) These switch the zone (MAIN ZONE, ZONE2) that is operated through the remote control unit. Input source select buttons These select the input source. Channel/page search buttons (CH/PAGE ) These select preset radio stations or switch pages. Information button (INFO) This displays the status information on the TV screen.

  • Page 7: Remote Control (2 Of 2)

    Remote Control (2 of 2) Remote control signal transmitter This transmits signals from the remote control unit. POWER button This turns the power on/off. SLEEP button This sets the sleep timer. MUTE button This mutes the output audio. VOLUME buttons () These adjust the volume level.

  • Page 8: Marantz Usa Limited Warranty (1 Of 2)

    Length of Non-Transferable Warranty This warranty on your Marantz product which is distributed and warranted by Marantz America Inc. remains in effect for the following periods from the date of the original consumer purchase from an AUTHORIZED DENON ELECTRONICS (USA), LLC DEALER.
  • Page 9 How you can get service  If your unit needs service, contact Marantz customer service by calling 201-762-6666. We will advise you of the name and location of one or more authorized Marantz service stations from which service can be obtained. Please do not return your unit to the factory without prior authorization.
  • Page 10 Reset Important: Back up the settings before resetting the microprocessor. Most settings are reset to the factory default values after performing this procedure. This means that all the settings data will be completely lost if it’s not previously saved. “ZONE2 “M-DAX”...
  • Page 11 Accessories Sound Remote Control Sound Calibration (RC021SR) Calibration Microphone Microphone Stand (ACM1HB) 30701014400AM 32401000800AD $31.99 963549101000D $16.82 AM Loop FM Indoor Power Cord) Antenna Antenna 963116100070S $8.99 963116100080S $3.27 90M-ZC000470R $30.64 Safety CD ROM Instructions Owner’s Manual Warranty Notes on Radio Quick Start (For North Guide...
  • Page 12 FAQ’s ( 1 of 2) HOME ACCESSORIES FAQ’s 2...
  • Page 13 FAQ’s (2 of 2) HOME FAQ’s 1 UPGRADE...
  • Page 14 Dolby Atmos and DTS:X surround sound technologies dispense with channel-based coding in favor of object-based coding, giving the sound designer the ability to precisely place sounds anywhere in the 3-dimensional space. The NR1604, features the ability to connect a 5.1 surround sound speaker system and 4 additional overhead speakers (or 4 additional Dolby Atmos elevation speakers) for the ultimate home cinema experience.
  • Page 15 Note: This will also check the time it will approximately take to complete the update. To check to see if an update or upgrade is available for your NR1604 and also to download the latest version of firmware, click on the following link: http://www.us.marantz.com/us/support/pages/productupdates.aspx...

  • Page 16: Specifications - Audio Section

    Specifications – Audio Section Audio section 50 W + 50 W (8 Ω/ohms, 20 Hz – 20 kHz with 0.08 % T.H.D.) Front 70 W + 70 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.) 50 W (8 Ω/ohms, 20 Hz – 20 kHz with 0.08 % T.H.D.) Center 70 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.) Rated output...

  • Page 17: Specifications - Video Section, Tuner Section, General Section

    Specifications - Video Section, Tuner Section, General Section Video section Input/output level and impedance 1 Vp-p, 75 Ω/ohms Standard video connectors Frequency response 5 Hz -10MHz, 0, - 3dB Y signal 1 Vp-p, 75 Ω/ohms Input/output level and impedance PB/CB signal 0.7 Vp-p, 75 Ω/ohms Color component video connector PR/CR signal...

  • Page 18: Specifications - Dimensions, Weight

    Specifications – Dimensions, Weight Dimensions section (Unit : inch/mm) Weight: 18 lbs 8 oz (8.4 kg) HOME SPECIFICATIONS - SPECIFICATIONS - VIDEO – Protection History Display AUDIO TUNER – GENERAL Mode (Front Panel Buttons)

  • Page 19: Nr1604 - Protection History Display Mode (1 Of 3)

    NR1604 - Protection History Display Mode (1 of 3) Model Information Index Protection History Mode records and displays an event in which the THERMAL, CURRENT, ASO or DC protection was activated. POWER ZONE2 SOURCE INTERNET RADIO STATUS Procedure to enter the “Protection History Display Mode”.

  • Page 20: Nr1604 - Protection History Display Mode (2 Of 3)

    NR1604 - Protection History Display Mode (2 of 3) Model Information Index 1. If no protections have occurred, “No Protect” is displayed 3. If the last protection was ASO, “ASO” is displayed. Cause: A short circuit occurred between the speaker terminals, or speakers with an impedance outside the rating were connected. If the power is turned on during this abnormality, protection is activated after around 5 seconds and the power is turned off.

  • Page 21: Nr1604 - Protection History Display Mode (3 Of 3)

    NR1604 - Protection History Display Mode (3 of 3) Model Information Index Clearing the Protection History If the unit is in “Protection History Display Mode”, just press and hold the “DISPLAY” button for 3 seconds. Note: If you do not mind erasing your settings from this unit, you can also “Initialized/Micro Reset the unit to clear the Protection History from the...
  • Page 22 The End NOTE: This edition is missing the link to the IR Codes……………………………………………………………………...12/01/2016 HOME...
