Summary of Contents for Chauvet COLORdash Par-H12 IP
- Page 1 User Manual...
- Page 2 Chauvet reserves the right to revise the content of this document without any obligation to notify any person or company of such revision, however, Chauvet has no obligation to make, and does not commit to make, any such revisions. Download the latest version from www.chauvetprofessional.com...
-
Page 3: Table Of Contents
Configuration (Standalone) ................16 Auto Programs ....................... Master/Slave ........................White Balance ........................ Static Fixed Color......................Static Manual Color......................Color Temperature ......................Dimmer Profiles......................LED Frequency ......................Back Light ........................COLORdash Par-H12 IP User Manual Rev. 1 TOC 1 of 2... - Page 4 5. Te c hnic al Info rmatio n ..............Product Maintenance ..................19 6. Te c hnic al S pe c ific atio ns ............7. Re turns ..................8. Co ntac t Us .................. TOC 2 of 2 COLORdash Par-H12 IP User Manual Rev. 1...
-
Page 5: Before You Begin
If the box or the contents (the product and included accessories) appear damaged from shipping, or show signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection. -
Page 6: Safety Notes
• In the event of a serious operation problem, stop using this product immediately! If your Chauvet product requires service, contact Chauvet Technical Support. Expected LED Lifespan LEDs gradually decline in brightness over time, primarily because of heat. LEDs that are arranged in clusters experience higher operating temperatures than single LEDs. -
Page 7: Introduction

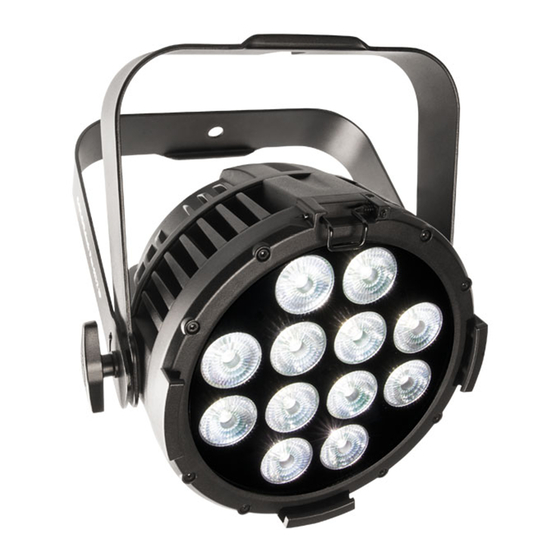

NTRODUCTION Description The COLORdash Par-H12 IP delivers an intense and beautiful RGBAW + UV LED wash in any weather condition. An OLED full text display is easy to navigate and direct IP rated connections for power and DMX make setup a breeze. The product is fully convection cooled. -
Page 8: Product Overview
NTRODUCTION Product Overview DMX In/Out Safety Loop Power Out Control Adjustment Power In Panel Knob Double-Bracketed 13 mm Mounting Yoke Point Page 6 of 22 COLORdash Par-H12 IP User Manual Rev. 1... -
Page 9: Product Dimensions
NTRODUCTION Product Dimensions 6.97 in 177 mm 9.41 in 239 mm 12.05 in 306 mm 12.87 in 327 mm 7.68 in 195 mm COLORdash Par-H12 IP User Manual Rev. 1 Page 7 of 22... -
Page 10: Setup
ETUP AC Power Each COLORdash Par-H12 IP has an auto-ranging power supply that works with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the power requirements for each COLORdash Par-H12 IP, refer to the label affixed to the product. You can also refer to the Technical Specifications chart in this manual. -
Page 11: Dmx Linking
ETUP DMX Linking You can link the COLORdash Par-H12 IP to a DMX controller using a 5-pin DMX connection. If using other DMX-compatible products with this product, you can control each individually with a single DMX controller. DMX Personalities The COLORdash Par-H12 IP uses a 5-pin DMX data connection for the 6-, 8- and 13-channel DMX personalities. -
Page 12: Mounting
Procedure The COLORdash Par-H12 IP comes with a double-bracketed yoke to which you can either attach mounting clamps for hanging or simply use as a floor stand. You must supply the mounting clamps. Make sure the clamps are capable of supporting the weight of this product. Use at least one mounting point per product. -
Page 13: Operation
<DOWN> function Control Options Set the COLORdash Par-H12 IP starting address in the 001-512 DMX range. This enables control of up to 46 products in the 11-channel 11CH personality. Programming Refer to the Menu Map to understand the menu options. The menu map shows the main level and a variable number of programming levels for each option. -
Page 14: Menu Map
Blue/Amber Blue/White Blue/UV Amber/White Amber/UV Static Fixed Color White/UV Red/Green/Blue Red/Green/Amber Red/Green/White Red/Green/UV Red/Blue/Amber Red/Blue/White Red/Blue/UV Red/Amber/White Red/Amber/UV Red/White/UV Green/Blue/Amber Green/Blue/White Green/Blue/UV Green/Amber/White Green/Amber/UV Green/White/UV Blue/Amber/White Blue/Amber/UV Blue/White/UV Amber/White/UV Page 12 of 22 COLORdash Par-H12 IP User Manual Rev. 1... - Page 15 Sets green LED maximum value White Blue Sets blue LED maximum value 125- Balance Manual Amber Sets amber LED maximum value White Sets white LED maximum value Sets UV LED maximum value COLORdash Par-H12 IP User Manual Rev. 1 Page 13 of 22...
-
Page 16: Configuration (Dmx)
Set the starting address: Go to DMX Address main level. Select the starting address (001–512). The highest recommended starting address for each DMX mode is as follows: DMX Personality DMX Address Page 14 of 22 COLORdash Par-H12 IP User Manual Rev. 1... -
Page 17: Dmx Values
Preset dimmer speed from display menu Linear dimmer Dimmer Speed Nonlinear dimming curve 1 (fastest) Nonlinear dimming curve 2 Nonlinear dimming curve 3 (slowest) COLORdash Par-H12 IP User Manual Rev. 1 Page 15 of 22... -
Page 18: Configuration (Standalone)
The auto programs cannot be edited. Master/Slave The Master/Slave mode allows a group of COLORdash Par-H12 IP products (the slaves) to simultaneously duplicate the output of another COLORdash Par-H12 IP (the master) without a DMX controller. To set each of the slaves:... -
Page 19: White Balance
PERATION White Balance This setting allows for selection of the white balance shown by the COLORdash Par-H12 IP when Static > Manual Color Mixing > Red, Green, Blue, Amber, White, and UV. or the DMX controller’s Red, Green, Blue, Amber, White, and UV faders are set to 255. -
Page 20: Back Light
PERATION Back Light This setting allows for selection of the amount of time the backlight on the COLORdash Par-H12 IP’s display stays on after the last button is pressed on the control panel. Go to the Back Light main level. -
Page 21: Technical Information
Softly drag any dirt or grime to the outside of the transparent surface. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. COLORdash Par-H12 IP User Manual Rev. 1 Page 19 of 22... -
Page 22: Technical Specifications
I/O Connector Channel Range 5-pin XLR 6, 8 or 13 Ordering Product Name Item Code UPC Number COLORdash Par-H12 IP 03031297 781462216450 UL 1573 CSA C22.2 No. 166 E113093 Page 20 of 22 COLORdash Par-H12 IP User Manual Rev. 1... -
Page 23: Returns
ETURNS ETURNS Send the product prepaid, in the original box, and with the original packing and accessories. Chauvet will not issue call tags. Call Chauvet and request a Return Merchandise Authorization (RMA) number before shipping the product. Be prepared to provide the model number, serial number, and a brief description of the cause(s) for the return. -
Page 24: Contact Us
Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., United Kingdom, Ireland, Mexico or Benelux, contact the dealer of record. Page 22 of 22 COLORdash Par-H12 IP User Manual Rev. 1...
