Makita BPT350 Technical Information

14.4v li-ion cordless pin nailer
Hide thumbs Also See for BPT350:

Advertisement

Quick Links

Download this manual See also: Instruction Manual
T
ECHNICAL INFORMATION
Models No.
Description
C
ONCEPT AND MAIN APPLICATIONS

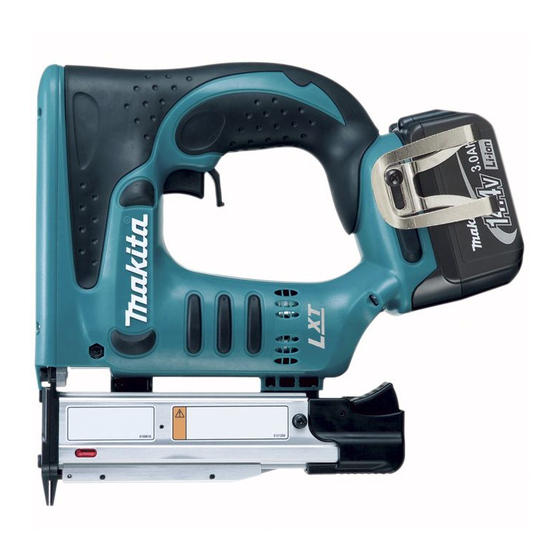

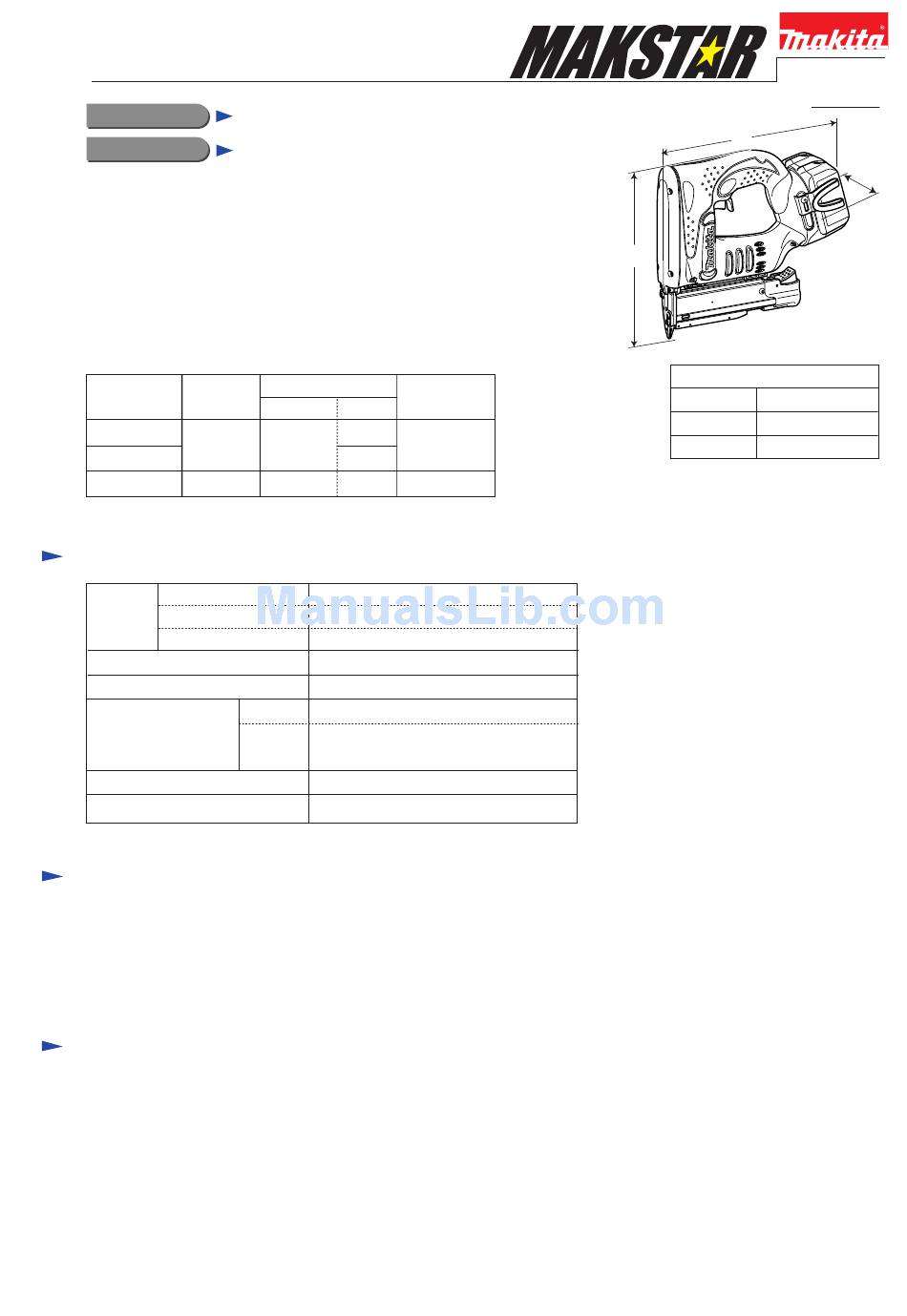

Model BPT350 is the first Makita cordless pin nailer.
Power unit of 14.4V/ 3.0Ah Li-ion battery and unique driving mechanism
enable an operator to shoot 18, 25, 30, 35mm (11/16, 1, 1-3/16, 1-3/8") pin
nails without being disturbed by air hose and with no air compressor.
This product is available in the following variations.
Model No.
Charger
BPT350RFE
DC18RA
BPT350RF
BPT350Z
The items listed below in "Standard Equipment" also come with the above items.
S
pecification
Voltage: V
Battery
Capacity: Ah
Cell
Max. Output (W)
Stroke of hammer: mm (")
Applicable pin nails:
mm (")
Magazine capacity
Net weight*: kg (lbs)
*with Battery BL1430
S
tandard equipment
Belt clip ................................. 1
Nose adapter .......................... 1
Hex wrench 3 ......................... 1
Safety goggle ......................... 1
Plastic carrying case .............. 1 (except BPT350Z)
Note: The standard equipment for the tool shown above may differ by country.
O
ptional accessories
Pin nails 18 (11/16)/ 25 (1)/ 35 (1-3/8)
Charger DC18RA
Battery BL1430
BPT350
Cordless Pin Nailer
Battery
type
quantity
2
BL1430
1
No
No
No
Diameter
Length
(11/16, 1, 1-3/16, 1-3/8)
Plastic
carrying case
Yes
No
14.4
3.0
Li-ion
175
59 (2-5/16)
0.6 (1/32)
18, 25, 30, 35
130 nails
2.0 (4.4)
PRODUCT
L
H
Dimensions: mm (")
Length (L)
245 (9-5/8)
Width (W)
79 (3-1/8)
Height (H)
227 (8-15/16)
P 1 / 13
W

Advertisement

loading

Related Manuals for Makita BPT350

Summary of Contents for Makita BPT350

  • Page 1 Cordless Pin Nailer ONCEPT AND MAIN APPLICATIONS Model BPT350 is the first Makita cordless pin nailer. Power unit of 14.4V/ 3.0Ah Li-ion battery and unique driving mechanism enable an operator to shoot 18, 25, 30, 35mm (11/16, 1, 1-3/16, 1-3/8") pin nails without being disturbed by air hose and with no air compressor.
  • Page 2 Disassembling magazine section [2] LUBRICATION Apply Makita grease N. No.2 to the portions designated with the black triangle, and apply molybdenum disulfide lubricant to the portions designated with the gray triangle to protect parts and product from unusual abrasion. Item No.
  • Page 3 P 3 / 13 epair [3] DISASSEMBLY/ASSEMBLY [3] -1. Replacing Driver 1) Remove four 3x16 Tapping screws bind PT and Front cover. (Fig. 2) 2) Remove Upper plate as illustrated in Fig. 3. 3) Remove Pin 4 for connecting Driver and Hammer. (Fig. 4) 4) Remove Driver as illustrated in Fig.
  • Page 4 P 4 / 13 epair Fig. 9 [3] DISASSEMBLY/ASSEMBLY [3] -2. Replacing Switch, LED circuit and Terminal Tapping screw Hold trigger section so bind PT3x16 for as not to spring out. 1) Do the steps 1), 2), 3) and 4) of page 3. Housing L and R: 8 pcs.
  • Page 5 P 5 / 13 epair [3] DISASSEMBLY/ASSEMBLY [3] -4. Trigger Section DISASSEMBLE 1) Remove Front cover and Housing R. (Fig. 2 and Fig. 9) 2) Remove the parts around trigger section in the following order. (Fig. 13) 1. Safety trigger 2. Light switch arm 3. Link plate 4. Torsion spring 4 5. Pin 2.5 (3 pcs.) 6. Pin 3 3) Disassemble guide plate in order of Figs.
  • Page 6 P 6/ 13 epair [3] DISASSEMBLY/ASSEMBLY [3] -5. Spring Section (cont.) DISASSEMBLE 3) Disassemble the Spring section in order from Fig. 19 to Fig. 22. Spring section is removed as illustrated in Fig. 23. Fig. 19 Fig. 20 Guide bolt Cushion Wrench 8 Flat...
  • Page 7 P 7 / 13 epair [3] DISASSEMBLY/ASSEMBLY [3] -6. Spring section (cont.) ASSEMBLE 1) Take the reverse steps of the disassembling procedure for Spring section. Refer to Page 6. 2) Secure Spur gear 55 complete with Flat washer 4 and 3x16 Tapping screw bind PT. Adjust the position of Roller of Spur gear 55 complete so that it comes to under the hook portion of hammer when installing spring section in Housing L.
  • Page 8 (1) Assemble Cam block section to Spur gear 55 complete. (Fig. 26) Usually, there is no need to disassemble Cam block section for repair. Note: Put Makita grease N No.2 to the inner and the outer peripheries of Internal gear 69, the pins of Spur gear 7 complete and the teeth of Spur gear 55 complete.
  • Page 9 P 9/ 13 epair [3] DISASSEMBLY/ASSEMBLY [3] -6. Switch Mechanism Fig. 32 ASSEMBLE Guide plate (1) Insert Guide plate and Compression spring 4 into Trigger. (Fig. (2) Hook the short tail of Torsion spring 3 with Swing arm, and then insert the Compression spring 4 Torsion spring 3 into Swing arm.
  • Page 10 P 10/ 13 epair Fig. 38 [3] DISASSEMBLY/ASSEMBLY [3] -6. Switch Mechanism (cont.) Pin 2.5 ASSEMBLE (Ref. Figs. 34 and 35) 7) Insert the remaining two Pins 2.5 firmly into Housing set L until they stop as illustrated in Fig. 38. Pin 2.5 (two pcs.) 8) Install Link plate to Housing L with Pin 3 through Link plate.

  • Page 11: Disassembly/Assembly

    P 11 / 13 epair [3] DISASSEMBLY/ASSEMBLY [3] -8. Fastening Torque Item No. Description Fastening Torque Hex socket head bolt M4x10 for assembling Rail and Holder 2.9 - 4.9 N.m Hex socket head bolt M4x14 for assembling Driver guide and Magazine 2.0 - 3.0 N.m Hex socket head bolt M4x6 for assembling Driver guide cover and Driver guide 2.9 - 4.9 N.m...

  • Page 12: Fig

    P 12/ 13 iring diagram Fig. D-2 Wiring to Switch Flag connector Lead wire Housing L Side (orange) Flag connector with lead wire (orange) has to be connected so that the Lead wire faces Housing L side. Fig. D-3 Wiring to D.C Motor Red marking for distinction of + Terminal Terminal with Red marking Flag Connector...

  • Page 13: Fig

    P 13 / 13 iring diagram Fig. D-5 Start point regulator Boss A Lead wire (red) to + Terminal of ON-OFF DC Motor Switch Guide Lead wire (red) of Start point regulator to DC motor while passing it between boss A and lead wire holder A. Lead wire Fix lead wire (black) of ON-OFF switch holder A...
