SYSTEM Inverter Air Conditioners
MODELS
BEV unit
BEVQ71MVE
BEVQ100MVE
BEVQ125MVE
READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLATION.
KEEP THIS MANUAL IN A HANDY PLACE FOR FUTURE REFERENCE.
LESEN SIE DIESE ANWEISUNGEN VOR DER INSTALLATION SORGFÄLTIG DURCH.
BEWAHREN SIE DIESE ANLEITUNG FÜR SPÄTERE BEZUGNAHME GRIFFBEREIT AUF.
LIRE SOIGNEUSEMENT CES INSTRUCTIONS AVANT L'INSTALLATION.
CONSERVER CE MANUEL A PORTEE DE MAIN POUR REFERENCE ULTERIEURE.
LEA CUIDADOSAMENTE ESTAS INSTRUCCIONES ANTES DE INSTALAR.
GUARDE ESTE MANUAL EN UN LUGAR A MANO PARA LEER EN CASO DE TENER
ALGUNA DUDA.
PRIMA DELL'INSTALLAZIONE LEGGERE ATTENTAMENTE QUESTE ISTRUZIONI.
TENERE QUESTO MANUALE A PORTATA DI MANO PER RIFERIMENTI FUTURI.
ÄΙΑΒΑΣΤΕ ΠΡΟΣΕΚΤΙΚΑ ΑΥΤΕΣ ΤΙΣ ΟÄΗΓΙΕΣ ΠΡΙΝ ΑΠΟ ΤΗΝ ΕΓΚΑΤΑΣΤΑΣΗ ΕΧΕΤΕ ΑΥΤΟ
ΤΟ ΕΓΧΕΙΡΙÄΙΟ ΕΥΚΑΙΡΟ ΓΙΑ ΝΑ ΤΟ ΣΥΜΒΟΥΛΕΥΕΣΤΕ ΣΤΟ ΜΕΛΛΟΝ.
LEES DEZE INSTRUCTIES ZORGVULDIG DOOR VOOR INSTALLATIE. BEWAAR DEZE HAN-
DLEINDING WAAR U HEM KUNT TERUGVINDEN VOOR LATERE NASLAG.
LEIA COM ATENÇÃO ESTAS INSTRUÇÕES ANTES DE REALIZAR A INSTALAÇÃO.
MANTENHA ESTE MANUAL AO SEU ALCANCE PARA FUTURAS CONSULTAS.
ПЕРЕД НАЧАЛОМ МОНТАЖА ВНИМАТЕЛЬНО ОЗНАКОМЬТЕСЬ С ДАННЫМИ
ИНСТРУКЦИЯМИ. СОХРАНИТЕ ДАННОЕ РУКОВОДСТВО В МЕСТЕ, УДОБНОМ ДЛЯ
ОБРАЩЕНИЯ В БУДУЩЕМ.
INSTALLATION MANUAL
English
Deutsch
Français
Español
Italiano
ΕλληνικÜ
Nederlands
Portugues
Russian
Advertisement
Table of Contents
Related Manuals for Daikin BEVQ100MVE
Summary of Contents for Daikin BEVQ100MVE
-
Page 1: Installation Manual

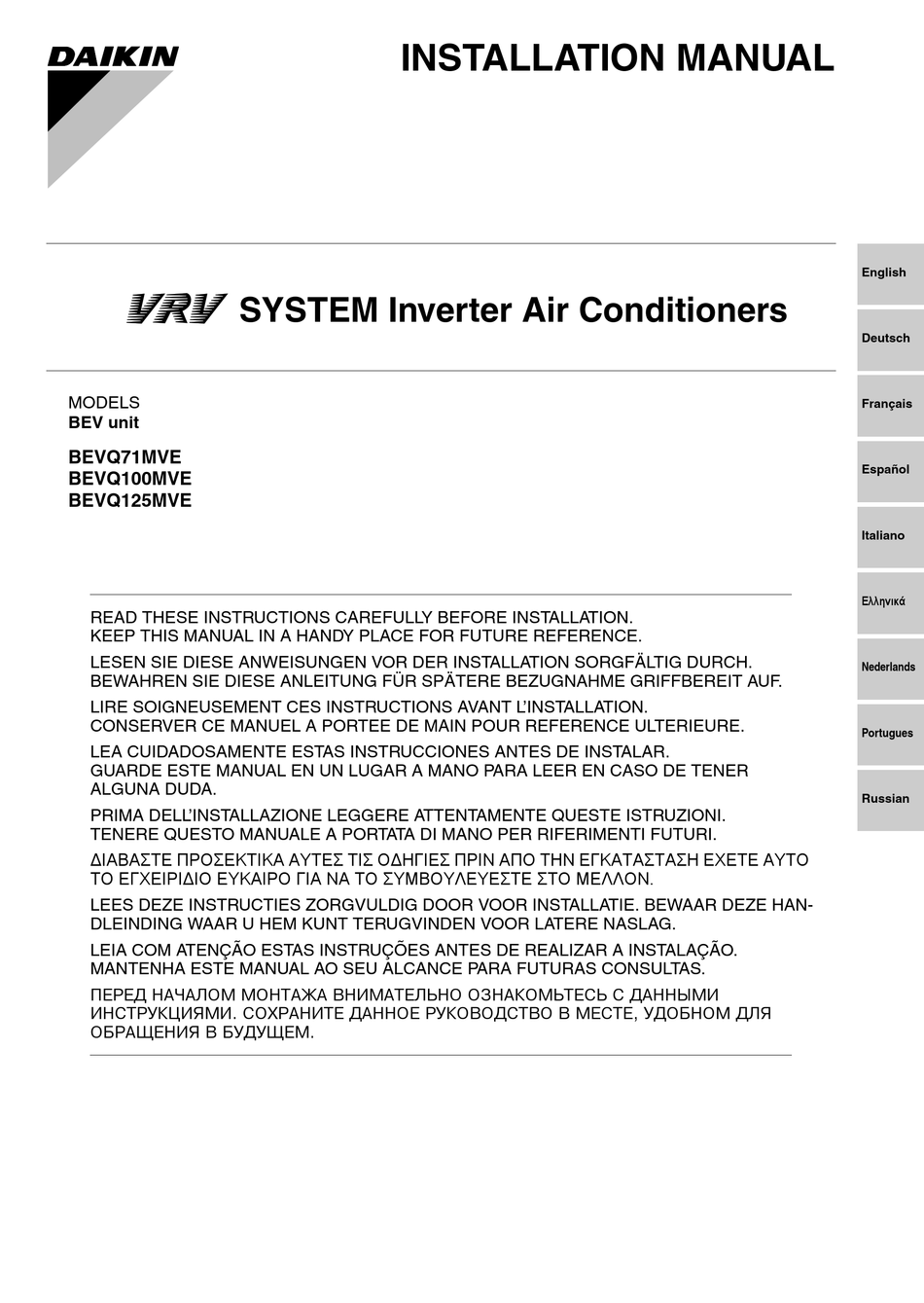

SYSTEM Inverter Air Conditioners Deutsch MODELS Français BEV unit BEVQ71MVE Español BEVQ100MVE BEVQ125MVE Italiano ΕλληνικÜ READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLATION. KEEP THIS MANUAL IN A HANDY PLACE FOR FUTURE REFERENCE. LESEN SIE DIESE ANWEISUNGEN VOR DER INSTALLATION SORGFÄLTIG DURCH. - Page 2 *Σηìεßωση *Nota tal como estabelecido no Ficheiro Técnico de Construção DAIKIN.TCF.022 e com o parecer positivo de TNO de acordo com o Certificado 0305020101. *Bemærk som anført i den Tekniske Konstruktionsfil DAIKIN.TCF.022 og positivt vurderet af TNO i henhold til Certifikat 0305020101.
-
Page 3: Table Of Contents
BEVQ71MVE BEVQ100MVE VRV SYSTEM Inverter Air Conditioners Installation manual BEVQ125MVE CONTENTS 1 SAFETY CONSIDERATIONS ..................1 2 BEFORE INSTALLATION ....................2 3 SELECTING INSTALLATION SITE................4 4 PREPARATIONS BEFORE INSTALLATION ..............6 5 BEV UNIT INSTALLATION ....................7 6 REFRIGERANT PIPING WORK ..................7 7 ELECTRIC WIRING WORK ..................10 8 WIRING EXAMPLE AND HOW TO SET THE REMOTE CONTROLLER....12... -
Page 4: Before Installation
• Make sure that all wiring is secured, the specified wires and used, and no external forces act on the terminal connections or wires. Improper connections or installation may result in fire. • When wiring the power supply and connecting the remote controller wiring and transmission wiring, position the wires so that the control box lid can be securely fastened. - Page 5 × 1 (8) Installation Name (9) Nameplate manual Quantity 1 pc. 1 pc. Shape 2-3 CONBINATION • Attach a BEV unit with the same capacity to the indoor unit. BEV unit BEVQ71MVE BEVQ100MVE BEVQ125MVE Indoor unit FXUQ71MV1 FXUQ100MV1 FXUQ125MV1 English...
-
Page 6: Selecting Installation Site
FOR THE FOLLOWING ITEMS, TAKE SPECIAL CARE DURING CONSTRUCTION AND CHECK AFTER INSTALLATION IS FINISHED. a. Items to be checked after completion of work Items to be checked If not properly done, what is likely to occur Check Are the indoor and outdoor and BEV unit fixed firmly? The units may drop, vibrate or make noise. - Page 7 When hanging the unit from the ceiling Install so that the control box lid is facing down. Direction of the gas piping connection piping Horizontal position Maintenance hole 450 or more Take the gas piping thermistor out from above. Be sure to create a maintenance hole the size shown in the figure above.
-
Page 8: Preparations Before Installation
4. PREPARATIONS BEFORE INSTALLATION When hanging the unit from the ceiling (1) Check the relative locations of ceiling hole, unit, and hanging bolts. <Example of installation> Ceiling slab (Suspension bolt pitch) Anchor Long nut or turnbuckle Suspension bolt BEV unit proper Note: All the above parts are field supplied. -
Page 9: Bev Unit Installation
5. BEV UNIT INSTALLATION Use only accessories and parts which are of the designated specification when installing. When hanging the unit from the ceiling When installing the unit on a wall (1) Temporarily install the BEV unit. (1) Mount the hanging fittings with the Mount the hanging fittings to mounting screws (4 pieces). - Page 10 • When connecting the flare nut, coat the flare both inside and outside with ester oil or ether oil and initially tighten by hand 3 or 4 turns before tightening firmly. • Refer to the Table 1 to determine the proper tightening torque. Table 1 Pipe size Tightening torque...
- Page 11 Cut any extra line off after tightening it. Insulation for Liquid piping fitting (4) (accessory) Insulation for fitting (3) (accessory) Cut any extra line off Flare nut after tightening it. Clamp (2) Piping union (accessory) Clamp (2) Flare nut (accessory) Flare nut Piping union Cut any extra line off...
-
Page 12: Electric Wiring Work
Piping connection procedure • Make sure the length of the refrigerant piping between the BEV unit and the indoor unit is no more than 5m and that the difference in height is at least 4m. (1) Connection example for the indoor unit •... - Page 13 Units Power supply Fan motor Model Volts Voltage range FXUQ71MV1+BEVQ71MVE 0.045 Max. 264 FXUQ100MV1+BEVQ100MVE 220-240 Min. 198 0.090 FXUQ125MV1+BEVQ125MVE MCA: Min. Circuit Amps (A); MFA: Max. Fuse Amps (A) KW: Fan Motor Rated Output (kW); FLA: Full Load Amps (A) NOTES •...
-
Page 14: Wiring Example And How To Set The Remote Controller
8. WIRING EXAMPLE AND HOW TO SET THE REMOTE CONTROLLER 8-1 HOW TO CONNECT WIRINGS • Connect the piping only after finishing the refrigerant piping work. • Make sure all power supply is shut down to the unit first. • As shown in the Fig. 16, loosen the two screws in the control box lid, remove it, and do the wiring work. •... - Page 15 [ PRECAUTIONS ] 1. Use round crimp-style terminals for connecting wiring to the power supply terminal block. If unavailable, observe the following points when wiring. • Do not connect wiring of different gauge to the same power supply terminal. (Looseness in the connection may cause overheating.) •...
-
Page 16: Wiring Example
8-3 WIRING EXAMPLE • Fit the power supply wiring of each unit with a switch and fuse as shown in the drawing. COMPLETE SYSTEM EXAMPLE (3 systems) Power supply Power supply wiring Main switch Transmission wiring Switch Fuse BS unit (Only for Heat recovery system) - Page 17 2. For group control or use with 2 remote controllers Power supply 220-240V Outdoor unit 50Hz Control box IN/D OUT/D 220V 60Hz BEV unit B BEV unit A Most 1 2 3 1 2 3 1 2 3 downstream BEV unit Most 1 2 3 1 2 3...
-
Page 18: How To Attach The Nameplate
8-4 DEFAULT SETTINGS 1. Once piping work is completed, conduct the following settings as needed. (1) When connecting the BEV unit to the BS unit in the heating/cooling free system, turn the SS1 on the A1P to M (Main) for only one of the BEV units connected to the remote controller on which heating/cooling switching is made possible. - Page 19 3P084604-2A EM03A115 (0404)
