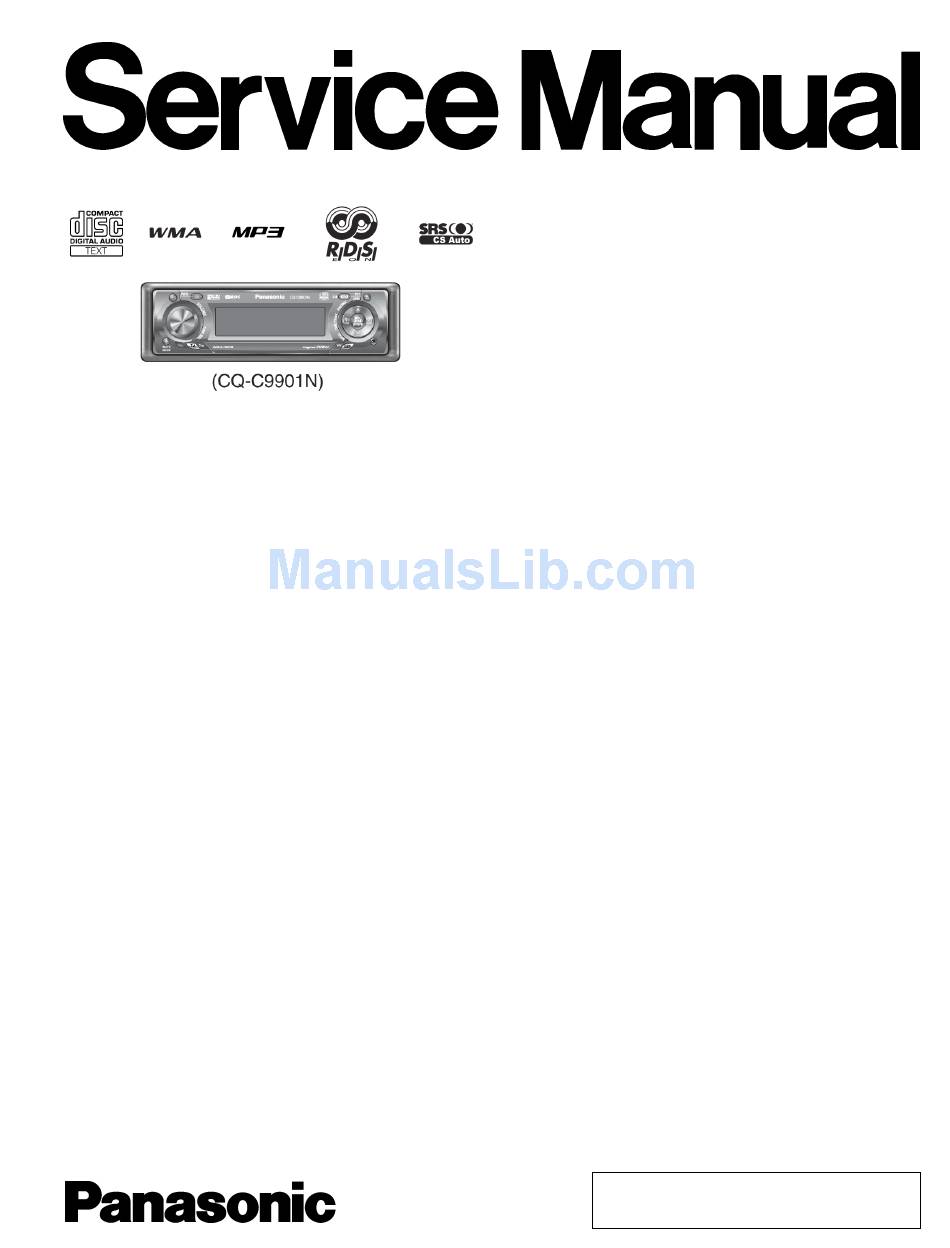

Panasonic CQ-C9901N Service Manual

Specifications*

General
Power Supply
Tone Controls (Bass/Treble) Bass: ±12dB at 80Hz
Equalizer Center Frequency
(SQ)
Variable Range of Equalizer
Current Consumption
Maximum Power Output
Power Output
Speaker Impedance
Pre-amp Output Voltage
Subwoofer Output Voltage
Pre-amp Output Impedance
Subwoofer Output Impedance 60Ω
External Input Impedance
External Input Sensitivity
CD Player
Sampling Frequency
Pick-up Type
Light Source
Wavelength
DC 12V (11V - 16V),
Test Voltage 14.4V
Negative Ground
Treble: ±12dB at 6kHz
62.5, 125, 250, 500, 1k, 2k, 4K, 8k,
16k (Hz, default)
-12dB to 12dB (2dB step)
Less than 2.5A
(CD mode; 0.5W × 4-speaker)
70W × 4 (at 4Ω)
33W × 4 (DIN45 324,at 4Ω)
4 - 8Ω
5V (CD mode)
5V
60Ω
10kΩ (AUX1, CH/AUX2 IN)
Max. 2V (AUX1, CH/AUX2 IN)
8 Times Oversampling
Astigma 3-Beam
Semiconductor Laser
790 nm
AUTOMOTIVE AFTERMARKET
Cq-C9901N
Cq-C9701N
WMA MP3 CD Player/Receiver with 512
Color OEL Display
Frequency Response
Signal to Noise Ratio
Total Harmonic Distortion
Wow and Flutter
Channel Separation
FM Stereo Radio
Frequency Range
Usable Sensitivity
Stereo Separation
AM (MW) Radio
Frequency Range
Usable Sensitivity
AM (LW) Radio
Frequency Range
Usable Sensitivity
Dimensions (W×H×D)**
Weight**
* Specifications and the design are subject to possible modification
without notice due to improvements.
** Dimensions and Weight shown are approximate.
** Above specifications comply with EIA standards.
© 2005 Matsushita Electric Industrial Co., Ltd. All
rights reserved.
distribution is a violation of law.
ORDER NO. ACED050210C8
20 Hz-20kHz (±1dB)
96dB (2V), 106 dB (5V)
0.01% (1kHz)
Below Measurable Limits
85dB (2V)
87.5MHz - 108MHz
8dB/µV (S/N 30dB)
40dB(at 1kHz)
531kHz - 1,602kHz
25dB/µV (S/N 20dB)
153kHz - 279kHz
30dB/µV (S/N 20dB)
178×50×155mm
1.7kg
Unauthorized copying and
