JVC XV-N30BK(MK3) Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SERVICE MANUAL
2003
10
XA014
XV-N30BK(MK3), XV-N33SL(MK3),
XV-N35SL(MK3), XV-N3SL(MK3)
STANDBY/ON
DISPLAY
TITLE/
3D PHONIC
GROUP RETURN
CANCEL
1
2
3
4
5
6
7
8
9
10
0
+10
ANGLE
SUB TITLE AUDIO
ZOOM
TOP MENU
MENU
CHOICE
ENTER
SLOW
VFP
ON SCREEN
PREVIOUS
SELECT
NEXT
CLEAR
This service manual is a service manual of the model which
changes a part of specification of the above-mentioned model
which has already been put on the market.
Please refer to the following page for details.
1
PRECAUTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
2
SPECIFIC SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
3
DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10
4
ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-17
5
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-23
COPYRIGHT © 2003 VICTOR COMPANY OF JAPAN, LIMITED

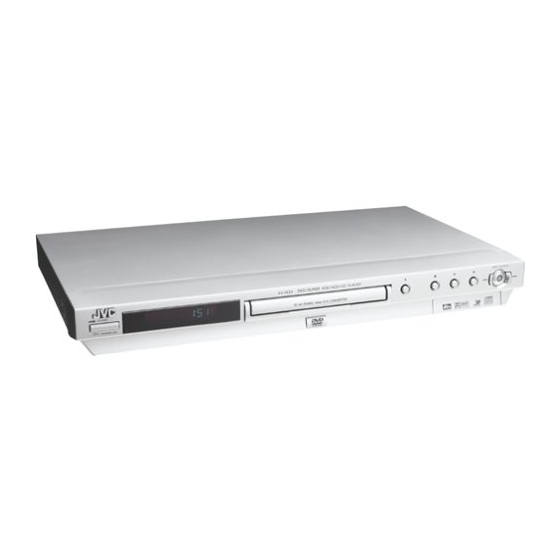

DVD VIDEO PLAYER
For only Europe
This illustration is XV-N30BK for U.S.A.

TABLE OF CONTENTS

Area Suffix
Area Suffix (XV-N35SL)
(XV-N30BK,XV-N33SL)
B -------------------------- U.K.
E ------ Continental Europe
J -------------------------- U.S.A.
EN ------- Northern Europe
C --------------------- Canada
EV --------- Eastern Europe
B -------------------------- U.K.
EE ---- Russian Federation
E ------ Continental Europe
EN ------- Northern Europe
Area Suffix (XV-N3SL)
EV --------- Eastern Europe
EE ---- Russian Federation
J -------------------------- U.S.A.
No.XA014
2003/10

Advertisement

Table of Contents
loading

Related Manuals for JVC XV-N30BK(MK3)

Summary of Contents for JVC XV-N30BK(MK3)

  • Page 1: Table Of Contents

    SERVICE MANUAL DVD VIDEO PLAYER XA014 2003 XV-N30BK(MK3), XV-N33SL(MK3), XV-N35SL(MK3), XV-N3SL(MK3) Area Suffix Area Suffix (XV-N35SL) (XV-N30BK,XV-N33SL) B -------------------------- U.K. E ------ Continental Europe J -------------------------- U.S.A. EN ------- Northern Europe C --------------------- Canada EV --------- Eastern Europe B -------------------------- U.K. EE ---- Russian Federation E ------ Continental Europe EN ------- Northern Europe...
  • Page 2 For this service manual This service manual is a service manual of the model which changes a part of specification of the above-mentioned model which has already been put on the market. <When the label in figure is pasted in the main body> The specification is different from what the label of the same model does not paste because of the specification improvement, and refer to this service manual, please.
  • Page 3 SPECIFICATION (For U.S.A.) General Readable discs DVD VIDEO, DVD-R (Video format), DVD-RW (Video format), +RW (Video format), SVCD, Video CD, Audio CD (CD-DA), MP3 format, CD-R/RW (CD-DA, SVCD, Video CD, MP3 format) Video format NTSC Other Power requirements AC 120 V, 60 Hz Power consumption 10 W (POWER ON) 0.7 W (STANDBY mode) Mass...

  • Page 4: Precaution

    SECTION 1 PRECAUTION Safety Precautions (1) This design of this product contains special hardware and path to the chassis, and measure the AC voltage across many circuits and components specially for safety purpos- the resistor. Now, reverse the plug in the AC outlet and es.
  • Page 5 Preventing static electricity Electrostatic discharge (ESD), which occurs when static electricity stored in the body, fabric, etc. is discharged, can destroy the laser diode in the traverse unit (optical pickup). Take care to prevent this when performing repairs. 1.5.1 Grounding to prevent damage by static electricity Static electricity in the work area can destroy the optical pickup (laser diode) in devices such as DVD players.
  • Page 6 Importance admistering point on the safety J702 S902 S901 C975 C976 L955 EP953 L957 C988 C966 C965 L956 C973 C957 L952 C959 C958 C974 L954 C967 L951 D953 C952 C955 C977 D955 Q953 L953 CN902 L959 C964 R966 C963 D954 D957 D952 R954...
  • Page 7 Important for laser products (1) CLASS 1 LASER PRODUCT (5) CAUTION : If safety switches malfunction, the laser is able (2) DANGER : Invisible laser radiation when open and inter to function. lock failed or defeated. Avoid direct exposure to beam. (6) CAUTION : Use of controls, adjustments or performance of (3) CAUTION : There are no serviceable parts inside the procedures other than those specified herein may result in...
  • Page 8 1.10 Precautions for Service 1.10.1 Handling of Traverse Unit and Laser Pickup (1) Do not touch any peripheral element of the pickup or the actuator. (2) The traverse unit and the pickup are precision devices and therefore must not be subjected to strong shock. (3) Do not use a tester to examine the laser diode.

  • Page 9: Specific Service Instructions

    SECTION 2 SPECIFIC SERVICE INSTRUCTIONS This service manual does not describe SPECIFIC SERVICE INSTRUCTIONS. (No.XA014)1-9...

  • Page 10: Disassembly

    SECTION 3 DISASSEMBLY There is a part different from the photograph according to the model and the destination though explains this disassembly method by using XV-N30BK for U.S.A. Main body section 3.1.1 Removing the top cover (See Figure 1) (1) Remove the two screws A attaching the top cover on both sides of the main body.
  • Page 11 3.1.3 Removing the mechanism assembly (See Figure 2, Figure 5) • Prior to performing the following procedure, remove the top Mechanism assembly cover. • There is no need to remove the front panel assembly. (1) Insert a kind of screwdriver in a hole located in the right side of mechanism assembly, and push a lever until it can- not be inserted any further.
  • Page 12 3.1.5 Removing the rear panel (See Figure 8, Figure 9) • Prior to performing the following procedure, remove the top Rear panel cover. (1) Remove the five screws E attaching the rear panel. (2) Disconnect the power cord from connector P901 on the power supply board...
  • Page 13 Loading mechanism assembly 3.2.1 Removing the tray (See Figure 1, Figure 2, Figure 3, Figure 4, Figure 5, Figure 6) (1) Push a of the slide cam on the hole in the right side of the Tray loading base by using a driver until it stops. (See Figure 1.) (2) The tray comes out.
  • Page 14 3.2.2 Removing the traverse mechanism assembly (See Figure 7) Reverse the loading mechanism assembly. Remove the four Loading mechanism assembly screws B attaching the traverse mechanism assembly. Remove the traverse mechanism assembly upward. Traverse mechanism assembly Fig.7 3.2.3 Removing the elevator (See Figure 8 and Figure 9) •...
  • Page 15 3.2.4 Removing the loading motor (See Figure 10 and Figure 11) • Prior to the following procedure, remove the tray, the traverse Loading base Belt mechanism assembly, and the elevator. (1) Remove the belt from the pulley. Pulley Slide cam Pulley (2) Remove two screws C attaching the loading motor.
  • Page 16 Traverse mechanism assembly 3.3.1 Removing the pickup (See Figure 12, Figure 13) • Prior to the following procedure, remove the traverse mecha- nism assembly. (1) Remove one screw D attaching the plate. (2) Remove the plate and the leaf spring. (3) Lift i of the shaft 1, and pull out the shaft 1 from j.

  • Page 17: Adjustment

    SECTION 4 ADJUSTMENT Test mode setting method (1) Unplug the power plug. (2) Insert power plug into outlet while pressing both "PLAY" key and "STOP" key of the main body. (3) The FL display shows "∗0", and the main body turns to test mode. "∗" means the destination, and "0" means parameter adjust- ment status.
  • Page 18 All-initialization method Please perform all-initialization according to the following procedures in the following case: • Just after you exchange the pick-up. • Just after you exchange the spindle motor. • Just after you exchange the traverse mechanism base. NOTE: Please perform all-initialization when you exchange the parts above and also when you remove the parts above. •...
  • Page 19 Display of current value of laser (1) Set the main body at test mode. (2) Press "CHOICE" key of the remote controller three times. Then, FL display is displayed "CK". (3) The laser current value can be switched between the value of CD and that of DVD by pressing the following key of the remote controller.
  • Page 20 4.7.1 Tool for adjustment *Stud: One set (four studs), Part number: JIGXVS40 (Note: One of the four studs is not used here.) * Relay board and extension cord (One set) --- Parts number : EXTXVN30CB -- Items -- Relay board 1 : EXTXVN30CB-1 Relay board 2 : EXTXVN30CB-2 Relay board 3 : EXTXVN30CB-3 Relay board 4 : EXTXVN30CB-4...
  • Page 21 4.7.3 Adjustment (1) Set the main body at test mode. (2) Press the "CHOICE" key of the remote controller three times, and the FL display is displayed "CK". (3) Insert a test disc (VT-501), and press the "PLAY" key of the main body. (4) After a few seconds, press the numeric key "6"...
  • Page 22 Set the main body at test mode, and check that the FL display shows "∗0". Opening picture check (Power ON) It should be display "JVC" Muting working The noise must not be had to the performance beginning when you push "PLAY" button or at ON/STANDBY.

  • Page 23: Troubleshooting

    SECTION 5 TROUBLESHOOTING Servo volume Press OPEN /CLOSE key Is tray Confirmation of tray drive circuit operation and circuit in surrounding correct? Is the traverse moving See "(3) Traverse movement error" along the innermost in "Check points for individual errors" perimeter for SW detection? "NO DISC"...
  • Page 24 Check points for each error 5.2.1 Spindle start error (1) Defective spindle motor • Are there several ohms resistance between each pin of CN201 "1-2","2-3","1-3"? (The power supply is turned off and measured.) • Is the sign wave of about 100mVp-p in the voltage had from each terminal? [ CN201"10"(H1+),"11"(H1-),"7"(H2+),"8"(H2-),"5"(H3+),"6"(H3-) ] (2) Defective spindle motor driver (IC251) •...
  • Page 25 5.2.6 Spindle CLV NG • IC101 -- "30"(ARF-), "31(ARF+). • Does not the input or the output of driver's spindle signal do the grip? • Has the tracking been turned on? • Spindle motor and driver is defective. • Additionally, "IC101 and IC301"...
  • Page 26 VICTOR COMPANY OF JAPAN, LIMITED AV & MULTIMEDIA COMPANY OPTICAL DISC CATEGORY 1644, Shimotsuruma, Yamato, Kanagawa 242-8514, Japan (No.XA014) Printed in Japan...

  • Page 27: Schematic Diagrams

    SCHEMATIC DIAGRAMS DVD VIDEO PLAYER XV-N30BK(MK3), XV-N33SL(MK3), XV-N35SL(MK3), XV-N3SL(MK3) CD-ROM No.SML200310 Area Suffix Area Suffix (XV-N35SL) (XV-N30BK,XV-N33SL) B -------------------------- U.K. E ------ Continental Europe J -------------------------- U.S.A. EN ------- Northern Europe C --------------------- Canada EV --------- Eastern Europe B -------------------------- U.K. EE ---- Russian Federation E ------ Continental Europe EN ------- Northern Europe...

  • Page 28: This Service Manual Is A Service Manual Of The Model Which

    In regard with component parts appearing on the silk-screen printed side (parts side) of the PWB diagrams, the parts that are printed over with black such as the resistor ( diode ( ) and ICP ( ) or identified by the " " mark nearby are critical for safety. When replacing them, be sure to use the parts of the same type and rating as specified by the manufacturer.

  • Page 29: Block Diagrams

    Block diagrams Power supply and system controller section (SHEET 1) CN901 CN902 CN904 (No.XA014SCH) 2-3...
  • Page 30 FL Display and operation switch section (SHEET 2) FL Display F+ F- DI801 STANDBY Standby LED GRI to GR7 D801 SGI to SG9 TO CN901 Operation switch SHEET 1 FL Display driver S1 to S7 -VDISP DOUT DIN CLK S802 S803 IC801 S804 S805 REMO...
  • Page 31 Audio/Video signal output terminal section (SHEET 4) for except Europe COUT L601 J602 YOUT L611 S-VIDEO output TO CN502 SHEET 7 Composite video output J601 Component video CbOUT L612 TOPEN output TCLOSE CrOUT LMMUTE L613 CPURST INTP SWUPDN SWOPEN Coaxial digital DOUT audio output TO SHEET 3...
  • Page 32 DVD Servo control & AV decoder section (SHEET 5,6,7) CN503 CN502 CN501 CN101 CN201 CN202 2-6 (No.XA014SCH)
  • Page 33 << MEMO >> (No.XA014SCH) 2-7...

  • Page 34: Standard Schematic Diagrams

    Standard schematic diagrams Power supply and system controller section QNZ0136-001Z C905 EP951 0.001/AC250V T901 QQS0197-001 L901 QQR0816-001 D901 D951 1F4-T2 C950 DI106 C908 R901 100/6.3 0.0033/1K FC902 FC901 QNG0003-001Z QNG0003-001Z P901 D903 C918 R910 1F4-T2 C907 3.3M C902 D902 D952 1F4-T2 1F4-T2 C913...
  • Page 35 Q951 CP951 2SC3576-JVC-T ICP-N10-T R951 K810 QQR1183-001Z K811 R952 C950 K812 QQR1183-001Z 100/6.3 C982 CN901 QQR1183-001Z QGF1201C3-14 K813 C951 R969 R953 R954 QQR1183-001Z NRSA63J-0R0X R716 22/25 TO CN801 NRSA63J-0R0X R717 R718 R955 NRSA63J-0R0X SHEET 2 C808 C802 R719 NRSA63J-0R0X 4.7/50 4.7/50...
  • Page 36 FL Display and operation switch section DI801 QLF0122-001 CN801 QGF1201F3-14 -VDISP B3.3V REMO TO CN901 DOUT SHEET 1 R802 STANDBY FASTPLAY R807 C801 D801 10/6.3V SLR-342VC-T C805 C810 1000P C811 S801 QSW0651-001Z 2-10 (No.XA014SCH)
  • Page 37 IC802 GP1UE271XK C804 C803 47/6.3 EP951 QNZ0136-001Z C809 47/50 S805 CN802 QGF1201F3-08 CN803 QSW0651-001Z QGF1201F3-08 S802 S806 QSW0651-001Z QSW0651-001Z S803 S807 D803 QSW0651-001Z QSW0651-001Z 1SS133-T2 S804 S808 D804 QSW0651-001Z QSW0651-001Z 1SS133-T2 D805 1SS133-T2 D810 R810 D806 SLR-342MC-T 1SS133-T2 SHEET 2 (No.XA014SCH) 2-11...
  • Page 38 Audio amplifier section R782 R788 R751 R759 3.9k 4.7k C753 R761 470p R783 C751 0.0033 IC751 HA17558F-X C757 22/25 R755 R763 3.9k CN701 DOUTCNT QGB1231M1-09 AMUTE AOUTR- TO CN503 AOUTR+ R784 SHEET 7 AOUTL- AOUTL+ R769 C765 C764 R765 C755 100/16 100/16 4.7k...
  • Page 39 R787 100K Q758 KRA121S-X R786 Q755 KRC109S-X Q756 KRA102S-X C757 R767 22/25 R773 C761 22/25 R775 R771 TOPEN Q751 /LUMMTE 2SC3576-JVC-T R769 C759 R777 R779 TCLOSE Q753 0.0022 5.6K 2SC3576-JVC-T CPURST INTP C763 R781 0.0015 SWUPON SWOPEN VMUTE AUDIO-L AUDIO-R TO SHEET 4 V.GND...
  • Page 40 Audio / Video signal output terminal section R661 2.2k Q661 KRC102S-X K601 R601 B903 C604 C601 L601 C/Cv/Y 2.2UM K602 R604 C650 CN601 Y/G/Cv NQR0227-004X Q601 QGB1231M1-15 Cb/B/Cv C603 C602 330P Cr/R/C 220P SWOPEN B902 TO CN502 K603 SWUPON C614 C651 NQR0227-004X SHEET 7...
  • Page 41 J604 QNZ0636-001 R665 R662 R663 R666 9.1k R664 R667 Q661 KRC102S-X C666 EP651 R626 J601 K826 QQR1183-001Z C685 220P C686 220P R616 K827 QQR1183-001Z B149 R606 R636 K829 NQR0201-018X R637 C639 J602 0.1/16 B120 NQR0201-018X QNN0564-001 K830 R640 8.2K R638 R639 Q635 C682...
  • Page 42 Servo control section C144 0.01/16 C145 R114 R131 SGND C116 0.1/16 TESTSG C117 0.047/16 R116 C118 0.027/16 Pick-up TBAL R106 C119 560P FBAL R107 IC101 unit R125 220P RFENV C110 AN8703FH-V R117 R124 K101 NQR0007-002X C138 OFTR C121 0.1/16 FEPEN 2.2K C122 R127...
  • Page 43 TO SHEET 7 TO SHEET 7 TO SHEET 6 TO SHEET 6 D1.8V D3.3V S3.3V R341 5.6K DGND ODCIRQ2 R318 ODCIRQ R319 C347 TP309 0.1/16 TP308 ADSCIRQ TP307 D301 TP306 RB521S-30-X SGND TP331 C310 LADD17 0.1/16 LADD16 CDLDCUR LADD15 R321 OFTR LADD14 DVDLDCUR...
  • Page 44 AV Decoder section TO SHEET 5 D1.8V D3.3V LC502 LC504 C521 TO SHEET 5 C524 C527 47/4 47/4 D3.3V 0.1/16 C512 LC501 MD10 MD11 K501 C514 MD12 MD13 MD14 MD15 C515 DQM1 IC505 W986432DH-7 C511 C501 0.1/16 C516 MD10 MD11 MD12 MD13 MD14...
  • Page 45 TO SHEET 5 TO SHEET 7 TP532 TP531 TP530 TP529 TP528 TP912 TP913 TP527 R505 R506 R507 R508 PWE0 R584 3.3K PWE1 C558 0.1/16 AD10 AD11 AD12 AD13 SCLK C559 R514 AD14 AD15 PWE2 AD16 C560 AD17 AD18 IC501 AD19 JCE8044 AD20 AD21...
  • Page 46 FLASH-ROM section TO SHEET 6 TO SHEET 5 IC509 SST39VF160-7CEK LADD15 LADD16 74LV R518 LADD14 LADD13 AD15 LADD12 LADD6 CN504 LADD11 LADD10 AD14 LADD9 LADD5 LADD8 AD13 LADD4 LADD19 AD12 AD16 SRST PWE0 LADD16 R516 AD11 AD30 AD31 R517 AD28 AD29 AD10 AD26...
  • Page 47 D3.3V S3.3V C508 C502 C503 TO CN902 C504 SHEET 1 C505 C509 D3.3V C510 CN501 QGB1231L2-15W K519 AGND SGND DGND MGND MGND DGND SGND IC512 74LVC373APW-X LADD19 R509 C552 AD19 AD18 R510 LADD18 C553 LADD17 C566 0.1/16 R511 AD17 C555 DD16 LADD7 DGND...

  • Page 48: Printed Circuit Boards

    Printed circuit boards Main board C976 C975 S902 L957 C980 C979 L956 C974 C978 C990 Q636 CN902 C981 D641 R678 Q637 D642 DI801 Q635 R807 C805 D804 D805 R804 R665 R662 R640 R666 D802 R667 R809 R812 IC801 CN801 R811 C810 C811 C801...
  • Page 49 R715 C713 C708 S901 R957 EP953 C975 S902 J702 C980 C707 C988 L955 C960 C958 IC951 C957 C965 R956 C956 L952 D953 C955 C977 C959 L951 C990 C964 Q953 C953 L959 C952 D955 C981 R967 D954 D957 C963 R966 D952 R954 C950 R969...
  • Page 50 Servo control board Forward side IC201 IC251 C113 R104 R550 IC505 IC301 C408 CN501 CN503 Switch board 2-24 (No.XA014SCH)
  • Page 51 Reverse side TP121 TP122 TP123 CN201 TP124 CN101 R569 R568 LC558 LC557 K558 K557 CN202 TP118 TP116 TP115 R117 C201 R202 C105 TP311 R567 TP111 TP101 TP106 LC556 TP125 TP130 TP110 C564 C580 TP114 K556 TP109 TP108 TP107 TP102 TP126 TP870 TP873 TP875...
  • Page 52 VICTOR COMPANY OF JAPAN, LIMITED AV & MULTIMEDIA COMPANY OPTICAL DISC CATEGORY 1644, Shimotsuruma, Yamato, Kanagawa 242-8514, Japan No.XA014SCH...

  • Page 53: Parts List

    PARTS LIST [XV-N30BK,XV-N3SL,XV-N33SL,XV-N35SL] [MK3] * All printed circuit boards and its assemblies are not available as service parts. * (x_) in a description column shows the number of the used part. Area Suffix Area Suffix (XV-N3SL) (XV-N30BK,XV-N33SL) J -------------------------- U.S.A. J -------------------------- U.S.A.
  • Page 54 Exploded view of general assembly and parts list Block No.M1MM Grease JVS-1003 BACK SIDE Operation "B" switch board Power supply & Audio/Video system control output board board display board "A" "B" BACK SIDE Servo control board "A" 3-2(No.XA014)
  • Page 55 GN10037-009A FRONT PANEL 33B,33E,33EE,33EN,33EV GN10037-010A FRONT PANEL 33C,33J GN10037-014A FRONT PANEL only XV-N35SL GN10037-017A FRONT PANEL only XV-N3SL GN40020-001A JVC MARK only XV-N30BK GN40020-002A JVC MARK except XV-N30BK GN20041-001A WINDOW SCREEN GN20040-006A PUSH BUTTON POWER only XV-N30BK GN20040-005A PUSH BUTTON...
  • Page 56 DVD Traverse mechanism assembly and parts list Block No.M2MM EXL-V10-11C Grease =JVG-31N =CFD-4007ZY2 =PG-641 =1401C < Back side > 63.3mm 0.1mm 10.5mm 0.1mm 3-4(No.XA014)
  • Page 57 DVD Traverse mechanism Block No. [M][2][M][M]  Symbol No. Part No. Part Name Description Local LE20697-003A MECHA BASE LE20699-002A SPINDLE BASE QYSDST2604M TAPPING SCREW 2.6mm x 4mm(x2) LE40931-001A SHAFT LV33991-001A ADJUST SPRING QYSPSFU2040M TAPPING SCREW M2 x 4mm LE20698-003A FEED HOLDER QAR0215-001 FEED MOTOR LV41510-001A...

  • Page 58: (Xv-N30Bk,Xv-N33Sl) B

    DVD Loading mechanism assembly and parts list Block No.M3MM ELM-J2-2C Grease JVG-31N JVS-1003 Back side (All circumferences) Switch board 3-6(No.XA014)
  • Page 59 DVD Loading mechanism Block No. [M][3][M][M]  Symbol No. Part No. Part Name Description Local LE10275-006A LOADING BASE LE31043-001A PULLEY GEAR LE31042-001A MIDDLE GEAR LE20665-002A SLIDE CAM LE20666-003A ELEVATOR LE10276-002A TRAY LE31045-001A BUSHING LE40898-001A SHAFT QYSSSF2008Z TAP SCREW M2 x 8mm QAR0197-001 MOTOR LV42087-002A...

  • Page 60: Electrical Parts List

    Electrical parts list Servo control board Block No. [0][1]  Symbol No. Part No. Part Name Description Local  Symbol No. Part No. Part Name Description Local C258 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C259 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z IC101 AN8703FH-V Frontend processor for DVD...
  • Page 61  Symbol No. Part No. Part Name Description Local  Symbol No. Part No. Part Name Description Local C532 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z R254 NRSA63J-203X MG RESISTOR 20kΩ 1/16W J C533 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z R255 NRSA63J-103X MG RESISTOR 10kΩ...

  • Page 62: Main Board

    C791 QETN1EM-475Z E CAPACITOR 4.7uF 25V M Q701 KRC107S-X DIGI TRANSISTOR except ver.J,C C793 QETN1AM-107Z E CAPACITOR 100uF 10V M 30C,30J,33C,33J Q751 2SC3576-JVC-T TRANSISTOR C794 NCB31CK-104X C CAPACITOR 0.1uF 16V K 30C,30J,33C,33J Q752 2SC3576-JVC-T TRANSISTOR C795 QETN1EM-476Z E CAPACITOR 47uF 25V M...
  • Page 63  Symbol No. Part No. Part Name Description Local  Symbol No. Part No. Part Name Description Local C966 QETN1CM-107Z E CAPACITOR 100uF 16V M R782 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J C967 QEZ0594-337Z E CAPACITOR 330uF R783 NRSA63J-221X MG RESISTOR 220Ω...

  • Page 64: Switch Board

     Symbol No. Part No. Part Name Description Local J601 QNN0566-001 PIN JACK except ver.J,C J601 QNN0590-001 PIN JACK only ver.J,C J602 QNN0564-001 PIN JACK J603 QNZ0610-001 RGB CONNECTOR except ver.J,C J702 QNS0221-001 3.5 JACK except ver.J,C J703 GP1FA352TZ OPT TRANSMITTER 30C,30J,33C,33J K556 NQR0007-002X...
  • Page 65 Packing materials and accessories parts list Block No.M4MM INST BOOK SA FRONT INST BOOK SA (No.XA014)3-13...
  • Page 66 Packing and accessories Block No. [M][4][M][M]  Symbol No. Part No. Part Name Description Local LE40932-003A INSERT SHEET only ver.B,E,EN LE40932-004A INSERT SHEET only ver.EV,EE LE40932-002A INSERT SHEET only ver.J,C GNT0024-002C INST BOOK English,French 30C,33C GNT0024-001D INST BOOK English 30J,33J GNT0024-003B INST BOOK English...
