LanParty 790X-M2RS User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

System Board

User's Manual
935-RS7801-504G
10300916A

Advertisement

Table of Contents
loading

Related Manuals for LanParty 790X-M2RS

Summary of Contents for LanParty 790X-M2RS

  • Page 1: System Board

    System Board User’s Manual 935-RS7801-504G 10300916A...

  • Page 2: Fcc And Doc Statement On Class B

    Copyright This publication contains information that is protected by copyright. No par t of it may be reproduced in any form or by any means or used to make any transfor- mation/adaptation without the prior written permission from the copyright holders.

  • Page 3: Table Of Contents

    Table of Contents About this Manual................Warranty....................Static Electricity Precaution..............Safety Measures..................About the Package................Before Using the System Board............System Board Layout................English..................................................................................................... A p p e n d i x A - G e n e r a l D e b u g L E D P O S T a n d Troubleshooting ...................

  • Page 4: About This Manual

    Introduction About this Manual An electronic file of this manual is included in the CD. To view the user’s manual in the CD, insert the CD into a CD-ROM drive. The autorun screen (Main Board Utility CD) will appear. Click the “TOOLS”...

  • Page 5: Static Electricity Precaution

    Introduction Static Electricity Precautions It is quite easy to inadver tently damage your PC, system board, components or devices even before installing them in your system unit. Static electrical discharge can damage computer components without causing any signs of physical damage. You must take extra care in handling them to ensure against electrostatic build-up.

  • Page 6: About The Package

    Introduction About the Package The system board package contains the following items. If any of these items are missing or damaged, please contact your dealer or sales representative for assistance. One system board One IDE cable One floppy cable Four Serial ATA data cables One power cable with 2 Serial ATA power connectors (2 sets) Smart connectors One I/O shield...

  • Page 7: System Board Layout

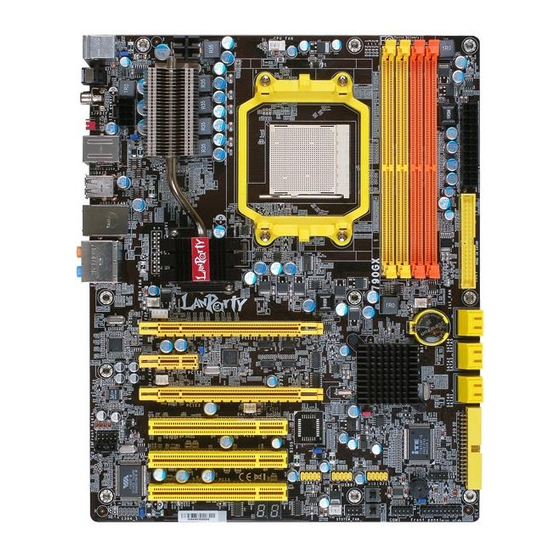

    Introduction System Board Layout DDR2-1 DDR2-2 DDR2-3 DDR2-4 CPU fan Mouse PS/2 power select (JP7) Optical S/PDIF-out Coaxial RCA S/PDIF-out power power Clear CMOS USB 0-5 (JP1) power select (J 5) 1394-0 USB 0-1 USB 4-5 USB 2-3 Center/ Subwoofer Rear R/L Side R/L 790X...

  • Page 8: English

    English Chapter 1 - Introduction Specifications ® Processor • AMD AM2+ processors: Phenom II / Phenom FX / Phenom / Athlon / Sempron ® AM2 processors: Athlon series / Sempron • HyperTranspor t 3.0 (5200MT/s for AM2+) HyperTranspor t 1.0 (2000/1600MT/s for AM2) •...
  • Page 9 English • One IDE connector allows connecting up to two UltraDMA 133Mbps hard drives Serial ATA with • Suppor ts up to 6 SATA devices RAID • SATA speed up to 3Gb/s • RAID 0, RAID 1 and RAID 0+1 Rear Panel I/O •...

  • Page 10: Jumper Settings

    English Chapter 2 - Hardware Installation Jumper Settings Clear CMOS Data 1-2 On: Normal 2-3 On: (default) Clear CMOS Data JP10 1-2 On: Normal 2-3 On: (default) Clear CMOS Data If you encounter the following, a) CMOS data becomes corrupted. b) You forgot the supervisor or user password.

  • Page 11: Usb Power Select

    English PS/2 Power Select 1-2 On: 5V 2-3 On: 5VSB (default) Important: The 5VSB power source of your p o w e r s u p p l y m u s t s u p p o r t ≥720mA.
  • Page 12 English PCIE Gen 1 / Gen 2 Select JP13 1-2 On: Gen 2 2-3 On: Gen 1 (default) Set this jumper according to the type of PCI Express card that you are using. Speaker On/Off Select Buzzer 1-2 On: 2-3 On: Speaker Off Speaker On (default)
  • Page 13 English Rear Panel I/O Ports Center/ Subwoofer Rear R/L PS/2 Line-in Mouse 1394-0 Optical S/PDIF-out Clear USB 5 Front R/L CMOS jumper Mic-in USB 2-3 Side R/L PS/2 K/B Coaxial USB 0-1 USB 4 S/PDIF-out PS/2 Ports and S/PDIF Ports PS/2 Mouse PS/2 KB Optical...
  • Page 14 English USB, IEEE 1394 and LAN Ports 1394-0 USB 1 USB 0 USB 5 USB 4 USB 3 USB 2 USB 8-9 USB 10-11 USB 6-7 1394-1 The USB por ts are used to connect USB 2.0/1.1 devices. The 10-pin connectors allow you to connect 6 additional USB 2.0/1.1 por ts.
  • Page 15 English Audio and CD-In Rear audio Center/ Line-in Subwoofer Front R/L Rear R/L Mic-in Side R/L Front audio Ground Ground Left audio Right audio channel channel CD-in Rear Panel Audio Center/Subwoofer Jack (Orange) This jack is used to connect to the center and subwoofer speak- ers of the audio system.

  • Page 16: Serial Ata Connectors

    English Mic-in Jack (Pink) This jack is used to connect an external microphone. Front Audio The front audio connector is used to connect to the line-out and mic-in jacks that are at the front panel of your system. CD-in The CD-in connector is used to receive audio from a CD-ROM drive, TV tuner or MPEG card.

  • Page 17: Fdd Connector And Ide Connector

    English FDD Connector and IDE Connector FDD Connector The floppy disk drive connector is used to connect a floppy drive. Insert one end of the floppy cable into this connector and the other end-most connector to the floppy drive. The colored edge of the cable should align with pin 1 of this connector.
  • Page 18 English IrDA,CIR and Serial (COM) Connectors IRRX N. C. Ground IRTX IrDA CIRRX N. C. 5VSB CIRTX IrDA and CIR Connect the cable connector from your IrDA module to the IrDA connector or CIR connector. Note: The sequence of the pin functions on some IrDA/CIR cable may be reversed from the pin function defined on the system board.

  • Page 19: Cooling Fan Connectors

    English Cooling Fan Connectors Sense Power Speed Ground Control Power CPU fan Ground Sense Sense Ground 1st fan Power Power NB fan Ground Sense Power Ground Sense 2nd fan 3rd fan Sense Ground Power System fan These fan connectors are used to connect cooling fans. Cooling fans will provide adequate airflow throughout the chassis to prevent over- heating the CPU and system board components.
  • Page 20 English EZ Touch Switches Reset Power The presence of the power switch and reset switch on the system board are user-friendly especially to DIY users. They provide conven- ience in powering on and/or resetting the system while fine tuning the system board before it is installed into the system chassis.
  • Page 21 English LEDs DRAM Power LED Diagnostic Standby Power LED DRAM Power LED This LED will light when the system’s power is on. Standby Power LED This LED will light when the system is in the standby mode. Diagnostic LED The Diagnostic LED displays POST codes. POST (Power-On Self Tests) which is controlled by the BIOS is performed whenever you power-on the system.

  • Page 22: Power Connectors

    English Power Connectors Use a power supply that complies with the ATX12V Power Supply Design Guide Version 1.1. An ATX12V power supply unit has a standard 24-pin ATX main power connector that must be inserted into this connector. 1 2 2 4 +3.3VDC +12VDC +5VDC...
  • Page 23 English The power connectors from the power supply unit are designed to fit the 24-pin and 8-pin connectors in only one orientation. Make sure to find the proper orientation before plugging the connectors. The FDD-type power connector is an additional power connector. If you are using more than one graphics cards, we recommend that you plug a power cable from your power supply unit to the 5V/12V power connector.
  • Page 24 English Restarting the PC Normally, you can power-off the PC by: 1. Pressing the power button at the front panel of the chassis. 2. Pressing the power switch that is on the system board (note: not all system boards come with this switch). If for some reasons you need to totally cut off the power supplied to the PC, switch off the power supply or unplug the power cord.

  • Page 25: Front Panel Connectors

    English Front Panel Connectors RESET SPEAKER HD-LED PWR-LED ATX-SW HD-LED: Primary/Secondary IDE LED This LED will light when the hard drive is being accessed. RESET: Reset Switch This switch allows you to reboot without having to power off the system thus prolonging the life of the power supply or system. SPEAKER: Speaker Connector This connects to the speaker installed in the system chassis.
  • Page 26 English PWR-LED: Power/Standby LED When the system’s power is on, this LED will light. When the system is in the S1 (POS - Power On Suspend) or S3 (STR - Suspend To RAM) state, it will blink every second. Note: If a system did not boot-up and the Power/Standby LED did not light after it was powered-on, it may indicate that the CPU or memor y module was not installed properly.
  • Page 27 English PCI Express Slots PCI Express x16 PCI Express x1 PCI Express x16 Download Flash BIOS Connector...
  • Page 28 English Smart Connectors The Smar t Connectors (USB, IEEE 1394 and Front Panel) ser ve as extended connectors allowing you to easily connect cables to the connectors that are on the system board. This is specially advantageous when using the front panel connectors as this will prevent wrong cable connection.

  • Page 29: Raid Levels

    English Chapter 3 - RAID The AMD chip alows configuring RAID on Serial ATA drives. It sup- ports RAID 0, RAID 1 and RAID 0+1. RAID Levels RAID 0 (Striped Disk Array without Fault Tolerance) RAID 0 uses two new identical hard disk drives to read and write data in parallel, interleaved stacks.
  • Page 30 English Settings To enable the RAID function, the following settings are required. 1. Connect the Serial ATA drives. 2. Configure Serial ATA in the Award BIOS. 3. Configure RAID in the RAID BIOS. 4. Install the RAID driver during OS installation. Step 1: Connect the Serial ATA Drives Refer to chapter 2 for details on connecting the Serial ATA drives.
  • Page 31 English Step 4: Install the RAID Driver During OS Installation ® The RAID driver must be installed during the Windows XP or ® Windows 2000 installation using the F6 installation method. This is required in order to install the operating system onto a hard drive or RAID volume when in RAID mode or onto a hard drive when in AHCI mode.
  • Page 32 ® ®...
  • Page 35 JP10...
  • Page 36 1-2 On: 5V 2-3 On: 5VSB USB 0-5 (JP5) 2-3 On: 5VSB USB 6-11 (JP6) 2-3 On: 5VSB...
  • Page 37 JP13 1-2 On: Gen 2 2-3 On: Gen 1...
  • Page 39 Rear R/L Line-in USB 5 Front R/L Mic-in USB 0-1 USB 4 Side R/L USB 2-3 Clear CMOS S/PDIF-out...
  • Page 40 1394-0 USB 1 USB 0 USB 5 USB 4 USB 3 USB 2 USB 8-9 USB 10-11 USB 6-7 1394-1...
  • Page 41 Line-in Front R/L Rear R/L Mic-in Side R/L Ground Ground Left audio Right audio channel channel CD-in CD-in...
  • Page 43 SATA 4-5 SATA 2-3 SATA 0-1...
  • Page 45 IRRX N. C. Ground IRTX IrDA CIRRX N. C. 5VSB CIRTX...
  • Page 46 Sense Power Speed Ground Control Power CPU fan Ground Sense Sense Ground 1st fan Power Power NB fan Ground Sense Power Ground Sense 2nd fan 3rd fan Sense Ground Power System fan Reset Power...
  • Page 47 DRAM Power LED Diagnostic Standby Power LED...
  • Page 48 1 2 2 4 +3.3VDC +12VDC +5VDC +12VDC +5VDC +5VDC +5VSB PWR_OK +5VDC PS_ON# +5VDC -12VDC +3.3VDC +3.3VDC +3.3VDC +12V Ground...
  • Page 49 +12V Ground Ground...
  • Page 51 RESET SPEAKER HD-LED PWR-LED ATX-SW...
  • Page 53 PCI Express x16 PCI Express x1 PCI Express x16...
  • Page 54 1394 Front Panel...
  • Page 56 ® ®...
  • Page 58 ® ®...
  • Page 61 JP10...
  • Page 62 2-3 On: 5VSB USB 0-5 (JP5) 2-3 On: 5VSB USB 6-11 (JP6) 2-3 On: 5VSB...
  • Page 63 JP13 1-2 On: Gen 2 2-3 On: Gen 1...
  • Page 65 Rear R/L Line-in USB 5 Front R/L Mic-in USB 0-1 USB 4 Side R/L USB 2-3...
  • Page 66 1394-0 USB 1 USB 0 USB 5 USB 4 USB 3 USB 2 USB 8-9 USB 10-11 USB 6-7 1394-1...
  • Page 67 Line-in Front R/L Rear R/L Mic-in Side R/L Ground Ground Left audio Right audio channel channel CD-in...
  • Page 69 SATA 4-5 SATA 2-3 SATA 0-1...
  • Page 71 IRRX N. C. Ground IRTX IrDA CIRRX N. C. 5VSB CIRTX...
  • Page 72 Sense Power Speed Ground Control Power CPU fan Ground Sense Sense Ground 1st fan Power Power NB fan Ground Sense Power Ground Sense 2nd fan 3rd fan Sense Ground Power System fan...
  • Page 73 Reset Power...
  • Page 74 DRAM Power LED Diagnostic Standby Power LED...
  • Page 75 1 2 2 4 +3.3VDC +12VDC +5VDC +12VDC +5VDC +5VSB +5VDC PWR_OK +5VDC PS_ON# +5VDC -12VDC +3.3VDC +3.3VDC +3.3VDC Ground +12V...
  • Page 76 +12V Ground Ground...
  • Page 78 RESET SPEAKER HD-LED PWR-LED ATX-SW...
  • Page 80 PCI Express x16 PCI Express x1 PCI Express x16...
  • Page 81 1394 Front Panel...
  • Page 83 ® ®...
  • Page 85 ® ® ®...
  • Page 87 JP10...
  • Page 89 1-2 On: 5V 2-3 On: 5VSB...
  • Page 90 USB 0-5 (JP5) 2-3 On: 1-2 On: 5V 5VSB USB 6-11 (JP6) 1-2 On: 5V 2-3 On: 5VSB...
  • Page 91 JP13 1-2 On: Gen 2 2-3 On: Gen 1...
  • Page 93 Center/Subwoofer Rear R/L PS/2 Line-in 1394-0 USB 5 Front R/L Mic-in USB 4 USB 0-1 Side R/L USB 2-3 S/PDIF-out PS/2 PS/2 S/PDIF...
  • Page 94 1394-0 USB 1 USB 0 USB 5 USB 4 USB 3 USB 2 USB 8-9 USB 10-11 USB 6-7 1394-1...
  • Page 95 Center/ Line-in Subwoofer Front R/L Rear R/L Mic-in Side R/L Front audio Ground Ground Left audio Right audio channel channel CD-in...
  • Page 97 SATA 4-5 SATA 2-3 SATA 0-1...
  • Page 99 IRRX N. C. Ground IRTX IrDA CIRRX N. C. 5VSB CIRTX...
  • Page 100 Sense Power Speed Control Ground Power CPU fan Ground Sense Sense Ground 1st fan Power Power NB fan Ground Sense Power Ground Sense 2nd fan 3rd fan Sense Ground Power System fan...
  • Page 101 Reset Power...
  • Page 103 12 24 +3.3VDC +12VDC +5VDC +12VDC +5VDC +5VDC +5VSB PWR_OK +5VDC PS_ON# +5VDC -12VDC +3.3VDC +3.3VDC +3.3VDC Ground +12V...
  • Page 104 +12V Ground Ground...
  • Page 106 RESET SPEAKER HD-LED PWR-LED ATX-SW...
  • Page 107 HDD LED Power HD-LED N. C. N. C. PWRBT+ ATX-SW PWRBT- N. C. N. C. RESET Ground H/W Reset Speaker Data N. C. SPEAKER Ground Speaker Power LED Power (+) LED Power (+) PWR-LED LED Power (-) or Standby Signal...
  • Page 108 PCI Express x16 PCI Express x1 PCI Express x16...
  • Page 109 1394...
  • Page 114 ® • ® • • • • ® • • • • • • • • • • • • • • • • • • • • •...
  • Page 115 • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •...
  • Page 116 JP10...
  • Page 117 USB 0-5 (JP5) USB 6-11 (JP6)
  • Page 118 JP13 2-3 On: Gen 1 1-2 On: Gen 2 (default)
  • Page 120 Rear R/L Line-in 1394-0 USB 5 Front R/L Mic-in USB 4 USB 2-3 Side R/L USB 0-1...
  • Page 122 1394-0 USB 1 USB 0 USB 5 USB 4 USB 3 USB 2 USB 8-9 USB 10-11 USB 6-7 1394-1...
  • Page 123 Center/ Line-in Subwoofer Front R/L Rear R/L Mic-in Side R/L Ground Ground Left audio Right audio channel channel CD-in...
  • Page 125 SATA 4-5 SATA 2-3 SATA 0-1...
  • Page 127 IRRX N. C. Ground IRTX IrDA CIRRX N. C. 5VSB CIRTX...
  • Page 128 Sense Power Speed Ground Control Power CPU fan Ground Sense Sense Ground 1st fan Power Power NB fan Ground Sense Power Ground Sense 2nd fan 3rd fan Sense Ground Power System fan...
  • Page 131 1 2 2 4 +3.3VDC +12VDC +5VDC +12VDC +5VDC +5VDC +5VSB PWR_OK +5VDC PS_ON# +5VDC -12VDC +3.3VDC +3.3VDC +3.3VDC Ground +12V...
  • Page 132 +12V Ground Ground...
  • Page 134 RESET SPEAKER HD-LED PWR-LED ATX-SW...
  • Page 136 PCI Express x16 PCI Express x1 PCI Express x16...
  • Page 137 1394...
  • Page 140 ® ®...
  • Page 141 POST (hex) Debug Code Action BIOS Program Definition Possible Cause Solution Power on None, blank 1. CMOS jumper is set at pins 2-3. 1. Set the CMOS jumper to pins 1-2 (default). 2. 5Vsb of PSU is insufficient. 2. Replace a suitable PSU. (Minimum required - 2A) Power on - >...
  • Page 142 Solution POST (hex) Debug Code Action BIOS Program Definition Possible Cause 00 - > C0 - > Stopped at C1 1. Remove and reinstall the memory Detecting memory. 1. Incompatible memory modules. (00 - > C0 - > C1 - > modules.
  • Page 143 Debug Code Action POST (hex) BIOS Program Definition Possible Cause Solution 00 - > C1 - > C3 - > Enumerating PCI bus number. 1. Incompatible PCI devices. 1. Remove all PCI/PCIE devices and Stopped at 25 leave only the graphics card to test Assigning memory &...
  • Page 144 Debug Code Action Possible Cause Solution POST (hex) BIOS Program Definition Power on - > Stopped at 75 1. Lost power source of some devices. 1. Inspect the power cable connection. Initializing storage devices. (Probing for IDE devices or SATA 2.
  • Page 145 POST (hex) Debug Code Action BIOS Program Definition Possible Cause Solution Power on - > Prompt Stopped There is no “79” definition on the 1. Mixed-up BIOS data. 1. Clear the CMOS data. at 79 Award BIOS code. (BIOS program executed the wrong 2.
