Maintenance
(continued)

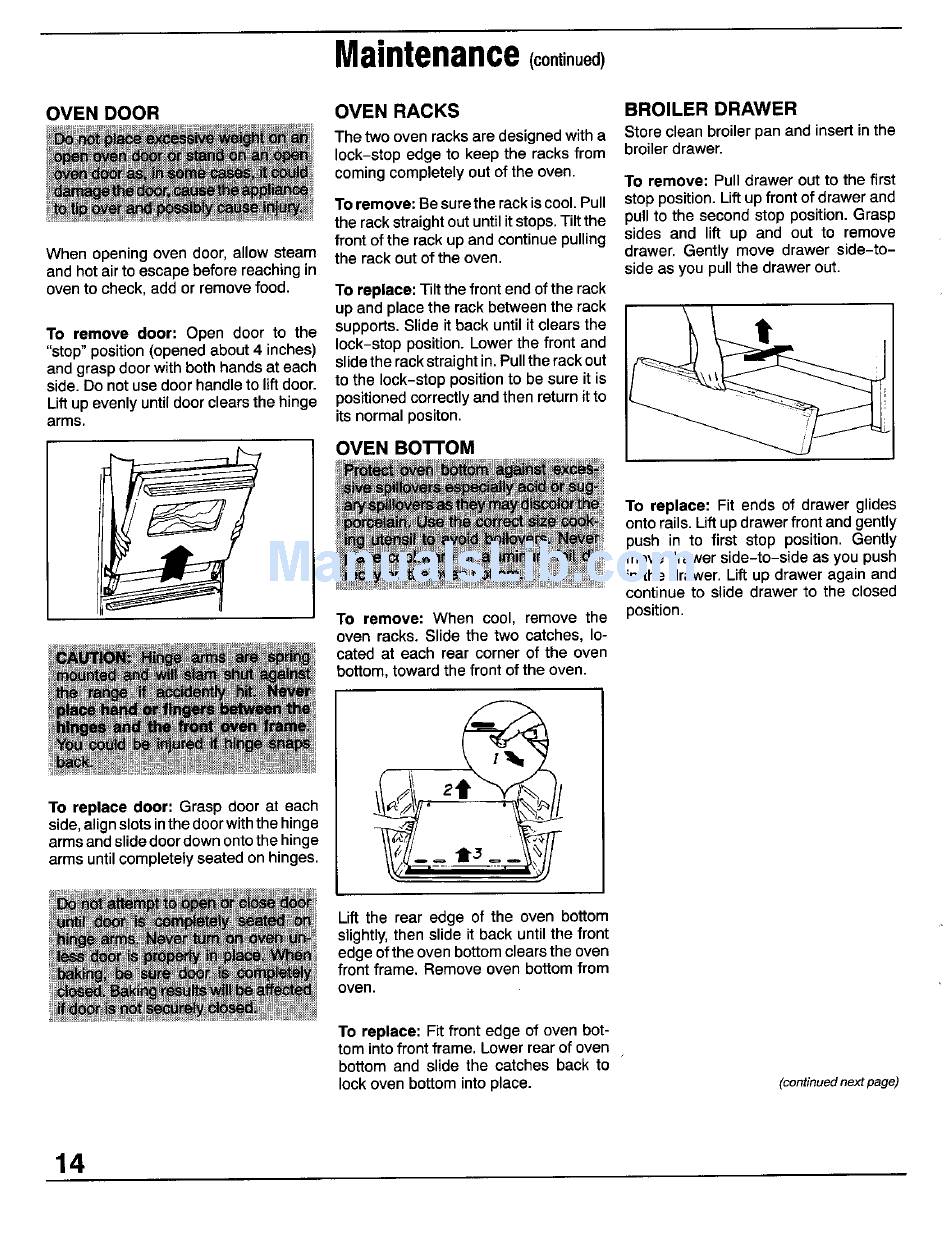

OVEN DOOR OVEN RACKS BROILER DRAWER
The two oven racksare designedwitha Storeclean broilerpan and insertinthe
lock-stop edge to keep the racks from broilerdrawer.
comingcompletelyoutof the oven.
To remove: Pulldrawer out to the first
Toremove: Be surethe rackiscool.Pull stopposition. L iftupfrontof drawerand
the rackstraightout untilitstops.Tiltthe pullto the secondstop position.Grasp
frontofthe rackupand continuepulling sides and lift up and out to remove
When openingoven door,allowsteam the rack outof the oven. drawer. Gently move drawer side-to-
and hotairto escapebeforereachingin sideas you pullthe drawer out.
ovento check, add or removefood. To replace: Tiltthe frontend ofthe rack
upand placethe rackbetween the rack \ I
supports. Slide it back until it clears the _,_
To remove door: Open door to the
"stop" position (opened about 4 inches) lock-stop position. Lower the front and
m
and grasp door with both hands at each slidethe rack straight in. Pull the rack out
side. Do not use door handle to lift door. to the lock-stop positionto be sure it is _
Lift up evenly until door clears the hinge positioned correctly and then return it to
arms. its normal positon.
/_ OVEN Bo'n'OM
TO replace: Fit ends of drawer glides
onto rails. Lift up drawer front and gently
push in to first stop position. Gently
move drawer side-to-side as you push
in the drawer. Lift up drawer again and
continue to slide drawer to the closed
To remove: When cool, remove the position.
oven racks. Slide the two catches, lo-
cated at each rear corner of the oven
bottom, toward the front of the oven.
TO replace door: Grasp door at each _ _ 1//7,
side,alignslotsin the doorwith the hinge _. _• armsand slide door down ontothe hinge
arms until completely seated on hinges. __.. ___. "J'3 "_." _j
Lift the rear edge of the oven bottom
slightly, then slide it back until the front
edge of the oven bottom clears the oven
front frame. Remove oven bottom from
oven.
To replace: Fit front edge of oven bot-
tom into frontframe. Lower rear of oven
bottom and slide the catches back to
lock oven bottom into place.
(continued next page)
14
