INSTALLER:
LEAVE
THESE
INSTRUCTIONS
WITH THE APPLIANCE
INSTALLATION
MANUAL

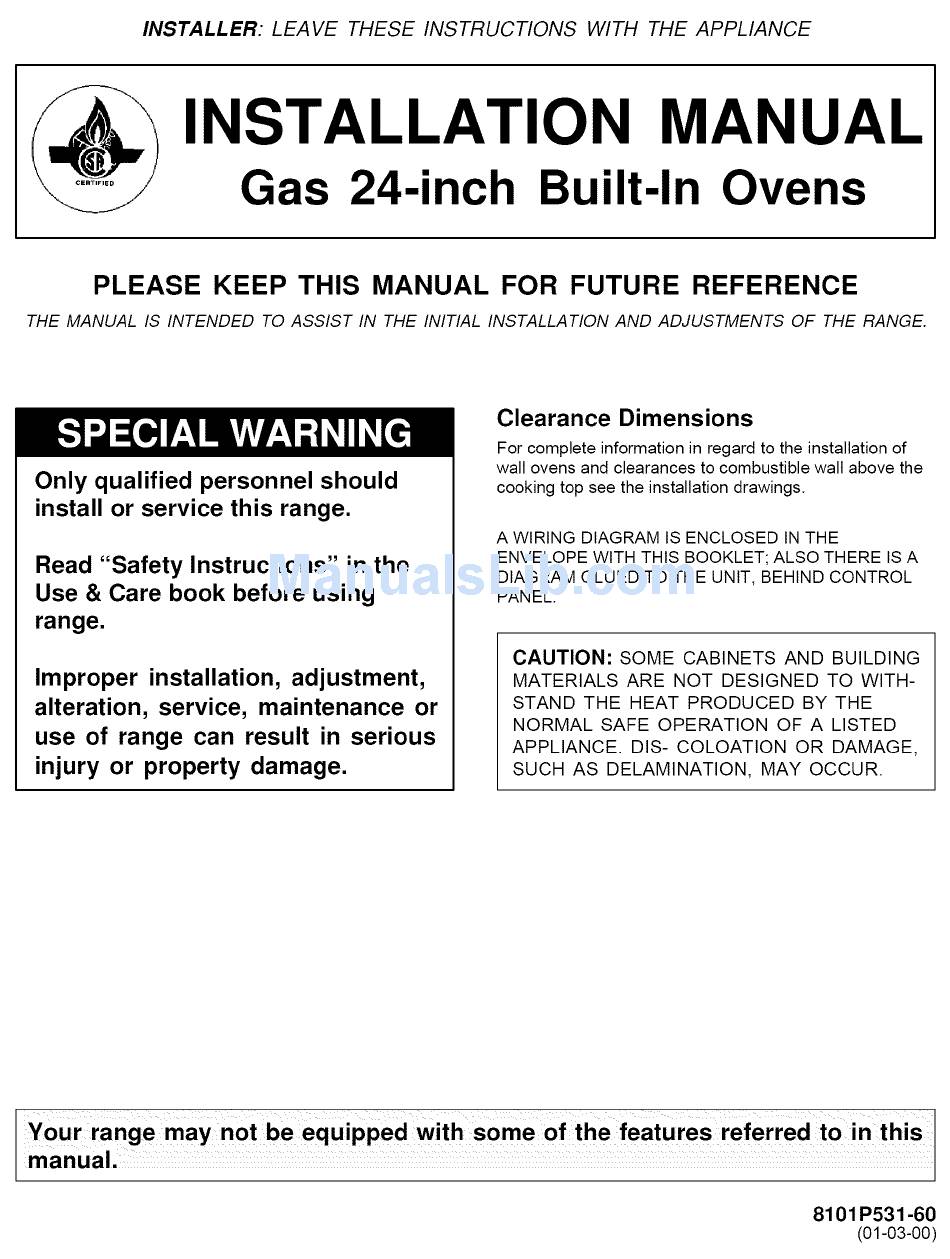

Gas 24-inch Built-In Ovens
PLEASE
KEEP THIS MANUAL
FOR FUTURE
REFERENCE
THE MANUAL IS INTENDED
TO ASSIST IN THE INITIAL INSTALLATION
AND ADJUSTMENTS
OF THE RANGE.
Only qualified
personnel
should
install
or service this range.
Read "Safety
Instructions"
in the
Use & Care book before using
range.
Improper
installation,
adjustment,
alteration,
service,
maintenance
or
use of range can result in serious
injury or property
damage.
Clearance
Dimensions
For complete information in regard to the installation of
wall ovens and clearances to combustible wall above the
cooking top see the installation drawings.
A WIRING DIAGRAM IS ENCLOSED IN THE
ENVELOPE WITH THIS BOOKLET; ALSO THERE IS A
DIAGRAM GLUED TO THE UNIT, BEHIND CONTROL
PANEL.
CAUTION:
SOME
CABINETS
AND BUILDING
MATERIALS
ARE
NOT
DESIGNED
TO WITH-
STAND
THE
HEAT
PRODUCED
BY THE
NORMAL
SAFE
OPERATION
OF A LISTED
APPLIANCE.
DIS- COLOATION
OR DAMAGE,
SUCH
AS DELAMINATION,
MAY OCCUR.
8101 P531-60
(01-03-00)
Advertisement
Table of Contents
Related Manuals for Magic Chef 9112WUV
Summary of Contents for Magic Chef 9112WUV
- Page 1 INSTALLER: LEAVE THESE INSTRUCTIONS WITH THE APPLIANCE INSTALLATION MANUAL Gas 24-inch Built-In Ovens PLEASE KEEP THIS MANUAL FOR FUTURE REFERENCE THE MANUAL IS INTENDED TO ASSIST IN THE INITIAL INSTALLATION AND ADJUSTMENTS OF THE RANGE. Clearance Dimensions For complete information in regard to the installation of wall ovens and clearances to combustible wall above the Only qualified personnel...
-
Page 2: Installation Drawings
Installation Drawings PROVIDE SLOT VOLT GROUNDED ELECTRICAL OUTLET THIS AREA FRONT CABIN OVEN SUPPLIED WITH I12" FEMALE INLET REGULATOR, " WITH 4" RECOMMENDED PRONG CORD AREA ELECTRICAL CONNECTION ROVIDE HOLE THIS GENERAL AREA CONNECTING I/2" DIAMETER PIPE FITTING 22-3/8" 46-5 16"... -
Page 3: Installation
Installation Check the oven model number plate to see if the oven is Electric Supply approved for installation in mobile homes and/or The appliance, when installed, must be electrically recreational vehicles. If approved the following items are grounded in accordance with local codes or, in the applicable. - Page 4 Connecting The Oven Gas Supply Installation of this oven must conform with local codes or, The house piping and/or oven connector used to in the absence of local codes, with the National Fuel Gas connect the oven to the main gas supply must be Code, ANSI Z223.1-1atest edition.
-
Page 5: Unit Adjustments
Unit Adjustments Wall Oven Adjustment ELECTRIC IGNITION - BAKE BURNER WITH ELECTRIC GLOW BAR a. The bake burner is equipped with an electric control system as well as an electric oven burner ignitor (figure 2). This control system requires NO adjustment. - Page 6 AIR SHUTTER - OVEN BURNER a. The approximate length of the flame of oven burner is lift or blow off the burner when cold. (See #2 on a 1/2 inch distinct blue flame, figure 4. figure 5.) b. Oven burner flame can be checked as follows, without Distinct blue flame but lifting - close burner air burner baffle in place: shutter to the point where it will not cause the flame...
-
Page 7: Gas Conversion
Gas Conversion General All ovens are equipped with double coaxial (universal) off with nut). "IMPORTANT" remove plastic dust cover orifices and with a convertible appliance pressure from cap nut and reinstall on opposite side of cap nut. regulator. The unit model number plate states which gas it was adjusted for at the factory. - Page 8 Orifice Conversion FROM NATURAL GAS TO LP/PROPANE GAS: FROM LP/PROPANE GAS TO NATURAL GAS: Change the appliance pressure regulator from Change the appliance pressure regulator from LP natural to LP setting. (See figure 6, 7 or 8). to natural setting. (See figure 6, 7 or 8). Screw the burner orifice hoods down tight against Screw the burner orifice hoods away from the the pins.
- Page 9 INSTALADOR: DEJE ESTAS INSTRUCCIONES CON EL ELECTRODOME-STICO MANUAL DE INSTALACION Hornos empotrados de gas de 61 cm (24 pulg) CONSERVE ESTE MANUAL COMO REFERENCIA FUTURA EL MANUAL TIENE LA FINALIDAD DE AYUDARLE EN LA INSTALACION Y LOS AJUSTES INIClALES DE LA ESTUFA. Dimensiones del espacio libre Para obtener informaci6n completa relacionada con la...
- Page 10 Dibujos de instalacion • PROPORCIONE EN ESTA AREA UNA RANURA PARA EL • TOMACORRIENTE ELECTRICO DE 120 VOLTIOS CONECTADO ZIERRA ,,, 60 95 CM FRENTE DEL GABINETE [z_'^; t 'ULL_ / ..MIN. HORNO PROVISTO CON UNA ENTRADA HEMBRA DE 1/2 NPT _"_- EN EL REGULADOR _"...
- Page 11 Instalacion Lea la placa de datos del homo para ver si esta aprobada Suministro de energia electrica la instalaci6n en casas m6viles o vehiculos recreativos. Si El electrodomestico, cuando se instala, debe conectarse esta aprobada, se aplicaran los puntos siguientes. a tierra de acuerdo con los c6digos locales o, si no exis- NOTA: La placa del nQmero de modelo del homo se tieran, con el C6digo Nacional Electrico, ANSt/NFPA 70.
-
Page 12: Conexion Del Horno
Conexion del horno Suministro de gas La instalaci6n del homo debe estar en conformidad con INSTALARSE CON LOS ADAPTADORES PROVtSTOS CON EL CONECTOR. los c6digos locales o, si no existieran, con la Qltima edici6n del C6digo Nacional de Gas Combustible, La tuberia de la casa y el conector del homo que se ANSI Z223.1 use para conectarlo al suministro principal de gas,... -
Page 13: Ajustes De La Unidad
Ajustes de la unidad Ajuste del horno de pared ENCENDIDO ELECTRONICO- QUEMADOR DE HOR- NEADO CON BARRA LUMINISCENTE ELECTRICA El quemador de horneado esta equipado con un sistema de control electrico asi como con un encendedor electrico del quemador del horno (figura 2). - Page 14 OBTURADOR DE AIRE - QUEMADOR DEL HORNO a. La Iongitud aproximada de la llama del quemador del de aire Io mas posible hasta donde no cause que la homo es una llama bien definida con el interior azul de llama se apague ni se vuele cuando este frio. (Vea 1.27 cm (1/2 pulg), figura 4.
- Page 15 Conversion de gas General Todos los hornos estan equipados con orificios coaxiales opuesto de la tuerca de la tapa. dobles (universales) y con un regulador de presi6n convertible de electrodomestico. La placa del nQmero del Instale de nuevo el regulador de presi6n y,coloque otra modelo de la unidad indica para que tipo de gas esta vez la cubierta contra polvo.
- Page 16 Conversion del orificio DE GAS NATURAL A GAS LP/PROPANO: GAS LP/PROPANO A GAS NATURAL: Cambie el ajuste del regulador de presi6n del Cambie el ajuste del regulador de presion del electrodomestico de gas natural a LP. (Yea la electrodomestico de gas LP a natural. (Yea la figura 6, 7 6 8.) figura 6, 7 6 8.) Destornille las campanas de orificio de los...
- Page 17 INSTALLA T£UFI " VEUILLEZ LAISSER CES INSTRUCTIONS A VEC L'APPAREIL MANUEL DE MISE EN SERVICE Fours a gaz encastres de 61 cm (24 po) VEUILLEZ CONSERVER CE MANUEL POUR Re:FlORENCE ULTI_RIEURE CE MANUEL EST DESTINE A FACILITER LA MISE EN SERVICE ET LE RL=GLAGE INITIAUX DE LA CUISINIERE.
- Page 18 Schemas de mise en service PREVOIR UNE PRISE DE 120 V RELIEE ,ik LA TERRE DANS CETTE ZONE 61 CM DEVANT DE L'ARMOIRE MIN. LE D¢:TENDEUR DU FOUR EST MUNI D'UNE ARRtVEE FEMELLE DE 1/2 N.P.T. CORDON DE 1,57 M '--1 (62 PO) AVEC FICHE A 3 BROCHES ZONE DE 10,5 .CM (4 PO)
-
Page 19: Mise En Service
Mise en service Verifier la plaque portant le numero de modele du four Alimentation electrique pour s'assurer qu'il est homologue pour une mise en Une fois en place, I'appareil dolt _tre relie a la terre service dans une maison mobile et/ou un vehicule de conformement aux codes Iocaux ou, en I'absence de plaisance. - Page 20 Raccordement du four Alimentation en gaz La mise en service de ce four doit _tre conforme aux La conduite de gaz du Iogis et/ou le raccord du four codes Iocaux ou, en I'absence de tels codes, avec la gaz utilises pour raccorder le four a I'alimentation en norme ANSI Z223.1, derniere edition, du National Fuel gaz doivent 6tre propres, libres de toutes rognures de Gas Code.
- Page 21 Re Ig[ages de I'ap_pareil Reglage du four encastre ALLUMAGE ELECTRIQUE - BRULEUR POUR CUISSON AU FOUR AVEC BARRE INCANDESCENTE D'ALLUMAGE a. Le brQleur pour cuisson au four est equipe d'un systeme de commande electrique ainsi que d'un dispositif d'allumage electrique (figure 2). Le systeme de commande n'exige AUCUN reglage.
- Page 22 OBTURATEUR D'AIR - BRULEUR DU FOUR a. La hauteur approximative de la flamme d'un breleur du une flamme qui ne se souleve pas du brQleur ou four dolt presenter une partie bleue distincte de 13 mm qui s'eteigne Iorsque le brQleur est froid. (Voir (1/2 po) (voir la figure 4).
- Page 23 Conversion b un gaz different Generalites Tous les fours sont equipes d'orifices coaxiaux doubles Remonter I'ecrou du capuchon sur le detendeur et (universels) et d'un detendeur pour appareil a gaz remettre le pare-poussiere en place. << PRUDENCE >> : convertible. La plaque signaletique indiquant le numero veiller ace que I'indication du type de gaz auquel le detendeur vient d'6tre converti soit visible au haut de de modele signale egalement a quel type de gaz I'appareil...
- Page 24 Conversion des orifices DU GAZ NATUREL AU GPL/PROPANE GPL/PROPANEAU GAZNATUREL: Convertir le detendeur du gaz GPL au gaz Convertir le detendeur du gaz naturel au GPL. naturel. (Voir les figures 6, 7 ou 8). (Voir les figures 6, 7 ou 8). Devisser les capuchons d'orifice des brQleurs de Visser les capuchons d'orifice des brQleurs a fond fagon ales eloigner des broches (voir la...
