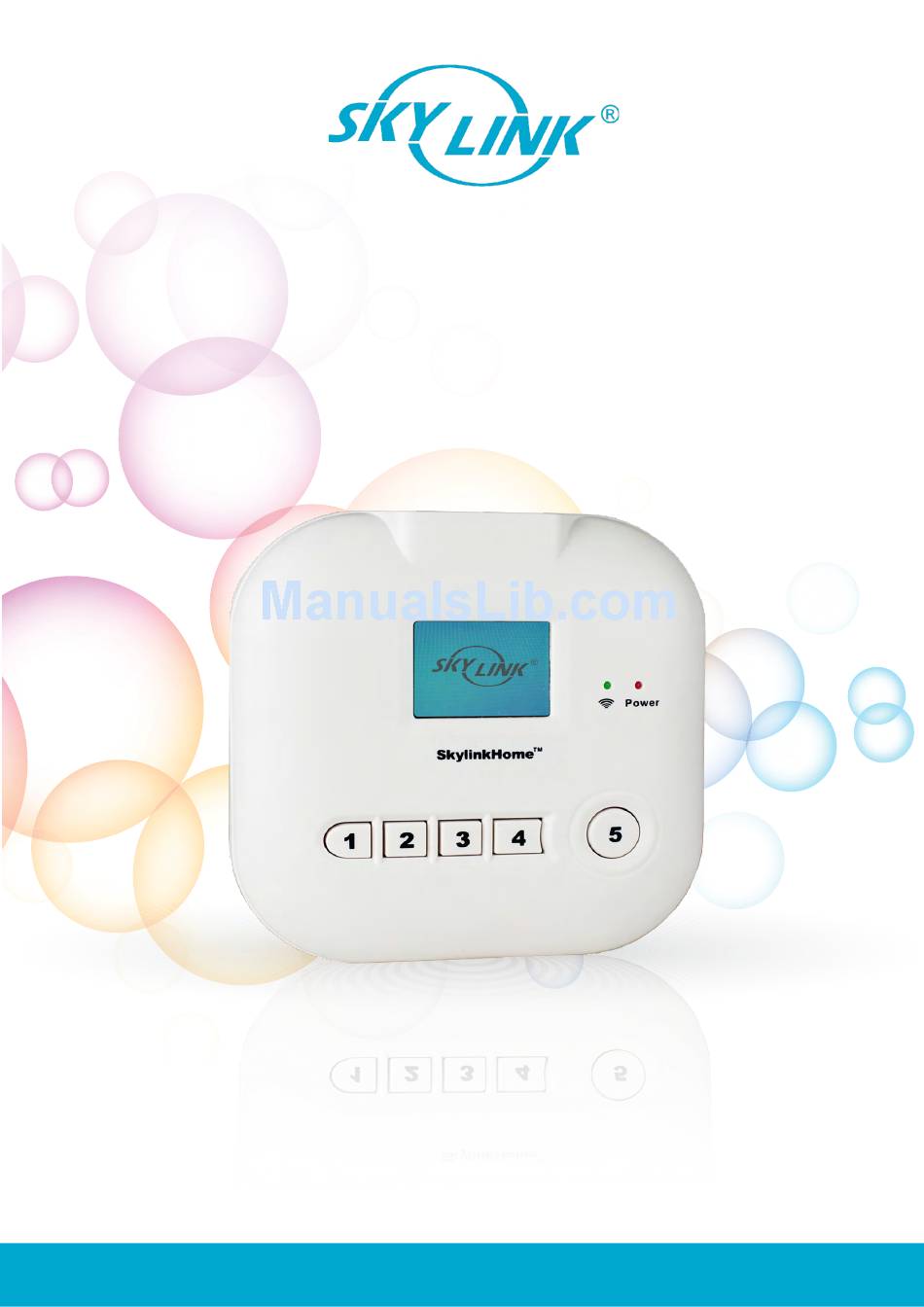

- Page 1 Setup Guide HU-318 skylinkhome.com...
-
Page 2: Table Of Contents
CONTENTS 1. Setup HU-318 Obtain the IP address of HU-318....3 Login HU-318 Main Page......4 HU-318 Network Setting......5 Setup Portforward........6 2. Setup App App Download........... 7 App Network Settings........ 8 Zone Settings..........9 Device Settings.......... 10 Scene Settings.......... 11 Timer Settings........... -
Page 3: Obtain The Ip Address Of Hu-318
1.1 OBTAINING THE IP ADDRESS OF HU-318 SETUP HU-318 1. Connect the ethernet cable to the HU-318 hub and to your router 2. Connect the power adaptor to the outlet and to the HU-318 hub 3. You will see your IP address as well as the port number on the HU-318 >... -
Page 4: Setup Hu-318
1.2 LOGING INTO THE HU-318 MAIN PAGE SETUP HU-318 1. Open the browser on your desktop and input your IP address http://192.168.x.xx:8081 Omit the zeros from your IP address shown on the hub to the following format: example http:192.168.002.036:8081 http:192.168.2.36:8081 2. -
Page 5: Hu-318 Network Setting
SETUP HU-318 1. Ensure the DDNS Status is OK. If it states Fail, Check your internet access DDNS Status : OK 2. Uncheck the DHCP Client and Click on “Save Config” “Uncheck” 3. Now the HU-318 is rebooting SETUP HU-318... -
Page 6: Setup Portforward
1.4 SETUP PORTFORWARD SETUP HU-318 If you want to control your devices/appliances outside your wifi-network, you need to set up PORT FORWARDING on your Router! To do this visit http://www.portforward.com enter the router brand and model found at the back of your router, into the search engine. -
Page 7: Setup App
1. On your iphone, go to the App Store, 1. On your smartphone, go to the App and search “skylink homecontrol” Store, and search “skylink home” 2. Install the Skylink App 2. Install the Skylink App 3. Run the App 3. -
Page 8: App Network Settings
2.2 APP NETWORK SETTINGS 1. Tap on “Settings” 2. Tap on “Network Settings” 3. Tap on “1” 4. Enter the following information: Profile: Home 5. Tap on “Back” IP Address: xxxxx.my.skyhm.net 192.168.x.xx (If you didn’t setup DDNS) Port: 8081 User name: admin Password: admin Enabled: ON Tap “Save”... -
Page 9: Zone Settings
2.3 ZONE SETTINGS SETUP APP 1. Tap on “Zone Settings” 2. Tap on one of the “Unused” buttons 3. Enter Your Zone Name: eg. Master Room 4. Tap on “Back” and Tap on “Rename” Zone Name: eg. Master Room, Living Room Tap on “Rename”... -
Page 10: Device Settings
Tap on “Return” No-Dim/Dim and tap on “Add” Device Name: eg. Bed Light, eg. Table Lamp 7. Put your skylink receiver into 6. Tap on the Button you created programming mode and Tap on “Learn” To set your skylink receiver into... -
Page 11: Scene Settings
2.5 SCENE SETTINGS SETUP APP 1. Tap on “Settings” 2. Tap on “Scene Settings” 3. Tap on one of the 4. Enter your Scene Name and “Unused” buttons tap “Rename” Scene Name: eg. Movie, eg. Evening “Rename” to Save 5. Tap on your “Scene Name: eg.Movie”... - Page 12 2.5 SCENE SETTINGS SETUP APP 7. Select your zone name Tap “Done” 8. Tap on “Device” Tap “Done” Select Zone 9. Select your Device, and Tap “Done” 10. Tap on “Brightness” Tap “Done” Select Device eg. Wall Lamp 11. Select “% Brightness” Tap “Done”...
- Page 13 2.5 SCENE SETTINGS SETUP APP 13. Set your Device into programming mode and Tap “Learn” to program Tap on “Learn” To set your skylink receiver into programming mode please refer page 18 this guide. After Programmed, Tap on “Home” 14. To add more devices to the same scene, repeat scene settings: steps 5-13 15.
-
Page 14: Timer Settings
2.6 TIMER SETTINGS SETUP APP 1. Tap on “Settings” 2. Tap on “Timer Settings” 3. Tap one of the “Unused” buttons 4. Enter your Timer Name Timer Name: eg. Timer1 eg. NIght 6. Tap on “Zone”, Select your zone and 5. - Page 15 2.6 TIMER SETTINGS SETUP APP 8. Tap Device, Select your Device from the List and Tap “Done” to Save 7. Tap “Device” Select Device: eg. Wall Lamp Tap “Done” to Save 9. Tap Hour, Select your Hour 10. Tap Minute, Select your Minute from the List and Tap “Done”...
- Page 16 2.6 TIMER SETTINGS SETUP APP 13. Tap on “On” or “Off” depending on 14. Tap on the “Add” button your desired action to add your timer Select “On” or “Off” Tap “Done” to Save 15. Tap on your Timer name 16.
-
Page 17: Operation
OPERATION 1. Tap on the “Zone” button 3. Tap on the Zone you want to control 4. Tap on the device you want to control and use the 4 buttons below to control OPERATION... -
Page 18: Putting Receiver Into Programming Mode
PUTTING RECEIVER INTO PROGRAMMING MODE Mini Screw-In Dimmer On/Off & Dimming Control Model: LS-318 Model: MD-318 Start with dimmer off. Position the slide switch Start with dimmer off; Power on the dimmer to the desired operating mode. Power on (by turning on light switch or the circuit (by turning on the light switch or the circuit breaker), you will hear a beep from the MD- breaker). - Page 20 W i r e l e s s C o n t r o l E v e r y w h e r e . skylinkhome.com...
