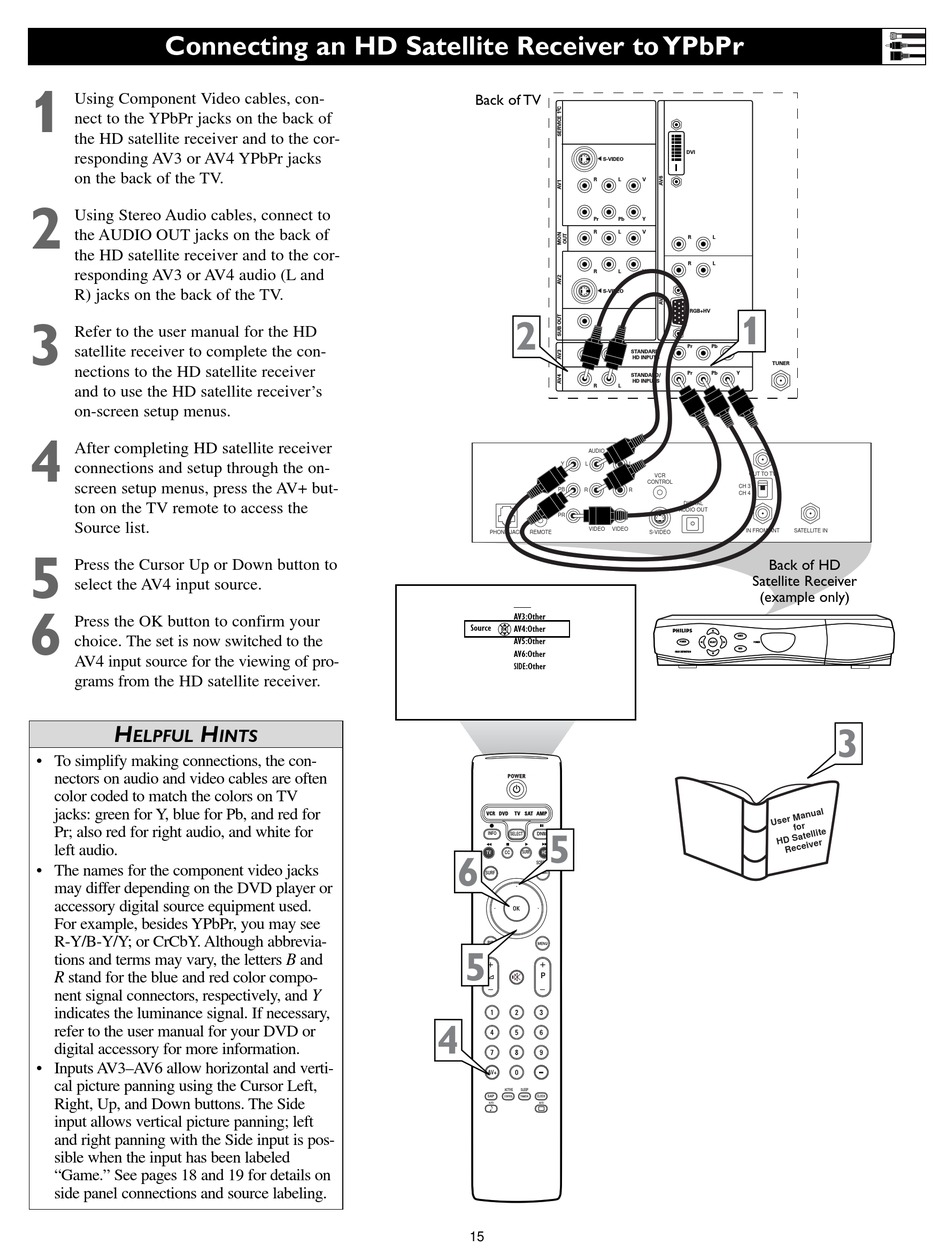

Connecting an HD Satellite Receiver to YPbPr
1
Using Component Video cables, con-
nect to the YPbPr jacks on the back of
the HD satellite receiver and to the cor-
responding AV3 or AV4 YPbPr jacks
on the back of the TV.
2
Using Stereo Audio cables, connect to
the AUDIO OUT jacks on the back of
the HD satellite receiver and to the cor-
responding AV3 or AV4 audio (L and
R) jacks on the back of the TV.
3
Refer to the user manual for the HD
satellite receiver to complete the con-
nections to the HD satellite receiver
and to use the HD satellite receiver's
on-screen setup menus.
4
After completing HD satellite receiver
connections and setup through the on-
screen setup menus, press the AV+ but-
ton on the TV remote to access the
Source list.
5
Press the Cursor Up or Down button to
select the AV4 input source.
6
Press the OK button to confirm your
choice. The set is now switched to the
AV4 input source for the viewing of pro-
grams from the HD satellite receiver.
H
H
ELPFUL
• To simplify making connections, the con-
nectors on audio and video cables are often
color coded to match the colors on TV
jacks: green for Y, blue for Pb, and red for
Pr; also red for right audio, and white for
left audio.
• The names for the component video jacks
may differ depending on the DVD player or
accessory digital source equipment used.
For example, besides YPbPr, you may see
R-Y/B-Y/Y; or CrCbY. Although abbrevia-
tions and terms may vary, the letters B and
R stand for the blue and red color compo-
nent signal connectors, respectively, and Y
indicates the luminance signal. If necessary,
refer to the user manual for your DVD or
digital accessory for more information.
• Inputs AV3–AV6 allow horizontal and verti-
cal picture panning using the Cursor Left,
Right, Up, and Down buttons. The Side
input allows vertical picture panning; left
and right panning with the Side input is pos-
sible when the input has been labeled
"Game." See pages 18 and 19 for details on
side panel connections and source labeling.
INTS
Back of TV
G
S-VIDEO
R
Pr
R
R
G
S-VIDEO
2
R
R
AUDIO
AUDIO
Y
L
PB
R
RF
PR
VIDEO
VIDEO
PHONE JACK
REMOTE
___
AV3:Other
Source
AV4:Other
OK
AV5:Other
AV6:Other
SIDE:Other
INFO
SELECT
DNM
5
SURR
TV
CC
HD
6
SCREEN
SURF
FORMAT
®
®
®
®
PIP
5
P
4
AV+
ACTIVE
SLEEP
SAP
CONTROL
TIMER
CLOCK
AUTO
AUTO
15
DVI
L
V
Pb
Y
L
V
R
L
R
L
L
V
RGB+HV
1
Pr
Pb
Y
L
STANDARD/
HD INPUTS
TUNER
Pr
Pb
Y
STANDARD/
HD INPUTS
L
L
OUT TO TV
VCR
CONTROL
CH 3
R
CH 4
DIGITAL
AUDIO OUT
IN FROM ANT
SATELLITE IN
S-VIDEO
Back of HD
Satellite Receiver
(example only)
GUIDE
POWER
SELECT
POWER
INFO
HIGH DEFINITION
3
