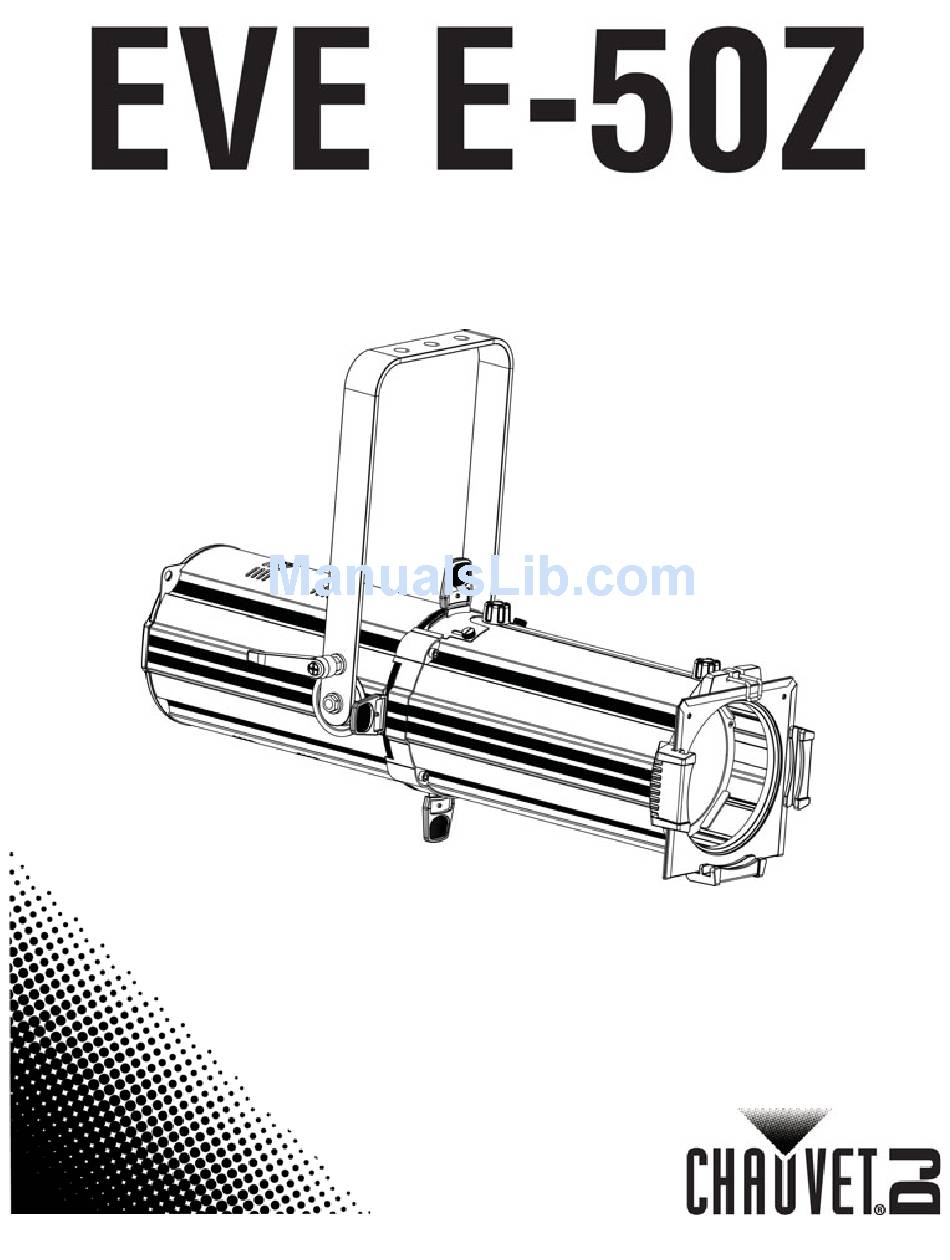

- Page 1 User Manual...
-
Page 2: Table Of Contents
Dimmer Profiles......................Fan Mode ........................5. Mainte nanc e ................Product Maintenance ..................6. Te c hnic al S pe c ific atio ns ............7. Re turns ..................8. Co ntac t Us .................. EVE E-50Z User Manual Rev. 1... -
Page 3: Before You Begin
Chauvet reserves the right to revise the content of this document without any obligation to notify any person or company of such revision, however, Chauvet has no obligation to make, and does not commit to make, any such revisions. Download the latest version from www.chauvetdj.com. -
Page 4: Product At A Glance
Keep this User Manual for future use. If you sell the product to someone else, be sure that they also receive this document. Page 2 of 13 EVE E-50Z User Manual Rev. 1... -
Page 5: Introduction
Mounting Bracket Zoom Thumbscrew (13 mm opening) Accessory Thumbscrew Slots Bracket Gel Holder Adjustment Locking Clip Control Knob Panel D-Fi USB Power In Power Out Fuse DMX In/Out Framing Shutters Frame EVE E-50Z User Manual Rev. 1 Page 3 of 13... -
Page 6: Product Dimensions
NTRODUCTION Product Dimensions 18.9 in 480 mm 22.17 in 563 mm 5.5 in 139 mm 5.5 in 139 mm 6.2 in 157 mm 15 in 381 mm Page 4 of 13 EVE E-50Z User Manual Rev. 1... -
Page 7: Setup
ETUP AC Power The EVE E-50Z has an auto-ranging power supply and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 8: Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The EVE E-50Z may be mounted in any position; however, make sure adequate ventilation is provided around the product. Rigging • Before deciding on a location for the product, always make sure there is easy access to the product for maintenance and programming purposes. -
Page 9: Operation
If you choose a starting address that is too high, you could restrict the access to some of the product’s channels. The EVE E-50Z uses up to 3 DMX channels in a 3-CH DMX mode, which defines the highest configurable address to 510. -
Page 10: D-Fi Usb Connectivity
PERATION D-Fi USB Connectivity The EVE E-50Z is able to become a D-Fi wireless receiver/transmitter with the use of the D-Fi USB from Chauvet DJ. Simply set the product's DMX Personality and DMX Address, set the DIP switch D-Fi receiving/transmitting channel, then plug it into the D-Fi USB port. -
Page 11: Dmx Channel Assignments And Values
Press <ENTER>. Dimmer Profiles This setting determines how fast the output of the EVE E-50Z changes when you modify the values of the dimmer fader. This setting provides three different options to simulate the dimming curve of an incandescent lighting product. -
Page 12: Maintenance
Softly drag any dirt or grime to the outside of the transparent surface. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Page 10 of 13 EVE E-50Z User Manual Rev. 1... -
Page 13: Technical Specifications
104 °F (40 °C) Convection I/O C ONNECTOR HANNEL ANGE 3-pin XLR 1 or 3 Ordering UPC N RODUCT UMBER EVE E-50Z (BLK) 03051234 781462215828 EVE E-50Z (WHT) 03121278 781462216269 EVE E-50Z User Manual Rev. 1 Page 11 of 13... -
Page 14: Returns
Send the merchandise prepaid, in its original box, and with its original packing and accessories. Chauvet will not issue call tags. Clearly label the package with the RMA number. Chauvet will refuse any product returned without an RMA number. Write the RMA number on a properly affixed label. DO NOT write the RMA number directly on the box. -
Page 15: Contact Us
Outside the U.S., United Kingdom, Ireland, Mexico or Benelux, contact the dealer of record. Follow the instructions to request support or to return a product. Visit our website for contact details. EVE E-50Z User Manual Rev. 1 Page 13 of 13...
