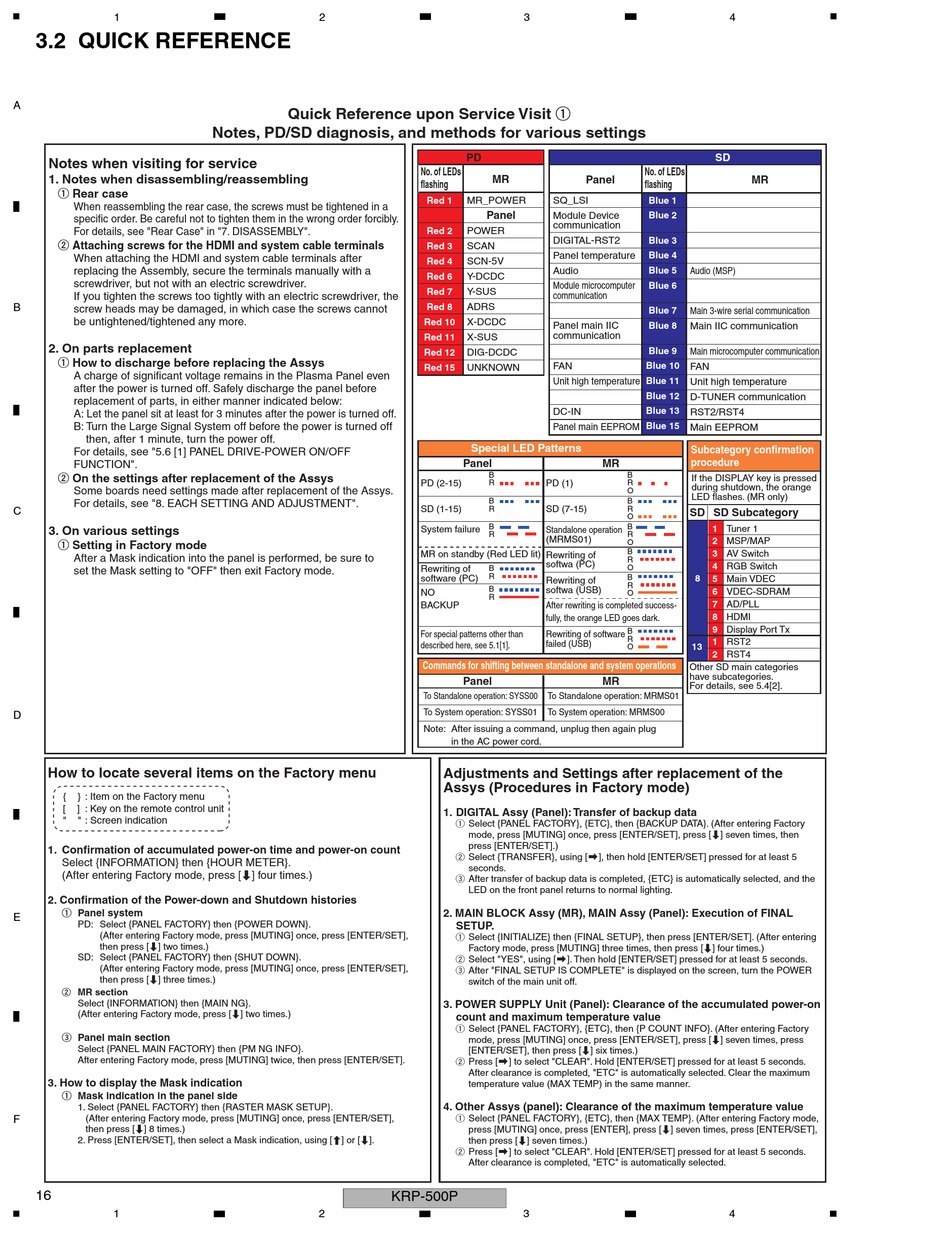

3.2 QUICK REFERENCE

A
Notes when visiting for service
1. Notes when disassembling/reassembling
1 Rear case
When reassembling the rear case, the screws must be tightened in a
specific order. Be careful not to tighten them in the wrong order forcibly.
For details, see "Rear Case" in "7. DISASSEMBLY".
2 Attaching screws for the HDMI and system cable terminals
When attaching the HDMI and system cable terminals after
replacing the Assembly, secure the terminals manually with a
screwdriver, but not with an electric screwdriver.
If you tighten the screws too tightly with an electric screwdriver, the
B
screw heads may be damaged, in which case the screws cannot
be untightened/tightened any more.
2. On parts replacement
1 How to discharge before replacing the Assys
A charge of significant voltage remains in the Plasma Panel even
after the power is turned off. Safely discharge the panel before
replacement of parts, in either manner indicated below:
A: Let the panel sit at least for 3 minutes after the power is turned off.
B: Turn the Large Signal System off before the power is turned off
then, after 1 minute, turn the power off.
For details, see "5.6 [1] PANEL DRIVE-POWER ON/OFF
FUNCTION".
2 On the settings after replacement of the Assys
Some boards need settings made after replacement of the Assys.
For details, see "8. EACH SETTING AND ADJUSTMENT".
C
3. On various settings
1 Setting in Factory mode
After a Mask indication into the panel is performed, be sure to
set the Mask setting to "OFF" then exit Factory mode.
D
How to locate several items on the Factory menu
{ } : Item on the Factory menu
[ ] : Key on the remote control unit
" " : Screen indication
1. Confirmation of accumulated power-on time and power-on count
Select {INFORMATION} then {HOUR METER}.
(After entering Factory mode, press [j] four times.)
2. Confirmation of the Power-down and Shutdown histories
1 Panel system
E
PD: Select {PANEL FACTORY} then {POWER DOWN}.
(After entering Factory mode, press [MUTING] once, press [ENTER/SET],
then press [j] two times.)
SD: Select {PANEL FACTORY} then {SHUT DOWN}.
(After entering Factory mode, press [MUTING] once, press [ENTER/SET],
then press [j] three times.)
2 MR section
Select {INFORMATION} then {MAIN NG}.
(After entering Factory mode, press [j] two times.)
3 Panel main section
Select {PANEL MAIN FACTORY} then {PM NG INFO}.
After entering Factory mode, press [MUTING] twice, then press [ENTER/SET].
3. How to display the Mask indication
1 Mask indication in the panel side
1. Select {PANEL FACTORY} then {RASTER MASK SETUP}.
(After entering Factory mode, press [MUTING] once, press [ENTER/SET],
F
then press [j] 8 times.)
2. Press [ENTER/SET], then select a Mask indication, using [i] or [j].
16
1
2
Quick Reference upon Service Visit 1
Notes, PD/SD diagnosis, and methods for various settings
2
3
PD
No. of LEDs
MR
flashing
MR_POWER SQ_LSI
Red 1
Panel Module Device
communication
Red 2 POWER
DIGITAL-RST2
Red 3 SCAN
Panel temperature
SCN-5V
Red 4
Audio
Y-DCDC
Red 6
Module microcomputer
Red 7 Y-SUS
communication
Red 8 ADRS
X-DCDC
Red 10
Panel main IIC
communication
Red 11 X-SUS
Red 12 DIG-DCDC
FAN
UNKNOWN
Red 15
Unit high temperature
DC-IN
Panel main EEPROM
Special LED Patterns
Panel
B
PD (2-15) R PD (1)
B
SD (1-15) R SD (7-15)
B
System failure
Standalone operation
R
(MRMS01)
MR on standby (Red LED lit)
Rewriting of
softwa (PC)
Rewriting of B
R
software (PC)
Rewriting of
B softwa (USB)
NO
R
BACKUP After rewriting is completed success-
fully, the orange LED goes dark.
For special patterns other than
Rewriting of software
failed (USB)
described here, see 5.1[1].
Commands for shifting between standalone and system operations
Panel
To Standalone operation: SYSS00 To Standalone operation: MRMS01
To System operation: SYSS01 To System operation: MRMS00
Note: After issuing a command, unplug then again plug
in the AC power cord.
Adjustments and Settings after replacement of the
Assys (Procedures in Factory mode)
1. DIGITAL Assy (Panel): Transfer of backup data
1 Select {PANEL FACTORY}, {ETC}, then {BACKUP DATA}. (After entering Factory
mode, press [MUTING] once, press [ENTER/SET], press [j] seven times, then
press [ENTER/SET].)
2 Select {TRANSFER}, using [l], then hold [ENTER/SET] pressed for at least 5
seconds.
3 After transfer of backup data is completed, {ETC} is automatically selected, and the
LED on the front panel returns to normal lighting.
2. MAIN BLOCK Assy (MR), MAIN Assy (Panel): Execution of FINAL
SETUP.
1 Select {INITIALIZE} then {FINAL SETUP}, then press [ENTER/SET]. (After entering
Factory mode, press [MUTING] three times, then press [j] four times.)
2 Select "YES", using [l]. Then hold [ENTER/SET] pressed for at least 5 seconds.
3 After "FINAL SETUP IS COMPLETE" is displayed on the screen, turn the POWER
switch of the main unit off.
3. POWER SUPPLY Unit (Panel): Clearance of the accumulated power-on
count and maximum temperature value
1 Select {PANEL FACTORY}, {ETC}, then {P COUNT INFO}. (After entering Factory
mode, press [MUTING] once, press [ENTER/SET], press [j] seven times, press
[ENTER/SET], then press [j] six times.)
2 Press [l] to select "CLEAR". Hold [ENTER/SET] pressed for at least 5 seconds.
After clearance is completed, "ETC" is automatically selected. Clear the maximum
temperature value (MAX TEMP) in the same manner.
4. Other Assys (panel): Clearance of the maximum temperature value
1 Select {PANEL FACTORY}, {ETC}, then {MAX TEMP}. (After entering Factory mode,
press [MUTING] once, press [ENTER], press [j] seven times, press [ENTER/SET],
then press [j] seven times.)
2 Press [l] to select "CLEAR". Hold [ENTER/SET] pressed for at least 5 seconds.
After clearance is completed, "ETC" is automatically selected.
KRP-500P
3
4
SD
No. of LEDs
Panel MR
flashing
Blue 1
Blue 2
Blue 3
Blue 4
Blue 5 Audio (MSP)
Blue 6
Blue 7 Main 3-wire serial communication
Blue 8 Main IIC communication
Blue 9 Main microcomputer communication
Blue 10 FAN
Blue 11
Unit high temperature
Blue 12
D-TUNER communication
Blue 13
RST2/RST4
Blue 15
Main EEPROM
Subcategory confirmation
procedure
MR
B
If the DISPLAY key is pressed
R
during shutdown, the orange
O
LED flashes. (MR only)
B
R
SD SD Subcategory
O
B
1 Tuner 1
R
2 MSP/MAP
O
B
3 AV Switch
R
4 RGB Switch
O
B
8 5 Main VDEC
R
6 VDEC-SDRAM
O
7 AD/PLL
8 HDMI
9 Display Port Tx
B
R
1 RST2
O 13
2 RST4
Other SD main categories
have subcategories.
MR
For details, see 5.4[2].
