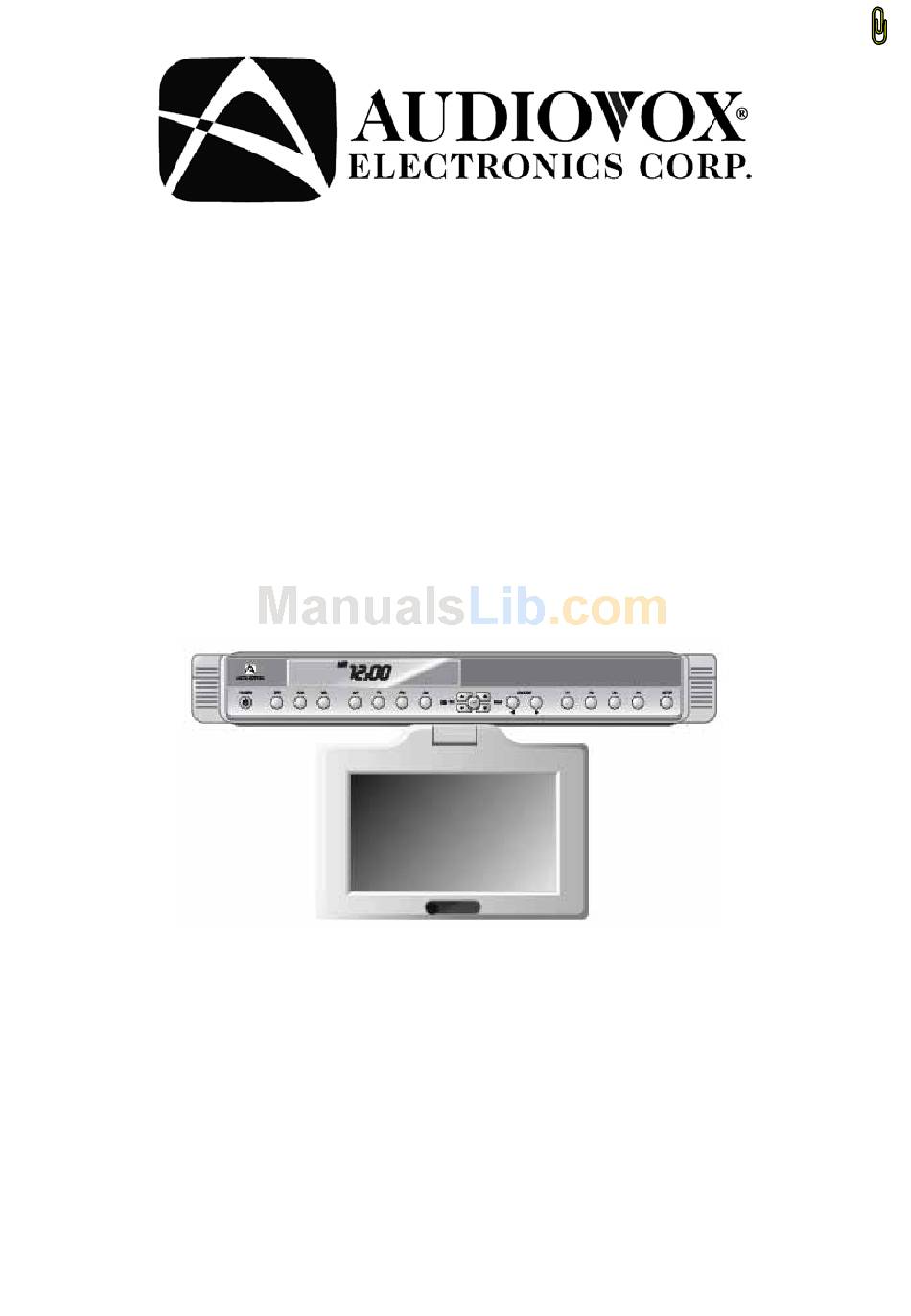

- Page 1 LOW PROFILE TELEVISION INSTALLATION AND OPERATION • Multi-function Remote Control • Cable Ready 125 Channel TV Tuner • Internal Stereo Speakers • Under Cabinet / Table Top Mounting • AM/FM Radio Tuner VE706 MANUAL...
-
Page 2: Introduction
WARNING – To prevent fire or shock hazard, do not expose this unit to moisture. CAUT ION This symbol is intended to alert the user to the presence of uninsured “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. - Page 3 - Consult the dealer or an experienced radio/TV technician for help NOTE: Record Model Number and Serial Number in the space provided below. Refer to these numbers if you need to call your AUDIOVOX dealer regarding this product. MODEL No. _____________________ SERIAL No.
-
Page 4: Important Safety Information
IMPORTANT SAFETY INFORMATION Read Instructions – All the safety and operating instructions should be read before the product is operated. Retain Instructions – The safety and operating instructions should be retained for future reference. Head Warnings – All warnings on the product and in the operating instructions should be adhered to. Follow Instructions –... - Page 5 plug. If the plug still cannot be inserted, contact your electrician to replace your outlet. Do not defeat the safety purpose of the polarized plug. 13. Power-Cord Protection – Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.
- Page 6 21. Replacement Parts – When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards. 22.
-
Page 7: Table Of Contents
Table Of Contents Before You Begin Installation Remote Control Functions Modes of Operation Technical Specifications Troubleshooting Check List Introduction... 1 Important Safety Information... 3 Table of Contents ... 6 Contents of package ... 7 Under Cabinet Installation... 8 Countertop/Desktop Installation... 9 Front Panel Controls... -
Page 8: Contents Of Package
CONTENTS OF PACKAGE 1. VE706 TV 2. Hardware bag A. 2” Mounting screws (4) B. 2-1/2” Mounting screws (4) C. 3” Mounting screws (4) D. Foot (4) E. Hole cap (4) 3. Remote Control 4. Multi Height Spacer (4) FM/AM... -
Page 9: Under Cabinet Installation
Choose an appropriate mounting location underneath a cabinet or shelf. Close proximity to an electrical outlet and a TV antenna or cable connection will facilitate a neat, easy installation. Do not mount the VE706 above a range or oven. Be sure that the location chosen will provide adequate access to the electrical connection on the rear of the unit before continuing. -
Page 10: Countertop/Desktop Installation
COUNTERTOP/DESKTOP INSTALLATION NOTE: Use caution to avoid damaging the LCD screen and the main unit when converting this unit from an under-counter unit to a countertop unit. Leave the protective plastic on the screen until this procedure is completed. Place the unit (with the screen facing up) on a soft padded surface. Pivot the screen so that it is perpendicular to the front of the unit and then turn it sideways. -
Page 11: Front Panel Controls
FRONT PANEL CONTROLS ON/OFF ON/OFF BUTTON – Power ON/OFF. SET BUTTON – Press this button to set the TIME, ALARM, TV Mode. ADD BUTTON – Press this button to add a selected channel. DEL BUTTON – Press this button to delete a selected channel. AP BUTTON –... -
Page 12: Rear Panel Connections
FM ANTENNA – Allows the VE706 to be connected to a 75-Ohm external coaxial antenna for the reception of FM broadcast signals. AM ANTENNA - Allows the VE706 to be connected to an external antenna for the reception of AM broadcast signals. -
Page 13: Lcd Control Functions
LCD Control Functions 1. MENU Button – When pressed, the LCD control MENU is displayed. 2. SEL Button – Used to enter the picture menu. Highlight the menu ite UP/DOWN buttons and then press Select to adjust the highlighted item.. UP Button –... -
Page 14: Battery Installation
BATTERY INSTALLATION 1) Turn the Remote Control face down. Place a fingernail, or coin in the open slot, slide battery holder out. 2) Install the CR2025 battery into its proper slot. (Note: Be sure to observe the correct polarity when inserting the battery). 3) Slide the battery holder in until it clicks. -
Page 15: Remote Control Functions
REMOTE CONTROL FUNCTIONS 1. POWER ON/OFF (PWR) Press this button to turn the VE706 on. Press the button again to turn the VE706 off. 2. ENTER (ENT) This button is used after entering the channel number. 3. CHANNEL UP/DOWN ( Press these buttons to advance to the next higher or lower channel. -
Page 16: Operation
SETTING THE TIME NOTE: All settings (except setting the presets) are performed with the VE706 turned off. 1) Press the SET button and the minutes will flash. -
Page 17: Setting And Activating The Alarm
SETTING and ACTIVATING ALARM NOTE: The VE706 must be turned “OFF” when performing the following procedure. 1) Press the SET button twice to enter the alarm mode, press the P3 button to toggle between the active and deactivated mode. NOTE: If a series of dashes appear (--: --), the Alarm is DEACTIVATED. -
Page 18: Setting The Air Tv Mode
SETTING THE AIR TV MODE 1) Press the SET button three times to enter the TV/Cable configuration mode. 2) Press the SEEK button to select the AIR mode. 3) Press the ON/OFF button to confirm. SETTING THE PRESETS (IN AM, FM OR TV MODES) 1) Tune the desired channel/station. -
Page 19: Technical Specifications
TECHNICAL SPECIFICATIONS GENERAL Power Supply Operating Temperature Operating Humidity Body Size Weight DISPLAY Illumination Backlighting Life Expectancy Resolution Screen MISC TV Channels TV System Radio Frequency Range Audio output AC100-240V ~50/60Hz 25watts 0°~40°C / 32°~104°F 10% ~ 75% 400 X 280 X 56mm / 15.7” x 11.0” x 3.25”Inches 3.2 Kg / 4.2Lbs CCFL Edge Lit Tube 10,000Hrs... -
Page 20: Troubleshooting Check List
Poor Reception Remote control will not function Black and White Reception Solution • Verify Tuner setting matches Antenna/Cable broadcast system. • Verify that the sensor on the VE706 is not obstructed. • Verify that infrared transmitter is not obstructed. •... - Page 21 AUDIOVOX ELECTRONICS CORP. (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within ninety (90) days from the date of original purchase, such defect(s) will be repaired or replaced with reconditioned product (at the Company's option) without charge for parts and repair labor.
