Audiovox owner's manual low profile television 5" lcd drop down under counter tv ve-500a

Advertisement

Quick Links

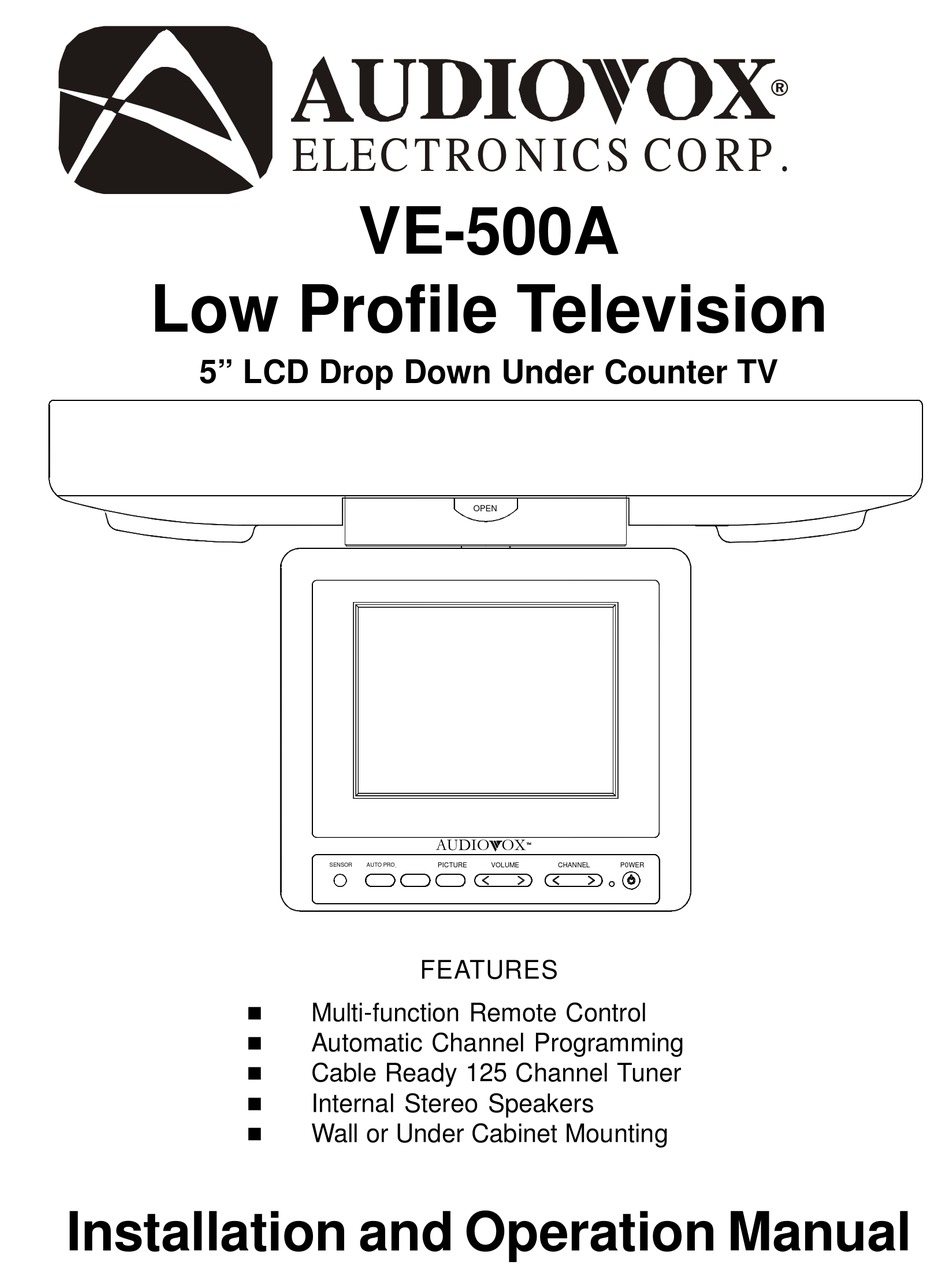

Low Profile Television
5" LCD Drop Down Under Counter TV
Installation and Operation Manual
ELECTRON ICS CORP .
VE-500A
5" TFT LCD TV
SENSOR
AUTO PRO
AV/TV
FEATURES
n
Multi-function Remote Control
n
Automatic Channel Programming
n
Cable Ready 125 Channel Tuner
n
Internal Stereo Speakers
n
Wall or Under Cabinet Mounting
OPEN
TM
VOLUME
CHANNEL
-1-
®
P0WER

Advertisement

Table of Contents
loading

Summary of Contents for Audiovox VE-500A

  • Page 1 5” LCD Drop Down Under Counter TV Multi-function Remote Control Automatic Channel Programming Cable Ready 125 Channel Tuner Internal Stereo Speakers Wall or Under Cabinet Mounting Installation and Operation Manual VE-500A OPEN 5" TFT LCD TV PICTURE VOLUME CHANNEL SENSOR...
  • Page 2 Printer: Leave this page blank...
  • Page 3: Important Safety Information

    10) Do not attempt to service the VE500A yourself. Opening or removing the covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified Audiovox service personnel. 11) Unplug the VE500A from the outlet and refer servicing to qualified Audiovox service personnel under any of the following conditions: a) If liquid has been spilled, or an object has fallen into the TV.
  • Page 4: Included In This Kit

    INCLUDED IN THIS KIT VE500A 5-Inch Television (P/N 136D2179) Remote Control (P/N 136B2180) AC/DC Power Adapter 12V@1.5A (P/N 1541096) Mounting template Hardware Bag (P/N 1502177) A) 10 - 32 x 2 1/2 Mounting screws (P/N 1001896) (4) B) 10 - 32 x 3/4 Mounting screws (P/N 1001897) C) 10 - 32 x 1 3/4 Mounting screws (P/N 1001898) (4) D) 3/4”...
  • Page 5: Under Cabinet Installation

    5) Carefully drill four 1/4” holes at the locations marked above. Place the screws chosen through the countersunk washers and then through the holes from the top down. 6) Screw the appropriate spacers on to the screws first, then position the VE-500A and screw it in place using its threaded holes.
  • Page 6: Wall Mount Installation

    WALL MOUNT INSTALLATION Do not attempt to install the VE-500A vertically, unless you are sure that the electric circuits in the chosen area have been turned off at the fuse or circuit panel. Failure to do this could result in electric shock.
  • Page 7: Front Panel Controls

    7. LED POWER INDICATOR Illuminates whenever power is applied to the VE-500A 8. POWER BUTTON This button will alternately turn the VE-500A on or off. 9. SCREEN RELEASE BUTTON This button will release the screen from its closed position, which allows you to lower it...
  • Page 8: Rear Panel Connections

    REAR PANEL CONNECTIONS DC 12V INPUT LINE OUT 1) 12V DC INPUT Connect to power adapter supplied with VE-500A. 2) ANTENNA CONNECTOR Connect to antenna or cable system. INPUT 1 INPUT 2 DC 12V OUTPUT AUDIO VIDEO AUDIO VIDEO ANT.
  • Page 9: Battery Installation

    BATTERY INSTALLATION 1) Turn the Remote Control face down. Press down on the ridged area of the battery cover and slide it off. 2) Install the two “AAA” batteries included as shown. Make sure that proper polarity (+ or -) is observed. 3) Slide the cover back until it clicks.
  • Page 10: Operation

    The remote control will operate Audiovox Televisions. It is not a universal remote control and will not control equipment from other manufacturers. If a universal remote control is to be used with the VE-500A, choose the remote encoding scheme for Action Televisions when programming the remote.
  • Page 11: Remote Control Functions

    “GREEN” on the screen, and the non-stored channel numbers are in “RED”. When using the CHANNEL UP/DOWN buttons, with the skip mode on, the VE-500A will tune only to the stored channels . 10. TV/CATV BUTTON Used to select regular 69 channel Broadcast TV (TV) or 125 Channel Cable TV (STD), (HRC) Cable, or (IRC) Cable.
  • Page 12: Channel Tuning Set Up

    CHANNEL TUNING SET UP In addition to normal broadcast reception of VHF and UHF channels, if you are a Cable TV subscriber, your new VE500A is capable of receiving many unscrambled Cable channels without the use of a converter box. When set to Broadcast TV it receives CH2-CH69. When set to one of the CATV modes (STD, HRC, or IRC) it receives CH1-CH125.
  • Page 13: Troubleshooting

    Verify Tuner setting matches Antenna / Cable broadcast system. Try other system types with the TV/CATV BUTTON of the remote control. Verify that the sensor on the VE-500A is not obstructed. Verify that the infrared LED on the transmitter is not obstructed.
  • Page 14: Technical Specifications

    TECHNICAL SPECIFICATIONS Illumination: Edge Light Tube Backlighting Life Expectancy: 10,000 Hrs. Pixels: 224,640 Resolution: 960 X 234 Power Supply: 12 Volts + or - 10% @1.3-1.5 A Operating Temperature: 0° - 40° C Storage Temperature: -20° - 80° C Sensitivity: 35 db Video System: NTSC...
  • Page 15 This Page intentionally left blank -15-...
  • Page 16: 90-Day Limited Warranty

    This Warranty gives you specific legal rights and you may also have other rights which vary from state to state. U.S.A. : AUDIOVOX ELECTRONICS CORP. 150 MARCUS BLVD., HAUPPAUGE, NEW YORK 11788 1-800-645-4994 CANADA : CALL 1-800-645-4994 FOR LOCATION OF WARRANTY STATION SERVING YOUR AREA "...
