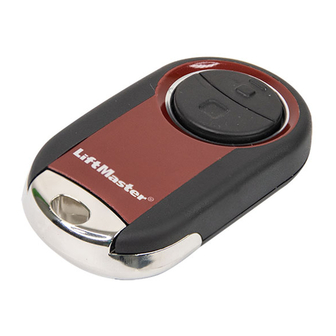

MODEL 374UT
Universal Mini Remote Control

TaBLE OF COnTEnTS

GeTTInG STaRTed .................................................... 2
LOCaTe THe PROGRaM/LeaRn BUTTOn ........................ 3-7
products ............................................. 3
®
products ..................................................... 4
®
products ..................................................... 5
®
products ........................................... 5
®
products ................................................ 6
®
products .......................................... 6
®
products ................................................... 7
®
GaRaGe dOOR OPeneRS .......................................... 8-9
Program/LeaRn button ............................................. 8
garage door opener ................................................. 9
the LeaRn button on the control panel ......................... 10
STOP
Read instructions thoroughly BEFORE beginning.
If using the Universal Mini Remote Control with residential door openers, the remote control must be used only
with door openers manufactured after 1993 that utilize photoelectric sensors. The photoelectric sensors are
always located on or near the bottom of the door track.
To prevent possible SERIOUS INJURY or DEATH from a moving gate or door:
• A LWAYS keep remote controls out of reach of children. NEVER permit children to operate, or play with remote control
transmitters.
• A ctivate gate or door ONLY when it can be seen clearly, is properly adjusted and there are no obstructions to door travel.
• A LWAYS keep gate or door in sight until completely closed. NEVER permit anyone to cross path of moving gate or door.
2
®
®
COMMeRCIaL dOOR OPeRaTORS ................................. 11
with a RadIO button................................................ 11
GaTe OPeRaTORS .................................................... 12
with a Program/LeaRn button .................................... 12
exTeRnaL ReCeIveRS ............................................... 13
with a Program/LeaRn button .................................... 13
LIGHT COnTROLS ............................................ 14
®
®
need HeLP? ........................................................... 15
BaTTeRy ............................................................... 16
Light Control .......................... 14

Advertisement

Table of Contents
loading

Related Manuals for Chamberlain 374UT

Summary of Contents for Chamberlain 374UT

  • Page 1: Table Of Contents

    MODEL 374UT Universal Mini Remote Control TaBLE OF COnTEnTS GeTTInG STaRTed ............ 2 COMMeRCIaL dOOR OPeRaTORS ......... 11 LOCaTe THe PROGRaM/LeaRn BUTTOn ......3-7 Programming to a commercial door operator with a RadIO button..........11 Chamberlain products ..........3 ®...

  • Page 2: Getting Started

    gETTing STaRTED The Universal Mini Remote Control can be programmed to activate up to two products, such as a garage door opener, MyQ light ® control, gate operator, or commercial door operator. each button on the remote control works independently of the other and must be programmed separately.

  • Page 3: Locate The Program/Learn Button

    LOCaTE ThE PROgRaM/LEaRn BUTTOn ChaMBERLain PRODUCTS...

  • Page 4: Genie Products

    LOCaTE ThE PROgRaM/LEaRn BUTTOn gEniE PRODUCTS Learn Code Button Program Set Button...

  • Page 5: Linear Products

    LOCaTE ThE PROgRaM/LEaRn BUTTOn LinEaR PRODUCTS Learn Button Learn Button WaynE-DaLTOn PRODUCTS Program SW Button...

  • Page 6: Liftmaster Products

    LOCaTE ThE PROgRaM/LEaRn BUTTOn LiFTMaSTER PRODUCTS Yellow Learn Button Purple Learn Button Orange Learn Button Green Learn Button Control Panel Press the LEARN button twice. OvERhEaD DOOR PRODUCTS Learn Code Button...

  • Page 7: Stanley Products

    LOCaTE ThE LEaRn BUTTOn STanLEy PRODUCTS Learn Button...

  • Page 8: Garage Door Openers

    Program/LeaRn button contact your garage door opener manufacturer. If you have a LiftMaster or Chamberlain branded garage door opener with a yellow learn button, press and release the learn button, then press and hold the button on the remote control you would like to use. If programming is not successful, proceed through the steps below.

  • Page 9: Programming To A Genie ® Intellicode

    gaRagE DOOR OPEnERS (continued) Programming to a genie intellicode 2 garage Door Opener ® ® Before starting, you MUST have an existing Genie Intellicode 2 remote control programmed to the garage door opener. For help ® ® programming a Genie Intellicode 2 remote control, see your owner’s manual. The images throughout this manual are for reference only and your product may look different.

  • Page 10: Programming To A Liftmaster Garage Door Opener Using The Learn Button On The Control Panel

    DOOR OPEnERS (continued) Programming to a LiftMaster garage Door Opener Using the LEaRn Button on the Control Panel If you have a LiftMaster or Chamberlain branded control panel, press and release the LEARN button twice, then press and hold the button on the remote control you would like to use. If programming is not successful, follow the steps below. The images throughout this manual are for reference only and your product may look different. Start with your garage door closed. P ress and hold bottom button on the remote control until the blue LED stays solid (approximately 15 seconds) then release the button. Bottom Button IMPORTANT: The remote will activate your garage door during programming. Ensure garage door is clear of ALL obstructions.

  • Page 11: Commercial Door Operators

    COMMERCiaL DOOR OPERaTORS Programming to a Commercial Door Operator with a RaDiO Button The RadIO button is typically located on the logic board of the operator or an external receiver. For help locating your RadIO button contact your commercial door operator manufacturer. The images throughout this manual are for reference only and your product may look different.

  • Page 12: Gate Operators

    gaTE OPERaTORS Programming to a gate Operator with a Program/LEaRn Button The Program/LeaRn button is typically located on the control board of the operator or an external receiver. For help locating your Program/LeaRn button contact your gate operator manufacturer. The images throughout this manual are for reference only and your product may look different. Start with your gate closed.

  • Page 13: External Receivers

    EXTERnaL RECEivERS Programming to an External Receiver with a Program/LEaRn Button If using the Universal Mini Remote Control with residential door openers, the remote control must be used only with door openers manufactured after 1993 that utilize photoelectric sensors. The photoelectric sensors are always located STOP on or near the bottom of the door track.

  • Page 14: Myq ® Light Controls

    LighT COnTROLS ® Programming to a MyQ Light Control ® The images throughout this manual are for reference only and your product may look different. Plug the lamp into the module and plug the module If the lamp is not ON, press and release the Power button into an electrical outlet (the LED on the module will on the module to turn the lamp ON. flash). NOTE: Make sure the lamp is switched ON. Press and release the LEARN button on the module (the Press the button on the remote control. LED on the module will light). Button The lamp’s light bulb will blink and the LED on the module will turn OFF when the device has been programmed.

  • Page 15: Need Help

    nEED hELP? The remote control does not have good range. • The range of the remote control may vary depending on various factors and environmental factors The remote control will not program to a product with a Program/LeaRn button. • Check the battery in the remote control. The LED should light when you press a button. Replace the battery if necessary. The remote control Led will not light or it is dim. • Replace the battery. The remote control Led does not activate the product until it is close to the product.

  • Page 16: Battery

    Battery NOTICE: To comply with FCC and or Industry Canada (IC) rules, adjustment or modifications of this receiver and/or transmitter are prohibited, except for changing the code setting or replacing the battery. THERE ARE NO OTHER USER SERVICEABLE PARTS. Tested to Comply with FCC Standards FOR HOME OR OFFICE USE. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Dispose of batteries properly. Replace ONLY with 3V CR2032 coin batteries. need Help? Go to LiftMaster.com/374ut or call 1-800-442-1255 LiftMaster.com 1-800-442-1255 Chamberlain and LiftMaster are Trademarks of Chamberlain Group. Genie is a Trademark of Overhead Door Corporation. Overhead Door is a Trademark of Overhead Door Corporation. Linear is a Trademark of Linear Corporation. Master Mechanic is a Trademark of TruServ. Sears is a Trademark of Sears & Roebuck. Stanley is a Trademark of The Stanley Works. Wayne Dalton is a trademark of Wayne Dalton Corporation. Do It is a trademark of Do It Best Corporation. © 2016, LiftMaster GDOPro103B All Rights Reserved...
