Summary of Contents for Audiovox FPE1507

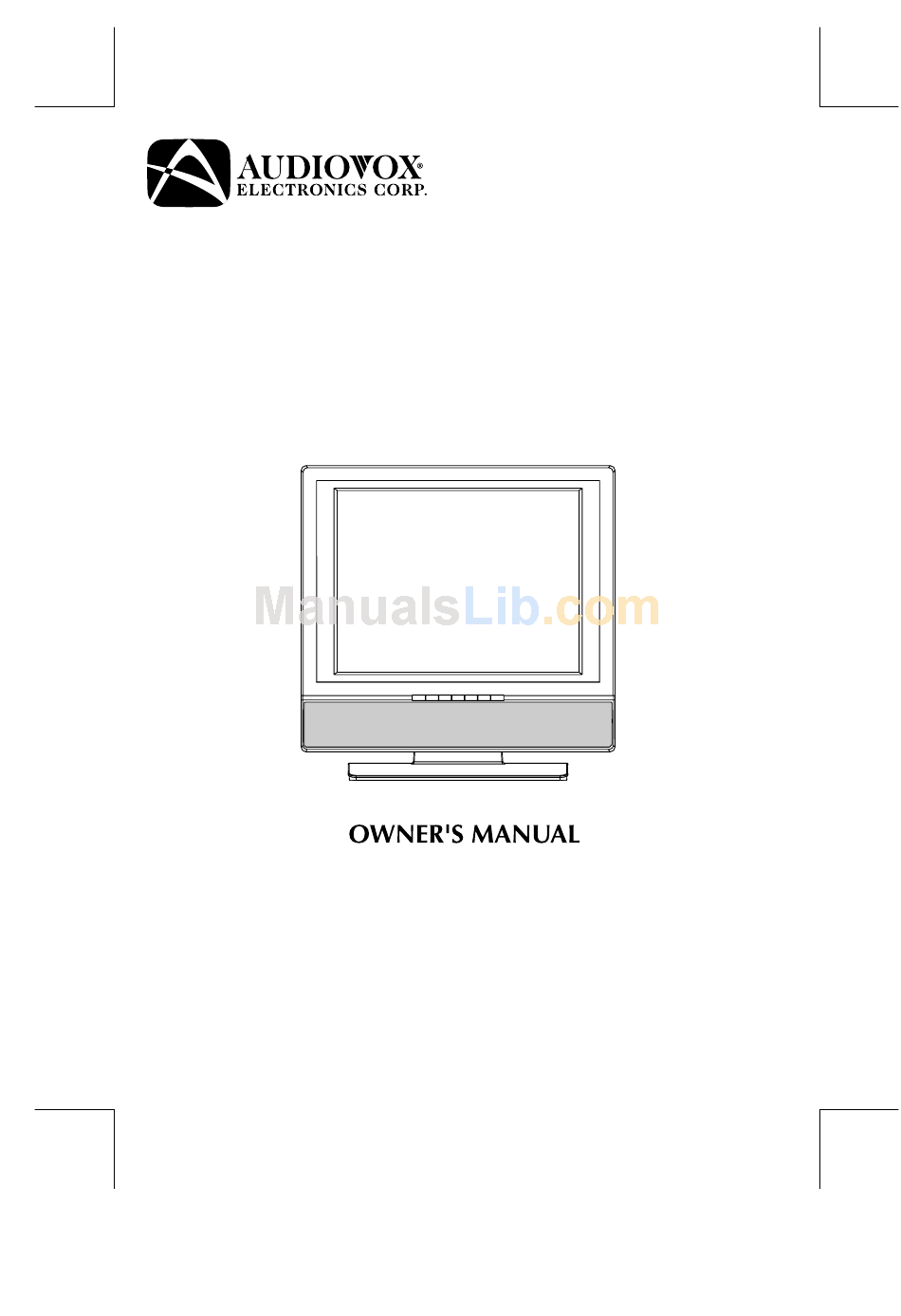

- Page 1 15” FLAT PANEL LCD TV FOR ASSISTANCE CALL CUSTOMER SERVICE AT 1-800-645-4994 OR VISIT US AT WWW. AUDIOVOX.COM PLV1615CS1 / AUDIOVOX / ENGLISH SIZE: 148 X 210 MM MATERIAL: 80G WOODFREE PAPER 100% 19-04-2007 FPE1507 128-8059 Printed in China 811-161S91W220...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN RISQUE DE CHOC ÉLECTRIQUE NE AVIS PAS OUVRIR * SEE REAR OF UNIT FOR GRAPHIC SYMBOLS * The lightning flash with an arrowhead within a triangle alerts you to uninsulated dangerous voltage within the product's enclosure that could cause an electric shock. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. Do not block any ventilation openings. -
Page 4: Table Of Contents
TABLE OF CONTENTS SAFETY PRECAUTIONS ... 2 IMPORTANT SAFETY INSTRUCTIONS ... 3 REMOTE CONTROL ... 5 ACCESSORIES ... 5 REMOTE CONTROL REFERENCE GUIDE ... 6 UNIT REFERENCE GUIDE ... 7 CONNECTIONS ... 8 – 13 Connecting a TV Antenna/Cable/Satellite ... 8 Connecting an A/V Device (VCR, PVR Camcorder, Game System, etc.) ... -
Page 5: Remote Control
REMOTE CONTROL USING THE REMOTE CONTROL • Point the remote control at the REMOTE SENSOR located on the unit. • When using this unit in very bright light, the infrared REMOTE CONTROL SENSOR may not work properly. • The recommended effective distance for using the remote control is about 16 feet (5 meters). TO CHANGE THE REMOTE CONTROL BATTERY 1. -
Page 6: Remote Control Reference Guide
REMOTE CONTROL REFERENCE GUIDE 1) FUNCTION Button Press to switch between TV / AV IN / YUV IN / PC IN. 2) PICTURE Button Press to select from preset screen display settings to match the type of show you are watching (Standard, Dynamic, Personal, Soft &... -
Page 7: Unit Reference Guide
UNIT REFERENCE GUIDE 1) Color LCD Screen 2) STANDBY/ON Button Turns the unit on and off. MENU Button Enters and exits the TV menu. FUNCTION Button Selects TV, AV IN, YUV IN or PC IN. – VOL + Controls Adjusts the volume level and highlight selections (Left &... -
Page 8: Connections
CONNECTIONS CONNECTING A TV ANTENNA/CABLE/SATELLITE To view television channels correctly, a signal must be received from one of the following sources: - An indoor or outdoor aerial antenna - A cable system - A satellite system Connecting a Digital Antenna The tuner in this TV receives ATSC TV signals from an antenna. -
Page 9: Connecting An A/V Device (Vcr, Pvr Camcorder, Game System, Etc.)
CONNECTIONS CONNECTING TO A/V DEVICES (VCR, PVR, Camcorder, Game System, etc.) Connecting to Devices with an S-Video Output To connect to A/V devices such as a VCR or camcorder: - Connect to a VCR Connect the right (red) and left (white) audio output from the VCR to the right (red) and left (white) input on this unit (Audio cable not included). - Page 10 CONNECTIONS Connecting to Devices with a Composite (yellow RCA-type) Video Output To connect to A/V devices such as a VCR or camcorder: - Connect to a VCR Connect the right (red) and left (white) audio output from the VCR to the right (red) and left (white) input on this unit (Audio cable not included).
- Page 11 CONNECTIONS Connecting to Devices with a Composite (yellow RCA-type) Video Input To connect to A/V devices such as a VCR, PVR or camcorder: - Connect to a VCR/PVR Connect the right (red) and left (white) audio input from the VCR/PVR to the right (red) and left (white) output on this unit (Audio cable not included).
-
Page 12: Connecting A High-Definition (Hd) Source
CONNECTIONS CONNECTING A HIGH-DEFINITION (HD) SOURCE High-Definition (HD) Devices with component video output must be connected to the YUV input. Connect the three video outputs (Y, Pb, Pr) from the source to the corresponding video inputs on this unit (Component video cable not included). Connect the right (red) and left (white) audio output from the source to the right (red) and left (white) input on this unit (Audio cable not included). -
Page 13: Connections ......................................................................................... 8
CONNECTIONS CONNECTING AN AUDIO AMPLIFIER This connection allows you to use an audio amplifier and external speakers. Connect the right (red) and left (white) audio OUTPUT from this unit to the right (red) and left (white) audio INPUT on your amplifier. Refer to your amplifier’s user manual for more information. -
Page 14: Installation
INSTALLATION REMOVING THE BASE STAND WARNING: The LCD Display is very fragile, and must be protected at all times when removing the base stand. Be sure that no hard or sharp, or anything that could scratch or damage the LCD display, come in contact with it. -
Page 15: Using Headphones
USING HEADPHONES • Turn down the volume before connecting headphones to the unit, then adjust the volume to your desired level. • When headphones are connected, no sound will come from the front speakers. Note: • Avoid listening to sound at high levels for prolonged periods of time. This may be harmful to you and may cause hearing loss. -
Page 16: Tv Setup
TV SETUP VIDEO MENU 1. Press the MENU button. 2. Press the ENTER or button to select Video. 3. Use the button to select the options (Picture Mode, Brightness, Contrast, Saturation, Tint, Sharpness or Color Temperature). Adjust them using the will change to your desired setting);... -
Page 17: Vga Settings In Pc Mode
TV SETUP VGA Settings in PC Mode Use the button to select the options (Auto Adjust, H. Position, V. Position, Phase or Clock). Adjust them using the (Press the ENTER or button to confirm Auto Adjust.) Resolution : 1,024 x 768 max Refresh Frequency : 60Hz max •... -
Page 18: Tv Menu
TV SETUP TV MENU (For TV Mode Only) 1. Press the MENU button. 2. Use the button to select TV. Press the ENTER or button to go into the TV settings. 3. Use the button to select the options (Tuner Mode, Auto Scan, Add Channel, Channel Skip, MTS or Audio Language). -
Page 19: Time Setup Setting
TV SETUP TV MODE Video OSD Language Time Setup Audio Caption Restore setting Setup Parental Setup PC MODE Video OSD Language Time Setup Audio Restore setting Setup Parental Setup Time Setup Setting: Video Time Zone Time Audio Sleep Timer Setup Parental Time Setup •... -
Page 20: Caption Setting
TV SETUP Caption Setting: Video Analog Closed Caption Digital Closed Caption Audio Digital Caption Style Setup Parental Caption • Analog Closed Caption : Select the analog closed caption or turn it off. • Digital Closed Caption : Select the digital closed caption or turn it off. •... -
Page 21: Parental Control Setting
TV SETUP Parental Control Setting: 4. Use the button to select various Parental settings. Press the ENTER or go into the detailed settings. 5. Use the buttons to move among the rating levels. Press the ENTER button to change the mode between Blocked and Allowed. 6. -
Page 22: Trouble Shooting Guide
TROUBLE SHOOTING GUIDE SYMPTOM No power. The remote does not function. Bad Picture (snow, multiple images, distortion, blurry) No sound. Black white picture. No picture or sound. Colored patches of picture. PLV1615CS1- E1-23.pmd CAUSE (AND REMEDY) • Check that the AC power cord is connected. •... - Page 23 Unit : INCH 3 ½ 15 5/8 6 5/8 7 1/2 10 1/2 Printed in China 811-161S91W210 PLV1615CS1- E1-23.pmd 20/04/2007, 15:36...
