J519
R41
Legend
J412 Mobile telephone operating electronics control unit*
J503 Control unit with display for radio
and navigation
J519 Onboard supply control unit
R11 Aerial
R14 Rear left treble loudspeaker
R15 Rear left bass loudspeaker
R16 Rear right treble loudspeaker
R17 Rear right bass loudspeaker
R20 Front left treble loudspeaker
R21 Front left bass loudspeaker
R22 Front right treble loudspeaker
R23 Front right bass loudspeaker
R41 CD changer*
R50 GPS aerial
R54 Mobile telephone*
R65 Telephone aerial
R93 Radio aerial 2
R108 Left aerial module
R109 Right aerial module
R149 Remote control receiver for auxiliary coolant heater*
R182 Auxiliary heater aerial
R199 Connection for external audio sources*
S Fuse
A Battery
* depending on equipment

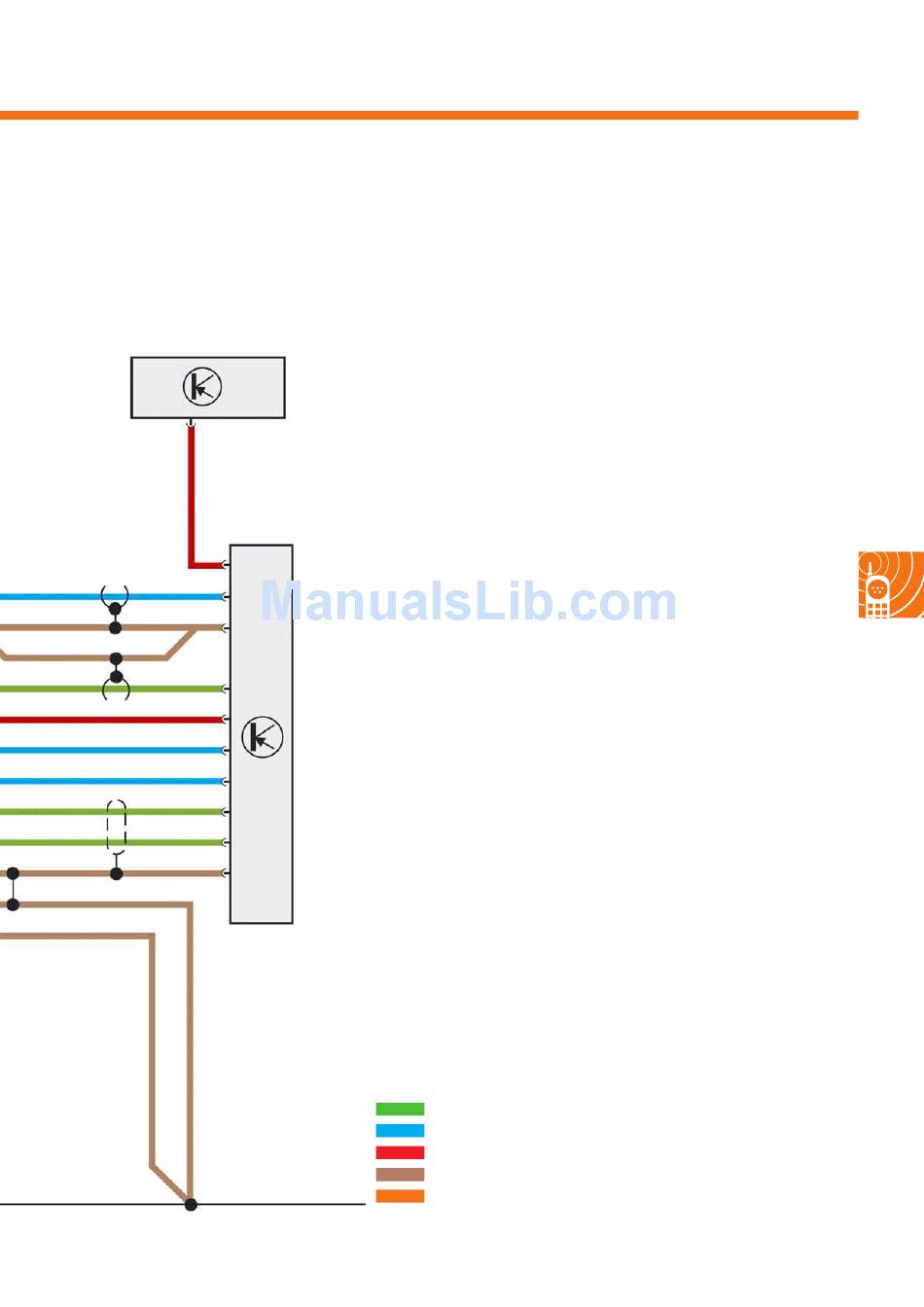

The functional diagram shows the RNS 510 radio navigation system
in the Touran.
Input signal
Output signal
Positive
Earth
S397_109
CAN data bus
