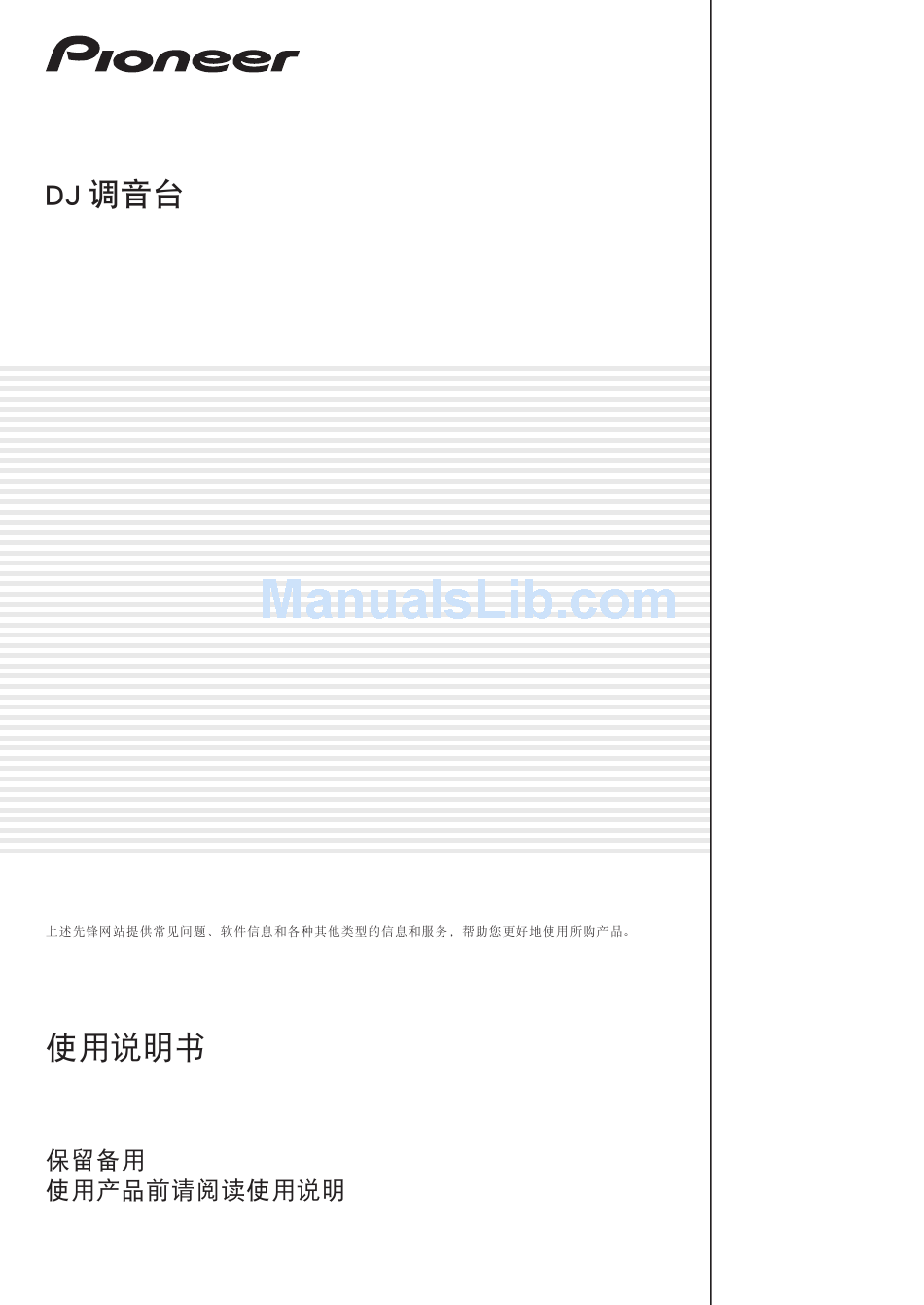

DJ MIXER DJM-4000 http://pioneerdj.com/support/ The Pioneer website shown above offers FAQs, information on software and various other types of information and services to allow you to use your product in greater comfort. Operating Instructions...
BOOTH MONITOR IN/CUE IN/CUE SPLIT ON/OFF TEMPO RANGE TEMPO RANGE BACK BACK MEMORY MEMORY VINYL VINYL SEARCH PITCH BEND SEARCH PITCH BEND JOG MODE JOG MODE MASTER CROSS FADER 4000 HEADPHONES PROFESSIONAL MIXER DJM-4000 开箱检查 ! 电源线 ! 使用说明书(即本说明书) Zhcn...
接线 在连接时或更改连接时必须确保已经断开电源,并将电源线从电源插座拔下。 有关需要连接的部件,请参阅操作说明书。 在设备间所有连接完成后连接电源线。 请务必使用随附的电源线。 后面板 2 3 4 523 4 CH-4 CH-3 CH-2 CH-1 SIGNAL PHONO/LINE LINE LINE SIGNAL PHONO/LINE RETURN LINE PHONO LINE PHONO (MONO) (TRS) (TRS) (TRS) 25Hz 1GND 2 HOT AC IN MASTER 1 LOW CUT MASTER 2 REC OUT SUBWOOFER...
连接输入端子 CH-4 CH-3 CH-2 CH-1 SIGNAL PHONO/LINE LINE LINE SIGNAL PHONO/LINE RETURN LINE PHONO LINE PHONO (MONO) (TRS) (TRS) (TRS) 25Hz 1GND 2 HOT AC IN MASTER 1 LOW CUT MASTER 2 REC OUT SUBWOOFER BOOTH ZONE SEND 3 COLD 连接输出端子...
方块图 SEND/RETURN FX ON/OFF SW CH.SELECT SEND/RETURN CH 1-4 RETURN MIC 1 LEVEL TALKOVER RETURN MIC 2 DETECT LEVEL SEND MIC 1+2 MIC 1 RETURN MASTER MIC 1 SEND ( SND/RTN ) ZONE RETURN MIC 1+2 SEND MIC 2 RETURN MIC 2 TALKOVER SEND...
Thank you for buying this Pioneer product. Please read through these operating instructions so you will know how to operate your model properly. After you have finished reading the instructions, put them away in a safe place for future reference.
Page 17
Contents How to read this manual In this manual, names of channels and buttons indicated on the prod- uct, names of menus in the software, etc., are indicated within square brackets ([ ]). (e.g. [MASTER] channel, [ON/OFF], [File] menu) Before start Features .......................
SEARCH PITCH BEND SEARCH PITCH BEND JOG MODE JOG MODE MASTER CROSS FADER 4000 HEADPHONES PROFESSIONAL MIXER DJM-4000 DJ Player For audio input For audio output For checking the audio input/output Amplifier, Computer Headphones Subwoofer powered speaker, etc. What’s in the box...
Connections Be sure to turn off the power and unplug the power cord from the power outlet whenever making or changing connections. Refer to the operating instructions for the component to be connected. Connect the power cord after all the connections between devices have been completed. Be sure to use the included power cord.
LOW CUT MASTER 2 REC OUT SUBWOOFER BOOTH ZONE SEND 3 COLD To an AC outlet Cassette deck, CD player, etc. (line level output devices) Pioneer DJ player Connecting output terminals Power amplifier Subroom CH-4 CH-3 CH-2 CH-1 SIGNAL PHONO/LINE LINE...
Connecting to the control panel Mounting on a rack conforming to EIA standards The mount holes on the sides of this unit’s control panel are suited for the 4U size of 19” EIA standard racks. Leave enough space behind the terminal panel to connect the terminals.
! [STEREO]: The sound of the channel for which [CUE] (g or n) is Operating the DJ section pressed is output from the headphones in stereo. 4 Turn [MIXING] 9. Adjust the monitor volume balance between the sound of the channel Outputting sound for which [CUE] g is pressed and the sound of the [MASTER] channel.
Switching between monaural and stereo audio The sound output from the [MASTER 1], [MASTER 2], [BOOTH], [REC OUT], [PHONES] and [USB] terminals can be switched between monau- ral and stereo. Switch between [MONO, STEREO] k. Frequency ! [MONO]: Outputs monaural audio. ! [STEREO]: Outputs stereo audio.
Sometimes the trouble may lie in another component. Inspect the other components and electrical appliances being used. If the trouble cannot be rectified after checking the items below, ask your nearest Pioneer authorized service center or your dealer to carry out repair work.
Block Diagram SEND/RETURN FX ON/OFF SW CH.SELECT SEND/RETURN CH 1-4 RETURN MIC 1 LEVEL TALKOVER RETURN MIC 2 DETECT LEVEL SEND MIC 1+2 MIC 1 RETURN MASTER MIC 1 SEND ( SND/RTN ) ZONE RETURN MIC 1+2 SEND MIC 2 RETURN TALKOVER MIC 2...
