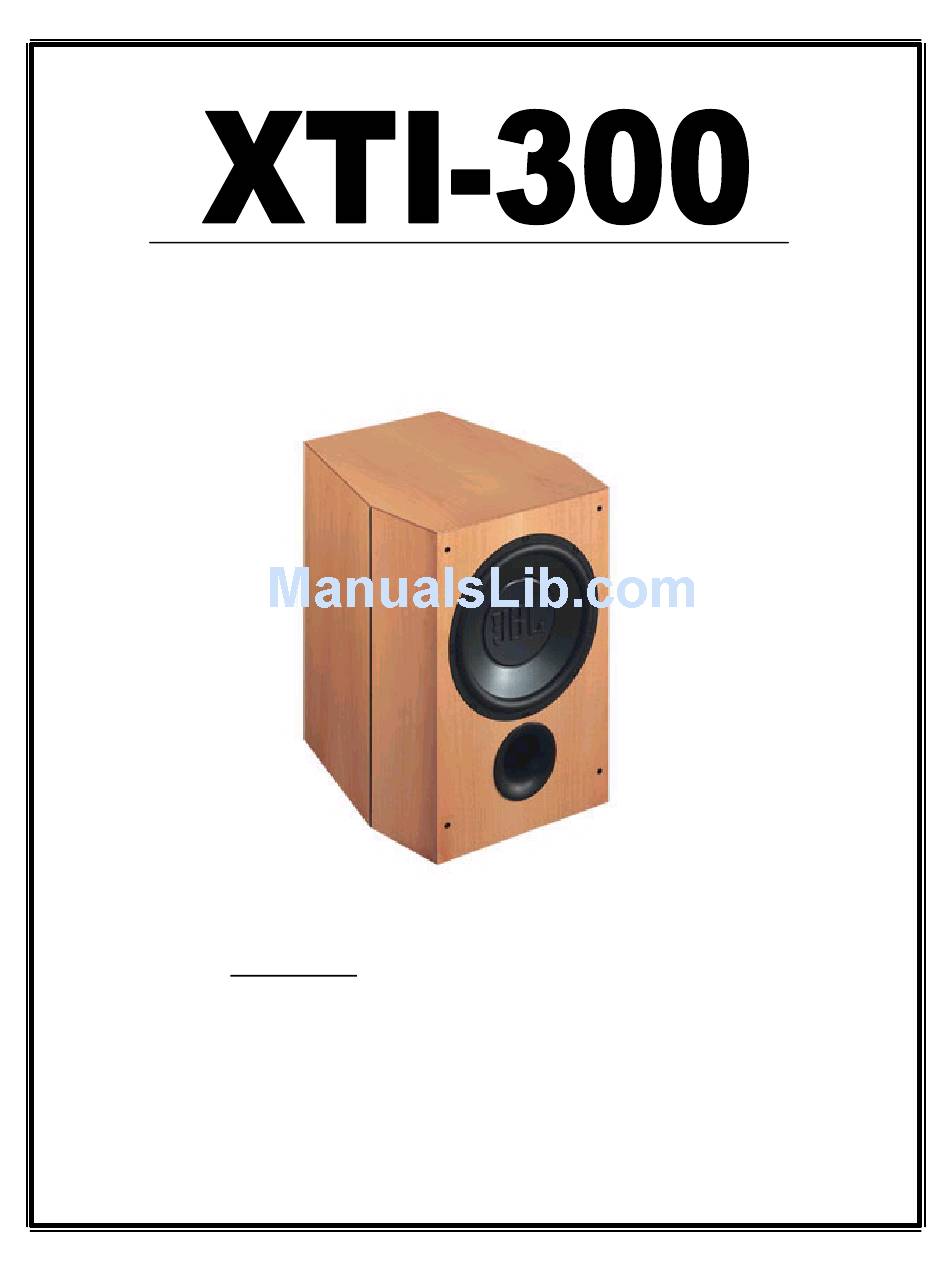

JBL XTI-300 Service Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Service manual
SPECIFICATIONS:
General Section
•
Frequency Response: 25Hz - 130Hz
•
Built-in Amplifier: 300 Watts Class D
•
Crossover Frequency: 40Hz - 130Hz, 24dB/octave
•
Low-Frequency Driver: 12" Polylaminate
•
Input / Outputs: Line- and high-level
•
Finish: Beech or Brown Cherry Real Wood Veneer
•
Dimensions (H x W x D): 550mm x 410mm x 500mm
•
Weight: 28kg

Advertisement

loading

Related Manuals for JBL XTI-300

Summary of Contents for JBL XTI-300

  • Page 1 Service manual SPECIFICATIONS: General Section • Frequency Response: 25Hz - 130Hz • Built-in Amplifier: 300 Watts Class D • Crossover Frequency: 40Hz - 130Hz, 24dB/octave • Low-Frequency Driver: 12" Polylaminate • Input / Outputs: Line- and high-level • Finish: Beech or Brown Cherry Real Wood Veneer •...

  • Page 3: Specification

    4/3/02 BILL OF MATERIAL(MASTER P/L) MODEL CODE: 91AM-K1000-01E MODEL NAME: AMP-250 BUYER: JBL DESTINATION: EUROPE Date: 2002.03.18 ASS'Y CODE PARTS CODE DESCRIPTION SPECIFICATION Q'TY Loc. No Ass'y Mecha A2AMK1000A1E DD4B00340TB0 BRIDGE RECTIFER BU8-06 1 BR1 A2AMK1000A1E FGFBS2002837 FUSE GLASS 2A 250V 50T...
  • Page 4 4/3/02 ASS'Y CODE PARTS CODE DESCRIPTION SPECIFICATION Q'TY Loc. No A2AMK1000A2E CCMBJ220J0AH CAPACITOR CHIP/MONO GRM40 COG 220J 50PT 11 C30 A2AMK1000A2E CCMBJ220J0AH CAPACITOR CHIP/MONO GRM40 COG 220J 50PT 11 C31 A2AMK1000A2E CCMBJ220J0AH CAPACITOR CHIP/MONO GRM40 COG 220J 50PT 11 C32 A2AMK1000A2E CCMBJ220J0AH CAPACITOR CHIP/MONO GRM40 COG 220J 50PT 11 C33...
  • Page 5 4/3/02 ASS'Y CODE PARTS CODE DESCRIPTION SPECIFICATION Q'TY Loc. No A2AMK1000A2E KNCW009705T9 CONNECTOR-WAFER JE202-1T-5P 1 ST1 A2AMK1000A2E KORB00120C00 FERRIT BEAD BL01RN1-A62-001 3 L1 A2AMK1000A2E KORB00120C00 FERRIT BEAD BL01RN1-A62-001 3 L2 A2AMK1000A2E KORB00120C00 FERRIT BEAD BL01RN1-A62-001 3 L5 A2AMK1000A2E KORI00020000 AORCORE INDUCTOR 75nH 4 L3 A2AMK1000A2E KORI00020000...
  • Page 6 4/3/02 ASS'Y CODE PARTS CODE DESCRIPTION SPECIFICATION Q'TY Loc. No A2AMK1000A2E RCPBF3R0F520 CHIP RESISTOR(SMT) 3R 50ppm 1%(SSM0204 MELF) 6 R67 A2AMK1000A2E RCPBF682F520 CHIP RESISTOR(SMT) 6K8 50ppm 1%(SSM0204 MELF) 2 R47 A2AMK1000A2E RCPBF682F520 CHIP RESISTOR(SMT) 6K8 50ppm 1%(SSM0204 MELF) 2 R49 A2AMK1000A2E RCPBH1R0F620 CHIP RESISTOR(SMT) 1R0 50ppm 1%(SSM0207 MELF)
  • Page 7 4/3/02 ASS'Y CODE PARTS CODE DESCRIPTION SPECIFICATION Q'TY Loc. No A2AMK1000A3E CFMTN223JEK0 CAPACITOR F/POLYESTR 0.022uF J 100V 7.4x13 T 2 C11 A2AMK1000A3E CFMTN223JEK0 CAPACITOR F/POLYESTR 0.022uF J 100V 7.4x13 T 2 C13 A2AMK1000A3E CFTTJ104JEC0 CAPACITOR F/TF 0.1uF J 50V ECQ-V1H104JL3 1 C21 A2AMK1000A3E DDTS00070SO0 DIODE-SI...
  • Page 8 4/3/02 ASS'Y CODE PARTS CODE DESCRIPTION SPECIFICATION Q'TY Loc. No A2AMK1000A3E RJWT00000AA0 RESISTOR-JUMPER WIRE60mm-TX123 F 35 JW1 A2AMK1000A3E RJWT00000AA0 RESISTOR-JUMPER WIRE60mm-TX123 F 35 JW14 A2AMK1000A3E RJWT00000AA0 RESISTOR-JUMPER WIRE60mm-TX123 F 35 JW15 A2AMK1000A3E RJWT00000AA0 RESISTOR-JUMPER WIRE60mm-TX123 F 35 JW16 A2AMK1000A3E RJWT00000AA0 RESISTOR-JUMPER WIRE60mm-TX123 F 35 JW17 A2AMK1000A3E RJWT00000AA0...
