S P E C I F I C A T I O N S
Amplifier Power (RMS):
Low-Pass Frequency:
High-Pass Frequency:
Frequency Response:
Dimensions (H x W x D):
All features and specifications are subject to change without notice.
* Trademarks of Dolby Laboratories.
DTS is a registered trademark of Digital Theater Systems, Inc.

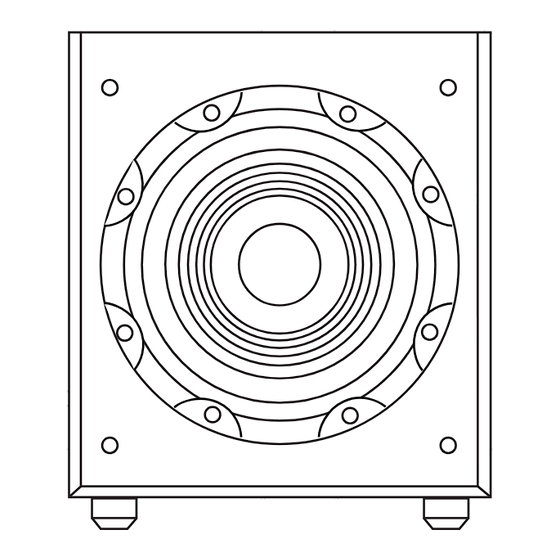

O W N E R ' S G U I D E
STUDIO
P R O D U C T L I N E :
S120P
M O D E L
N U M B E R :
D E S I G N G O A L : Bring the thrill of live performance and movie sound to
the home environment by calling on JBL's professional engineering leadership.
W O O F E R T Y P E : Pure-cellulose fiber
P O R T D E S I G N : FreeFlow™ flared
P R O F E S S I O N A L R E F E R E N C E : Studio Monitor
400 Watts
Driver:
12" PolyPlas
rubber surround; SFG
high-temp, oversized, fiberglass voice coil; HeatScape
motor structure; cast-aluminum basket
Inputs:
Line Level (switchable to LFE), BassQ
Speaker Level with gold-plated, 5-way binding posts
Outputs:
BassQ and Speaker Level (High-Pass with
gold-plated, 5-way binding posts)
Continuously variable from 50Hz – 150Hz
150Hz when using speaker-level outputs
22Hz – Low-pass crossover setting
17-3/16" (with feet, without spikes) x 16-3/16" x 18" (19" with grille)
437mm (with feet, without spikes) x 411mm x 457mm (483mm with grille)
Weight:
56 lb/25.5kg
™
SERIES
JBL Consumer Products
II
250 Crossways Park Drive, Woodbury, NY 11797
8500 Balboa Boulevard, Northridge, CA 91329
800-336-4JBL (4525) (USA only)
www.jbl.com
© 2001 JBL, Incorporated
JBL is a registered trademark of JBL, Incorporated.
Part No.: 338003-001
™
(polymer-coated cellulose fiber) cone;
™
; magnetic shorting rings;
P R O S O U N D
C O M E S H O M E
™
™
and
™
Advertisement
Table of Contents
Related Manuals for JBL STUDIOTM SERIES S120PII
Summary of Contents for JBL STUDIOTM SERIES S120PII
- Page 1 D E S I G N G O A L : Bring the thrill of live performance and movie sound to the home environment by calling on JBL’s professional engineering leadership. W O O F E R T Y P E : Pure-cellulose fiber P O R T D E S I G N : FreeFlow™...
