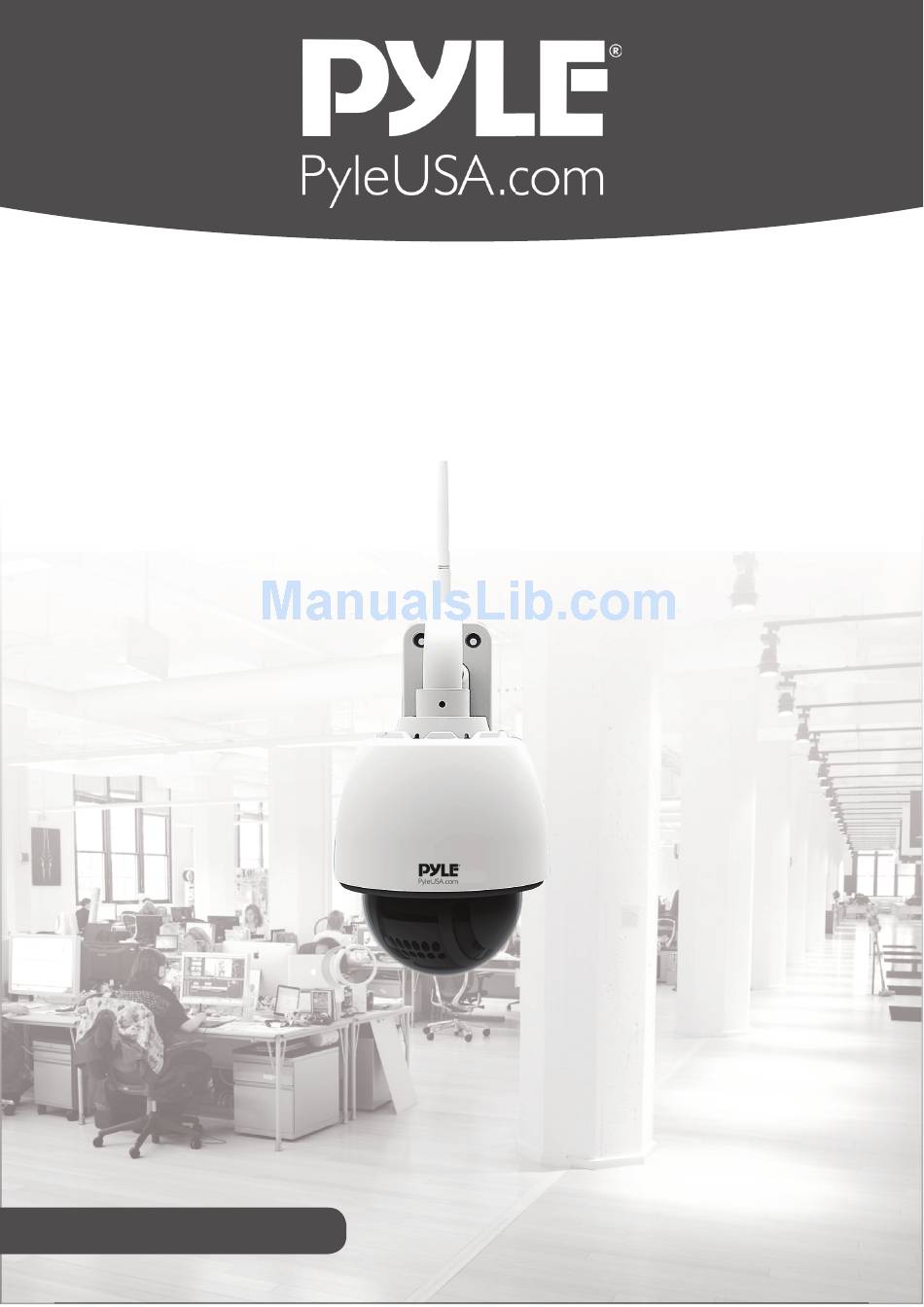

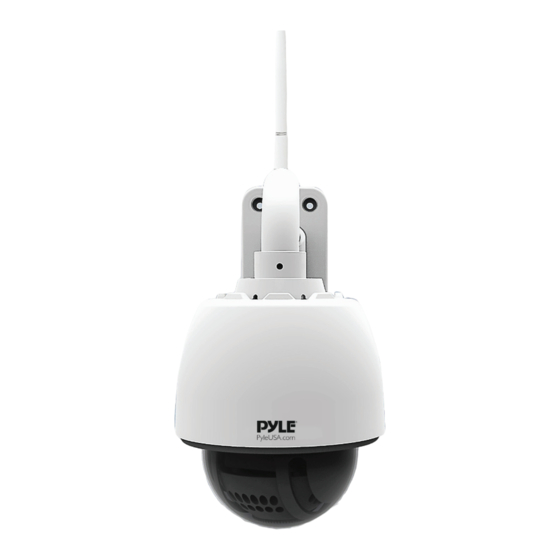

- Page 1 OUTDOOR WIRELESS/WIRED HD P2P NETWORK CAMERA (with H.264 image compression) INSTRUCTION MANUAL FAQs Video Resources Customer Support Available Online www.PIPCAMWireless.com Models: PIPCAMHD46 | PIPCAMHD47...
-
Page 2: Packing List
Don’t miss out! Claim your free 1 year warranty by registering with us online! www.PIPCAMWireless.com INTRODUCTION This is an integrated wireless IP Camera. It combines a high quality digital Video Camera with network connectivity and a powerful web server to bring clear pictures to your Desktop from anywhere on your local network or over the Internet. - Page 3 PIPCAMHD46/47 USER MANUAL Camera Password Defaults NOTE: Your camera will have 2 sets of username/ password Mobile app User: admin Pass: pylecam Web Login User: admin Pass: pylecam *These passwords are not related – changing password in the app or the web UI only affects the password in that interface.
- Page 4 Check FAQ Online 1. Download the App: Download “Pyle IPCameraViewer” in Apple Store or Google Play 2. Check the camera is in wireless setup mode - Reset the camera by pressing the switch in the camera cable bundle Hold in the reset switch for 10 - 12 seconds. You may hear a faint click. Wait again 1 - 2 min for the camera to reset and run through the full range of pan and tilt 3.
- Page 5 4. Open the Pyle IPCameraViewer app Select the “add camera” button 5. Select the option for PIPCAMHD45/PIPCAMHD46 6. Select “Wireless Connection” 7. Scan the QR code located on the frame of the camera to automatically add the camera’s unique ID...
- Page 6 PIPCAMHD46/47 USER MANUAL 9. Wait for the camera to load Recommended! Select the option to change the camera password Default Value: “pylecam”...
- Page 7 PIPCAMHD46/47 USER MANUAL You can change the password at a later time by pressing and holding the reset switch If you do not get a successful connection - Back out and double check you have correctly entered the password for your home wireless router (it is case...
- Page 8 PIPCAMHD46/47 USER MANUAL Camera View Page Use this page to view a specific camera - access camera settings and enable features Swipe right, left, up or down on the live view to activate your camera's PTZ Pinch your fingers together to digitally zoom in...
- Page 9 PIPCAMHD46/47 USER MANUAL Snap: Takes a picture from camera - this will save to the phone memory not the SD Record: Records the current live feed to phone memory - Does not work in the background Call: Support for models with 2 way audio only - listen to the camera surroundings - push to talk through the...
- Page 10 PIPCAMHD46/47 USER MANUAL Adjust the camera brightness, contrast and hue settings Advanced Settings Access this screen to make changes to the settings detailed below Name: You can set or change name for camera Change camera password: WiFi: You can set or change WiFi...
- Page 11 PIPCAMHD46/47 USER MANUAL Once motion detection is enabled - you can make adjustments to the camera's sensitivity to trigger alerts. Adjust higher if you do not receive alerts and lower if you are receiving false alarms. Memory Card: See the remaining space Enable recording alarms to the memory Turn on video "Auto-Overwrite"...
- Page 12 PIPCAMHD46/47 USER MANUAL For 24 hour recording - select all the days and an end time 23:59 Or set the start and stop times and the days of the week to record - You can find more advanced scheduling settings in the camera web UI Setting Record on Motion Detection Go to the camera advanced setting >...
-
Page 13: Desktop Setup
PIPCAMHD46/47 USER MANUAL You can then save the files directly to your mobile device Desktop Setup Please note: This manual covers desktop setup for use with the camera’s built in web interface. The camera is also compatible with some 3rd party software. Please check the other options for desktop use on our website online. - Page 14 PIPCAMHD46/47 USER MANUAL 6) Locate the “IP Address Tool” folder and install the “SearchIPCam Setup” file on your computer 7) Once installed – open the “S-CAM Finder” app 8) Click the “Refresh” icon to find your camera No Camera Detected?
- Page 15 PIPCAMHD46/47 USER MANUAL -I recommend using Google Chrome for fast initial wireless setup – to continue setting up using Internet Explorer, skip to the link at the end of the guide to learn how to install the Active X plugin – then resume step...
- Page 16 PIPCAMHD46/47 USER MANUAL 2) In the left column - click “Network Settings” > “Wireless Settings” 3) Click the “Search” button to display any wireless networks in range No Networks Detected? See FAQ online https://pyleaudio.helpshift.com/a/pyle-ip/?s=general&f=i-don-t-see-any-networks-detected-when-setting-up- wifi Or go to the FAQ on pipcamwireless.com and search the FAQ “I don’t see any networks detected”...
-
Page 17: Internet Explorer Setup
PIPCAMHD46/47 USER MANUAL DON’T UNPLUG YOUR CAMERA POWER CABLE YET 5) Now let’s test the wireless connection in the same room as your wireless router before moving the camera to the final location -Leaving the power plugged in - Disconnect the wired Ethernet cable and wait 6) Wait 2-3 minutes for the camera to reboot -I know - it doesn’t look like it is doing anything…... - Page 18 PIPCAMHD46/47 USER MANUAL You can also click “Start” menu->“Internet Explorer”, and choose “Internet attributes”, or via “Control Panel” ->“Internet Explorer”, to access Security settings. NOTE: Make sure that your firewall or anti-virus software doesn’t block the software or ActiveX. If you couldn’t...
- Page 19 PIPCAMHD46/47 USER MANUAL Note: Full Features for the Camera are Only Available in Internet Explorer. If you are using another browser – you will not see some options and features that are covered in this manual. Internet Explorer Allows the Extra Features Like...
-
Page 20: Live Video
PIPCAMHD46/47 USER MANUAL Internet Explorer Functions Live video: Selects live video window Playback：Click to query and playback the video files Settings：Setting the camera’s parameters Live Video Play: Play the live video. Stop: Stop the live video. Snapshot: Click to take snapshot, the picture will be saved in the PC to its appointed path as JPG... - Page 21 PIPCAMHD46/47 USER MANUAL Record: Click to start the recording; the icon will change to green color. Audio: Click it to enable listen function; the icon will change to green color Talk: Click it to enable talk function; the icon will change to green color Clear Alarm: Click to stop the alarm manually when there is an alarm triggered, and pop-up prompt as Full screen: Click to get full screen view;...
- Page 22 PIPCAMHD46/47 USER MANUAL Frequency: Including 50HZ, 60HZ, Outdoor. 50HZ/60HZ for the users who use 50HZ/60HZ frequency, outdoor for the users who want to use this camera to monitor an outdoor environment (through a window). Mirror and Flip -Mirror: Select this checkbox to see a mirror image. Uncheck it to go back to normal.
- Page 23 PIPCAMHD46/47 USER MANUAL PT Control: Set Pan/Tilt as upward, downward, leftward, rightward, up-left, down-left, up-right, down-right, Center: Click this icon, the camera will pan/tilt, and then stop at the center. Up: Click this icon, camera will move up, you can click one by one or hold it to control the movement.
- Page 24 PIPCAMHD46/47 USER MANUAL Click this icon, the camera will rotate up and down, i.e., vertical tilt, click to stop it Click this icon, the camera will rotate left and right, i.e., horizontal pan, click to stop it Click this icon, IO output Switch ON. Click to set it OFF.
- Page 25 PIPCAMHD46/47 USER MANUAL SETTINGS Status----Device Info. Select the icon to access your camera settings Setup User Permission User can set 10 different usernames and passwords for different permission; Permission: Administrator, Operator; Visitor; Super Administrator：Every device has a super administrator, it has the highest permission, can set all the parameters.
-
Page 26: Multi-Device Settings
PIPCAMHD46/47 USER MANUAL Multi-Device Settings See the help video for setting up multi device online Click “Multi-Device Settings” to enter the interface: If you have more cameras in same LAN network, software can auto-detect them and list in “Device List in LAN”... -
Page 27: Audio Settings
PIPCAMHD46/47 USER MANUAL PC Timing: Camera will set the time the same as your PC. NTP Server: User will need to select a working time server and select the time zone. Audio Settings External Headset: User needs to enable this feature, to connect external audio device like speak, Mic. -
Page 28: Wireless Settings
PIPCAMHD46/47 USER MANUAL Wireless Settings Click the icon “Search” to scan the wireless network in this environment automatically. Using Wireless LAN: Set Wi-Fi ON/OFF. SSID: the ID of Wireless network, it should be the same SSID as the connected Wi-Fi router. -
Page 29: Upnp Settings
PIPCAMHD46/47 USER MANUAL UPNP Settings Enable UPNP: Set UPNP function ON/OFF – this will enable port forwarding for remote viewing NOTE: Here UPNP only for port forwarding now. It has much relation with security settings of your router, make sure the UPnP function of router is ON. -
Page 30: E-Mail (Smtp) Settings
PIPCAMHD46/47 USER MANUAL FTP Settings Set FTP service, Snapshots will be delivered to appointed FTP server when alarmed. Enable FTP: Set FTP function ON/OFF. FTP Server: Set FTP server address. FTP Port: Set the port of FTP server, default is 21. -
Page 31: Video Info
PIPCAMHD46/47 USER MANUAL SMTP Port: The sender’s SMTP Port, usually is 25, some SMTP servers have their own port, e.g., the smtp port for Gmail is 465. Auth User: Verify the user settings. SMTP Username: Set sender’s user name or email address. -
Page 32: Motion Detection
PIPCAMHD46/47 USER MANUAL Set the parameters of Main-Stream and Sub-Stream as below: Resolution: 1280 x 720, 640 x 368, 320 x 208 optional. Frame Rate: Set the frame rate according to the bandwidth. Frame rate could be “Auto” or “from 1 fps to 30 fps (Real time)”. -
Page 33: Alarm Settings
PIPCAMHD46/47 USER MANUAL Before setting a specified zone, you should set "Motion Detection" to "ON", then press left mouse, drag the mouse onto video area to set the detection zone, and save it, supports 3 areas. ● Detect All: Setting the whole video window as the motion detect armed zone. - Page 34 PIPCAMHD46/47 USER MANUAL ● Alarm Input: Set alarm input ON/OFF, it supports NO/NC external alarm device, choose the correct mode to make sure it works well, it refers to the I/O pin6 (Input2) and pin7 (Input1). Alarm output: Select it to enable alarm output, unselect to stop.
-
Page 35: Sd Card Info
PIPCAMHD46/47 USER MANUAL SD Card info Device Name: Display the name of SD card. Total Size: Display the total size of SD card Balance Space: Display the free space of SD card Status: Display the state of SD card. Format: Click it to delete all data and format the SD card. (All data will be lost if formatted). -
Page 36: System Log
PIPCAMHD46/47 USER MANUAL Resident Time: Camera stay time: Such as, Preset 1; Resident time: 3 seconds; Then when camera in preset 1 location, will stay for 3 seconds. Speed: camera moving speed. Note: After setup, user can go to live video screen, and call the “Cruse” under the panel. - Page 37 PIPCAMHD46/47 USER MANUAL System Reboot Device: Camera will get reboot. Restore factory settings: User can restore factory settings once forget password, settings..etc. Upgrade Device Firmware: To upgrade or degrade the camera firmware. (The firmware needs to store in the same camera you are viewing camera.) Upgrade Device Web UI: To upgrade or degrade the camera web UI.
- Page 38 PIPCAMHD46/47 USER MANUAL Search Mode: User can search the record, snapshot… etc by different methods. Search Type: External Alarm and Motion detection optional; Select External Alarm; Camera will search the alarm file from External alarm which comes from other device; Select motion detection, Camera will search the alarm file from motion detection.
-
Page 39: Frequently Asked Questions
PIPCAMHD46/47 USER MANUAL FREQUENTLY ASKED QUESTIONS I have forgotten the administrator username and/or password There is a [RST] button on the rear panel, keep the power on, hold the reset button for 30 seconds, it will restore back to factory default settings as below:... - Page 40 PIPCAMHD46/47 USER MANUAL Solution: modify the physical address of IP camera. Possible Reason 5: Web port has been modified. Solution: Contact as Network Administrator to obtain related information. Possible Reason 6: Unknown. Solution: Press RESET to restore to factory settings then connect it again, the default IP address is 192.168.1.155, subnet mask is 255.255.255.0...
- Page 41 PIPCAMHD46/47 USER MANUAL Note: If you are unable to do it, it means your DirectX is not installed properly or hardware doesn't support this function. Fail to use DDNS Possible Reason 1: The PC or IP Camera can’t connect to the internet.
- Page 42 PIPCAMHD46/47 USER MANUAL Repeat step 3 above, it will pop-up the window again, fill in the media port as 38401, IP address as 192.168.1.100, then save. Then check the “Device Info” –“DDNS Status”, It will show DDNS: http://test.aipcam.com:85 , input this link in IE, then you can visit this camera remotely.
- Page 43 PIPCAMHD46/47 USER MANUAL...
- Page 44 PIPCAMHD46/47 USER MANUAL How to install the SD card PIPCAMHD46 does not come shipped with the SD installed – to install a SD card 1. Open the lens cover. 2. Turn the camera to one side and you can see the slot on the back of it as the pic and then insert the TF card.
-
Page 45: Specifications
PIPCAMHD46/47 USER MANUAL SPECIFICATIONS Image Sensor 1/3" Color CMOS Sensor Display Resolution 1280 x 960 Pixels (1300K Pixels, i.e. 1.3 Megapixel) Image Sensor Lens 3.5-13.7mm Mini. Illumination 0.5 Lux Viewing Angle 60 Degree Input Built-in Microphone/1 channel audio input Audio... - Page 46 PIPCAMHD46/47 USER MANUAL For FAQs – Video Tutorials and contact us visit us on www.PIPCAMWireles.com Don’t miss out! Claim your free 1 year warranty by registering with us online! www.PIPCAMWireless.com...
