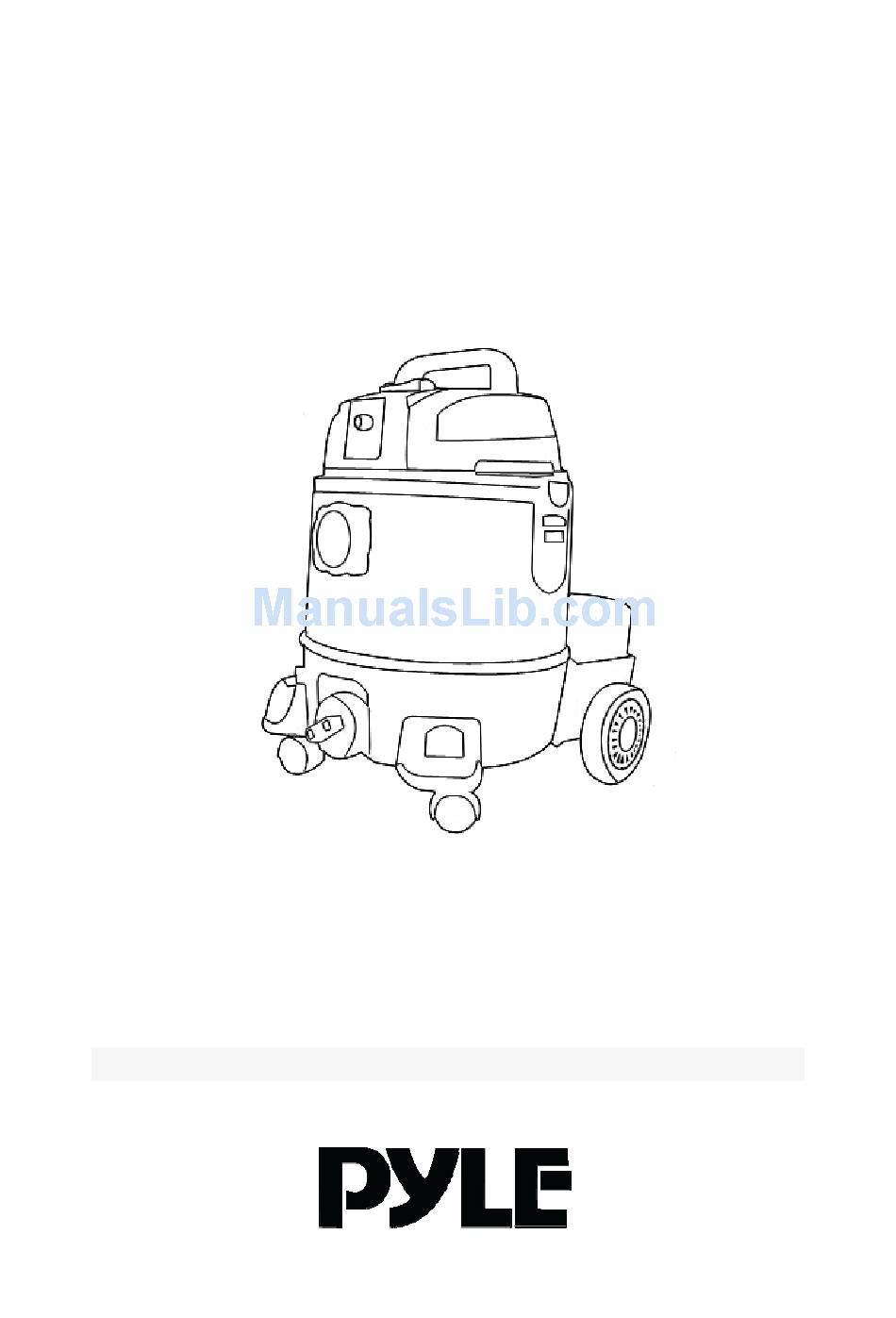

- Page 1 PUCVWD43 Wet/Dry Shop Vac Wet/Dry Shop Vac, Multi-Surface Vacuum & Carpet Cleaner www.pyleaudio.com...
- Page 2 INSTRUCTIONS FOR: WET & DRY SHOP VAC Thank you for purchasing a product. Manufactured to a high standard this product will, if used according to these instructions and if properly maintained, give you years of trouble free performance. IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS &...
-
Page 3: General Safety
1.1.8 DO NOT pull the plug from the socket by the cable. 1.1.9 DO NOT use worn or damaged cables, plugs or connectors. Immediately have any faulty item repaired or replaced by a qualified electrician. 1.1.10 Products which require more than 13 amps are supplied without a plug. In this case you must contact a qualified electrician to ensure that a suitably rated supply is available. - Page 4 This appliance is not intended for use by persons (including children) with reduces physical, sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
- Page 5 fig.1 Item Description 1 Handle. 2 Rear wheels. 3 Rear storage container 4 Shut-off valve basket 5 Shampoo tank. 6 Paper dust bag. 7 Shampoo pipe for large wash head 8 Large shampoo head 9 Shampoo spraying nozzle 10 Plastic tubes 11 Foam filter 12 Combo floor brush 13 Crevice tool...
- Page 6 4. ASSEMBLY 4.1 Do not connect the mains plug yet. 4.2-3 Undo tank clasps and lift off the top section assembly. 4.4 Remove contents from inside the tank. Check and identify each component as listed in fig.1. If anything is missing or damaged please contact your supplier immediately.
-
Page 7: Wet Vacuum Cleaning
WARNING! Always disconnect the plug from the mains supply before removing the tank cover. 5.1 IMPORTANT: The filter is made of high quality paper designed to filter small particles of dust. We Recommend that this filter be used for dry vacuuming only. - Page 8 Use of an incorrect filter will invalidate your warranty. 6.1 Ensure the machine is unplugged from the power supply. Make sure the tank is clean and free from dust and dirt. 6.2a For wet vacuum cleaning the foam filter must be used. When using the foam filter first remove any paper dust bag fitted.
-
Page 9: Carpet Cleaning
7. CARPET CLEANING 7.1 SET-UP Water, mixed with a suitable carpet shampoo solution, is pumped deep into the fibres of the carpet via the shampoo application nozzle. The dirty liquid is then sucked back into the waste tank along with the dirt and grime dislodged by the cleaning solution. - Page 10 7.1.6 Ensure that the transparent shampoo delivery tube is fitted correctly around the suction hose and held in place with the clips provided. 7.1.7 Screw the large threaded connector on the end of the flexible suction hose to the vacuum inlet on the front of the tank. 7.1.8 Push the connector on the end of the shampoo delivery tube into the shampoo outlet nozzle on the front of the motor housing.
-
Page 11: General Maintenance
The dirty solution is visible as it is sucked up through the transparent head. Stop vacuuming when there is no more dirty fluid visible. 7.2.6 Do not walk over any newly cleaned area until it is completely dry. 7.2.7 The small washing head is ideal for cleaning sofas, chairs, stairs and car interiors. -
Page 12: Troubleshooting
9.TROUBLESHOOTING Cleaner will not operate. No power supply. Check supply. Faulty power cable, switch or Check and repair or motor. replace faulty item. Container full of liquid. Empty container. Dust comes from the motor Bag missing or damaged. Fit or replace dust bag. cover.
