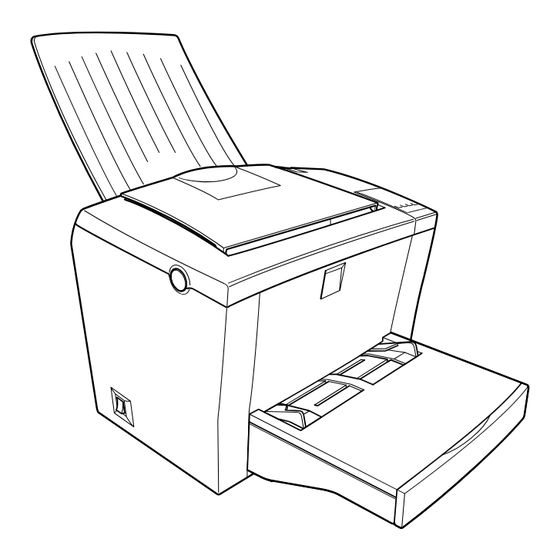

Epson EPL-5800 Service Manual

A4 monochrome laser printer
Hide thumbs Also See for EPL-5800:
Table of Contents

Advertisement

Quick Links

See also: Setup Manual
SERVICE MANUAL
SERVICE MANUAL
SERVICE MANUAL
SERVICE MANUAL
A4 Monochrome Laser Printer
EPSON EPL-5800
®
SEPG99012

Advertisement

Table of Contents
loading

Related Manuals for Epson EPL-5800

Summary of Contents for Epson EPL-5800

  • Page 1 SERVICE MANUAL SERVICE MANUAL SERVICE MANUAL SERVICE MANUAL A4 Monochrome Laser Printer EPSON EPL-5800 ® SEPG99012...
  • Page 2 ! The contents of this manual are subject to change without notice. ! All efforts have been made to ensure the accuracy of the contents of this manual. However, should any errors be detected, SEIKO EPSON would greatly appreciate being informed of them.
  • Page 3 2. MAKE CERTAIN THAT THE SOURCE VOLTAGES IS THE SAME AS THE RATED VOLTAGE, LISTED ON THE SERIAL NUMBER/RATING PLATE. IF THE EPSON PRODUCT HAS A PRIMARY AC RATING DIFFERENT FROM AVAILABLE POWER SOURCE, DO NOT CONNECT IT TO THE POWER SOURCE.
  • Page 4 PREFACE This manual describes basic functions, theory of electrical and mechanical operations, maintenance and repair procedures of EPL-5800. The instructions and procedures included herein are intended for the experienced repair technicians, and close attention should be given to the precautions on the preceding page. Chapters are organized as follows: CHAPTER 1.
  • Page 5 Revision Status Revision Date of Issue Description January 7, 2000 First Release February 15, 2000 [Chapter 7 : Appendix] The parts list is added.
  • Page 6 C H A P T E R PRODUCT DESCRIPTION...
  • Page 7 1.1 Outline EnhancedMicroGray installed (available only in 600dpi and 300dpi. automatically Off at 1200dpi) EPSON EPL-5800 is non-impact page printer with semi-conductor laser and RITech installed (available only in 600dpi and 300dpi. Automatically switched electrophotographic technology. Off when 1200dpi is selected.) 1.1.1 Features...

  • Page 8: Basic Specifications

    EPSON EPL-5800 Revision B 1.1.2 Differences from EPL-5700 1.2 Basic Specifications Table 1-3. Differences from EPL-5700 1.2.1 Printer Basic Specifications Item EPL-5700 EPL-5800 Note Printing Method: Electrophotographic process using semiconductor laser Engine speed 8ppm 10ppm beam scanning and dry mono-component toner...
  • Page 9 EPSON EPL-5800 Revision B First Print: See table below. Paper Supply: See table below. Table 1-5. First Print Table 1-6. Paper Supply 600dpi 1200dpi Paper Feed Capacity Paper Size Paper Thickness Method Paper Size Lower Cassette Lower Cassette Main Unit...
  • Page 10 EPSON EPL-5800 Revision B Paper Size: See table below. Consumables: " Toner cartridge (user replaceable) Table 1-7. Paper Size " Photoconductor unit (user maintenance item) Lower Paper Size Paper Manual Paper Size Cassette Applicable paper sizes: (mm / inch) Tray...

  • Page 11: Process Specification

    EPSON EPL-5800 Revision B Power Supply: 1.2.2 Process Specification " 100V model (compatible with 100/120V supply) Method: Electrophotographic method using dry mono-component 120V ± 50/60Hz 3Hz developing " 200V model (compatible with 100/120V supply) Light source: Semiconductor laser 220V~240V 50/60Hz 3Hz ±...
  • Page 12 EPSON EPL-5800 Revision B " 1.2.3 Paper Specification Folded, curled, or torn paper. " Irregularly shaped paper or paper with non-perpendicular corners. 1.2.3.1 Paper Type " Sheets of labels that peel off easily. Standard paper: Xerox 4024 DP paper 20 lb (75 g/m "...
  • Page 13 EPSON EPL-5800 Revision B 1.2.3.3 Printable Area (Engine) 1.2.4 Reliability, Durability, Serviceability Guaranteed print area: Entire paper area except for a 4 mm margin at each edge. MPBF: 25, 000 sheets min. one-sided printing (See Figure 1-1, "Guaranteed print Area").
  • Page 14 EPSON EPL-5800 Revision B Printing start position accuracy: Durability: 5 years or 180,000 sheets, whichever comes first. Including parts replaced by service technicians. (See 6.1.3 " ± Main scan direction: Reference position (c) 2.0 mm "Maintenance by Service Technicians") "...

  • Page 15: Operating Conditions Including Consumables

    EPSON EPL-5800 Revision B 1.2.5 Operating Conditions Including Consumables 547 (D) (with the top cover and paper feed cover open) ° Temperature: 10 to 35 Humidity: 15 to 85% RH (without condensation) Barometric pressure (altitude): 760 hPa min. (2500 meters max.) Horizontality: Max.

  • Page 16: Storage And Transport Environments Including Consumables

    EPSON EPL-5800 Revision B 1.2.6 Storage and Transport Environments Including 1.2.7 Electric Characteristics Consumables These items do not include the options. Temperature and humidity: See table below. AC line noise: " Table 1-11. Temperature and Humidity Conditions Pulse width: 50 to 1000 ns "...

  • Page 17: Applicable Standards And Regulations

    EPSON EPL-5800 Revision B 1.2.8 Applicable Standards and Regulations The engine specification meets the following standards and regulations. Table 1-14. EMC According to their intended destination, some standards and regulations apply to a product with controller. Model Name Applicable Standard...

  • Page 18: Consumable Specifications

    EPSON EPL-5800 Revision B 1.2.9 Consumable Specifications 1.2.9.2 Storage and Transport Environments Temperature and humidity conditions: 1.2.9.1 Specifications Table 1-16. Temperature and Humidity Conditions Table 1-15. Consumable Specifications Toner Cartridge and Name Contents Life Weight Conditions Photoconductor Unit Developer and...

  • Page 19: External Appearance And Parts Name

    EPSON EPL-5800 Revision B 1.3 External Appearance and Parts Name Paper Tray The following illustrations are top, right and left, and back views of the unit. Top Cover Paper Feed Switchover Lever Figure 1-6. Left View Right Cover (Option Cover)

  • Page 20: Controller Specification

    EPSON EPL-5800 Revision B 1.4 Controller Specification Parallel I/F Ventilation Fan connector 1.4.1 Controller Basic Specification CPU: VR 4310 133MHz RAM: " Standard: 16MB (SDRAM) " SIMM Option: 32MB, 64MB, 128MB (SDRAM, one slot) Maximum 256MB (when 256MB SDRAM DIMM mounted) ROM: "...

  • Page 21: Controller Configuration

    EPSON EPL-5800 Revision B 1.4.2 Controller Configuration EPL-5800 controller allows the following settings to be configured according to the market destination. The settings are made with jumpers, and must thus be set at the factory. JUMPER SETTING Packaged resistance RJ2, RJ3, RJ5, RJ7, RJ10, RJ12, RJ13...
  • Page 22 EPSON EPL-5800 Revision B 1.4.3 External I/F specification The default device ID setting for EPL-5800 is as follows. EPL-5800 has the following host interfaces as standard. MFG:EPSON; IEEE1284 parallel interface CMD:PJL,EJL,ESCPL2,PRPXL24-01,PCL,HPGL2-01,ESCPAGE-04,PCLXL** MDL:** USB interface CLS:PRINTER; Optional Type-B I/F Card slot DES:** MFG, MDL, CID of Device ID are re-definable.
  • Page 23 Revision B 1.4.3.2 USB Interface 1.4.3.3 Type B Interface Supports Windows USB PnP. EPL-5800 is equipped with one Type-B option I/F slot as standard. Main System Type: MTP1200dpi, PW10200dt1200dpi, PRG(****)rev, Supports the 18-digit USB ID as follows: AP500ma, SPD0fast, D4...
  • Page 24 EPSON EPL-5800 Revision B When Emulation is set to “Auto”, the following Entity Type will be returned. " If PS is not installed; EPSONPAGE4, EPSONCL5, EPSONLQ2, EPSONHPGL2, EPSONFX, EPSONPRPXL24 " If PS is installed; LaserWriter, EPSONPAGE4, EPSONPCL5, EPSONLQ2, EPSONHPGL2, EPSONPRPXL24 When Emulation is fixed, the following Entity Type will be returned.

  • Page 25: Control Panel

    EPSON EPL-5800 Revision B 1.5 Control Panel Table 1-18. Buttons and LEDs 1.5.1 Button/LED Arrangements on Control Panel Name Note On line LED Color: Green Data LED Color: Yellow Continue LED Color: Red Paper LED Color: Yellow Toner LED Color: Yellow...
  • Page 26 Table 1-19. Function Setting (1) Menu Item Value EPL-5800 has no LCD on the control panel, so it is impossible to make function settings from the control panel. Function settings can be made using “RCP”. The Printing Menu Paper Source Auto, MP, LC following tables are lists of the printer setting items.
  • Page 27 EPSON EPL-5800 Revision B Table 1-19. Function Setting (1) Table 1-19. Function Setting (1) Menu Item Value Menu Item Value Config Menu RITech On, Off AUX Menu AUX I/F Use, No Use Toner Save Off, On AUX Config No, Yes...
  • Page 28 EPSON EPL-5800 Revision B Table 1-20. Function Setting (2) Table 1-20. Function Setting (2) Menu Item Value Menu Item Value LJ4 Menu Font Source Resident, DIMM, Download ESC/Page Auto CR On, Off Menu* Font Number 0 ~ available (Max 65535)
  • Page 29 EPSON EPL-5800 Revision B Table 1-20. Function Setting (2) Table 1-20. Function Setting (2) Menu Item Value Menu Item Value GL2 Menu GL-Mode GLlike, LJ4GL2 ESCP2 Menu Font Courier, Prestige, Roman, Sans serif, Roman T, Orator S, Sans H, Script,...
  • Page 30 EPSON EPL-5800 Revision B Table 1-20. Function Setting (2) Table 1-20. Function Setting (2) Menu Item Value Menu Item Value FX Menu Font Courier, Prestige, Roman, Sans serif, Script, Orator I239X Menu Font Courier, Prestige, Gothic, Orator, Script, Presentor, S, OCR A, OCR B...
  • Page 31 EPSON EPL-5800 Revision B Font Source = Resident, Font Number = 0 Due to this, to print by this symbol set, a font must be selected for which the Font Source and Font Number Value are supported by this symbol set.
  • Page 32 EPSON EPL-5800 Revision B 1.5.2.1 Setting Items (Model-dependent) Stop “Toner Out” error occurs when the measurement of Toner counter reaches to the Described below are model-dependent specification details of the setting items for level where “Toner Out” error occurs. EPL-5800.
  • Page 33 EPSON EPL-5800 Revision B Table 1-23. Interface Settings QUANTITY Parallel Type B Operations This is the copy quantity setting when copying by quantity. This setting is specified I/F automatic Automatic selection taking preference over the Copies setting. When the printing quantity is 2 or more, the...

  • Page 34: Printer Messages

    EPSON EPL-5800 Revision B 1.5.3 Printer Messages Printer messages are Status Message, Error Message, Warning Message, and Service Call Error Message. Status Message is displayed only when there are no error or during the initialization. No two Status Messages displayed at the same time and Error Message is displayed in the priority order.
  • Page 35 EPSON EPL-5800 Revision B Table 1-24. Printer Message Messages in LCD-Equipped Models LED Indications Classification 1. All the LED on. Status 2. All the LED off. This indicates the printer is checking ROM. 3. Paper LED is turned off, and Toner LED lights on. This indicates the printer is checking RAM. After checking RAM has completed, Toner LED is turned off.
  • Page 36 EPSON EPL-5800 Revision B Table 1-24. Printer Message Messages in LCD-Equipped Models Paper LED Toner LED Memory LED Online LED Data LED Continue LED Classification & or % Writing ROM A Status same as normal data transfer & & Write Error ROM A...

  • Page 37: Service Call Errors

    EPSON EPL-5800 Revision B 1.6 Service Call Errors Explanation An error generated that cannot be solved by user side. LED Condition → → All LED on. (0.8 sec) All LED off (0.2 sec) Respective LED on specified by → error code (0.8 sec) All LED off (0.2 sec)
  • Page 38 EPSON EPL-5800 Revision B Table 1-25. Service Call Error (Engine-Related) Error Code Explanation Paper LED Toner LED Memory LED Online LED Data LED Continue LED & & E0003 Failure in fuser unit & & E0004 Failure in main motor &...
  • Page 39 EPSON EPL-5800 Revision B Table 1-26. Service Call Error (Controller-Related) Error Code Explanation Paper LED Toner LED Memory LED Online LED Data LED Continue Lamp & & & & C0095 CPU Error (Cash exception) & & & & & C0096 CPU Error (Trap exception) &...
  • Page 40 EPSON EPL-5800 Revision B Table 1-26. Service Call Error (Controller-Related) Error Code Explanation Paper LED Toner LED Memory LED Online LED Data LED Continue Lamp & & & C1200 EEPROM writing error & & & & C1210 EEPROM writing limit &...
  • Page 41 EPSON EPL-5800 Revision B 1.7 Special Operation EEPROM INITIALIZATION This operation clears the contents of EEPROM with “00H” and set the factory default The function described below are activated by holding the specified switches down parameters. when turning the printer on.

  • Page 42: Expansion Ram
