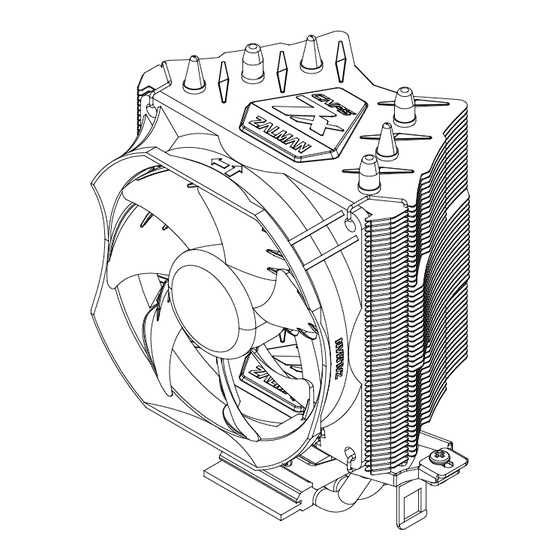

ZALMAN CNPS7X LED+ User Manual

ZALMAN CNPS7X LED+ User Manual

Intel socket 115x / 775 cpus amd socket fm2 / fm1 / am3+ / am3 / am2+ / am2 cpu&apus
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
User's Manual
CNPS7X LED+
Intel Socket 115X / 775 CPUs
AMD Socket FM2 / FM1 / AM3+ / AM3 / AM2+ / AM2 CPU&APUs
To ensure safe and easy installation, please read the following precautions
Product design and specifications may be revised to improve quality and performance.
www.ZALMAN.com
Ver.150806

Advertisement

loading

Related Manuals for ZALMAN CNPS7X LED+

Summary of Contents for ZALMAN CNPS7X LED+

  • Page 1 Intel Socket 115X / 775 CPUs AMD Socket FM2 / FM1 / AM3+ / AM3 / AM2+ / AM2 CPU&APUs To ensure safe and easy installation, please read the following precautions Product design and specifications may be revised to improve quality and performance. www.ZALMAN.com Ver.150806...

  • Page 2: Specifications

    ■ Check the components list and condition of the product before installation. If any problem is found, contact the retailer to obtain a replacement. ■ During transportation of the system, the cooler must be removed. Zalman is not responsible for any damages that occur during the transport of a system.

  • Page 3: Installation Requirements

    Installation Requirements Space Requirements The cooler’s installation requires an unobstructed space of 85㎜(width),104㎜(length) and 134㎜(height) with the CPU as a central reference point. Please check if components such as ODDs and PSU protrude into the required space. Air Guide Removal Air guides on enclosures must be removed before the cooler’s installation since they protrude into the cooler’s required space.

  • Page 4: Installation

    Installation Intel Socket Clip Support Installation(Socket 115X / 775) Align the A-type Clip Support’s lever with the socket type and fasten to the motherboard with pushpins. Socket 115X Socket 775 Clear off any particles or residue from the CPU’s surface. Then spread a thorough layer of Thermal Grease on the CPU and the base of the cooler.
  • Page 5 When reassembling the bolt, be sure to assemble only half way of the total length. Install the cooler on the Clip support as shown in the picture and connect the lug slot of the clip on to the lug on the clip support. Then fasten the bolts on each side a few turns at a time.
  • Page 6 Completely unfasten the 2 bolts already assembled on the clip and adjust the position to fit the AMD socket. Socket FM2 / FM1 / AM3+ / AM3 / AM2+ / AM2 Install the cooler on the Clip support as shown in the picture and connect the lug slot of the clip on to the lug on the clip support.
