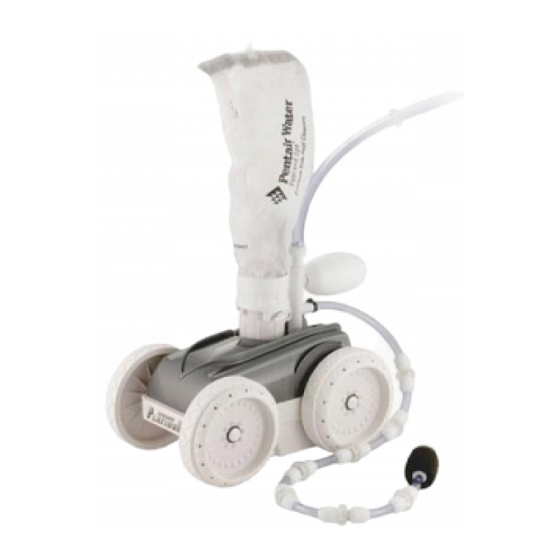

- Page 1 ® LEGEND Pressure Side Pool Cleaner Installation Guide IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS SAVE THESE INSTRUCTIONS LEGEND® PLATINUM INSTALLATION MANUAL...
- Page 2 Trademarks and Disclaimers. The Pentair Water Pool and Spa logo is a trademark of Pentair Water Pool and Spa, Inc. The Legend Platinum logo is a registered trademark of Pentair Water Pool and Spa, Inc. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products.
- Page 3 LL105PMTGG / LL105PMTWW LL105PMTRW / LL105PMTYW Important Information: ® The Legend Platinum automatic pool cleaner comes ready to connect into a female threaded 1-1/2" line, dedicated to our Universal Booster Pump. Also, if you have a chlorinator, solar system or other air inducing equipment, contact our Technical Support Department at 1-800-831-7133 before you install the ®...
-
Page 4: Table Of Contents
I. Introduction ... 1 A. Thank You for Choosing the Legend B. What to Expect from the Legend II. Installation Instructions ... 2 ® A. Legend Platinum Components ... 2 B. Pool Connections ... 2 C. Booster Pump Installation ... 2 D. -
Page 5: Introduction
I. Introduction A. Thank You for Choosing the ® Legend Platinum Pool Cleaner Congratulations on the purchase of your new automatic pool cleaner. The Legend designed to give you years of dependable and efficient service. With the Legend your family will spend more time relaxing and enjoying your pool and less time cleaning it. -
Page 6: Installation Instructions
II. Installation Instructions ® A. Legend Platinum Components ® The Legend Platinum Box Contains: 1. Cleaner Head 2. Sand & Silt Bag 3. Sweep Hose 4. Complete Feed Hose a. 1 - 8½ in. hose b. 2 - 10 ft. long hoses c. -
Page 7: Installing The Twist Lock Pressure Relief Valve (Wall Fitting)
D. Installing the Twist Lock Pressure Relief Valve (Wall Fitting) 1. Take out any existing pool cleaner and/or wall fitting. 2. Turn on the filtration pump and booster pump, flush out the plumbing line. 3. Turn off filter pump and booster pump. 4. - Page 8 EXAMPLE OF HOSE ASSEMBLY BEFORE CUTTING TO LENGTH EXAMPLE OF FINISHED HOSE ASSEMBLY AFTER CUTTING TO LENGTH MARKED SWIVEL STEPS 1. With the feed hose assembly attached to the pool wall, hold the feed hose assembly by the opposite end with the clear hose and walk the perimeter of the pool to locate the farthest point on the perimeter from the wall fitting without stretching the hose assembly.
- Page 9 E. Cutting the Feed Hose - (cont.) 3. Lay the telepole next to the clear (soft) hose. If the clear (soft) hose is longer than the mark on the telepole, cut the excess from the end attached to the white (hard) hose. Do not cut off the float. Leave the first float in position next to the Back-Up Valve.
-
Page 10: E. Cutting The Feed Hose
E. Cutting the Feed Hose - (cont.) 8. When cutting hoses, please use strong scissors or a sharp knife. Be sure to slide the floats out of the way when cutting hose. 9. Put extra mender nut on the Legend mast and push soft hose gently over mast at 1/2 in., turn mender nut around soft hose tight. -
Page 11: Checking Operation
F. Checking Operation When operating correctly, the Legend travel in a random pattern throughout the pool, vacuuming and sweeping the bottom. The climbing ® ability of the Legend Platinum is dependent on the pools structure and water flow coming into the pool. It will perform more efficiently in pools without sharp angles or curves in the transition from the floor of the pool to the wall. -
Page 12: Checking Wheel Rpm
3. Checking Wheel RPM To determine whether the Legend receiving the proper water pressure, turn off the booster pump, pool pump and carefully remove the Legend ® Platinum from the pool. Mark the front drive Tire/Wheel with a marker, or use the Logo located on the side of tire as a marker to count the rotations of the wheel per minute. -
Page 13: Operation/Periodic Maintenance
III. Operation/Periodic Maintenance Connecting/Disconnecting the ® Legend Platinum Turn off booster pump and pool pump. Then take the Wall Fitting and twist lock the Wall Fitting clockwise into the Wall Adapter. To disconnect the Legend Platinum, unlock and twist counter clockwise. The Wall Adapter should remain in the pool wall. -
Page 14: Tires & Bearings
You need to rotate or replace the tires when edges become rounded. The Wheel Bearings are warranted free of defects when shipped from Pentair Water Pool and Spa, Inc., and are considered a wear item. A good bearing will spin freely. -
Page 15: Troubleshooting
IV. TROUBLESHOOTING AND PERFORMANCE TIPS To insure the best performance from your cleaner, follow the troubleshooting guide listed below. A. PROBLEMS & SOLUTIONS ® Problem: Legend Platinum doesn't move or moves sluggishly or hangs up on steps. Solution: 1. Be sure filter pump and booster pump are on and working properly. -
Page 16: Iv. Troubleshooting
IV. TROUBLESHOOTING AND PERFORMANCE TIPS A. PROBLEMS & SOLUTIONS - (cont.) Problem: Sweep Hose is sucked into the cleaner. Solution: 1. Adjust the Sweep Hose using the Adjustment Screw located on the bottom of the Swivel Mast. Turn Adjustment Screw clockwise until the Sweep Hose is in a gentle sweeping motion. -
Page 17: Legend Platinum Parts List
LEGEND Diagram # Part # LLU5PM LLU145N LLU145NG EU10N LLU10NG LLU6 LLU6G EC86 EC83 EC80 EA40 LLA40G EC110 LLC110PM EX120 LLX120 EC120 LLC120G EB5L LLB5G EB10 EB25 LLB25PM EB20 LLB20G EA20 LLA20PMG EH07 LLH07PM EU15 EU15G EU16 EU16G EC130 LLC130G EC135 LLC135G EC65... -
Page 18: Legend ® Platinum Parts List
Part # Diagram # LLC60PM LL10PM EC55 LLC55PM LLC1PM LLC1PMG EB15 EC40 LLD50 LLD50PM ED10P LLD10PM LLD45 LLD45PM ED05 LLD05PM LLU1 LLU1PM ED15 LLD15PM LLW22PM EW22 LL25PM LL23PM EC64 EG15 EC131 LLC131G EU30 EU76 EU147 LLU147G EU79 EU80 LLU8G EU80 LLU81PM LLU81PMG ®... -
Page 19: Legend ® Platinum Exploded View
® LEGEND PLATINUM EXPLODED VIEW 8.5" FIRST 10' SECOND 10' HOSE HOSE 30" SOFT 7.5' SOFT HOSE HOSE LEGEND® PLATINUM INSTALLATION MANUAL... - Page 20 5/31/06 P/N YYPLATINSTALL REV. C © Pentair Water Pool and Spa, Inc. All rights reserved. Printed in USA. LEGEND® PLATINUM INSTALLATION MANUAL...
