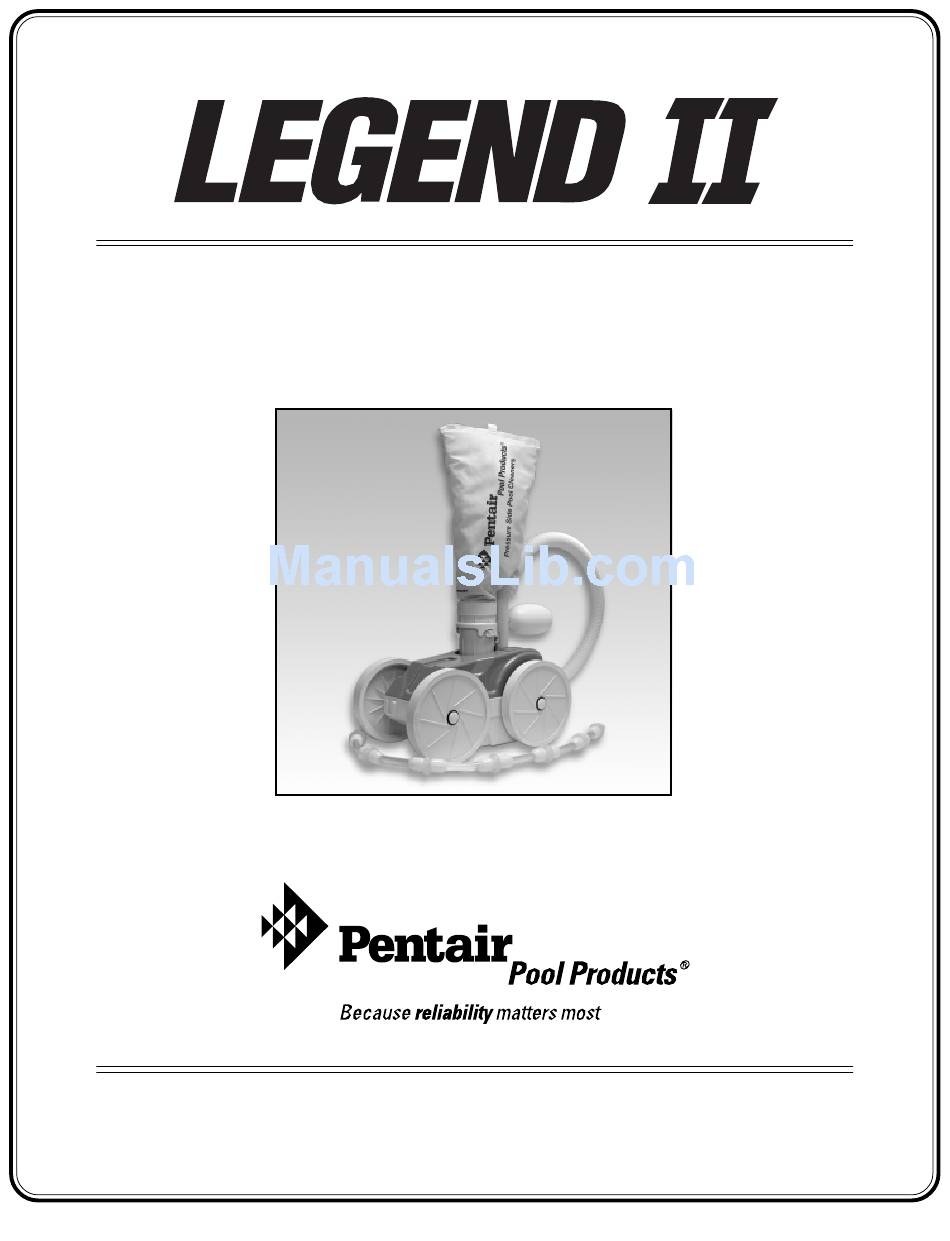

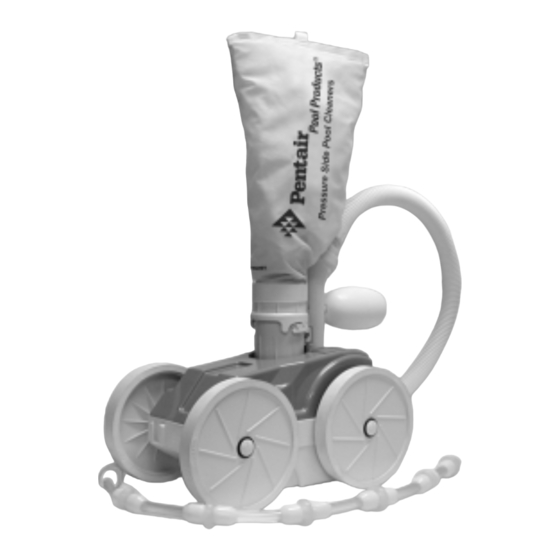

- Page 1 ® INSTALLATION MANUAL www.pentairpool.com REV. A 2-9-04 LEGEND® II INSTALLATION MANUAL P/N YYLXMAN...
- Page 2 ® The Legend II automatic pool cleaner comes ready to connect into a female threaded 1-1/2" dedicated return line. Other connections are possible, but they require additional fittings. For more information, please contact our Technical Support Department at 1-800-831-7133. Also, if you have a chlorinator, solar system...
-
Page 3: Table Of Contents
I. Introduction ... 1 A. Thank You for Choosing the Legend B. What to Expect from the Legend II. Installation Instructions ... 2 ® A. Legend II Components ... 2 B. Pool Connections ... 2 C. Installing the Twist Lock Pressure Relief Valve (Wall Fitting) ... 2 D. -
Page 4: A. Thank You For Choosing The Legend ® Ii
The Legend II has been designed and built with time proven features and patented innovations to create an automatic pool cleaner that will give you years of dependable service. The Legend in the U.S.A., by people who care about the product... -
Page 5: Installation Instructions
Technical Support Department also. C. Installing the Twist Lock Pressure Relief Valve (Wall Fitting) 1. Take out any existing pool cleaner and/or wall fitting. 2. Turn on the filtration pump and flush out the plumbing line. -
Page 6: Pressure Testing Instructions
4. IMPORTANT: Please double check the hose length to insure you will be getting the maximum performance from your pool cleaner. The hose lengthens when under pressure (when your pump is on). LEGEND® II INSTALLATION MANUAL ®... -
Page 7: Hooking Up The Legend
F. Hooking up the Legend 1. Remove the Pressure Tester from the free end of the Feeder Hose by unscrewing the Hose Nut. Left hand thread (reverse), (See illustration previous page). 2. Place mender nut on Legend Connect the open end of the Feed Hose to the top of the Legend ®... -
Page 8: Fine Tuning The Legend
H. Fine Tuning the Legend 1. Thrust Jet Adjustment There are two Thrust Jets located in the back of the ® Legend II. These Thrust Jets alter the direction of the cleaner. The factory standard position for the jets is set slightly to the right. (See illustration below). In certain pools, altering the thrust jets can increase performance of the Legend ®... -
Page 9: Checking Wheel Rpm
Legend Professional Pool Dealer. LEGEND® II INSTALLATION MANUAL ® II, call your If you have any additional questions, please contact Pentair Pool Products Inc, Technical Support Department at: 1-800-831-7133, Monday through Friday. -
Page 10: Operation/Periodic Maintenance
III. Operation/Periodic Maintenance A. Connecting/Disconnecting the ® Legend Turn off pool pump. Then take the Wall Fitting and twist lock the Wall Fitting clockwise into the Wall Adapter. To disconnect the Legend twist counter clockwise. The Wall Adapter should remain in the pool wall. B. -
Page 11: Tires & Bearings
You need to rotate or replace the tires when edges become rounded. The Wheel Bearings are warranted free of defects when shipped from Pentair Pool Products Inc., and are considered a wear item. A good bearing will spin freely. -
Page 12: Storage And Winterizing
III. Operation/Periodic Maintenance - (cont.) F. Storage and Winterizing ® Never leave or store the Legend II in direct sunlight. ® When storing the Legend II for the winter, be sure to drain all the water from it. This is important since freeze damage is not covered under the warranty. -
Page 13: Troubleshooting And Performance Tips
IV. TROUBLESHOOTING AND PERFORMANCE TIPS To insure the best performance from your cleaner, follow the troubleshooting guide listed below. A. PROBLEMS & SOLUTIONS ® Problem: Legend II doesn't move or moves sluggishly or hangs up on steps. Solution: 1. Be sure filter and filter pump are on and working properly. - Page 14 IV. TROUBLESHOOTING AND PERFORMANCE TIPS A. PROBLEMS & SOLUTIONS - (cont.) Problem: Sweep Hose is sucked into the cleaner. Solution: 1. Adjust the Sweep Hose using the Adjustment Screw located on the bottom of the Swivel Mast. Turn Adjustment Screw clockwise until the Sweep Hose is in a gentle sweeping motion.
- Page 15 TIPS FOR CUTTING HOSE IN A SMALL POOL, AND FOR ADDING HOSES FOR LARGE POOLS 1. Tips on Hose Cutting for Larger Pools. If the hose is short of the farthest end of the pool, add an additional section of hose (Part # LX17), one Swivel (Part # LX19), two Mender Nuts w/O-Rings (Part # LX20), and one Hose Float (Part # LXD10).
-
Page 16: Legend ® Ii Parts List
Diagram # Part # LXU5 LXU145N EU10N LXU6 EC86 EC83 EC80 EA40 LXC110 EX120 EC120 EC120 EB5L EB10 EB25 EB20 EA20 EH07 EU15 EU16 EC130 EC135 EC65 EC70 EC45 EC6L EC60 EC55 LXC1 ® LEGEND II PARTS LIST Description Top Cover Main Frame Bottom Cover Feed Mast w/O-Ring &... - Page 17 Part # Diagram # EB15 EA40 EA40 EC64 EA30 EU76 EU147 EU79 LXU8 EU80 LX10 LX11 inside H2 inside H2 LX16 inside H2 LXD10 LX17 LX18 LX20 LX19 LXW22 Inside H8 inside H8 inside H8 inside H8 LX26 LEGEND® II INSTALLATION MANUAL ®...
-
Page 18: Legend ® Ii Exploded View
® LEGEND EXPLODED VIEW SAVE THESE INSTRUCTIONS. LEGEND® II INSTALLATION MANUAL... - Page 19 This page is blank. LEGEND® II INSTALLATION MANUAL...
- Page 20 Pentair Pool Products, Inc. 1620 Hawkins Avenue • Sanford, NC 27330 10951 W. Los Angeles Avenue • Moorpark, CA 93021 800-831-7133 www.pentairpool.com 2/04 P/N YYLXMAN Printed in USA Pentair Pool Products, Inc. LEGEND® II INSTALLATION MANUAL...
